Makita DDF453: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DDF453: 14 positions on 1 sheet

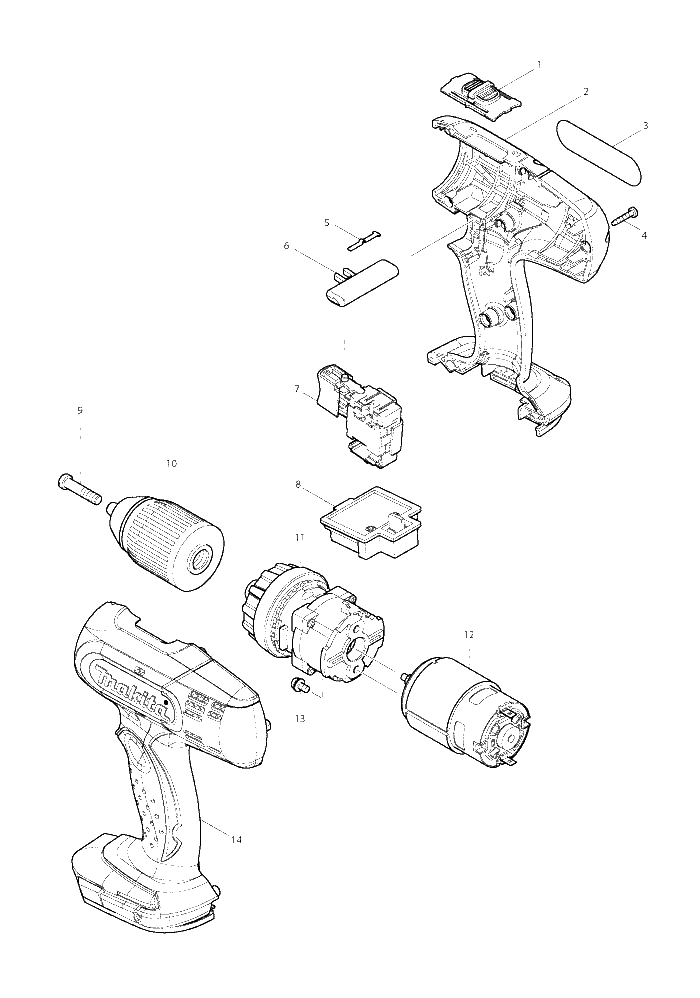

Sheet 1: Makita DDF453 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 125310-5 | Makita 125310-5 Speed Change Lever Assembly 6271D BDF450 BHP440 BHP450 |
| 2 | 187363-2 | Makita 187363-2 Housing Set for BDF453 BHP453 TEC.93856 |
| 3 | 815G82-9 | |
| 4 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 5 | 232182-2 | Makita 232182-2 Leaf Spring for 6226D |
| 6 | 419250-0 | Makita 419250-0 Forward Reverse Change Lever HP451D BDF343 BDF441 |
| 7 | 632A23-2 | Makita 632A23-2 Switch TEC.93856 for DF453D BDF453 BHP453 DHP453 |
| 8 | 643852-2 | Makita 643852-2 Terminal DF456D BUR181 BUM168 BTD146 |
| 9 | 251468-5 | Makita 251468-5 Flat Head Screw M6 X 22 6281 8391 BDF456 BHP442 BHP451 |
| 10 | 766004-9 | |
| 11 | 125483-4 | Makita 125483-4 Gear Assembly 6391D DDF453 BDF443 |
| 12 | 629937-8 | Makita 629937-8 Motor for BDF453 |
| 13 | 911108-4 | Makita 911108-4 PAN HEAD SCREW M4*8, 5704R |
| 14 | 187363-2 | Makita 187363-2 Housing Set for BDF453 BHP453 TEC.93856 |
