Bosch DD 533

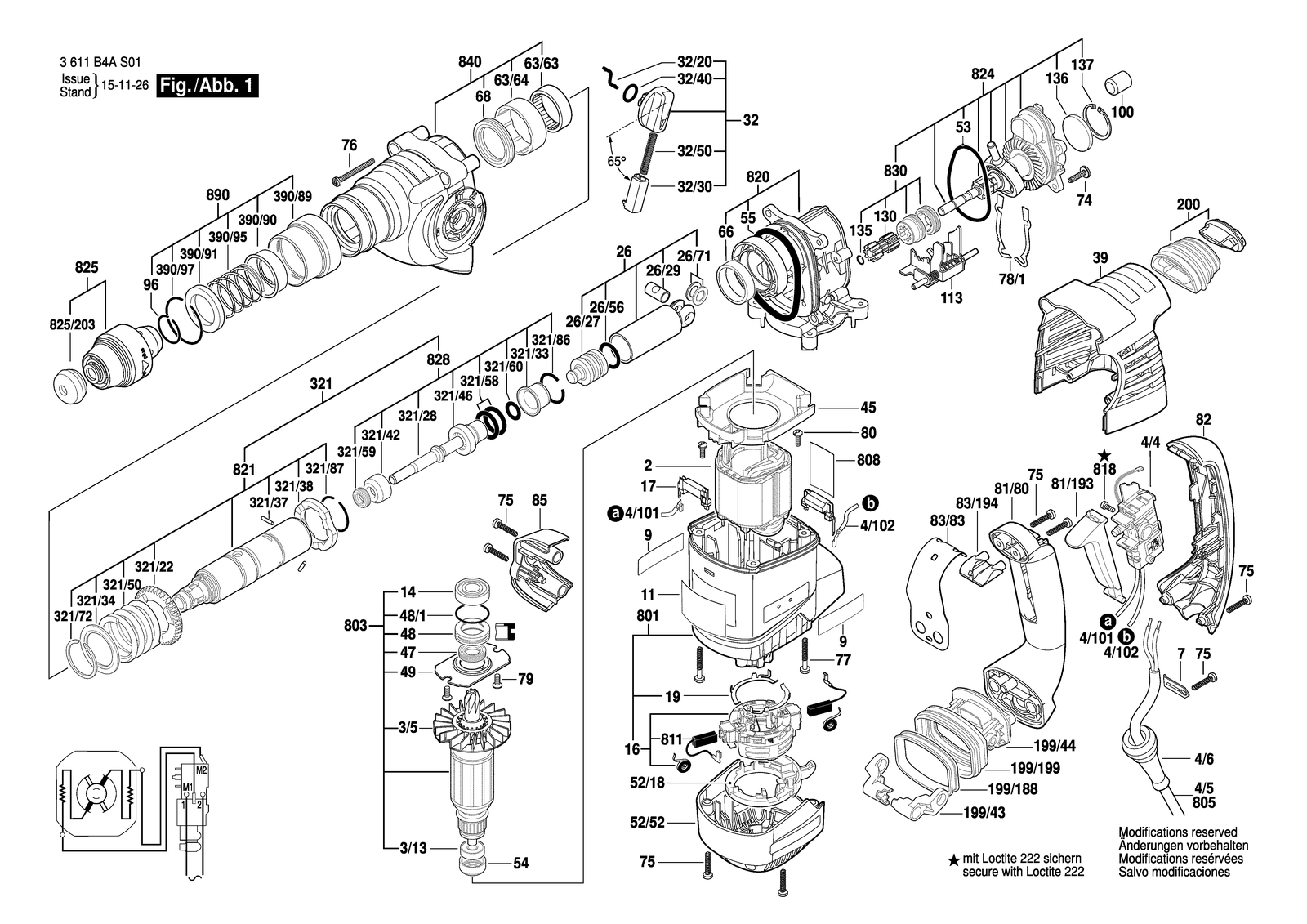

Bosch DD 533 rotary hammer: exploded parts diagram, 2 sheets, 220 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch DD 533: 220 positions on 2 sheets
Bosch DD 533 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 100 | 1610026003 | Damping rubber |
| 100 | 1610026003 | Damping rubber |
| 11 | 161111C01A | Reference Plate |
| 11 | 1611110W26 | Reference Plate |
| 113 | 1616325002 | Switching Panel |
| 113 | 1616325002 | Switching Panel |
| 120 | 1612025095 | Auxiliary Handle |
| 120 | 1612025095 | Auxiliary Handle |
| 120/120 | 1612025041 | Auxiliary Handle Black M8 |
| 120/120 | 1612025041 | Auxiliary Handle Black M8 |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/124 | 1611316021 | Clamping Band Ø50 MM |
| 120/125 | 1613490001 | T-Head Bolt M8X80 MM |
| 120/125 | 1613490001 | T-Head Bolt M8X80 MM |
| 120/802 | 1617000A45 | Support clamp |
| 120/802 | 1617000A45 | Support clamp |
| 130 | 1616333049 | Gear Sleeve |
| 130 | 1616333049 | Gear Sleeve |
| 135 | 1614601067 | Retaining ring |
| 135 | 1614601067 | Retaining ring |
| 136 | 1610205017 | Felt Disc |
| 136 | 1610205017 | Felt Disc |
| 137 | 2916660012 | Spring retaining ring 30X1,2MM, DIN 472 |
| 137 | 2916660012 | Spring retaining ring 30X1,2MM, DIN 472 |
| 14 | 1610905044 | Groove ball bearing |
| 14 | 1610905044 | Groove ball bearing |
| 16 | 1614336064 | Brush Plate |
| 16 | 1614336064 | Brush Plate |
| 17 | 1614465011 | Suppression Filter |
| 17 | 1614465011 | Suppression Filter |
| 19 | 1611329024 | Switch Contact |
| 19 | 1611329024 | Switch Contact |
| 199/188 | 1610209008 | Grip-Spring Tensioning E |
| 199/188 | 1610209008 | Grip-Spring Tensioning E |
| 199/199 | 1610284002 | Bellows |
| 199/199 | 1610284002 | Bellows |
| 199/43 | 1612099002 | Rocker Arm |
| 199/43 | 1612099002 | Rocker Arm |
| 199/44 | 1614611025 | Rocker Foot Black |
| 199/44 | 1614611025 | Rocker Foot Black |
| 2 | 1614220117 | Field 230V |
| 2 | 1614220117 | Field 230V |
| 200 | 1610284007 | Bellows |
| 200 | 1610284007 | Bellows |
| 26 | 16170006A5 | Hammer Piston |
| 26 | 16170006A5 | Hammer Piston |
| 26/27 | 1610311019 | Striker |
| 26/27 | 1610311019 | Striker |
| 26/29 | 1600A01TD0 | Piston Pin |
| 26/29 | 1600A01TD0 | Piston Pin |
| 26/56 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 26/56 | 1610210121 | O-Ring Green 17,0X3,0 MM |
| 26/71 | 1610100016 | Guide Disc |
| 26/71 | 1610100016 | Guide Disc |
| 3/13 | 1610905032 | Groove ball bearing 7X19X6 |
| 3/13 | 1610905032 | Groove ball bearing 7X19X6 |
| 3/5 | 1616610104 | Fan |
| 3/5 | 1616610104 | Fan |
| 32 | 1612026163 | Clamp Handle |
| 32 | 1612026163 | Clamp Handle |
| 32/20 | 1614690009 | Driver Pin |
| 32/20 | 1614690009 | Driver Pin |
| 32/30 | 1612026069 | Switch Button Orange |
| 32/30 | 1612026069 | Switch Button Orange |
| 32/40 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/40 | 1610210046 | O-Ring 10,5X2,7 MM |
| 32/50 | 1614611006 | Compression Spring |
| 32/50 | 1614611006 | Compression Spring |
| 321 | 16170006BV | Toolholder |
| 321 | 16170006BV | Toolholder |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/22 | 1616312004 | Cylindrical Gear |
| 321/28 | 1613124097 | Striker Pin |
| 321/28 | 1613124097 | Striker Pin |
| 321/33 | 1610590020 | Holding Jacket |
| 321/33 | 1610590020 | Holding Jacket |
| 321/34 | 1610190067 | Supporting Disc |
| 321/34 | 1610190067 | Supporting Disc |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/37 | 1613100019 | Straight Pin DIN6325-2,5X12-RIKO |
| 321/38 | 1600A008AG | Catch Disk |
| 321/38 | 1600A008AG | Catch Disk |
| 321/42 | 1610102084 | Thrust Ring |
| 321/42 | 1610102084 | Thrust Ring |
| 321/46 | 1610390068 | Guide Bushing |
| 321/46 | 1610390068 | Guide Bushing |
| 321/50 | 1614615008 | Compression Spring |
| 321/50 | 1614615008 | Compression Spring |
| 321/58 | 1610210105 | O-Ring 18,0X3,5 MM |
| 321/58 | 1610210105 | O-Ring 18,0X3,5 MM |
| 321/59 | 1600A009VC | Shaft Seal |
| 321/59 | 1600A009VC | Shaft Seal |
| 321/60 | 1610210209 | O-Ring 9,5X3,5 MM |
| 321/60 | 1610210209 | O-Ring 9,5X3,5 MM |
| 321/72 | 1604601027 | Retaining ring |
| 321/72 | 1604601027 | Retaining ring |
| 321/86 | 1614601034 | Retaining ring |
| 321/86 | 1614601034 | Retaining ring |
| 321/87 | 1604601028 | Retaining ring A22 DIN 7993 |
| 321/87 | 1604601028 | Retaining ring A22 DIN 7993 |
| 39 | 1615808115 | Gear Cover |
| 39 | 1615808115 | Gear Cover |
| 390/89 | 1600A00NC8 | Guide Sleeve |
| 390/89 | 1600A00NC8 | Guide Sleeve |
| 390/90 | 1610590016 | Collar Sleeve |
| 390/90 | 1610590016 | Collar Sleeve |
| 390/91 | 1610200033 | Backup ring |
| 390/91 | 1610200033 | Backup ring |
| 390/95 | 1614643016 | Compression Spring |
| 390/95 | 1614643016 | Compression Spring |
| 390/97 | 1614601047 | Retaining ring |
| 390/97 | 1614601047 | Retaining ring |
| 4/101 | 1614490015 | Connecting Cable |
| 4/101 | 1614490015 | Connecting Cable |
| 4/102 | 1614490016 | Connecting Cable |
| 4/102 | 1614490016 | Connecting Cable |
| 4/4 | 1617200127 | Switch |
| 4/4 | 1617200127 | Switch |
| 4/5 | 2604460199 | Power supply cord AUS 240V 4,15M 2 X 1,0MM Pvc |
| 4/6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 4/6 | 1600703034 | Grommet Ø7,3-Ø8,6X66 MM |
| 45 | 1610591046 | Air-Deflector Ring |
| 45 | 1610591046 | Air-Deflector Ring |
| 47 | 1610283047 | Rotary shaft lip seal |
| 47 | 1610283047 | Rotary shaft lip seal |
| 48 | 1610290102 | Bearing Ring |
| 48 | 1610290102 | Bearing Ring |
| 48/1 | 1610210208 | O-Ring 24,0X2,0 MM |
| 48/1 | 1610210208 | O-Ring 24,0X2,0 MM |
| 49 | 1615700044 | End Shield |
| 49 | 1615700044 | End Shield |
| 52/18 | 1610290114 | Clutch Sleeve |
| 52/18 | 1610290114 | Clutch Sleeve |
| 52/52 | 1615108170 | Cover |
| 52/52 | 1615108170 | Cover |
| 53 | 1610210245 | O-Ring |
| 53 | 1610210245 | O-Ring |
| 54 | 1600502023 | Intermediate Ring |
| 54 | 1600502023 | Intermediate Ring |
| 55 | 1610210206 | Seal Ring 63,0X5,0 MM |
| 55 | 1610210206 | Seal Ring 63,0X5,0 MM |
| 63/63 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 63/63 | 1610910063 | Needle bearing Ø30XØ37X12 MM |
| 63/64 | 1610390069 | Bushing |
| 63/64 | 1610390069 | Bushing |
| 66 | 1610202021 | Plain bearing |
| 66 | 1610202021 | Plain bearing |
| 661 | 1615430009 | Grease Tube 30 Ml |
| 661 | 1615430009 | Grease Tube 30 Ml |
| 68 | 1610283036 | Rotary shaft lip seal |
| 68 | 1610283036 | Rotary shaft lip seal |
| 688 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 688 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 7 | 1601302017 | Fastening Clamp |
| 7 | 1601302017 | Fastening Clamp |
| 74 | 160343000V | Torx Oval-Head Screw |
| 74 | 160343000V | Torx Oval-Head Screw |
| 75 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 75 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 76 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 76 | 2603490027 | Torx Oval-Head Screw 4X40 |
| 77 | 1613490017 | Thread-forming tap. Screw M4X30 DIN7500-1 T-20 |
| 77 | 1613490017 | Thread-forming tap. Screw M4X30 DIN7500-1 T-20 |
| 78/1 | 1600A003TA | Shim 0,3 MM |
| 78/1 | 1600A004FU | Shim 0,15 MM |
| 78/1 | 1600A004FV | Shim 0,45 MM |
| 78/1 | 1600A003TA | Shim 0,3 MM |
| 78/1 | 1600A004FU | Shim 0,15 MM |
| 78/1 | 1600A004FV | Shim 0,45 MM |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 79 | 1613435023 | Thread-forming tap. Screw |
| 80 | 1613435038 | Lens Head Screw |
| 80 | 1613435038 | Lens Head Screw |
| 801 | 16170006CK | Motor Housing |
| 801 | 16170006CK | Motor Housing |
| 803 | 1617000690 | Armature 230V |
| 803 | 1617000690 | Armature 230V |
| 805 | 1607000392 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H5 | Nameplate |
| 808 | 160111A3H5 | Nameplate |
| 81/193 | 1612026150 | Switch-Pawl |
| 81/193 | 1612026150 | Switch-Pawl |
| 81/80 | 1615133036 | Handle Orange |
| 81/80 | 1615133036 | Handle Orange |
| 811 | 1607000485 | Carbon-Brush Set 10 X 1 617 000 525 |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 811 | 1607000485 | Carbon-Brush Set 10 X 1 617 000 525 |
| 811 | 1617000525 | Carbon-Brush Set 220 V / 127 V |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 818 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 82 | 16170006CL | Handle Cover |
| 82 | 16170006CL | Handle Cover |
| 820 | 1617000A5J | Intermediate Flange |
| 820 | 1617000A5J | Intermediate Flange |
| 821 | 16170006BU | Tool Holding Fixture |
| 821 | 16170006BU | Tool Holding Fixture |
| 824 | 1617000A5K | Jack Shaft |
| 824 | 1617000A5K | Jack Shaft |
| 825 | 1617000895 | Tool Holding Fixture |
| 825 | 1617000895 | Tool Holding Fixture |
| 825/203 | 1610508047 | Protective Cap |
| 825/203 | 1610508047 | Protective Cap |
| 828 | 16170006A7 | Striker Pin |
| 828 | 16170006A7 | Striker Pin |
| 83/194 | 1610099013 | Screw Plate Black |
| 83/194 | 1610099013 | Screw Plate Black |
| 83/83 | 1614690008 | Leaf Spring |
| 83/83 | 1614690008 | Leaf Spring |
| 830 | 1617000698 | Gear Sleeve |
| 830 | 1617000698 | Gear Sleeve |
| 840 | 16170006CM | Impact Mechanism Housing |
| 840 | 16170006CM | Impact Mechanism Housing |
| 85 | 1615500441 | Cover |
| 85 | 1615500441 | Cover |
| 890 | 1617000V41 | Guide Sleeve |
| 890 | 1617000V41 | Guide Sleeve |
| 9 | 161111C019 | Manufacturer's nameplate DD533 |
| 9 | 1611110W25 | Manufacturer's nameplate SPIT332 |
| 96 | 1614601046 | Retaining ring |
| 96 | 1614601046 | Retaining ring |
