Bosch DD 523 DE
Bosch DD 523 DE rotary hammer: exploded parts diagram, 2 sheets, 109 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

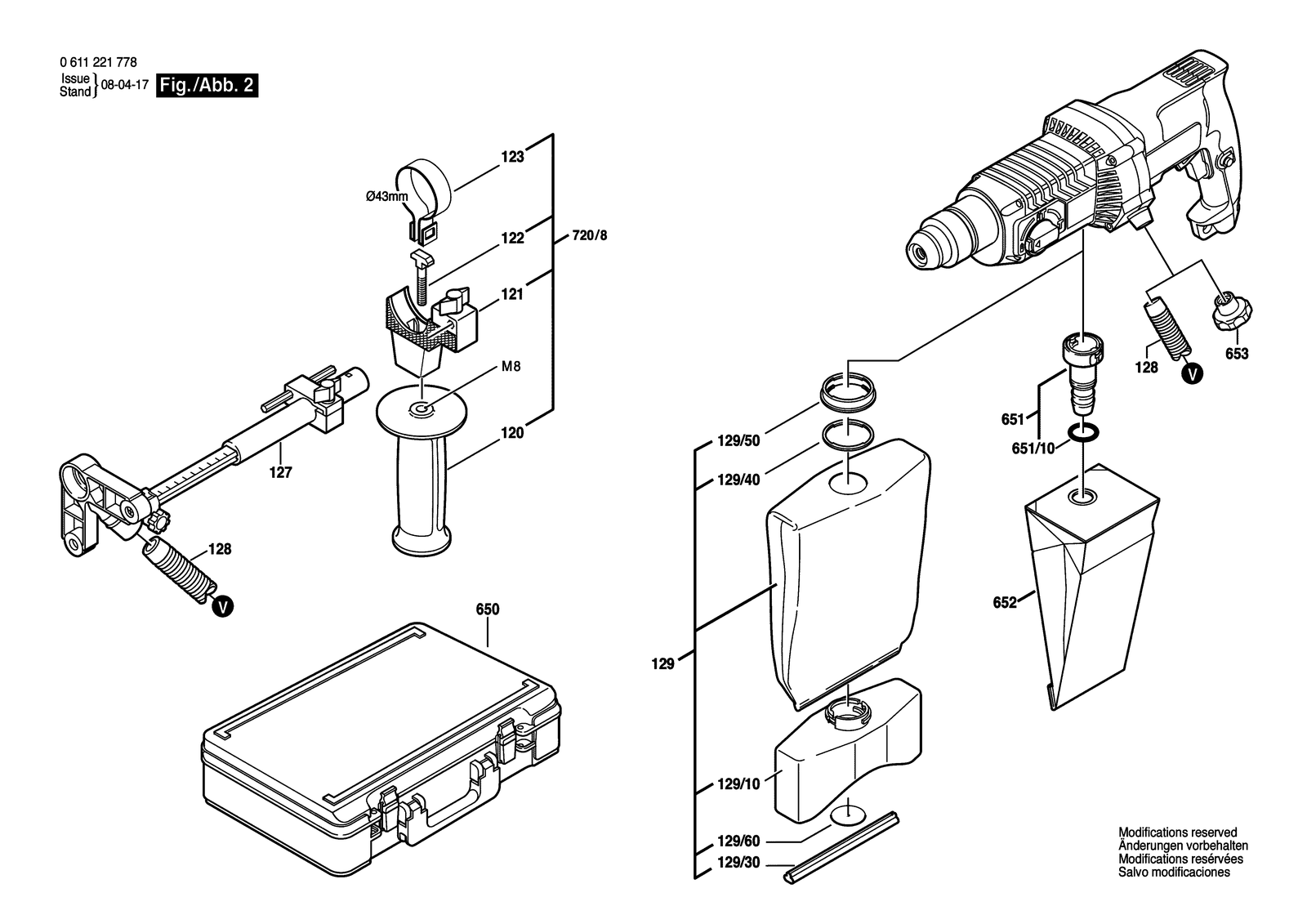

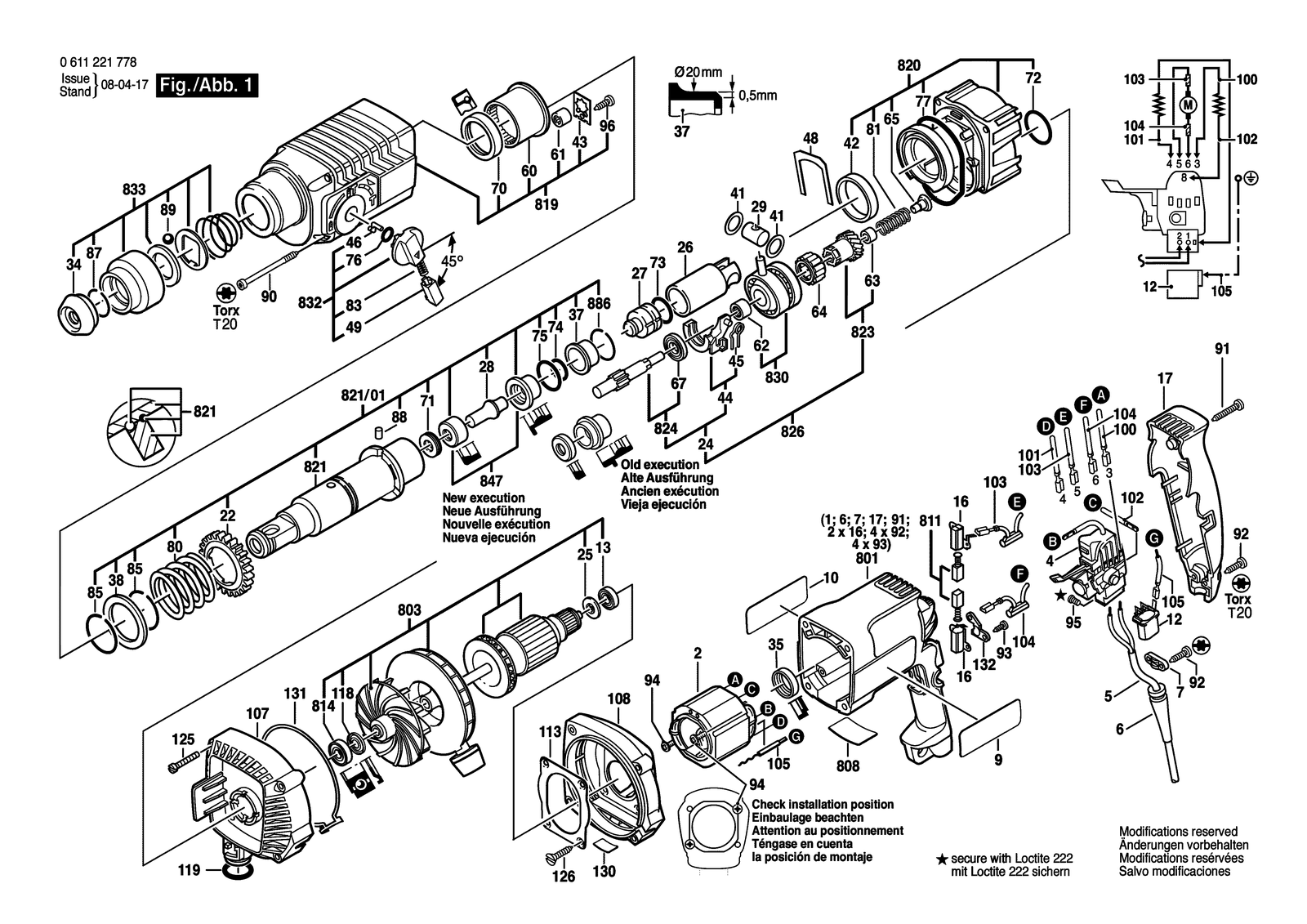

All parts of Bosch DD 523 DE: 109 positions on 2 sheets
Bosch DD 523 DE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1611110916 | Manufacturer's nameplate |
| 100 | 2604448145 | Connecting Cable White L = 123 MM |
| 101 | 2604448137 | Connecting Cable White L=78 MM |
| 102 | 2604448004 | Connecting Cable White L=176 MM |
| 103 | 2604465087 | Suppression Filter White L= 156 MM |
| 104 | 2604465086 | Suppression Filter Black L=148 MM |
| 105 | 1614449011 | Earth Conductor |
| 107 | 1615190042 | Blower Casing |
| 108 | 1615190044 | Fan Housing |
| 113 | 1611038017 | Profile Plate |
| 118 | 2916130027 | Sealing disk 609 Av Nilos-Ring |
| 119 | 1610210045 | O-Ring 23,0X3,0 MM |
| 12 | 1607328040 | Suppression Filter |
| 120 | 1612025019 | Auxiliary Handle M8 |
| 121 | 1618040048 | Support clamp Ø43 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316006 | Clamping Band Ø43 MM |
| 125 | 2910021168 | Socket head cap screw DIN 84-AM5X35-8.8 |
| 126 | 1613435005 | Rec ct-sunk tapping screw |
| 127 | 1618190011 | Suction Device |
| 128 | 1610712042 | Corrugated Hose Ø 16,5X550 MM |
| 129 | 1615411011 | Dust Bag |
| 129/10 | 1615190046 | Supporting Frame |
| 129/30 | 1612386001 | Support clamp |
| 129/40 | 1619200408 | Sliding Disc |
| 129/50 | 1619200409 | Union Nut |
| 129/60 | 1610121001 | Sealing disk |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 130 | 1611110640 | Sticker Black |
| 131 | 1611015039 | Sealing Frame |
| 132 | 2600034003 | Plate Green |
| 16 | 2604337016 | Brush Holder |
| 17 | 1615132071 | Housing Cover Black |
| 2 | 2604220491 | Field 220-230V |
| 22 | 1616317602 | Cylindrical Gear Z=50 |
| 24 | 1617000518 | Toothed Shaft Z=3/9 |
| 25 | 1610121002 | Shim washer |
| 26 | 1618700062 | Hammer Piston |
| 27 | 1618710057 | Striker |
| 28 | 1613124040 | Striker Pin |
| 29 | 1613105012 | Piston Pin |
| 34 | 1610508016 | Protective Cap L=24 MM |
| 35 | 1610206021 | Rubber Ring |
| 37 | 1610390017 | Damping Bushing |
| 38 | 1610102026 | Supporting Disc |
| 4 | 1617200053 | On-Off Switch |
| 41 | 1610101011 | Shim washer Thick 1,2 MM |
| 42 | 1610202015 | Plain bearing |
| 43 | 1611098005 | Tab Washer |
| 44 | 1615820092 | Switching Element |
| 45 | 1614651014 | Switch Spring |
| 46 | 1614690002 | Driver Pin |
| 48 | 1611016003 | Holding Plate |
| 49 | 1612026069 | Switch Button Orange |
| 5 | 1614460054 | Power supply cord AUS 2,7M 2 X 1,0MM Pvc |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 60 | 1610910073 | Needle-Roller Bearing |
| 61 | 1610910098 | Needle bearing |
| 62 | 1610910074 | Needle bearing |
| 63 | 1610910064 | Needle bearing |
| 64 | 1610913010 | Needle-Roller Assembly |
| 65 | 1610591016 | Plain bearing |
| 650 | 1615438254 | Carrying Case Orange |
| 651 | 1615703010 | Hose fitting |
| 651/10 | 1610210045 | O-Ring 23,0X3,0 MM |
| 652 | 1615411004 | Paper Bag |
| 653 | 1610591008 | Plug |
| 67 | 1610905016 | Groove ball bearing |
| 7 | 1611035005 | Cable Clip |
| 70 | 1610283019 | Shaft Seal |
| 71 | 1610290029 | Scraper |
| 72 | 1610210068 | O-Ring 24,0X2,5 MM |
| 720/8 | 2602025070 | Auxiliary Handle Ø43 MM |
| 73 | 1610210187 | O-Ring |
| 74 | 1610210104 | O-Ring 11,0X3,5 MM |
| 75 | 1610210105 | O-Ring 18,0X3,5 MM |
| 76 | 1610210046 | O-Ring 10,5X2,7 MM |
| 77 | 1610210106 | O-Ring 60,0X3,0 MM |
| 80 | 1614634005 | Compression Spring |
| 801 | 1617000335 | Motor Housing Black |
| 803 | 1614010196 | Armature With Fan 220-240V |
| 808 | 160111A3HD | Nameplate |
| 81 | 1614611009 | Compression Spring |
| 811 | 1607014117 | Carbon Brush |
| 814 | 1610905048 | Groove ball bearing 9X24X7 |
| 819 | 1615806093 | Gear Housing Black |
| 820 | 1617000981 | Intermediate Flange |
| 821 | 1616490062 | Ratchet Sleeve |
| 821/01 | 1616490063 | Ratchet Sleeve |
| 823 | 1616328042 | Gear Sleeve Z=26/6 |
| 826 | 1617000517 | Toothed Shaft Z=3/9 |
| 83 | 1614611006 | Compression Spring |
| 830 | 1615819018 | Drive bearing |
| 832 | 1612026068 | Clamp Handle Black |
| 833 | 1617000163 | Protection Sleeve Sds-Plus |
| 847 | 1617000348 | Guide Ring |
| 85 | 1614601011 | Retaining ring |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 88 | 1613200007 | Roller |
| 886 | 1614601024 | Retaining ring |
| 89 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 9 | 1611110915 | Manufacturer's nameplate |
| 90 | 1613410004 | Socket head cap screw DIN 84-M5X65-4.8 |
| 91 | 2603490026 | Lens Head Screw 4X32 |
| 92 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 93 | 2910211005 | Tapping Screw DIN 7971-ST2,9X9,5-F |
| 94 | 2603435015 | Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F |
| 95 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 96 | 2912401018 | Tapping Screw DIN7981-ST3,9X13-C-Z |
