Sheet 1: Makita DCU602 parts diagram

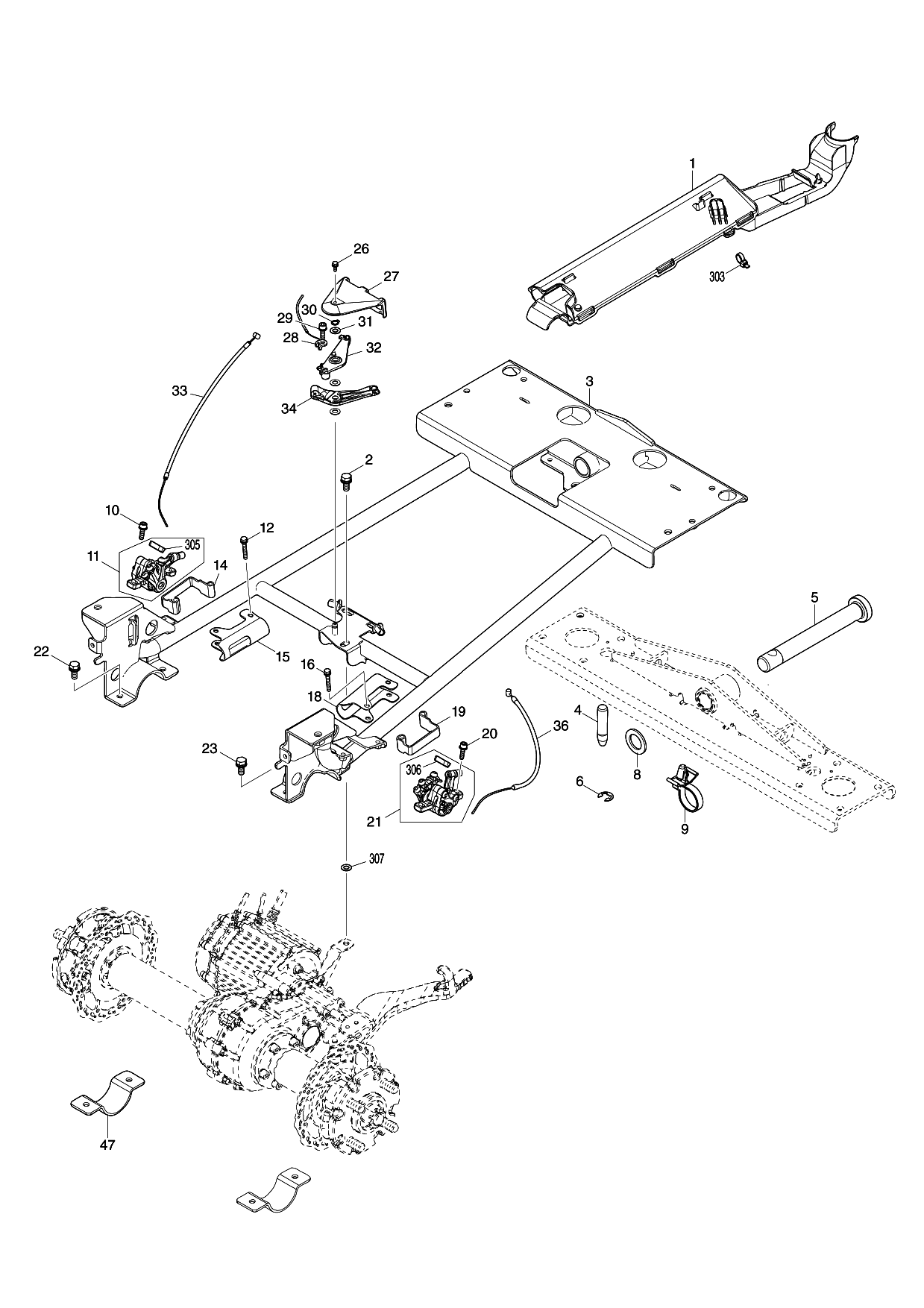

Makita DCU602 parts diagram, sheet 1
No.Part numberPart name
1412561-2
2265B11-6
3141P49-8
4256940-2
5327472-7
6961062-2Makita 961062-2 STOP RING E-12, 439
8261163-9
9687F01-7
10265D23-1
12265C76-4
14347993-3
15347995-9
16265C76-4
18347994-1
19347993-3
20265D23-1
22265B11-6
23265B11-6
26265C46-3
27413D28-7
28347629-4
29265B14-0
30961004-6Makita 961004-6 RETAINING RING S-8
31253165-9Makita 253165-9 FLAT WASHER 8 HM1800
32319906-4
33140P25-9
34319905-6
36140P25-9
47347621-0
303687F00-9
305422961-8
306422961-8
307941201-0Makita 941201-0 FLAT WASHER 8, 5007NB

Sheet 2: Makita DCU602 parts diagram

Makita DCU602 parts diagram, sheet 2
No.Part numberPart name
40252289-8
41253475-4
42141G99-9
44141H00-0
45253475-4
46252289-8
58122E51-4
59347698-5
60347A16-3
61347697-7
62232616-5
63413D41-5
64253430-6
65265465-5
66NP00000001
67NP00000002
68NP00000003
69313304-4
70347208-8Makita 347208-8 BRAKE DISC
71141P62-6
72265C87-9
73327626-6
74NP00000004
215961004-6Makita 961004-6 RETAINING RING S-8
216265C85-3
217265C86-1
218265C86-1
219347A43-0

Sheet 3: Makita DCU602 parts diagram

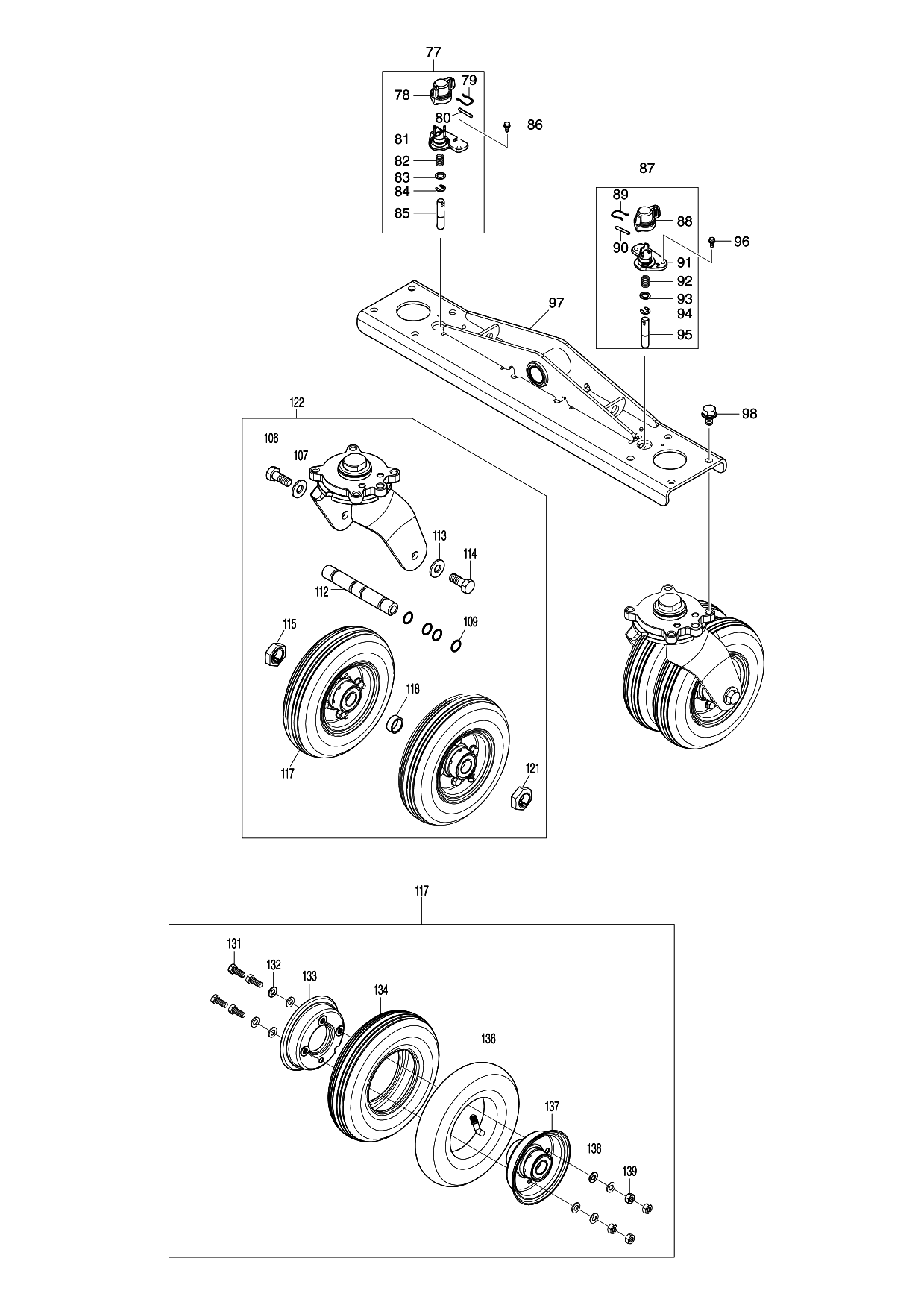

Makita DCU602 parts diagram, sheet 3
No.Part numberPart name
78413D33-4
79327938-7
80268181-8
81413D32-6
82232617-3
83253173-0Makita 253173-0 FLAT WASHER 10
84961013-5Makita 961013-5 STOP RING E-7, LS1016
85256A04-8
86265C46-3
88413D33-4
89327938-7
90268181-8
91413D31-8
92232617-3
93253173-0Makita 253173-0 FLAT WASHER 10
94961013-5Makita 961013-5 STOP RING E-7, LS1016
95256A04-8
96265C46-3
97162712-4
98265B13-2
106265B10-8
107253460-7
109213A73-2
112327646-0
113253460-7
114265B10-8
115136835-4
117141H01-8
118257498-4
121136835-4
131265C40-5
132253552-2
133347952-7
134422860-4
136162B40-9
137347951-9
138253552-2
139252309-8

Sheet 4: Makita DCU602 parts diagram

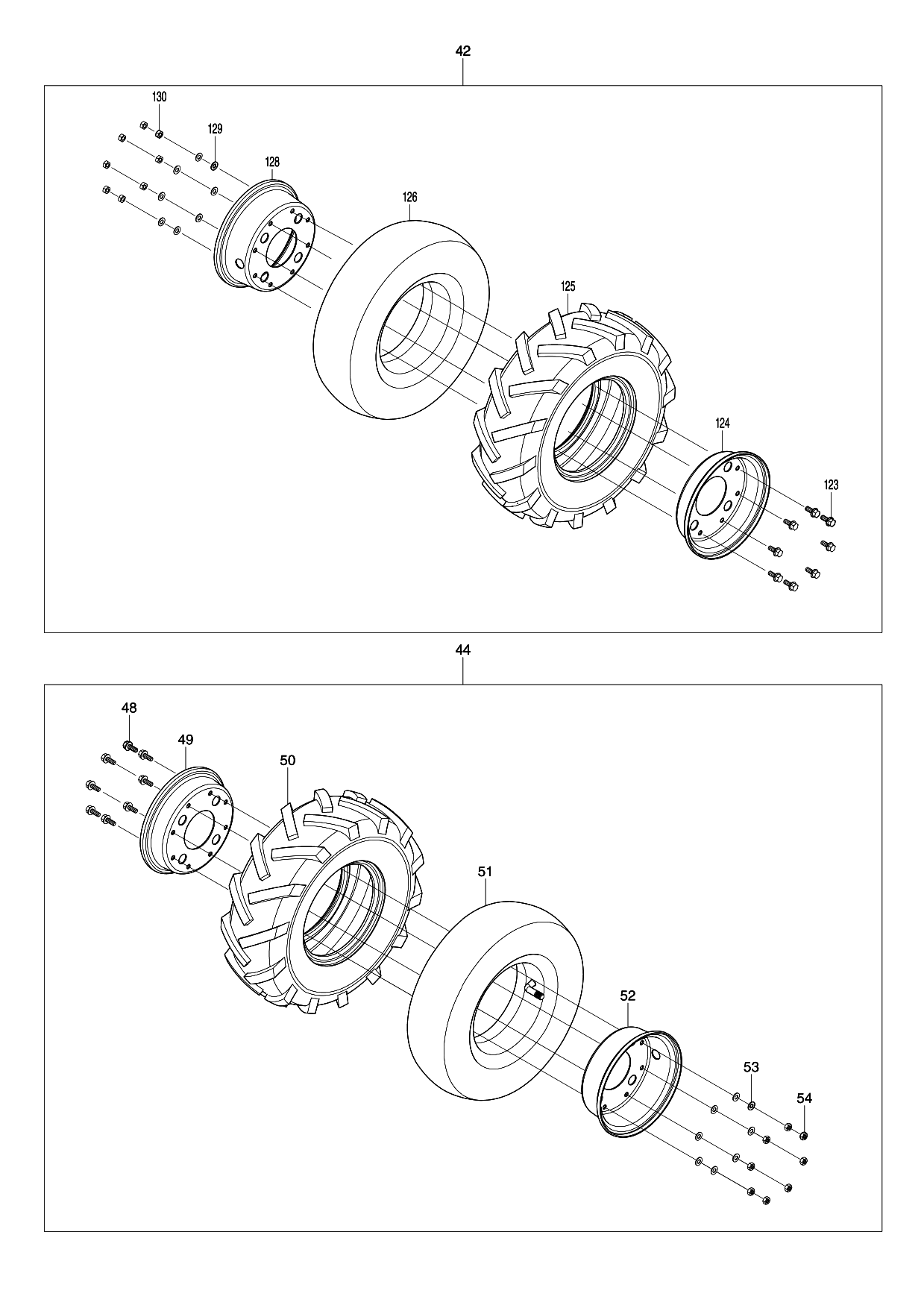

Makita DCU602 parts diagram, sheet 4
No.Part numberPart name
48265C39-0
49347950-1
50422857-3
51162B39-4
52347949-6
53253551-4
54252308-0
123265C39-0
124347950-1
125422857-3
126162B39-4
128347949-6
129253551-4
130252308-0

Sheet 5: Makita DCU602 parts diagram

Makita DCU602 parts diagram, sheet 5
No.Part numberPart name
145183X90-3
146140P26-7
147346249-1
148265A97-4
149232738-1
150412206-2
151422554-1
152651395-0
153620C26-0
154699178-0
155266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
156122C26-1
161422555-9
162183X90-3
163266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
164265C98-4
165312C48-1
166266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
167312C44-9
168312C43-1
169413D25-3
170632T13-9
182140P23-3
187140T47-3
188141H20-4
193140P15-2
197141H20-4
199141N97-5
200412562-0
201265B11-6
202265A96-6

Sheet 6: Makita DCU602 parts diagram

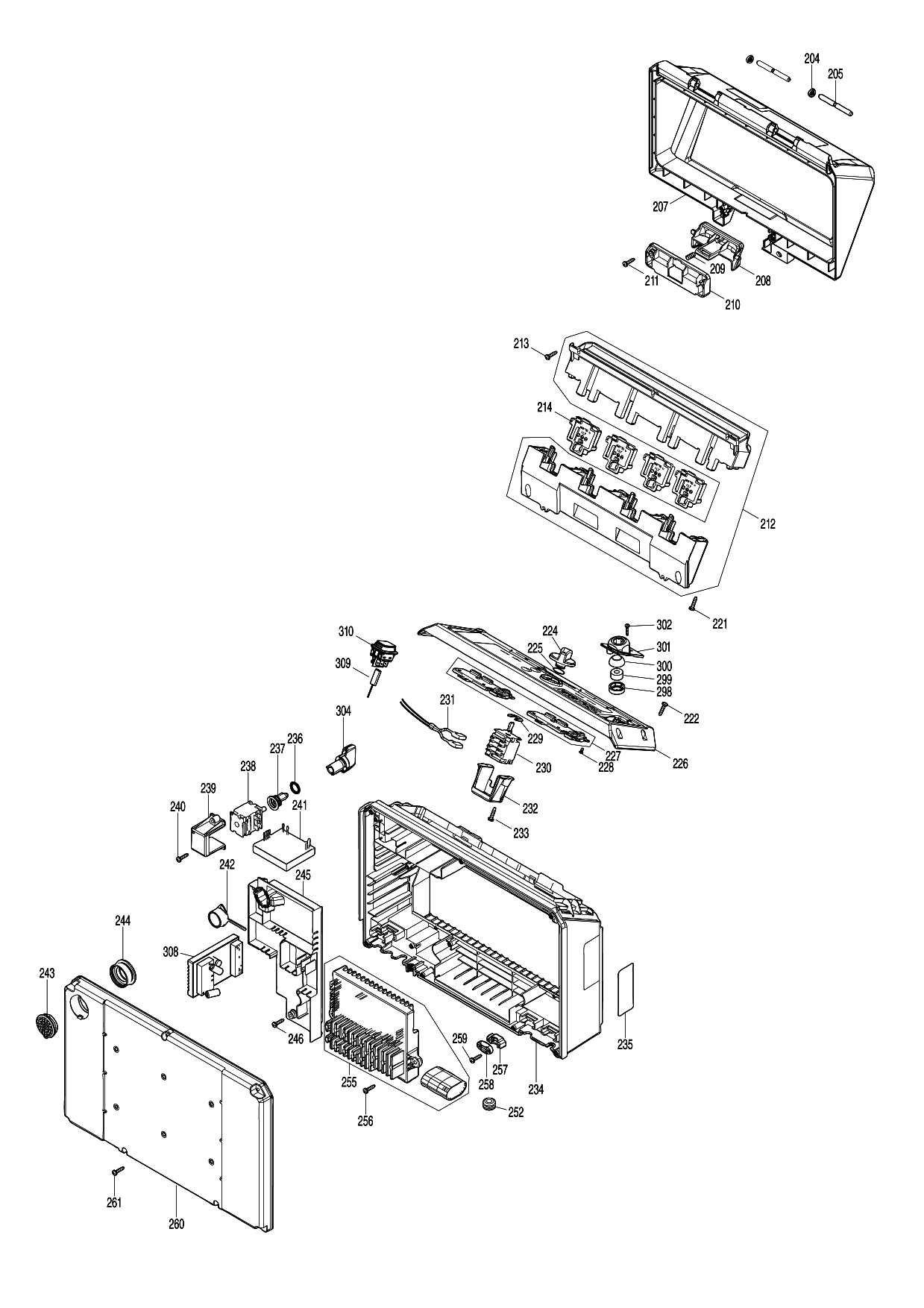

Makita DCU602 parts diagram, sheet 6
No.Part numberPart name
204262206-0
205256942-8
207141K01-6
208412195-1
209231240-1Makita 231240-1 COMPRESSION SPRING 7, 2412N
210412533-7
211266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
212183V34-1
213266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
214644809-6Makita 644809-6 TERMINAL
221266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
222266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
224412196-9
225213A15-6
226140P19-4Makita 140P19-4 TOP COVER COMPLETE, DCU601
227620C24-4
228265C42-1
229961062-2Makita 961062-2 STOP RING E-12, 439
230651444-3
231638A27-2
232451343-7Makita 451343-7 SWITCH HOLEER, M442
233266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
234412188-8
235858Y58-1
236213A15-6
237413D29-5
238650622-2Makita 650622-2 SWITCH 1703.4001
239451343-7Makita 451343-7 SWITCH HOLEER, M442
240266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
241620G67-0
242620C25-2
243413D35-0
244422840-0
245412194-3
246266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
252682141-0
255620C21-0Makita 620C21-0 CONTROLLER, DCU601
256266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
257687051-6Makita 687051-6 STRAIN RELIEF
258687124-5Makita 687124-5 CORD CLAMP, MT951
259266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
260412190-1
261266326-2Makita 266326-2 TAPPING SCREW PT 4X18, MT951
298413D37-6
299242101-0
300413D36-8
301413D38-4
302266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
304413D30-0
308620C22-8Makita 620C22-8 CONTROLLER, DCU601
309638A28-0Makita 638A28-0 LEAD UNIT, DCU601
310651488-3

Sheet 7: Makita DCU602 parts diagram

Makita DCU602 parts diagram, sheet 7
No.Part numberPart name
24232737-3
25413D27-9
38256A03-0
39961017-7Makita 961017-7 STOP RING E-3, 4304Z
264699180-3
265699181-1
266265B16-6
267265B17-4
268347622-8
269319594-7Makita 319594-7 LIGHT CASE
270213656-2Makita 213656-2 O-RING 53, HM0830
271457636-0Makita 457636-0 REFLECTOR
272457634-4Makita 457634-4 LENS
273213604-1Makita 213604-1 O RING 50
274457635-2Makita 457635-2 COVER
275687124-5Makita 687124-5 CORD CLAMP, MT951
276266034-5Makita 266034-5 TAPPING SCREW, CT 4x16MM
277687124-5Makita 687124-5 CORD CLAMP, MT951
278266034-5Makita 266034-5 TAPPING SCREW, CT 4x16MM
279620685-2Makita 620685-2 LED CIRCUIT
280422151-3Makita 422151-3 PACKING
281319595-5Makita 319595-5 LIGHT CASE COVER
282266034-5Makita 266034-5 TAPPING SCREW, CT 4x16MM
283265B16-6
284265B17-4
285347623-6
286319594-7Makita 319594-7 LIGHT CASE
287457634-4Makita 457634-4 LENS
288457636-0Makita 457636-0 REFLECTOR
289213656-2Makita 213656-2 O-RING 53, HM0830
290213604-1Makita 213604-1 O RING 50
291457635-2Makita 457635-2 COVER
292266034-5Makita 266034-5 TAPPING SCREW, CT 4x16MM
293687124-5Makita 687124-5 CORD CLAMP, MT951
294620685-2Makita 620685-2 LED CIRCUIT
295422166-0Makita 422166-0 PACKING
296319595-5Makita 319595-5 LIGHT CASE COVER
297266034-5Makita 266034-5 TAPPING SCREW, CT 4x16MM

Sheet 8: Makita DCU602 parts diagram

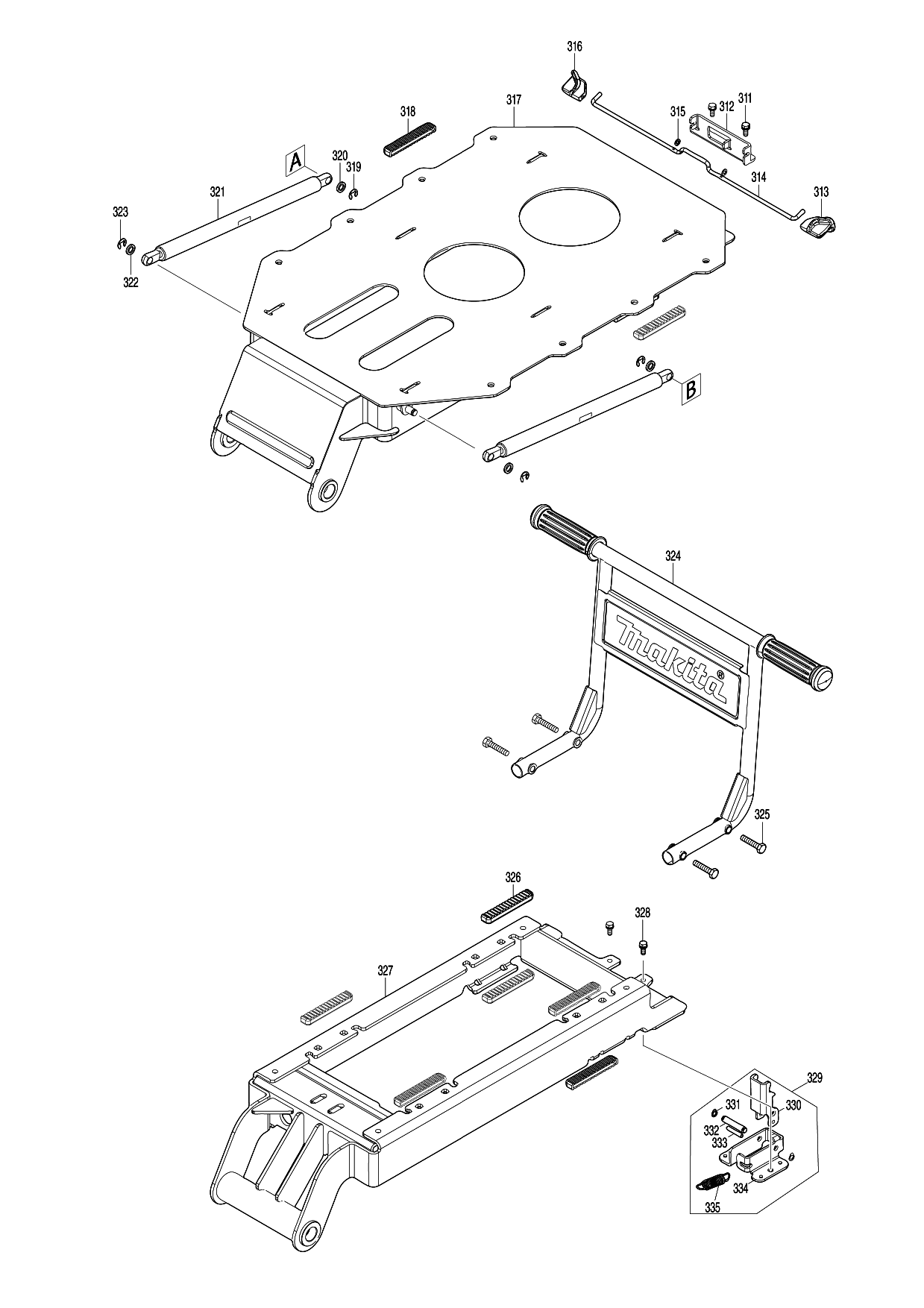

Makita DCU602 parts diagram, sheet 8
No.Part numberPart name
311265B16-6
312347628-6
313412197-7
314327470-1
315941102-2Makita 941102-2 FLAT WASHER 5, 4100NH
316412197-7
317162717-4
318422556-7
319961014-3Makita 961014-3 STOP RING E-8, SS610D
320941252-3Makita 941252-3 FLAT WASHER, LF1000
321162816-2
322941252-3Makita 941252-3 FLAT WASHER, LF1000
323961014-3Makita 961014-3 STOP RING E-8, SS610D
324140P16-0
325921461-0Makita 921461-0 HEX BOLT M8X40, LS1030N
326422556-7
327162735-2
328265B16-6
330347626-0
331961004-6Makita 961004-6 RETAINING RING S-8
332256943-6
333256196-7Makita 256196-7 PIN 5, LS1016
334347627-8
335232618-1

Sheet 9: Makita DCU602 parts diagram

Makita DCU602 parts diagram, sheet 9
No.Part numberPart name
336327479-3Makita 327479-3 ROD END SHAFT 16, DCU601
337961056-7Makita 961056-7 RETAINING RING S-16
338412201-2Makita 412201-2 SWITCH CASE, DCU601
339961056-7Makita 961056-7 RETAINING RING S-16
340699179-8
341632L48-2Makita 632L48-2 SWITCH UNIT, DUC254
342632T59-5Makita 632T59-5 SWITCH UNIT, DCU601
343256941-0
344911139-3Makita 911139-3 P.H.SCREW M4*20, EBH251U
345412203-8Makita 412203-8 ROD END, DCU601
346412202-0Makita 412202-0 SWITCH COVER, DCU601
347266130-9Makita 266130-9 Tapping Screw PT 3X16, 6935FD
348162738-6
349961056-7Makita 961056-7 RETAINING RING S-16
350327479-3Makita 327479-3 ROD END SHAFT 16, DCU601
351961056-7Makita 961056-7 RETAINING RING S-16
352141N99-1
353961102-6Makita 961102-6 RETAINING RING S-22
354327474-3
355961102-6Makita 961102-6 RETAINING RING S-22
393684980-4
394687F00-9
395688140-0
396265508-3Makita 265508-3 HEX. BOLT M10X25

Sheet 10: Makita DCU602 parts diagram

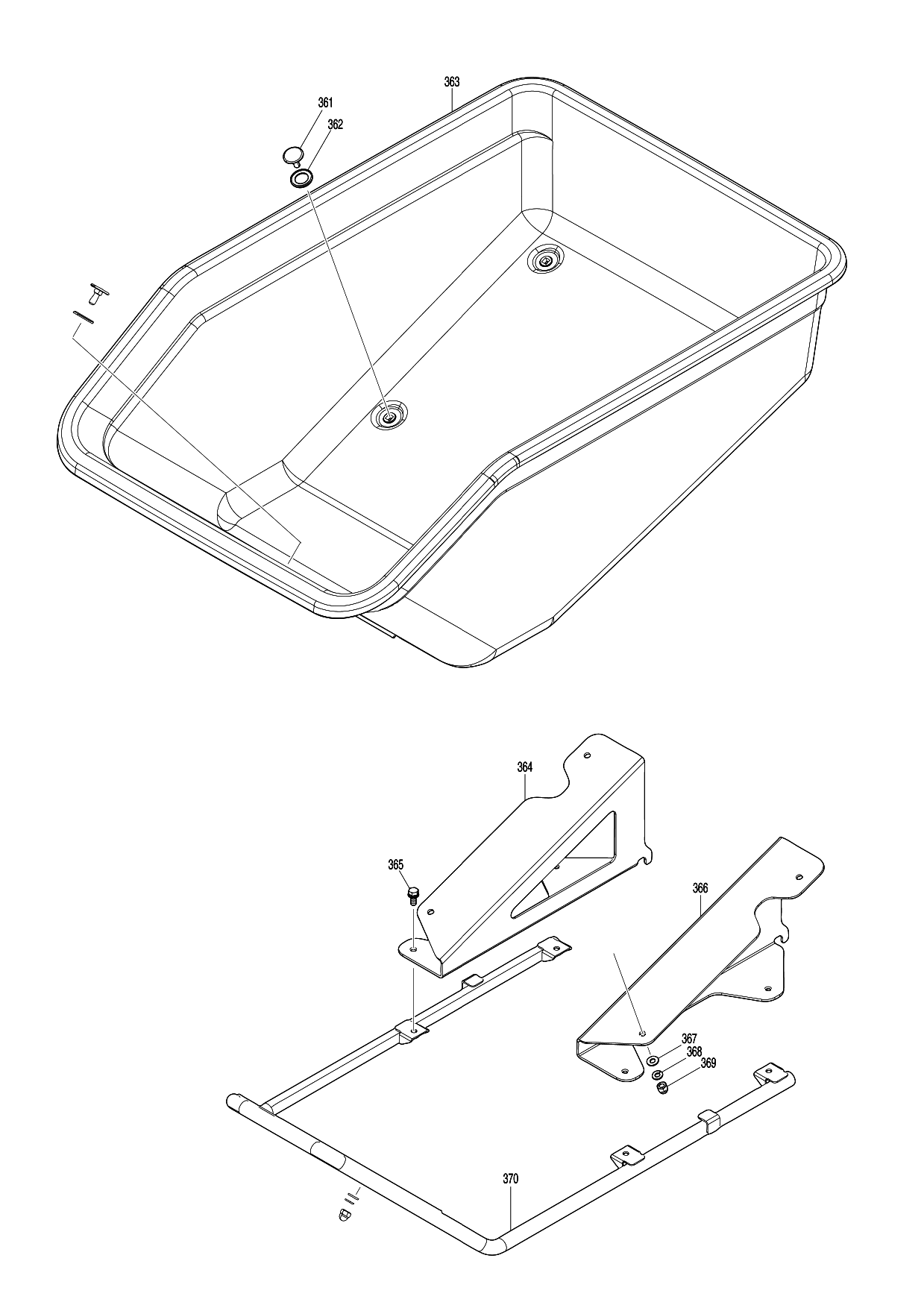

Makita DCU602 parts diagram, sheet 10
No.Part numberPart name
361265B12-4
362261164-7
363412198-5
364347624-4
365265B11-6
366347625-2
367941201-0Makita 941201-0 FLAT WASHER 8, 5007NB
368942201-3Makita 942201-3 SPRING WASHER 8, 2414NB
369252278-3
370141N86-0
