Makita DCS9010

Makita DCS9010: exploded parts diagram, 8 sheets, 182 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCS9010: 182 positions on 8 sheets

Sheet 1: Makita DCS9010 parts diagram

Makita DCS9010 parts diagram, sheet 1
No.Part numberPart name
1965525060Makita 965525060 TIIVISTE
3963228030Makita 963228030 O-RENGAS 28X3
4965605120Makita 965605120 MUTTERI
5965605400Makita 965605400 OIKOSULKU KYTKIN
6965605131Makita 965605131 KUMI KORKKI
7962900054Makita 962900054 STEFA
8024111621Makita 024111621 KAMPIKOTELO MAG.PUOLI
9965403370Makita 965403370 KUMIVAIMENNIN
10965525070Makita 965525070 TIIVISTE
11936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
12960102179Makita 960102179 KUULA LAAKERI FAG 1740X12
13939630370Makita 939630370 KEY 3.0X3.7REPAIR
14962210028
15024120022
16960102179Makita 960102179 KUULA LAAKERI FAG 1740X12
17908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
18133132050Makita 133132050 MÄNTÄ RENGAS 52X1,2
19133132050Makita 133132050 MÄNTÄ RENGAS 52X1,2
20024111071Makita 024111071 OHJAIN LEVY
21031132020Makita 031132020 MÄNTÄ TAPPI
22119132060Makita 119132060 SPRING RING, C12X1
24024111640Makita 024111640 KAMPIKOTELO, KYTKINSI
25010245010Makita 010245010 VENTTIILI 109.110I.111.115.PS-43/52/540
26024232030Makita 024232030 PULTTI
27963204015Makita 963204015 TIIVISTE RENGAS
28024111100Makita 024111100 LEVY
29915735100Makita 915735100 RUUVI
30001213170Makita 001213170 MUTTERI JA TAPPI
31001213160Makita 001213160 RUUVI
32915735100Makita 915735100 RUUVI
33024250030Makita 024250030 KAARNA TUKI
34908006145Makita 908006145 KUPUKANTA RUUVI 6X14 T27
35024111050Makita 024111050 KETJU SIEPPO
36
37
38908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
39962900054Makita 962900054 STEFA

Sheet 2: Makita DCS9010 parts diagram

Makita DCS9010 parts diagram, sheet 2
No.Part numberPart name
40024310100OTHR Makita 024310100 WRAP AROUND KAHVA ASSY.
41965551250Makita 965551250 VAIMENTIMEN KUPPI110I.115I.
42965403430Makita 965403430 KUMIVAIMENNIN 110I.115.115I
43908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
44913455304Makita 913455304 RUUVI 5,5X30
45913455304Makita 913455304 RUUVI 5,5X30
46913455304Makita 913455304 RUUVI 5,5X30
47913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
48965404520Makita 965404520 TIIVISTE 109.110I.111.115.PS-43/52/540
49965404700DISC Genuine Makita 965404700 PA-LETKU
50963601240Makita 963601240 FELT FOR SUCTION HEAD
52963232045Makita 963232045 O-RENGAS 109.110I.111.115.PS43/52/540
55965725041Makita 965725041 KAASUVAIJERI TÄYD
56957114010Makita 957114010 VENTTIILI 109.110I.111.115.PS-43/52/540
57965451750Makita 965451750 NAPPI
58965551160Makita 965551160 PAINE SPRIN
59024117020Makita 024117020 TURVA VIPU
60965551150Makita 965551150 STOP TAPPI
61024117031Makita 024117031 JOUSI
62024117010Makita 024117010 KAASU VIPU
63935930280Makita 935930280 CYL.TAPPI
64935930450Makita 935930450 CYL.TAPPI
65965404720Makita 965404720 PUSSLA
66965403461Makita 965403461 KUMIVAIMENNIN
67913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
68965404740Makita 965404740 KORKKI

Sheet 3: Makita DCS9010 parts diagram

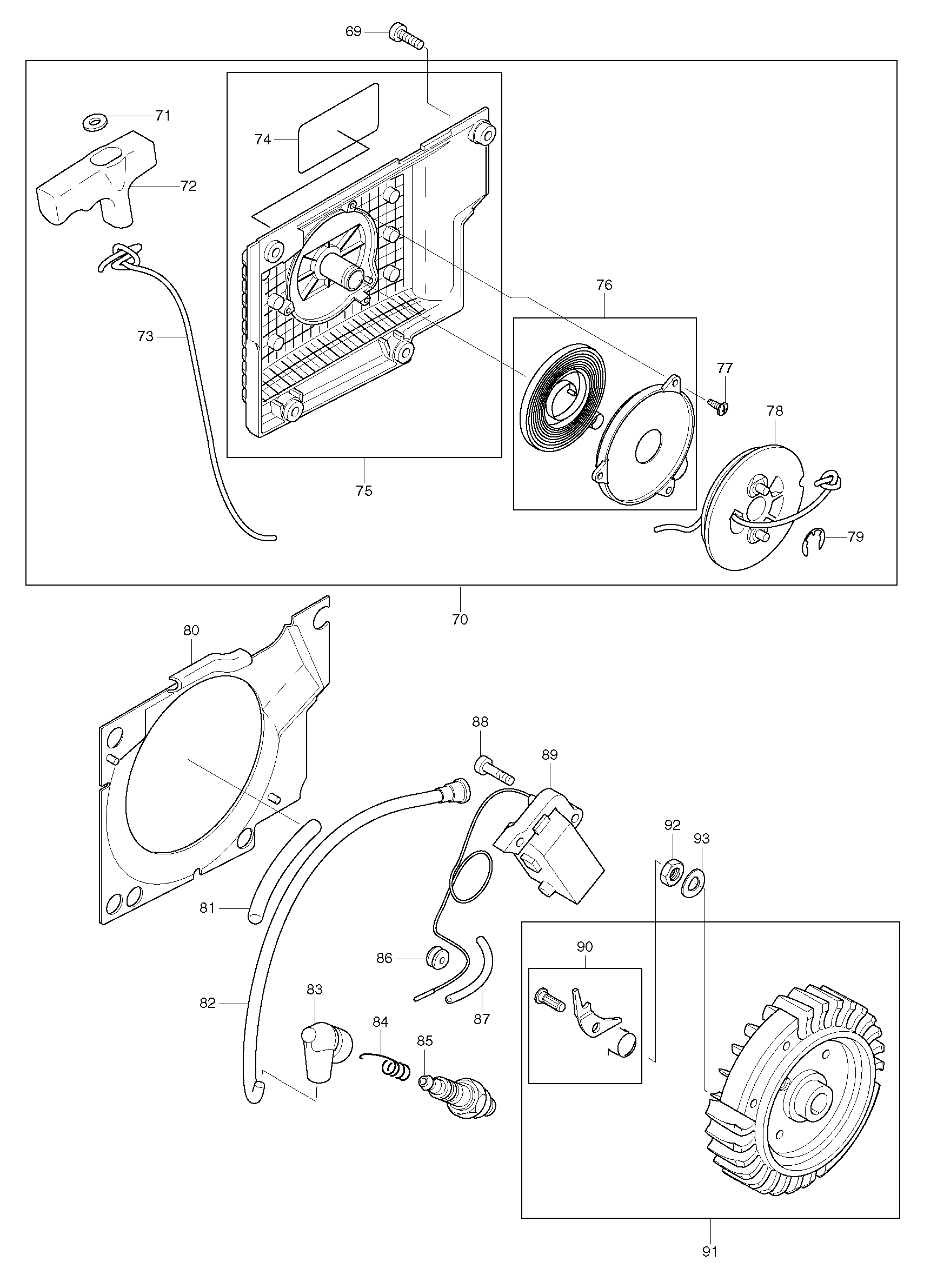

Makita DCS9010 parts diagram, sheet 3
No.Part numberPart name
69908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
71928405000Makita 928405000 DISC
72965402262Makita 965402262 KÄYNNISTIN KAHVA 109110I.115.PS43/52
73985000165Makita 985000165 NARU 4,0 MM - 100 METER
74980114217Makita 980114217 STICKER MAKITA
76020163031Makita 020163031 REWIND SPRING 109110I.115.PS-43/52
77915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
78024162081Makita 024162081 NARU RUMPU
79929314100Makita 929314100 LUKKO RENGAS A14X1V
80024112021Makita 024112021 ILM. KANAVA
81970502110Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
82970310200Makita 970310200 SYTYTYSJOHTO (1M)109110I.115.PS-43/52
83957604260Makita 957604260 SPARK PLUG CAP COMPLETE
84965604180Makita 965604180 TULP.HATUN JOUSI 109110I.115.PS-43/52
85965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
86965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
87970502050Makita 970502050 SUOJAPUTKI SÄHKÖ 1M109.110I.115.PS43/52
88908605205Makita 908605205 RUUVI 5X20 109.110I111.115.PS-43/52/540
89024143050
90031166010Makita 031166010 STARTER RATCHET CPL. PC-7414 / 8216
92920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
93926208001Makita 926208001 JOUSI LEVY B8

Sheet 4: Makita DCS9010 parts diagram

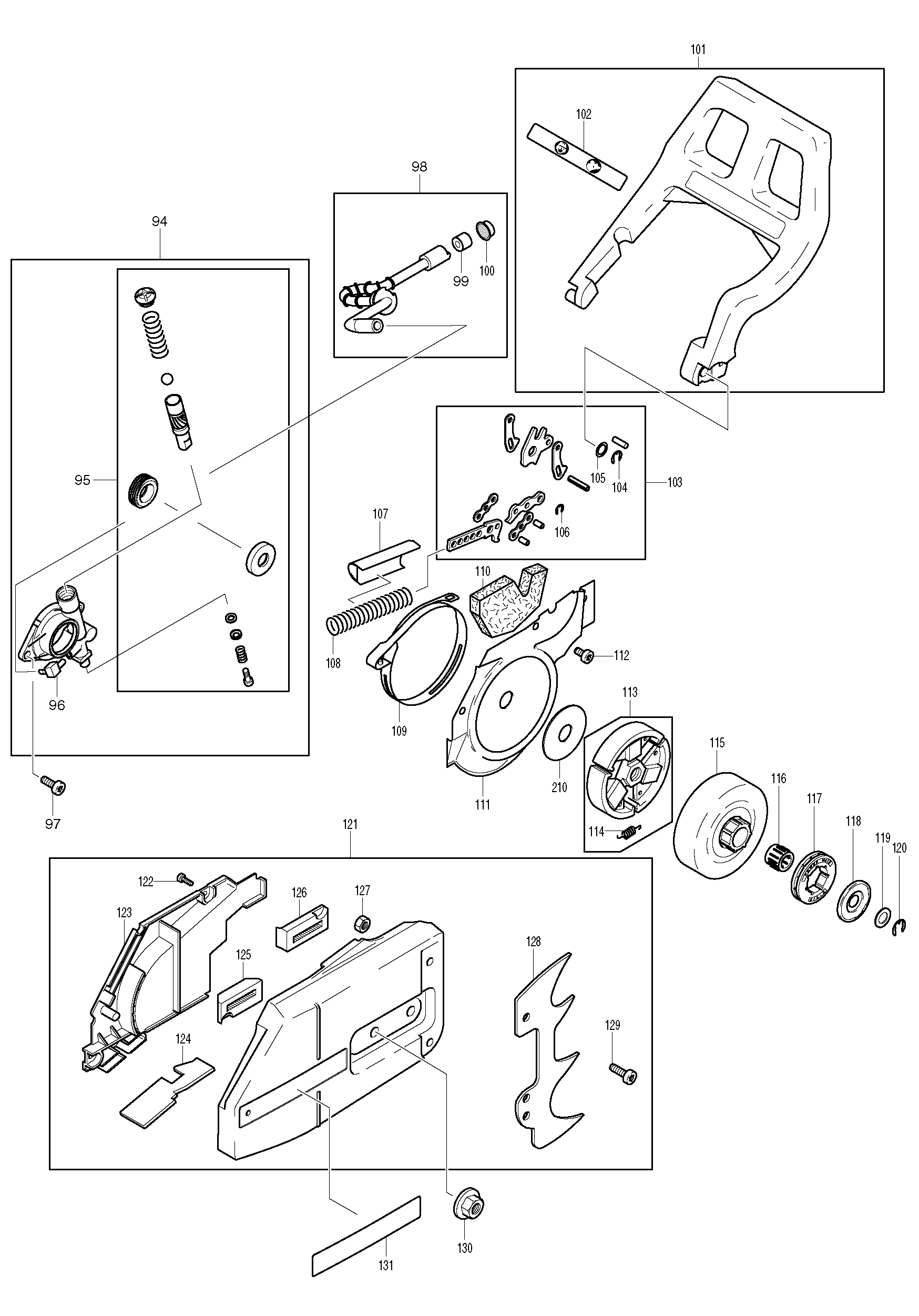

Makita DCS9010 parts diagram, sheet 4
No.Part numberPart name
96963608100Makita 963608100 KULMA LIITIN
97908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
99900005066DISC New Genuine Makita 900005066 VÄLI RENGAS
100963601100Makita 963601100 STRAINER SIHTI
102980114237Makita 980114237 KÄSISUOJ.SYMB.KILPI109.110I.115.PS-43YM
104927306000Makita 927306000 LEVY 6,0
105900004364Makita 900004364 VÄLILEVY 8X13X0,5
106927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
107024111061Makita 024111061 JOUSI GUIDING PÄÄ
108024213321Makita 024213321 PAINE JOUSI
109024213351Makita 024213351 JARRU JOUSI
110965404800Makita 965404800 KANSI FOAM LEVY
111024213101Makita 024213101 LEVY
112908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
114024184021Makita 024184021 KIRISTYSJOUSI 109110I.111.115.PS-43YM
115024223041Makita 024223041 KYTKIN RUMPU
116962210024Makita 962210024 Needle Cage K10/16x12 for DCS901 DCS6400 DCS6401 DCS7300
117119224070Makita Dolmar 119224070 Rim Sprocket 3/8, 7 Teeth for DCS6000 DCS6400
118001224011Makita 001224011 LEVY
119021224010Makita 021224010 Disc
120927308000Makita 927308000 Safety Washer 8,0 for DCS9000, DCS9010, PS9010
122915735100Makita 915735100 RUUVI
123024213221Makita 024213221 CHIP OHJAIN
124965404761Makita 965404761 KUMI LEVY
125024213240Makita 024213240 KETJU OHJAIN
126024213240Makita 024213240 KETJU OHJAIN
127922606000Makita 922606000 HEXAHONAL MUTTERI M6
128024250030Makita 024250030 KAARNA TUKI
129908006145Makita 908006145 KUPUKANTA RUUVI 6X14 T27
130923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
131980114739Makita 980114739 KILPI
210024182060Makita 024182060 OHJAIN LEVY

Sheet 5: Makita DCS9010 parts diagram

Makita DCS9010 parts diagram, sheet 5
No.Part numberPart name
132024173200Makita 024173200 MUTTERI
134
135980113841Makita 980113841 KILPI ''I-0''
136908305255Makita 908305255 KUPUKANTA RUUVI 5X10X25
137024118121Makita 024118121 KOPPA
138024173200Makita 024173200 MUTTERI
139024173230Makita 024173230 Air Filter Cpl DCS9010 DCS9000
140920205000Makita 920205000 MUTTERI M5 110I.115115I.
141928105000Makita 928105000 TURVA LEVY
142024173160Makita 024173160 Air Filter Holder
143024150170Makita 024150170 SHEET-METAL PIDIN FOR CARB.
144920205000Makita 920205000 MUTTERI M5 110I.115115I.
145965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
146965452060Makita 965452060 BENSALETKU (1M)MS-4510
147965401016Makita 965401016 KUMI PUSSLA
148024131031Makita 024131031 INSERT FOR IMU HOSE
149024118051Makita 024118051 SÄÄTÖ OHJAIN
150908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
151024118032Makita 024118032 POHJA
152024150020Makita 024150020 RYYPPY VARSI
153965401021Makita 965401021 KUMI PUSSLA
154965401024Makita 965401024 KUMIPUSLA 109.110I.111.115.PS-43/52/540
155965401021Makita 965401021 KUMI PUSSLA
156024131022Makita 024131022 LETKU
157965603050Makita 965603050 LETKU KIINNITIN
158908605145Makita 908605145 RUUVI 5X14 109.110I.111.115.PS-43/52/540
160
161024173081Makita 024173081 ESI-SUODIN

Sheet 6: Makita DCS9010 parts diagram

Makita DCS9010 parts diagram, sheet 6
No.Part numberPart name
162024174040Makita 024174040 LEVY
163965525101Makita 965525101 TIIVISTE
165
166024174171Makita 024174171 DEFLECTOR LEVY
167915142090Makita 915142090 RUUVI
168024174020Makita 024174020 SPECIAL RUUVI

Sheet 7: Makita DCS9010 parts diagram

Makita DCS9010 parts diagram, sheet 7
No.Part numberPart name
169394150170Makita 394150170 KUPUKANTA PÄÄ RUUVI
170024150160Makita 024150160 PUMPPU KANSI TÄYD
172113150150Makita 113150150 PUMPPU KALVO
173394150180Makita 394150180 SIHTI
174122151400Makita 122151400 LEVY
175100150350Makita 100150350 LUKKORENGAS 110I.115I.
176001150650Makita 001150650 RUUVI 110I.115I.
177024150320
178024150100
179024150300
180024150110
181144151315Makita 144151315 PUSSLA
182001150310
183144151315Makita 144151315 PUSSLA
184001150510Makita 001150510 KUULA
185394150570Makita 394150570 IDLE STOP RUUVI
186394150180Makita 394150180 SIHTI
187394150180Makita 394150180 SIHTI
188113150040Makita 113150040 NAPPI
189144151480Makita 144151480 JOUSI
190101150080Makita 101150080 JOUSI
191113150380Makita 113150380 KUULA
192113150261Makita 113150261 RYYPPY LÄPPÄ
193001150650Makita 001150650 RUUVI 110I.115I.
194957150190Makita 957150190 SARJA OF SÄÄTÖS PARTS
196001150520Makita 001150520 RUUVI 110I.115I.
197122151121Makita 122151121 KALVO KANSI
198024150470
199144151480Makita 144151480 JOUSI
200024150510Makita 024150510 MAIN SÄÄTÖM. RUUVI
201144151480Makita 144151480 JOUSI

Sheet 8: Makita DCS9010 parts diagram

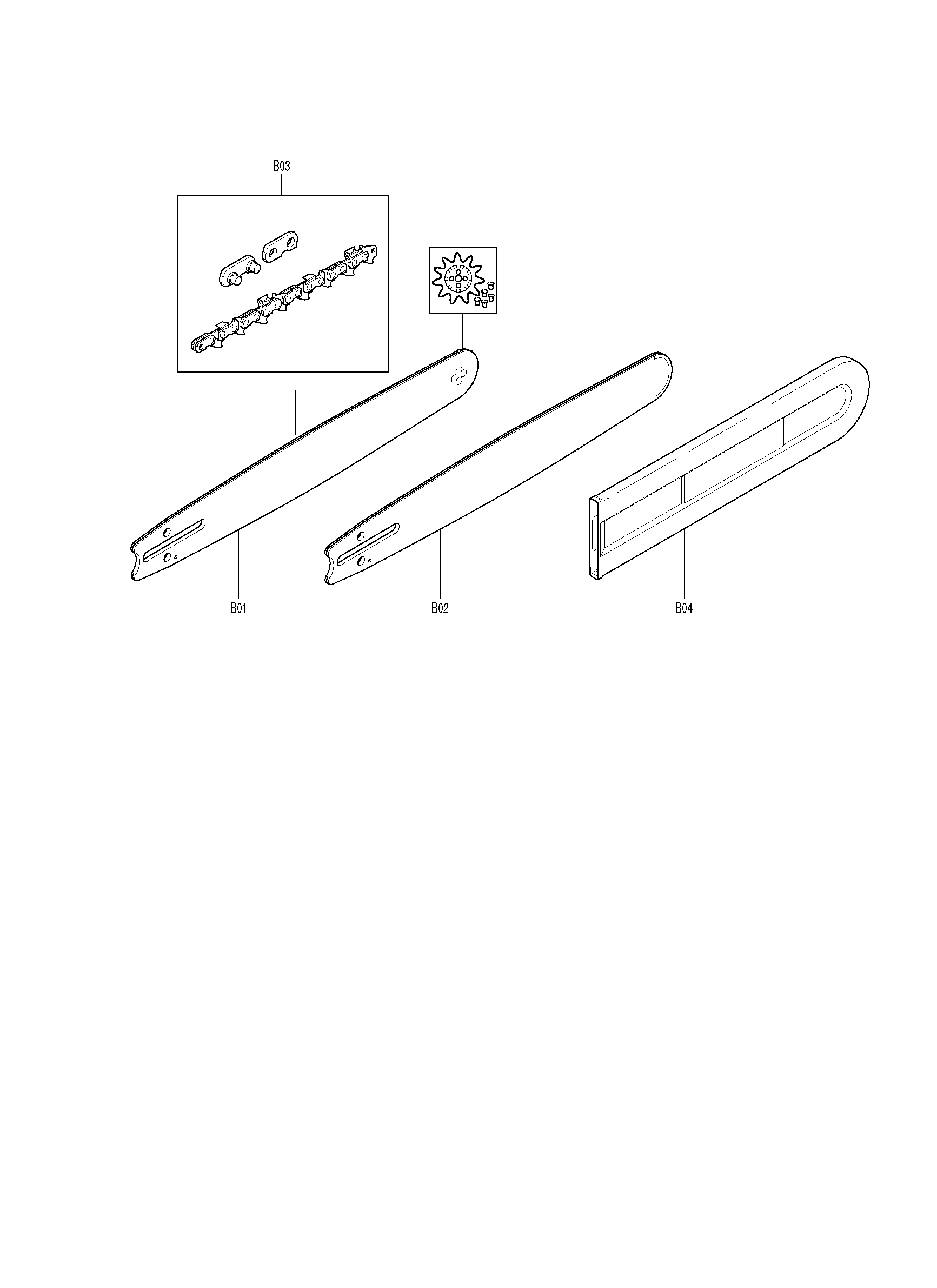

Makita DCS9010 parts diagram, sheet 8
No.Part numberPart name
Selected parts0
