Makita DCS7900

Makita DCS7900: exploded parts diagram, 7 sheets, 168 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCS7900: 168 positions on 7 sheets

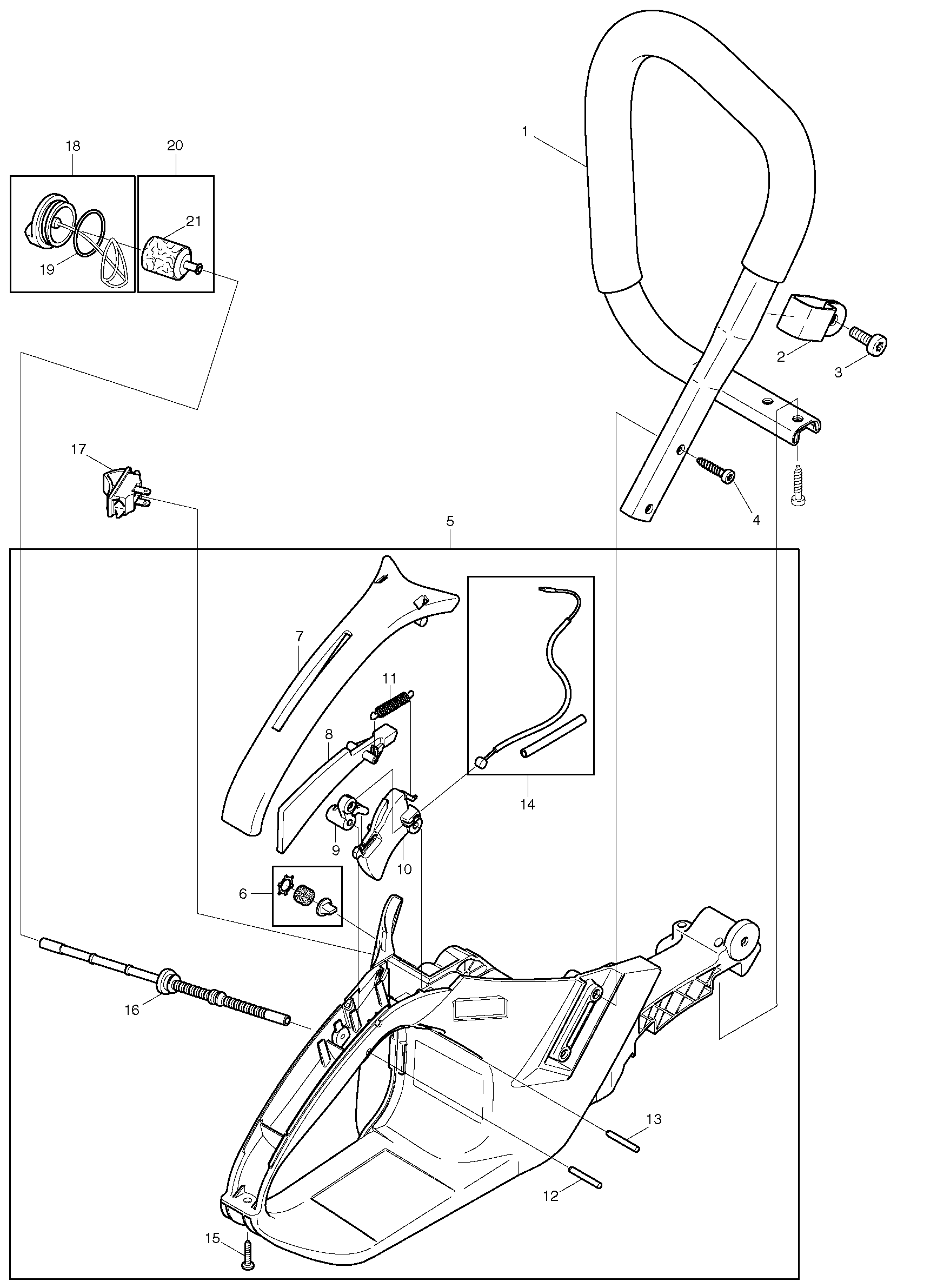

Sheet 1: Makita DCS7900 parts diagram

Makita DCS7900 parts diagram, sheet 1
No.Part numberPart name
1038310020Makita 038310020 ETUKAHVA SARJA
2038310060Makita 038310060 KIINNITIN
3908006145Makita 908006145 KUPUKANTA RUUVI 6X14 T27
4913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
6957114060Makita 957114060 AIR VALVE CPL.
7038114630Makita 038114630 KAHVA LEVY SININ.
8038117020Makita 038117020 KAASUN VARM. VIPU
9038117030Makita 038117030 ROCKER
10038117010Makita 038117010 KAASU VIPU
11038117050Makita 038117050 JOUSI
12935930240Makita 935930240 LIERIÖTAPPI
13935930280Makita 935930280 CYL.TAPPI
14010117040Makita 010117040 KAASUVAIJERI TÄYD
15913340204Makita 913340204 RUUVI
16038114050Makita 038114050 PA-LETKU
17975001210Makita 975001210 KYTKIN
19963228030Makita 963228030 O-RENGAS 28X3
21963601240Makita 963601240 FELT FOR SUCTION HEAD

Sheet 2: Makita DCS7900 parts diagram

Makita DCS7900 parts diagram, sheet 2
No.Part numberPart name
22038118620Makita 038118620 KANSI HARM.
23038173010Makita 038173010 UUSI NR. 038173011
25038118110Makita 038118110 KUMI FLAP
26938650062Makita 938650062 TULPPA
27038118080Makita 038118080 SÄÄTÖ OHJAIN
28038155050Makita 038155050 RYYPPY VARSI
29038155020Makita 038155020 RYYPPY OHJAIN
30965401020Makita 965401020 KUMI PUSSLA
31001118100Makita 001118100 PUSSLA
32038155050Makita 038155050 RYYPPY VARSI
33908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
34001118100Makita 001118100 PUSSLA
35038111050Makita 038111050 CRAMP
36038111060Makita 038111060 NELIÖMUTTERI
37908204555Makita 908204555 RUUVI
38921804004Makita 921804004 MUTTERI
39038155010Makita 038155010 KIINNITYS CLIP
40038131030Makita 038131030 INSERT FOR IMU HOSE
41038171041Makita 038171041 LAIPPA
42038131010
43965603050Makita 965603050 LETKU KIINNITIN
44965452380Makita 965452380 BENSALETKU 1M 5,5/3
45038171010Makita 038171010 LIITOSMUHVI
47038118140Makita 038118140 INSERT
48038118130Makita 038118130 JOHTO OHJAIN
49917105205Makita 917105205 RUUVI
50038171030Makita 038171030 PIDIN
51038118100Makita 038118100 TULPPA
52038118071Makita 038118071 TERÄSCLIP
53038174200Makita 038174200 Muffler DCS6400/7900 PS640/790
54965531130Makita 965531130 TIIVISTE
55038174020Makita 038174020 KANSI LEVY
56038174030Makita 038174030 LIITOSKAMPI
57908305405Makita 908305405 KUPUKANTA RUUVI 5X10X40
58908405205Makita 908405205 SCREW

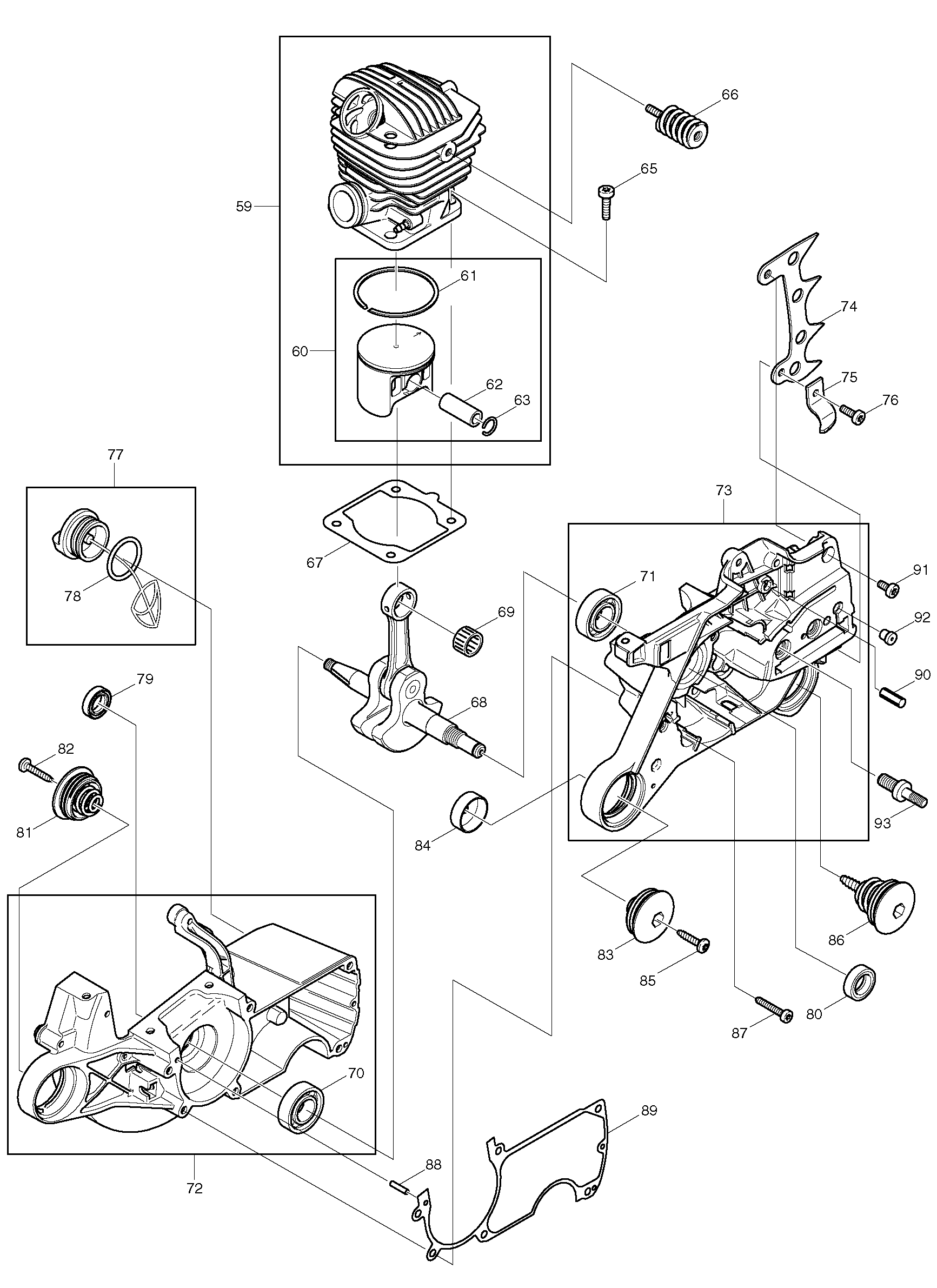

Sheet 3: Makita DCS7900 parts diagram

Makita DCS7900 parts diagram, sheet 3
No.Part numberPart name
61038132020Makita 038132020 PISTON RINGDPC8112
62038132040Makita 038132040 MÄNTÄ TAPPI
63119132060Makita 119132060 SPRING RING, C12X1
65908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
66038114150
67965531121Makita 965531121 TIIVISTE
68038120020Makita 038120020 KAMPIAKSELI TÄYD
69962210019Makita 962210019 NEULA KEHIKKO
70960102159Makita 960102159 BALL BEARING ( 6202 )
71960102179Makita 960102179 KUULA LAAKERI FAG 1740X12
74038250020Makita 038250020 KAARNA TUKI
75038111080Makita 038111080 KETJU SIEPPO
76908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
78963228030Makita 963228030 O-RENGAS 28X3
79962900052Makita 962900052 RADIAL RING , D:15/24x7mm
80962900061Makita 962900061 STEFA
81038114130Makita 038114130 JOUSI TÄYD JA KORKKI
82913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
83038114130Makita 038114130 JOUSI TÄYD JA KORKKI
84038114190Makita 038114190 POT
85913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
86038114140Makita 038114140 JOUSI TÄYD JA KORKKI
87908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
88936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
89038111042Makita 038111042 TIIVISTE
90934660250Makita 934660250 SLOTTED TAPPI *147324
91908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
92010245030Makita 010245030 VENT VENTTIILI
93038232010Makita 038232010 PULTTI

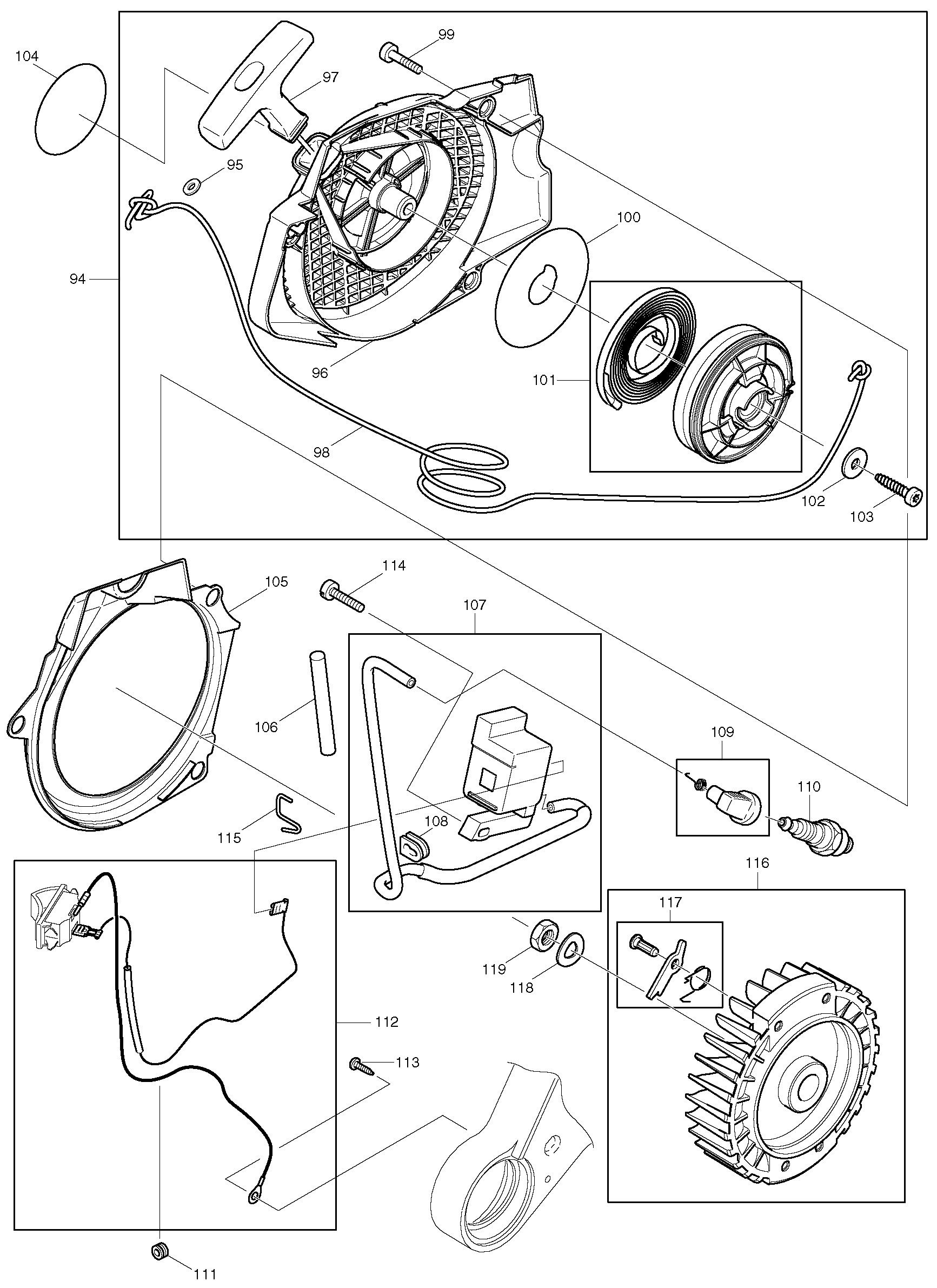

Sheet 4: Makita DCS7900 parts diagram

Makita DCS7900 parts diagram, sheet 4
No.Part numberPart name
95928405000Makita 928405000 DISC
96038112630Makita 038112630 TUULETINKOTELO SININ
97001161010Makita 001161010 STARTER GRIP PS-7900PS-6400
98108164020Makita 108164020 KÄYNNISTIN NARU 109110I.115.PS43/52
99908605205Makita 908605205 RUUVI 5X20 109.110I111.115.PS-43/52/540
100038162050Makita 038162050 VÄLILEVY
101038162021
102924605510Makita 924605510 WASHER
103913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
104980114787Makita 980114787 KILPI
105038112020Makita 038112020 ILM. KANAVA
106970502110Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
108038143030Makita 038143030 Cable Harness
109957604240Makita 957604240 TULPPA KORKKI TÄYD
110965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
111965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
112970311540Makita 970311540 MAAJOHTO
113915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
114908304205Makita 908304205 KUPUKANTA RUUVI 4X10X2
115038111110Makita 038111110 CRAMP
117108166051Makita 108166051 STARTER RATCHET CPL.110I.115.PS-43/52
118926208001Makita 926208001 JOUSI LEVY B8
119920208024Makita 920208024 KUUSIO MUTTERI M8X1

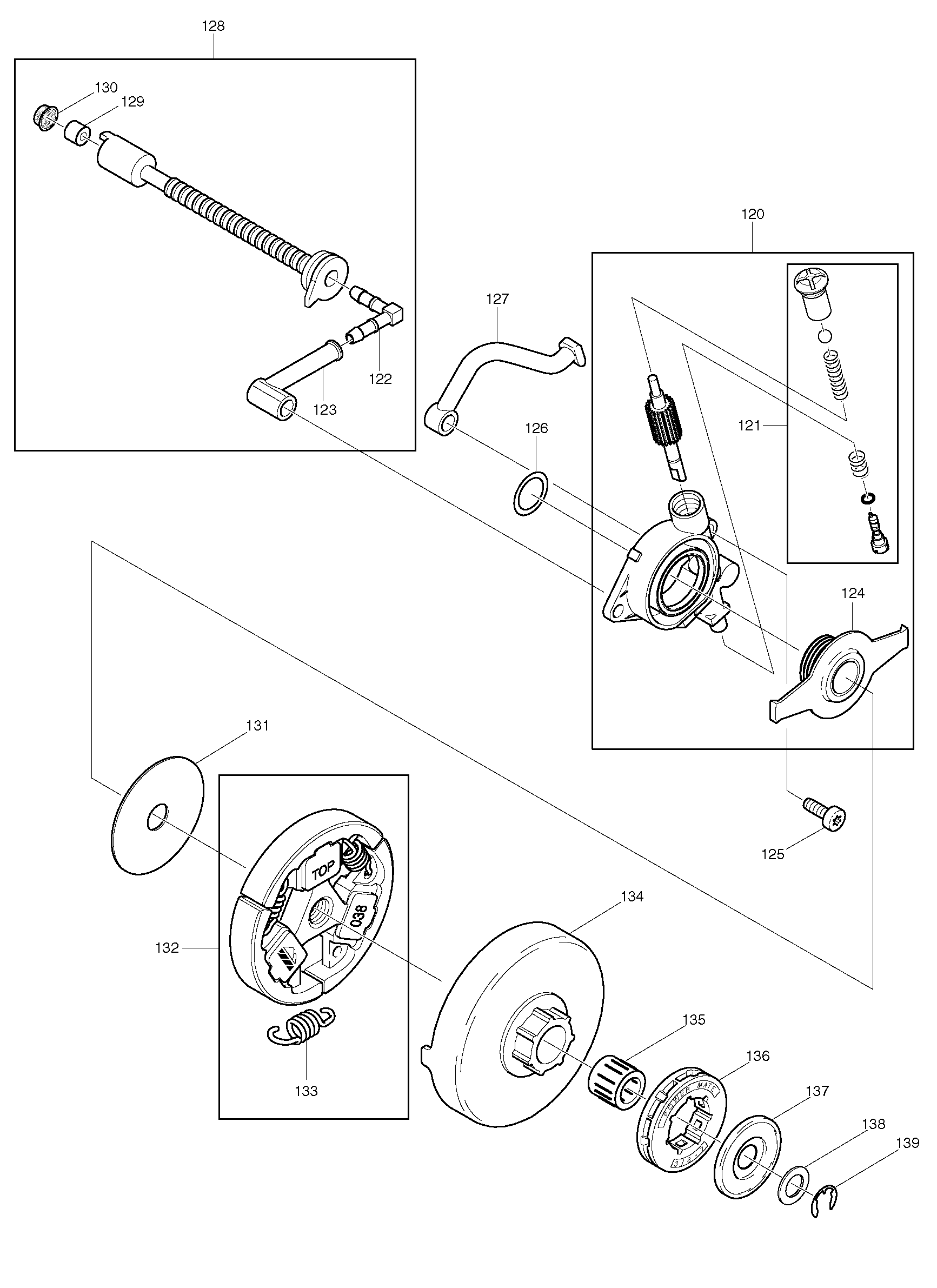

Sheet 5: Makita DCS7900 parts diagram

Makita DCS7900 parts diagram, sheet 5
No.Part numberPart name
121030245070Makita 030245070 ÖLJYPU.KORJ.SRJ.5/95109.110I.115.PS-43YM
122001245140OTHR New Genuine Makita 001245140 ANGULAR NIPPLE
123038245110OTHR New Genuine Makita 038245110 ÖLJY LETKU
124038245030Makita 038245030 PUMPPU KÄYTTÖ
125908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
126038224020Makita 038224020 LEVY
127038245060Makita 038245060 ÖLJY LETKU
129900005066DISC New Genuine Makita 900005066 VÄLI RENGAS
130963601100Makita 963601100 STRAINER SIHTI
131001182041Makita 001182041 GUIDE DISC
133024184021Makita 024184021 KIRISTYSJOUSI 109110I.111.115.PS-43YM
134038223020Makita 038223020 KYTKIN RUMPU
135962210024Makita 962210024 Needle Cage K10/16x12 for DCS901 DCS6400 DCS6401 DCS7300
136119224070Makita Dolmar 119224070 Rim Sprocket 3/8, 7 Teeth for DCS6000 DCS6400
137001224011Makita 001224011 LEVY
138021224010Makita 021224010 Disc
139927408000Makita 927408000 WASHER

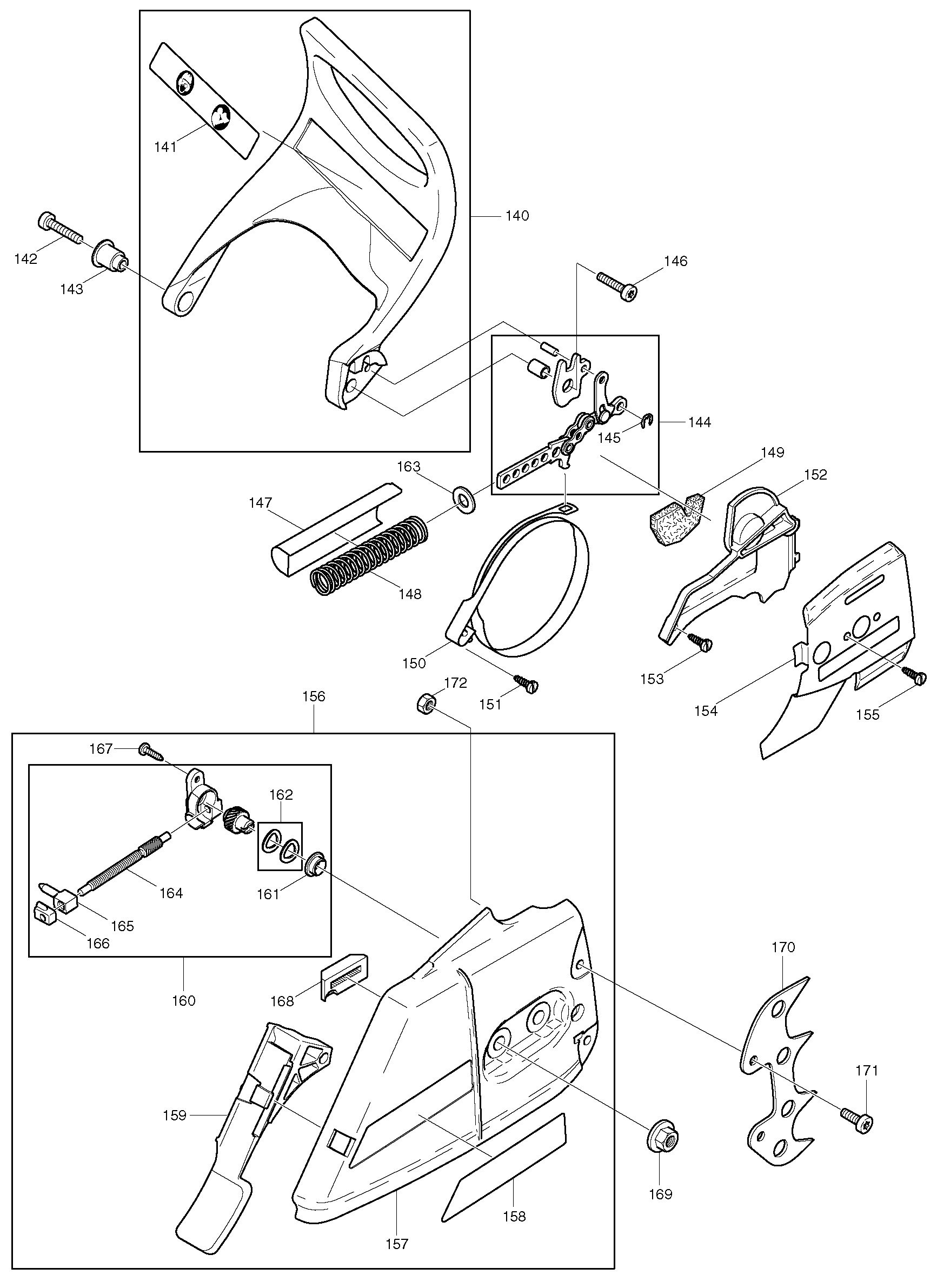

Sheet 6: Makita DCS7900 parts diagram

Makita DCS7900 parts diagram, sheet 6
No.Part numberPart name
141980114237Makita 980114237 KÄSISUOJ.SYMB.KILPI109.110I.115.PS-43YM
142908405205Makita 908405205 SCREW
143038213160Makita 038213160 PUSSLA
145927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
146908005206Makita 908005206 RUUVI
147038213150Makita 038213150 POT
148038213130Makita 038213130 JOUSI
149038213200Makita 038213200 FOAM SPONGE
150038213010Makita 038213010 JARRU JOUSI
151915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
152038213040Makita 038213040 LEVY
153915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
154038111030Makita 038111030 OHJAIN LEVY
155915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
157038213635Makita 038213635 KETJUPYÖRÄSUOJA SINI
158980114784Makita 980114784 KILPI
159038213190Makita 038213190 CHIP OHJAIN
161038213080Makita 038213080 PUSSLA
162038213210Makita 038213210 Spring Washer DCS64/79 PS64
163028213010Makita 028213010 WASHER
164038213120Makita 038213120 KIRISTYS RUUVI
165038213090Makita 038213090 KIRISTYS MUTTERI
166038213070Makita 038213070 KIRISTYS RUUVI BEARENGAS
167915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
168024213240Makita 024213240 KETJU OHJAIN
169923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
171908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
172920405000Makita 920405000 KUUSIO MUTTERI M5

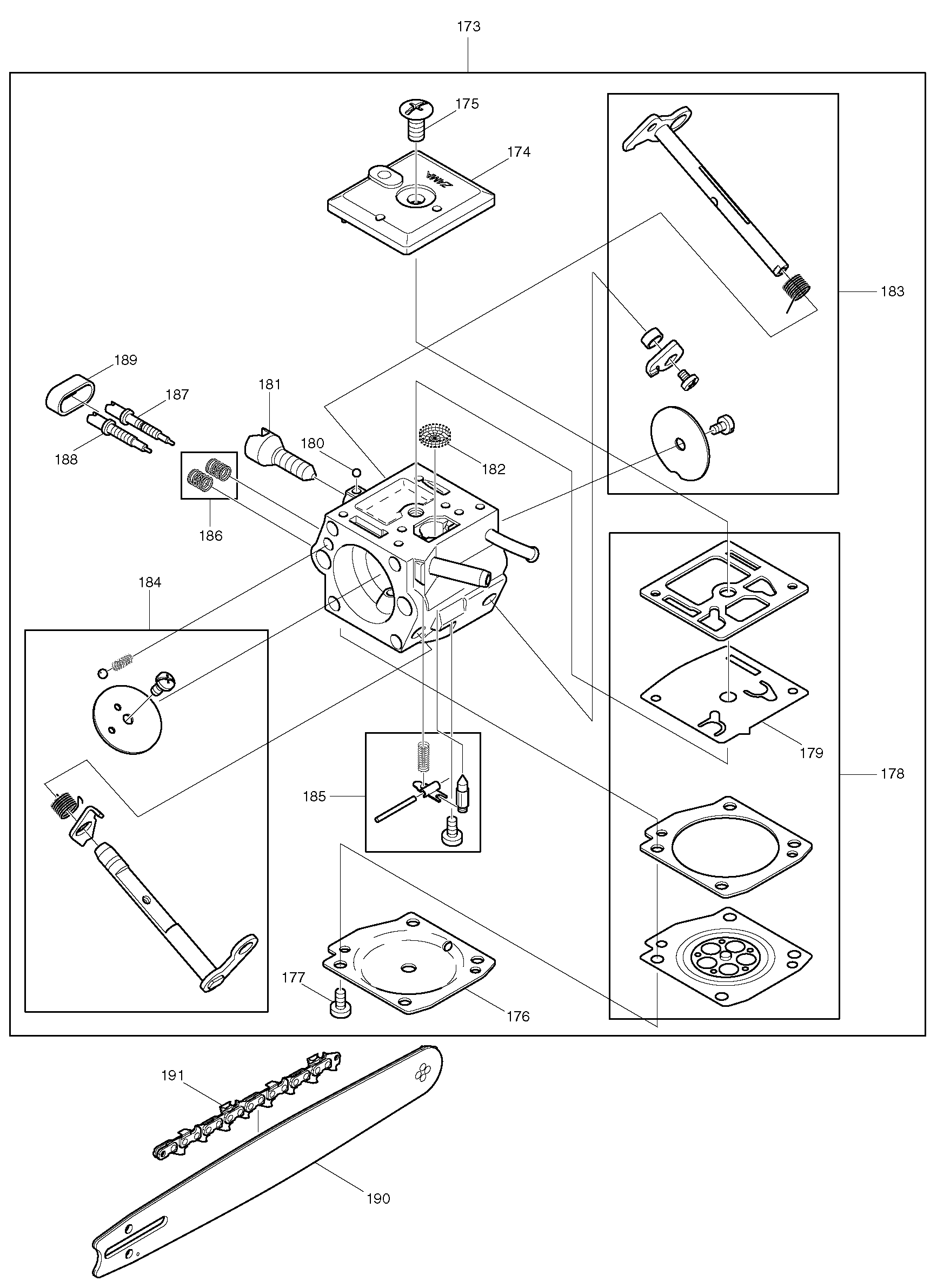

Sheet 7: Makita DCS7900 parts diagram

Makita DCS7900 parts diagram, sheet 7
No.Part numberPart name
174038153030Makita 038153030 PUMPPU KANSI
175038153360Makita 038153360 SCREW
176038153040Makita 038153040 KALVO KANSI
177001153020Makita 001153020 SCREW
179038153070Makita 038153070 PUMPPU KALVO
180038153210Makita 038153210 FRICTION BALL
181038153220Makita 038153220 IDLE STOP RUUVI
182028153180Makita 028153180 SCREEN
183957153060Makita 957153060 KORJAUSSARJADROSSELWELL
184957153050Makita 957153050 KIT RYYPPY VARSI
185957153070Makita 957153070 CONTROL PARTS
186038153260Makita 038153260 JOUSI
187038153230Makita 038153230 IDLE ADJUSMENT RUUVI
188038153240Makita 038153240 MAIN SÄÄTÖ SCREW
189038153270Makita 038153270 KUMI RENGAS
190445038655Makita 445038655 Sprocket Nose Bar
191528099660
