Makita DCS6000I

Makita DCS6000I: exploded parts diagram, 8 sheets, 175 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCS6000I: 175 positions on 8 sheets

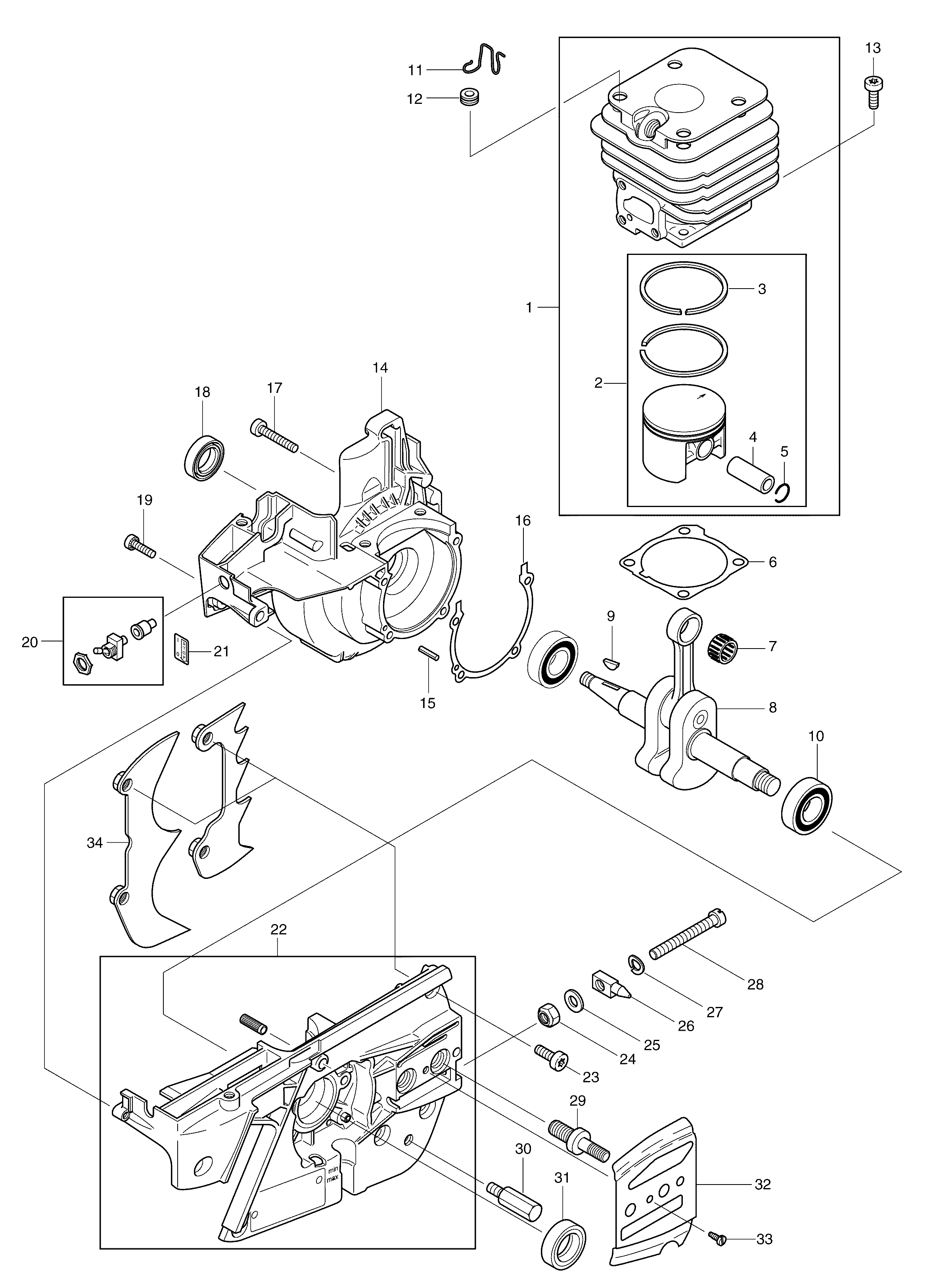

Sheet 1: Makita DCS6000I parts diagram

Makita DCS6000I parts diagram, sheet 1
No.Part numberPart name
3029132020Makita 029132020 MÄNTÄ RENGAS
4119132030Makita 119132030 MÄNTÄ TAPPI
5119132060Makita 119132060 SPRING RING, C12X1
6965517131Makita 965517131 TIIVISTE
7962210015Makita 962210015 NEULA KEHIKKO TORR.116X13
8030120010Makita 030120010 KAMPIAKSELI,TÄYD
9939620371Makita 939620371 KIILA 2X3.7 109.110IREPAIR
10960102159Makita 960102159 BALL BEARING ( 6202 )
11001142012Makita 001142012 KIINNITIN
12965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
13908006205Makita 908006205 SCREW
14030111660Makita 030111660 KAMPIKOTELO MS SININA
15936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
16965517141Makita 965517141 TIIVISTE
17908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
18962900052Makita 962900052 RADIAL RING , D:15/24x7mm
19908405145Makita 908405145 KUPUKANTA RUUVI 5X14
20957605112Makita 957605112 KYTKIN 109.110I.111.115.PS-43/52/540
21980113841Makita 980113841 KILPI ''I-0''
22030111630Makita 030111630 KAMPIKOTELO KS SININ
23908006145Makita 908006145 KUPUKANTA RUUVI 6X14 T27
24922606000Makita 922606000 HEXAHONAL MUTTERI M6
25924306400Makita 924306400 LEVY 6,4
26030111040Makita 030111040 MUTTERI JA TAPPI
27926206000Makita 926206000 JOUSI LEVY A6
28901506654Makita 901506654 KUPUKANTA RUUVI 6X65
29030232010Makita 030232010 KIINNITYS PULTTI
30166111070Makita 166111070 KETJU SIEPPO
31962900053Makita 962900053 STEFA
32030111021Makita 030111021 OHJAIN LEVY
33915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
34

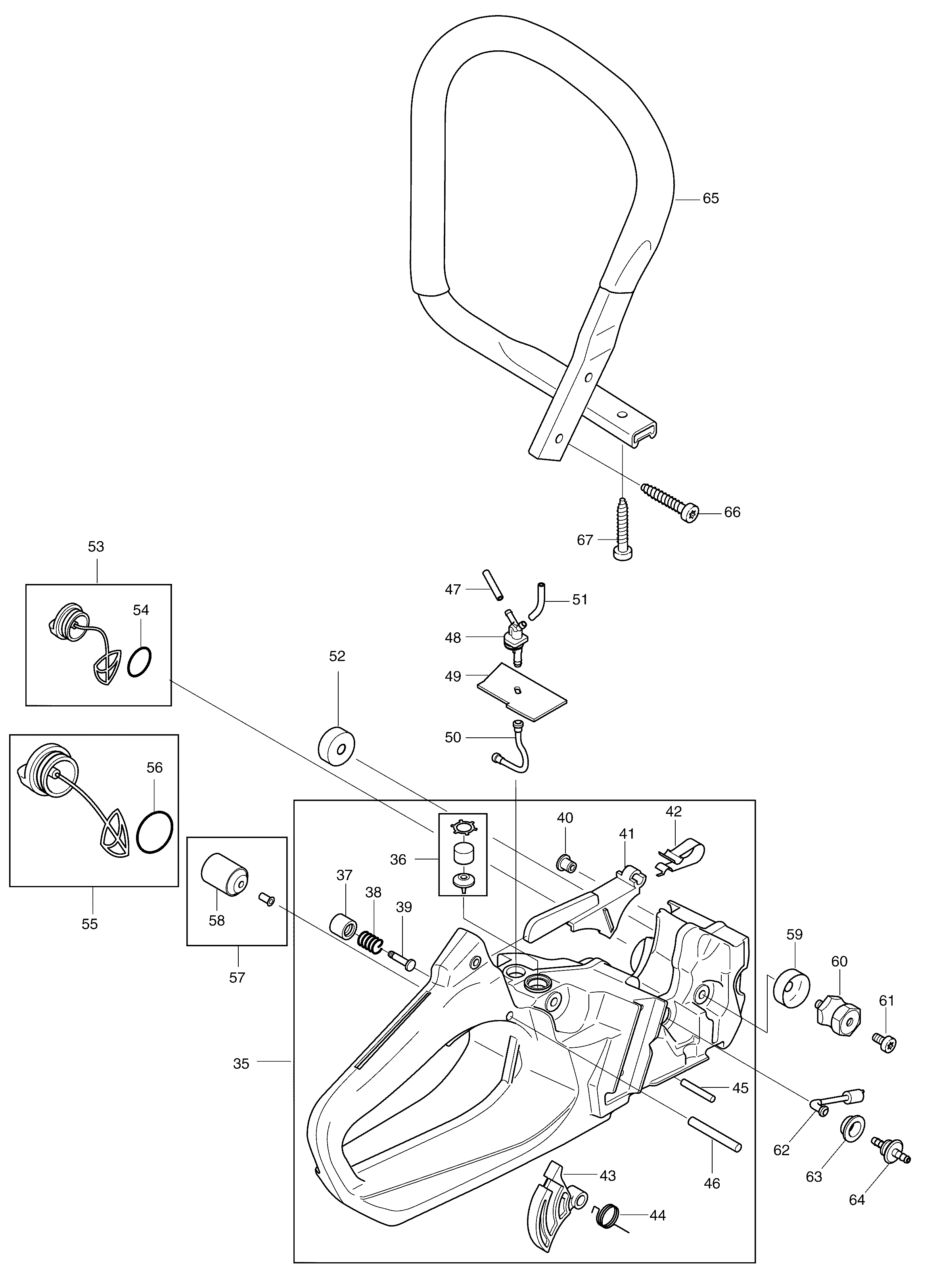

Sheet 2: Makita DCS6000I parts diagram

Makita DCS6000I parts diagram, sheet 2
No.Part numberPart name
36957114010Makita 957114010 VENTTIILI 109.110I.111.115.PS-43/52/540
37965451750Makita 965451750 NAPPI
38965551160Makita 965551160 PAINE SPRIN
39965551150Makita 965551150 STOP TAPPI
40010245010Makita 010245010 VENTTIILI 109.110I.111.115.PS-43/52/540
41119117030Makita 119117030 KAASUN VARM. VIPU
42119117052Makita 119117052 JOUSI
43030117010Makita 030117010 KAASU VIPU
44119117041Makita 119117041 JOUSI
45935940240Makita 935940240 CYL.TAPPI 4M6X24
46935950400Makita 935950400 CYL.TAPPI 5M6X40
47965452380Makita 965452380 BENSALETKU 1M 5,5/3
48965451185Makita 965451185 PA. NIPPA
49965404850Makita 965404850 TIIVISTE
50965402402Makita 965402402 IMU LETKU
51965452470Makita 965452470 LETKU 3,2X1,9
52965551201Makita 965551201 POT
54963100050Makita 963100050 TIIVISTE 109.110I.111.115.PS-43/52/540
56963232045Makita 963232045 O-RENGAS 109.110I.111.115.PS43/52/540
58963601240Makita 963601240 FELT FOR SUCTION HEAD
59965551201Makita 965551201 POT
60965403300Makita 965403300 KUMIVAIMENNIN
61908005095Makita 908005095 SCREW111.115.PS-43/52/540
62965451350Makita 965451350 IMU LETKUTÄYD
63965402910Makita 965402910 Sleeve
64965451500Makita 965451500 LETKU STEM
65030310170Makita 030310170 WRAP KAHVA
66913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
67913455304Makita 913455304 RUUVI 5,5X30

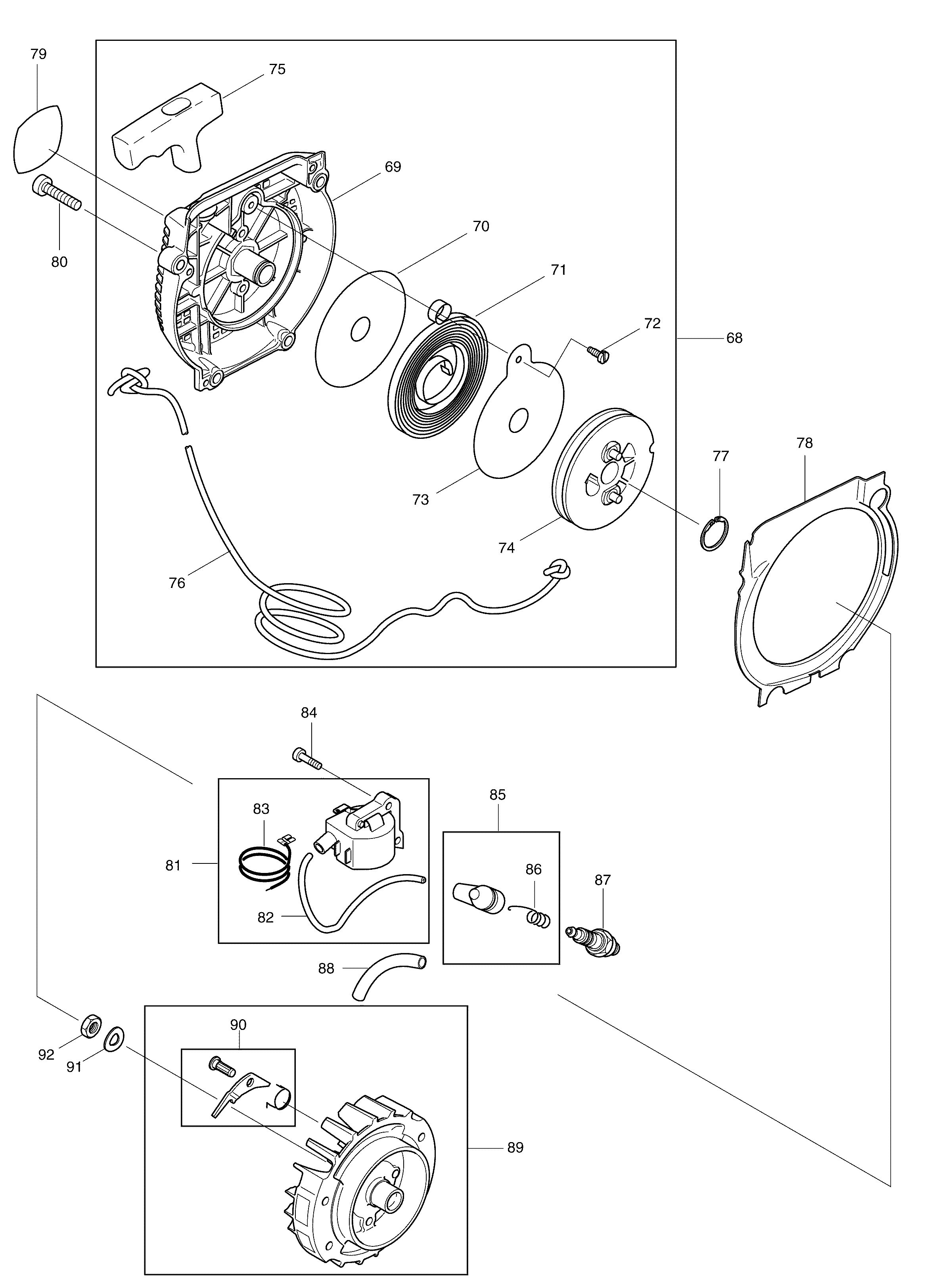

Sheet 3: Makita DCS6000I parts diagram

Makita DCS6000I parts diagram, sheet 3
No.Part numberPart name
69112112640Makita 112112640 TUULETINKOTELO TÄYD
70900004363Makita 900004363 VÄLILEVY 15X74,5X0,5
71123163013Makita 123163013 KÄYNNISTYSJOUSI
72907204102Makita 907204102 THREAD FORMING RUUVI
73123163020Makita 123163020 JOUSI KANSI
74123162031Makita 123162031 NARU RUMPU
75965402262Makita 965402262 KÄYNNISTIN KAHVA 109110I.115.PS43/52
76985000165Makita 985000165 NARU 4,0 MM - 100 METER
77929314100Makita 929314100 LUKKO RENGAS A14X1V
78112112331Makita 112112331 ILM. KANAVA
79980114094Makita 980114094 KILPI
80908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
82970310200Makita 970310200 SYTYTYSJOHTO (1M)109110I.115.PS-43/52
83001147000Makita 001147000 OIKOSULKU JOHTO 109110I.111.115.PS-43YM
84908304205Makita 908304205 KUPUKANTA RUUVI 4X10X2
86965604180Makita 965604180 TULP.HATUN JOUSI 109110I.115.PS-43/52
87965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
88970502110Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
90031166010Makita 031166010 STARTER RATCHET CPL. PC-7414 / 8216
91928308001Makita 928308001 JOUSI LEVY 109.110I111.115.PS-43/52/540
92920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52

Sheet 4: Makita DCS6000I parts diagram

Makita DCS6000I parts diagram, sheet 4
No.Part numberPart name
94030245070Makita 030245070 ÖLJYPU.KORJ.SRJ.5/95109.110I.115.PS-43YM
95965402402Makita 965402402 IMU LETKU
96030245051DISC Makita 030245051 MATO
97963204015Makita 963204015 TIIVISTE RENGAS
98930916160Makita 930916160 SPRING RING
99001245320Makita 001245320 PIDÄTINRENGAS 109110I.111.115.PS-43YM
100030224010Makita 030224010 LEVY
101030224020Makita 030224020 LEVY
102962210026Makita 962210026 NEULA KEHIKKO INA 148X14
103119224070Makita Dolmar 119224070 Rim Sprocket 3/8, 7 Teeth for DCS6000 DCS6400
104030223100Makita Dolmar 030223100 Clutch Drum for DCS6000I DCS6800I
106001182040
107024184021Makita 024184021 KIRISTYSJOUSI 109110I.111.115.PS-43YM
108908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540

Sheet 5: Makita DCS6000I parts diagram

Makita DCS6000I parts diagram, sheet 5
No.Part numberPart name
109030174010Makita 030174010 PAKOPUTKI
110
111
112030174031Makita 030174031 LEVY
113965517031Makita 965517031 TIIVISTE
114928406000Makita 928406000 JOUSI LEVY
115908206708Makita 908206708 KUPUKANTA RUUVI 6X70
118980114237Makita 980114237 KÄSISUOJ.SYMB.KILPI109.110I.115.PS-43YM
120927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
121927306000Makita 927306000 LEVY 6,0
122915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
123027213350Makita 027213350 JARRUPANNAN PIDIN109.110I.115.PA-43YM
124030213160OTHR New Genuine Makita 030213160 JARRU PANNUTA
125024213321Makita 024213321 PAINE JOUSI
126030213190Makita 030213190 JOUSI OHJAIN
127030213182Makita 030213182 KANSI LEVY
128915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
129965403370Makita 965403370 KUMIVAIMENNIN
130965404761Makita 965404761 KUMI LEVY
131030213655Makita 030213655 KETJUPYÖRÄSUOJA
132965404800Makita 965404800 KANSI FOAM LEVY
133915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
134030111030Makita 030111030 OHJAIN LEVY
135923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
136980114259Makita 980114259 KILPI

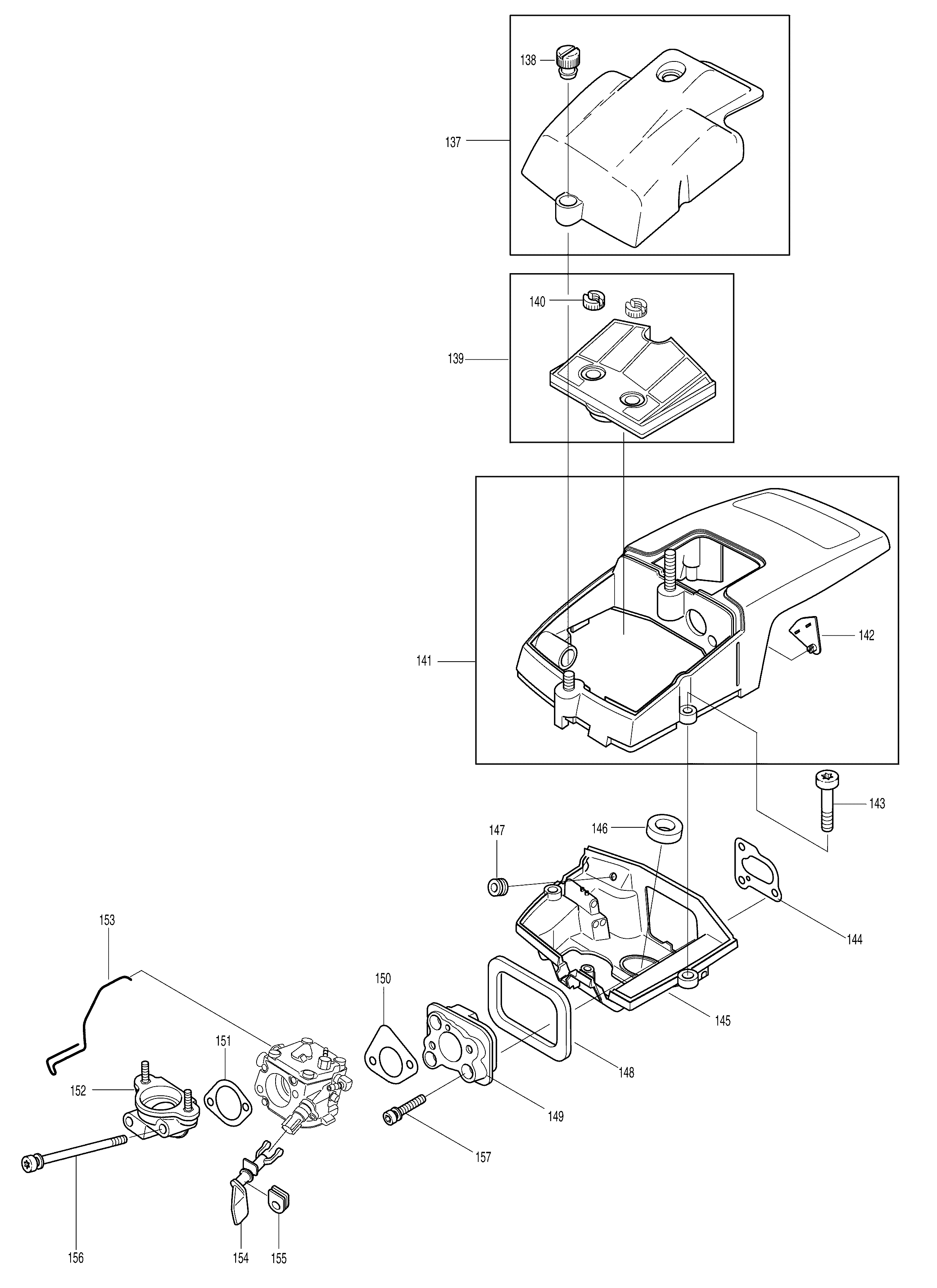

Sheet 6: Makita DCS6000I parts diagram

Makita DCS6000I parts diagram, sheet 6
No.Part numberPart name
138001118062Makita 001118062 KANNEN MUTTERI 109110I.111.115.PS-43
140001118040Makita 001118040 MUTTERI M 5
142030118131Makita 030118131 SULKIJA
143908305255Makita 908305255 KUPUKANTA RUUVI 5X10X25
144965517122Makita 965517122 TIIVISTE
145030118082Makita 030118082 POHJA
146030404460Makita 030404460 TIIVISTE
147965401014Makita 965401014 KUMIPUSSLA 110I.115I115.
148030131020Makita 030131020 TIIVISTE
149030131012Makita 030131012 VÄLI LAIPPA
150965517101Makita 965517101 TIIVISTE
151965518090Makita 965518090 TIIVISTE
152121171020Makita 121171020 CONNECTION MUHVI COML
153030117032Makita 030117032 KAASU KAMPI
154030150030Makita 030150030 SHOKE VIPU
155965401016Makita 965401016 KUMI PUSSLA
156908205755Makita 908205755 LINSSI PÄÄ RUUVI
157908405255Makita 908405255 KUPUKANTA RUUVI 5X25

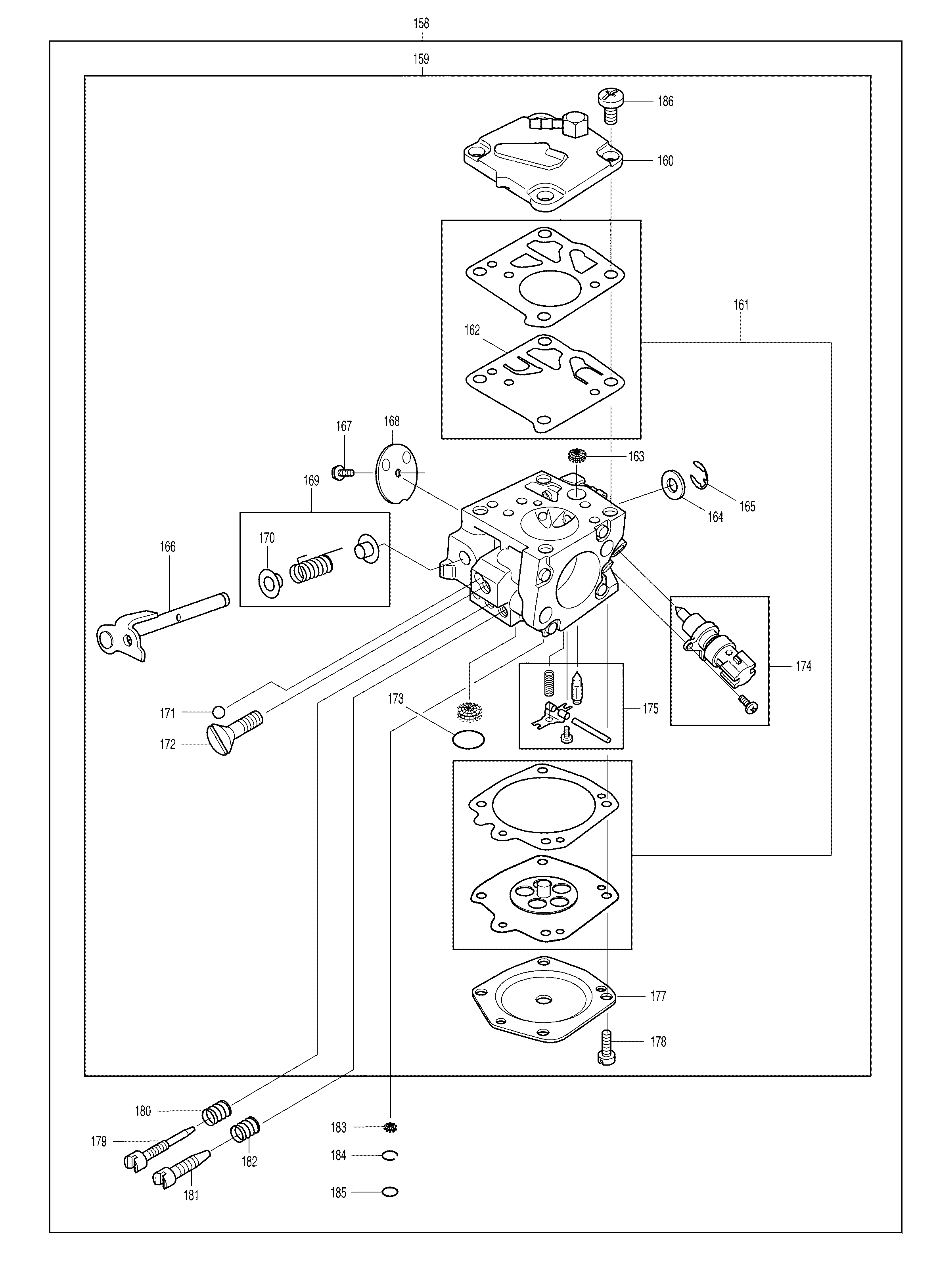

Sheet 7: Makita DCS6000I parts diagram

Makita DCS6000I parts diagram, sheet 7
No.Part numberPart name
160030150160
162113150150Makita 113150150 PUMPPU KALVO
163020150180Makita 020150180 LIITOSVASTE
164122151400Makita 122151400 LEVY
165100150350Makita 100150350 LUKKORENGAS 110I.115I.
166133150300Makita 133150300 KAASU VARSI
167001150650Makita 001150650 RUUVI 110I.115I.
168001150320Makita 001150320 KAASU SULKIJA
170144151315Makita 144151315 PUSSLA
171001150510Makita 001150510 KUULA
172001150270Makita 001150270 SÄÄTÖ RUUVI
173113150040Makita 113150040 NAPPI
174030150141
175957150070Makita 957150070 SARJA SÄÄTÖ OSAT (HS)
177113150120Makita 113150120 KALVO KANSI
178001150520Makita 001150520 RUUVI 110I.115I.
179122151470Makita 122151470 IDLE SÄÄTÖ RUUVI
180144151480Makita 144151480 JOUSI
181122151510Makita 122151510 MAIN SÄÄTÖ RUUVI
182101150480Makita 101150480 JOUSI
183107150230Makita 107150230 STRAINER SIHTI
184107150240Makita 107150240 RENGAS
185113150030Makita 113150030 KANSI LEVY
186113150170Makita 113150170 RUUVI JA LUKITUS WASER

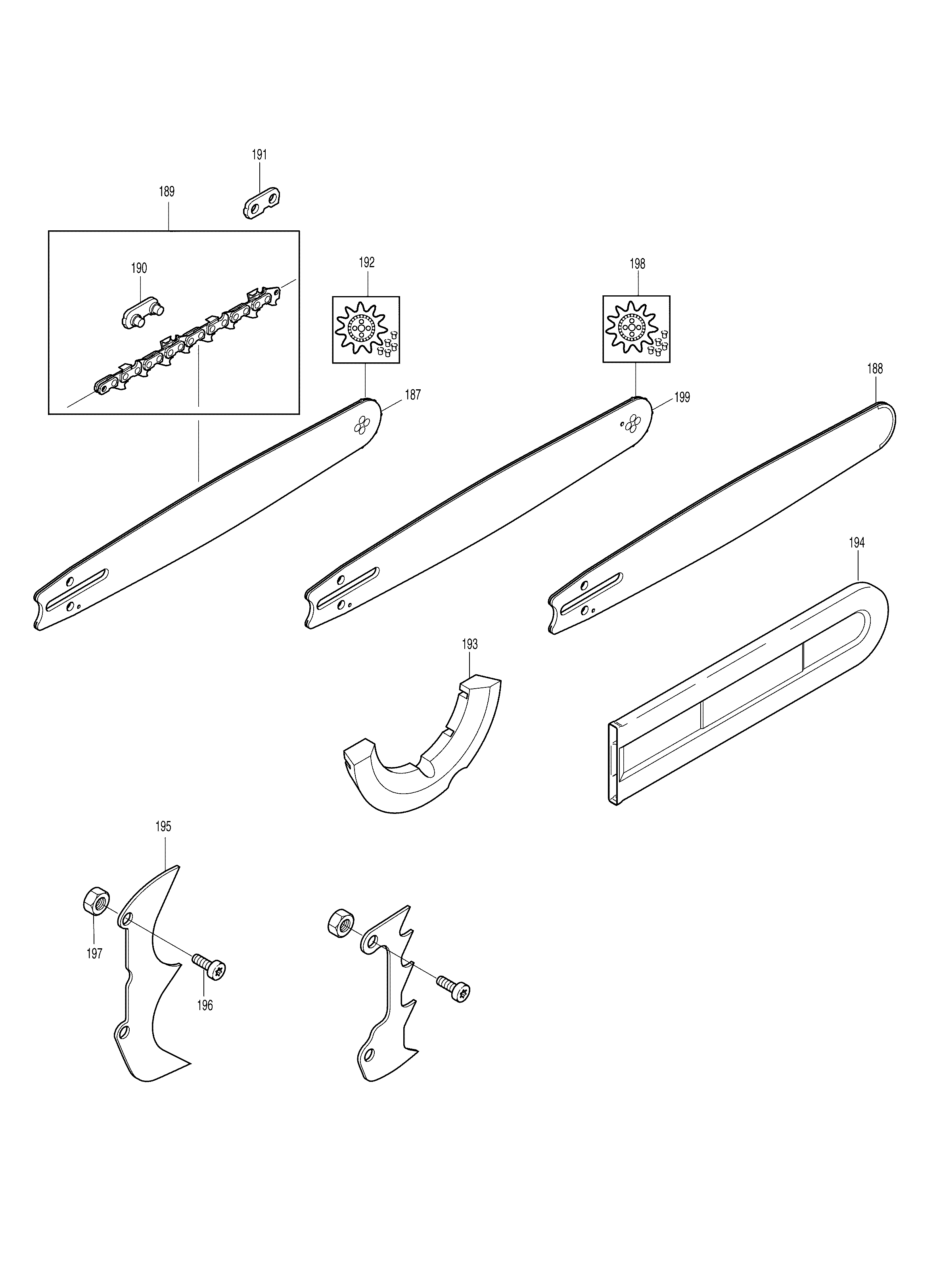

Sheet 8: Makita DCS6000I parts diagram

Makita DCS6000I parts diagram, sheet 8
No.Part numberPart name
187443038651
188443038451
190
191
192
193965451890Makita 965451890 INSERT
194952100653
195
196908006145Makita 908006145 KUPUKANTA RUUVI 6X14 T27
197920406000Makita 920406000 KUUSIO MUTTERI M6
198
199
