Sheet 1: Makita DCS5200I parts diagram

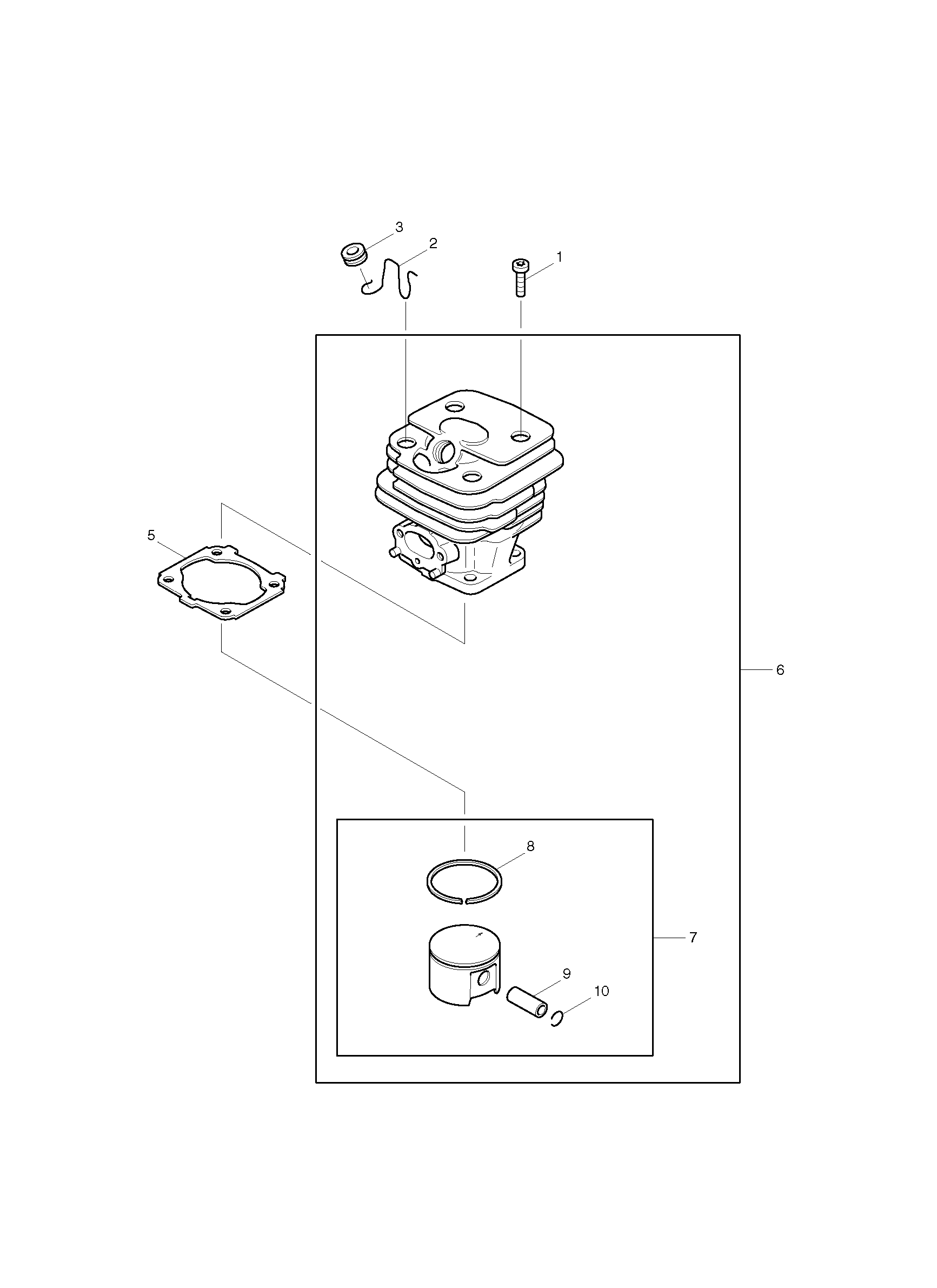

Makita DCS5200I parts diagram, sheet 1
No.Part numberPart name
1908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
2001142012Makita 001142012 KIINNITIN
3965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
5965525042Makita 965525042 TIIVISTE 109.110I.111.115.PS-43/52/540
8027132020Makita 027132020 MÄNNÄNRENGAS 111.115PS-52
9001132010Makita 001132010 MÄNTÄ TAPPI
10020132050Makita 020132050 JOUSIRENGAS 109.110I111.115.PS-43/52/540

Sheet 2: Makita DCS5200I parts diagram

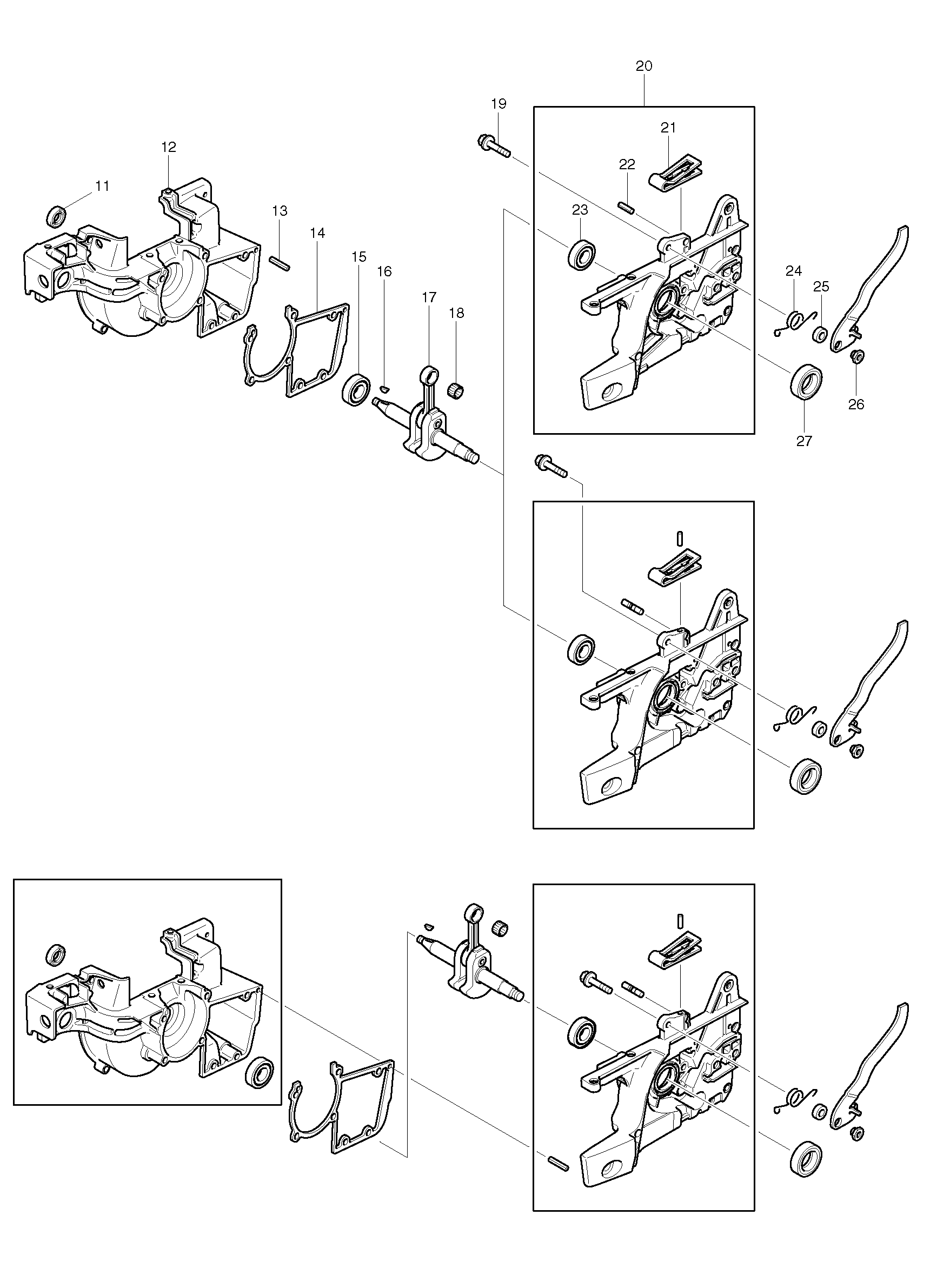

Makita DCS5200I parts diagram, sheet 2
No.Part numberPart name
11962900050Makita 962900050 STEFA 109.110I.111.115.PS-43/52/540
12020111631Makita 020111631 KAMPIKOTELO MAGNETO-DE TÄYD
13936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
14965525002Makita 965525002 WASHER 109.110I.111.115.PS-43/52/540
15960102129Makita 960102129 LAAKERI 109.110I.111115.PS-43/52/540
16939620371Makita 939620371 KIILA 2X3.7 109.110IREPAIR
17027120010Makita 027120010 KAMPIAKSELI 109.110I111.115.PS-43/52/540
18962211030Makita 962211030 NEEDLE CAGE TORR. 10/13X14
19027213520Makita 027213520 RUUVI 109.110I.111115.PS-43/52/540
21027213320Makita 027213320 JOUSI 109.110I.111.115.PS-43/52/540
22934950160Makita 934950160 KIINNITIN MUHVI
23960102159Makita 960102159 BALL BEARING ( 6202 )
24027213270Makita 027213270 JOUSI 109.110I.111.115.PS-43/52/540
25027213510Makita 027213510 RENGAS 109.110I.111.115.PS-43/52/540
26027213500Makita 027213500 MUTTERI 109.110I.111115.PS-43/52/540
27962900052Makita 962900052 RADIAL RING , D:15/24x7mm

Sheet 3: Makita DCS5200I parts diagram

Makita DCS5200I parts diagram, sheet 3
No.Part numberPart name
29963100050Makita 963100050 TIIVISTE 109.110I.111.115.PS-43/52/540
30020173061Makita 020173061 LUMISUODIN 109.110I.111.115.PS-43/52/540
31908605145Makita 908605145 RUUVI 5X14 109.110I.111.115.PS-43/52/540
32020173610Makita 020173610 KANSI FOR PRESUODIN(SININ.)
33020173011Makita 020173011 ESI-SUODIN 109.110I.111.115.PS-43/52/540
34908105204Makita 908105204 RUUVI 5X20 109.110I111.115.PS-43/52/540
35965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
36908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
37923305000Makita 923305000 KUUSIO MUTTERI M5
38020111070Makita 020111070 PIDIN 109.110I.111.115.PS-43/52/540
39980113841Makita 980113841 KILPI ''I-0''
40957605112Makita 957605112 KYTKIN 109.110I.111.115.PS-43/52/540
42908005095Makita 908005095 SCREW111.115.PS-43/52/540
43389213080Makita Set 389213080 Clamp Screw + 001213020 Nut With Pivot
44001213020Makita 001213020 Nut With Pivot for DCS430 DCS520 DCS5200I
45905808305Makita 905808305 VAARNAPULTTI 8X30109.110I.115.PS-43
46020111172Makita 020111172 OHJAINLEVY 109.110I.111.115.PS-43/52/540
47915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
48010245010Makita 010245010 VENTTIILI 109.110I.111.115.PS-43/52/540
49908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
50020111082Makita 020111082 KETJUSIEPPO 109.110I111.115.PS-43/52/540
51001111011Makita 001111011 RUUVI 109.110I.111.115.PS-43/52/540

Sheet 4: Makita DCS5200I parts diagram

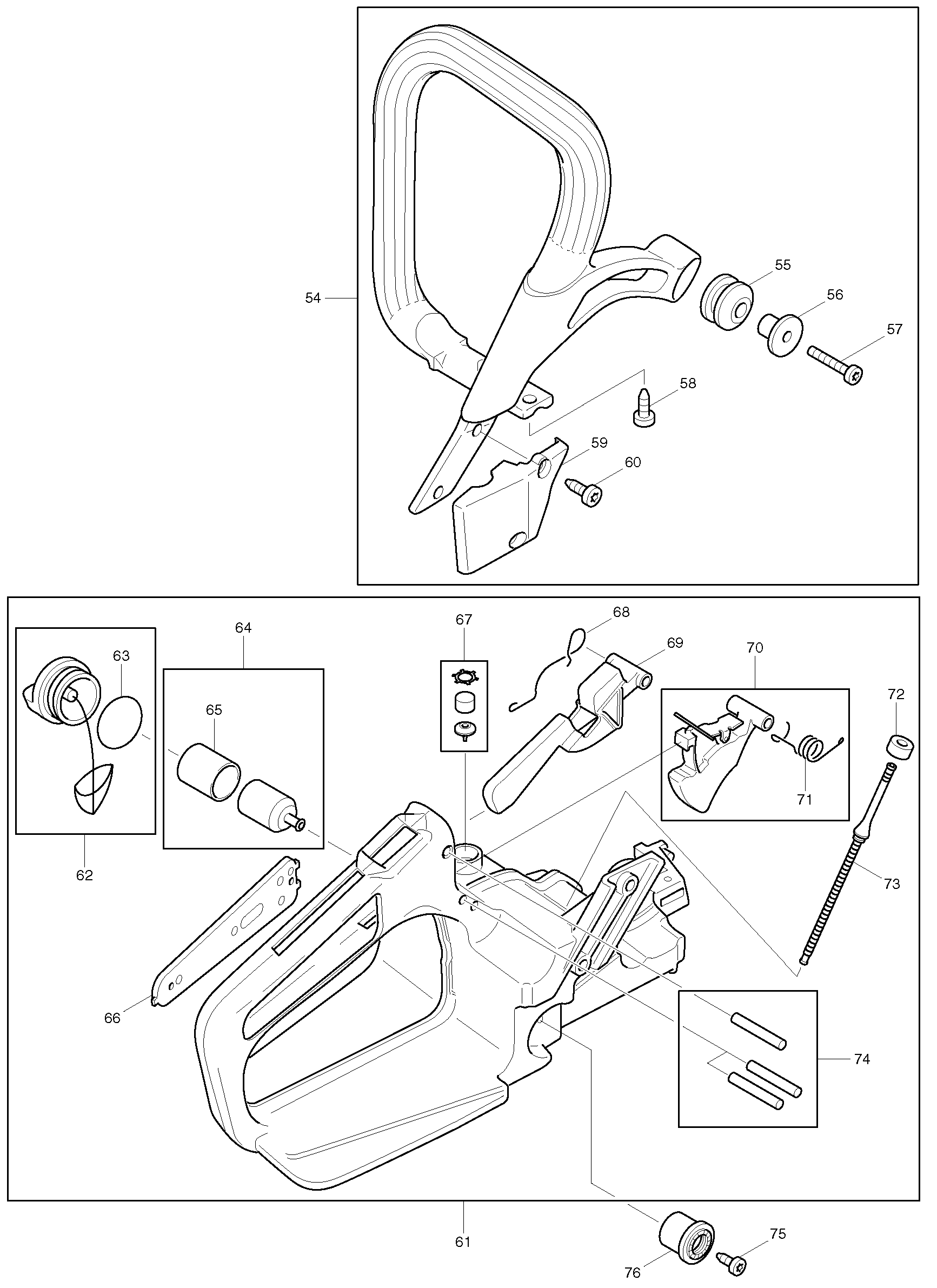

Makita DCS5200I parts diagram, sheet 4
No.Part numberPart name
55965403490Makita 965403490 KUMIVAIMENNIN 109.110I.115.PS43/52/540
56021114051Makita 021114051 KIIN.TULPPA 109.110I111.115.PS-43/52/540
57908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
58913455164Makita 913455164 SCREW110I.115.PS-43/52/54
59020310600Makita 020310600 KANSI SININ.
60913455164Makita 913455164 SCREW110I.115.PS-43/52/54
63963232045Makita 963232045 O-RENGAS 109.110I.111.115.PS43/52/540
65963601240Makita 963601240 FELT FOR SUCTION HEAD
66020117301Makita 020117301 KAASU VARM.VIPU 109110I.115.PS-43/52
67957114010Makita 957114010 VENTTIILI 109.110I.111.115.PS-43/52/540
68020117160Makita 020117160 JOUSI 109.110I.111115.PS-43/52/540
69020117301Makita 020117301 KAASU VARM.VIPU 109110I.115.PS-43/52
71020117273Makita 020117273 KAASUVIVUN JOUSI 109110I.115.PS-43/52
72965404520Makita 965404520 TIIVISTE 109.110I.111.115.PS-43/52/540
73965404460Makita 965404460 BENSALETKU 109.110I.111.115.PS-43/52/540
74935932320Makita 935932320 CYL.TAPPI 3,25MM
75913447134Makita 913447134 RUUVI 4,7X13 109.111110I.115.PS-43/52
76965403280Makita 965403280 KUMIVAIMENNIN 109.110I.111.115.PS-43

Sheet 5: Makita DCS5200I parts diagram

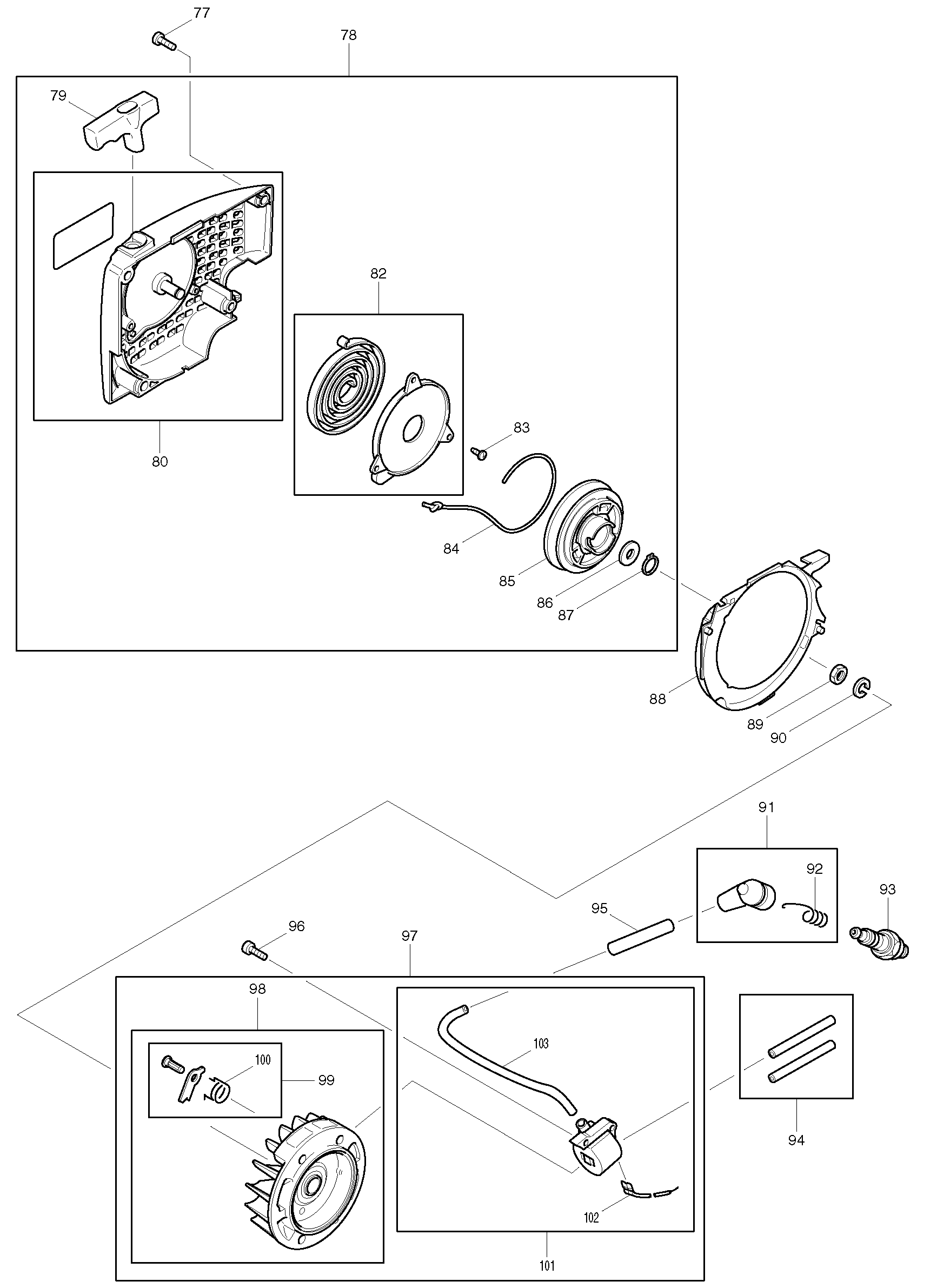

Makita DCS5200I parts diagram, sheet 5
No.Part numberPart name
77908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
79965402262Makita 965402262 KÄYNNISTIN KAHVA 109110I.115.PS43/52
80020112630Makita 020112630 TUULETINKOTELO
82020163031Makita 020163031 REWIND SPRING 109110I.115.PS-43/52
83915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
84985000155Makita 985000155 KÄYNNISTINNARU 3,5MM/100M
85027162070Makita 027162070 NARURUMPU 109.110I.111.115.PS-43/52/540
86924108400Makita 924108400 ALUSLEVY 109.110I.111.115.PS-43/52/540
87929108080Makita 929108080 LUKKORENGAS 109.110I111.115.PS-43/52/540
88020112010Makita 020112010 ILMAKANAVA 109.110I.111.115.PS-43/52/540
89920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
90928308001Makita 928308001 JOUSI LEVY 109.110I111.115.PS-43/52/540
92965604180Makita 965604180 TULP.HATUN JOUSI 109110I.115.PS-43/52
93965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
94970502050Makita 970502050 SUOJAPUTKI SÄHKÖ 1M109.110I.115.PS43/52
95970502110Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
96908605205Makita 908605205 RUUVI 5X20 109.110I111.115.PS-43/52/540
100122166020Makita 122166020 KYNNEN JOUSI 109.111110I.115.PS-43/52
102001147000Makita 001147000 OIKOSULKU JOHTO 109110I.111.115.PS-43YM
103970310200Makita 970310200 SYTYTYSJOHTO (1M)109110I.115.PS-43/52

Sheet 6: Makita DCS5200I parts diagram

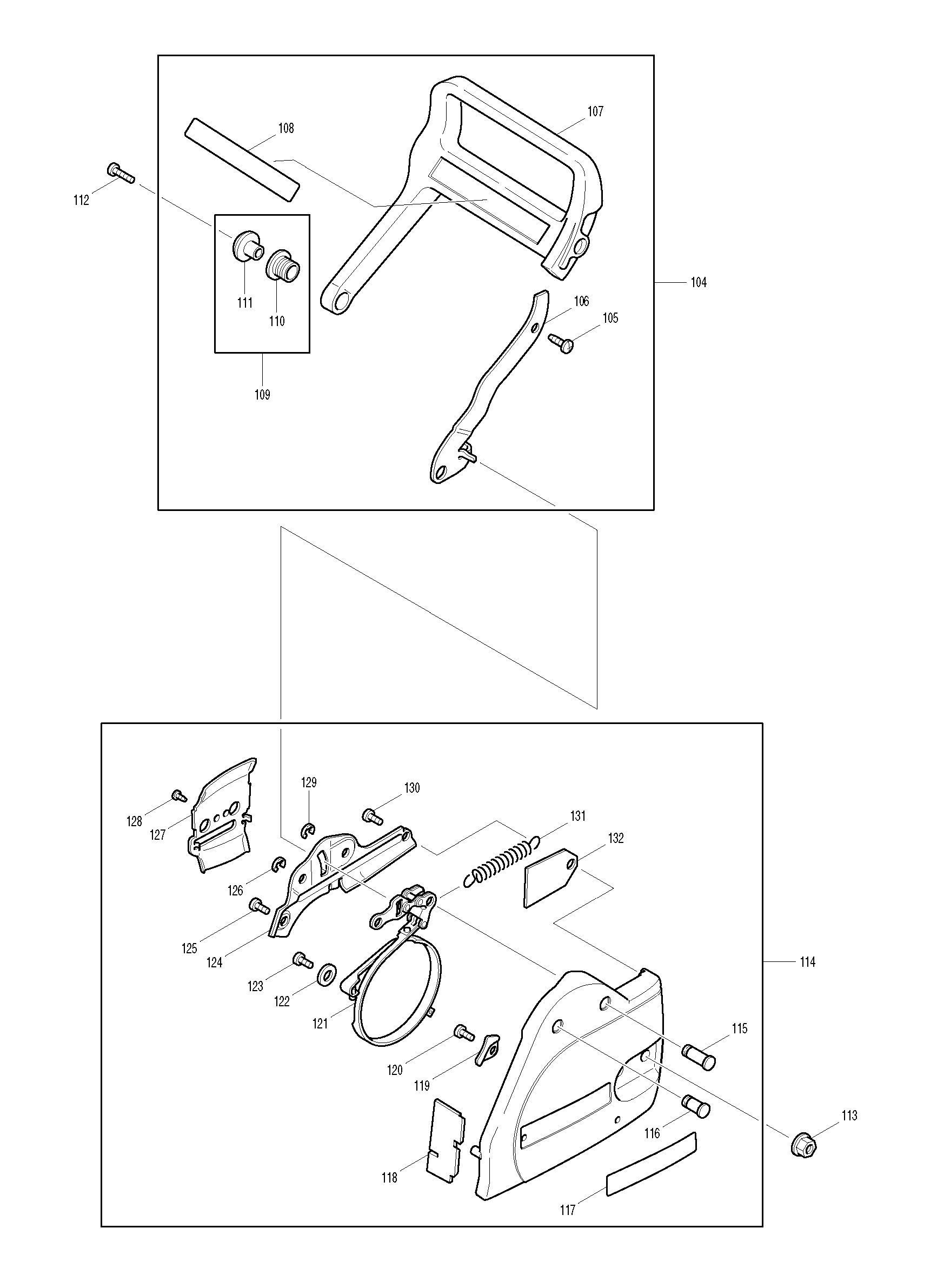

Makita DCS5200I parts diagram, sheet 6
No.Part numberPart name
105905005184Makita 905005184 RUUVI 5,5X18 109.111110I.115.PS-43/52
106027213221Makita 027213221 KÄSISUOJAN VIPU 109110I.115.PS-43/52YM
107027213462Makita 027213462 TAKAPOTKU KAHVA 109.110I.115.PS-43/52YM
108980114237Makita 980114237 KÄSISUOJ.SYMB.KILPI109.110I.115.PS-43YM
110027213150Makita 027213150 KUMIPUSSLA 109.110I.111.115.PS-43/52/540
111027213161Makita 027213161 PUSLA 109.110I.111.115.PS-43/52/540
112908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
113923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
115027213130Makita 027213130 JARRUVIVUN AKSELI109.110I.115.PS-43YM
116027213140Makita 027213140 AKSELI 109.110I.111115.PS-43/52/540
117980114393Makita 980114393 KILPI
118027213280Makita 027213280 SUOJAKANSI 109.110I111.115.PS-43/52/540
119027213350Makita 027213350 JARRUPANNAN PIDIN109.110I.115.PA-43YM
120913205125Makita 913205125 RUUVI 5X12 109.110I111.115.PS-43/52/540
121027213050Makita Dolmar 027213050 Brake Spring With Lever Cpl Dc
122924500049Makita 924500049 ALUSLEVY 109.110I.111.115.PS-43/52
123913205125Makita 913205125 RUUVI 5X12 109.110I111.115.PS-43/52/540
124027213111Makita 027213111 KANSILEVY 109.110I111.115.PS-43/52 YM
125913205125Makita 913205125 RUUVI 5X12 109.110I111.115.PS-43/52/540
126927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
127027111041Makita 027111041 OHJAINLEVY 109.110I111.115.PS-43/52/540
128915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
129927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
130913205125Makita 913205125 RUUVI 5X12 109.110I111.115.PS-43/52/540
131027213120Makita 027213120 JOUSI 109.110I.111.115.PS-43/52/540
132027213560Makita 027213560 KUMILEVY 109.110I.111.115.PS-43/52/540

Sheet 7: Makita DCS5200I parts diagram

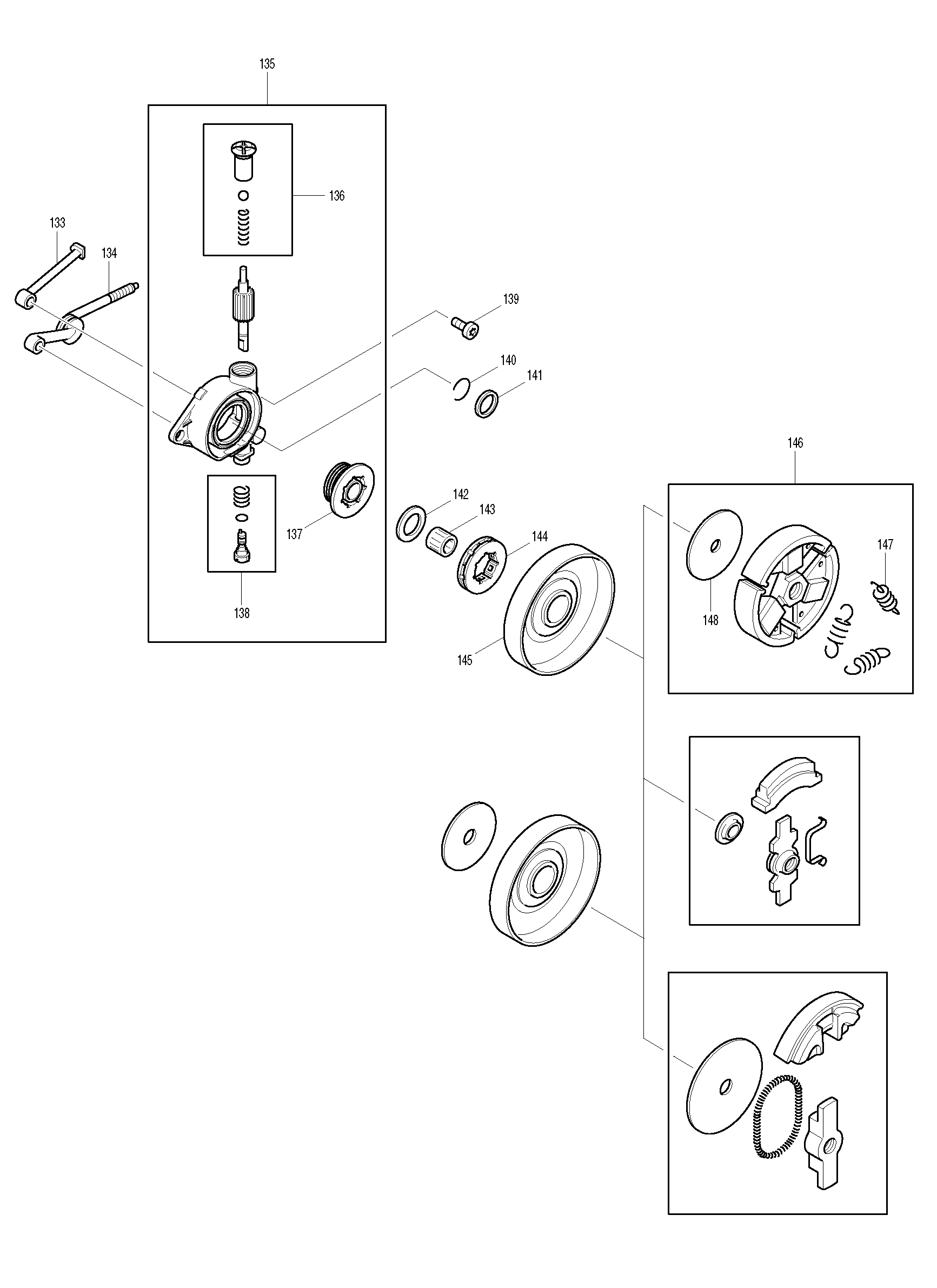

Makita DCS5200I parts diagram, sheet 7
No.Part numberPart name
133020245020Makita 020245020 PAINELETKU 109.110I111.115.PS-43/52/540
134020245020Makita 020245020 PAINELETKU 109.110I111.115.PS-43/52/540
136030245070Makita 030245070 ÖLJYPU.KORJ.SRJ.5/95109.110I.115.PS-43YM
137027245010Makita 027245010 VETOPYÖRÄ ÖLJYPUMP.109.110I.115.PS-43YM
138030245070Makita 030245070 ÖLJYPU.KORJ.SRJ.5/95109.110I.115.PS-43YM
139908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
140930916160Makita 930916160 SPRING RING
141001245320Makita 001245320 PIDÄTINRENGAS 109110I.111.115.PS-43YM
142027245020Makita 027245020 PIDÄTINLEVY 109.110I111.115.PS-43/52/540
143962210025Makita 962210025 NEULAKEHÄ 12X15X13109.110I.115.PS-43YM
144026224010
145027223020
147024184021Makita 024184021 KIRISTYSJOUSI 109110I.111.115.PS-43YM
148001182060Makita 001182060 SHIM

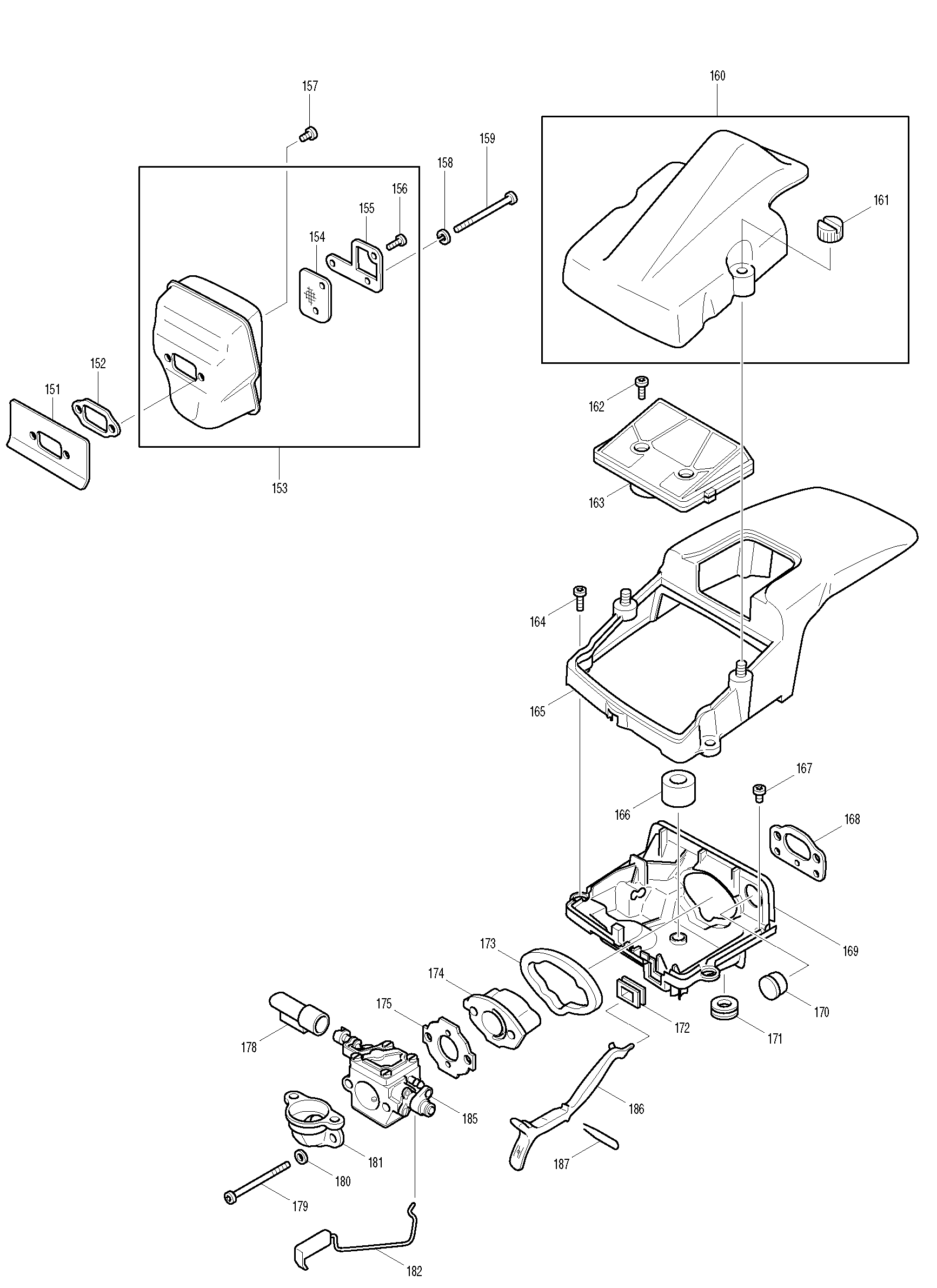

Sheet 8: Makita DCS5200I parts diagram

Makita DCS5200I parts diagram, sheet 8
No.Part numberPart name
151020174170Makita 020174170 LÄMPÖSUOJA 111.115.115I.PS-540
152965522032Makita 965522032 TIIVISTE 109.110I.111.115.PS-43/52/540
154
155
156
157908005095Makita 908005095 SCREW111.115.PS-43/52/540
158928405000Makita 928405000 DISC
159908205625Makita 908205625 RUUVI 5X62 109.110I.111.115.PS-43/52/540
161001118062Makita 001118062 KANNEN MUTTERI 109110I.111.115.PS-43
162908605145Makita 908605145 RUUVI 5X14 109.110I.111.115.PS-43/52/540
163020173202Makita 020173202 ILMASUODATIN NYLON109.110I.115.PS-43YM
164908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
165027118154Makita 027118154 KANSI/KOPPA 109.110I111.115.PS-43/52/540
166965404780Makita 965404780 TIIVISTE 109.110I.111.115.PS-43/52/540
167908005095Makita 908005095 SCREW111.115.PS-43/52/540
168965525032Makita 965525032 TIIVISTE 109.110I.111.115.PS-43/52/540
169027118054Makita 027118054 POHJA 109.110I.111.115.PS-43/52/540
170965404230Makita 965404230 TALVI.AS.KORKKI 109110I.111.115.PS-43YM
171965401024Makita 965401024 KUMIPUSLA 109.110I.111.115.PS-43/52/540
172965404410Makita 965404410 KUMIPUSLA 109.110I.111.115.PS-43/52/540
173965404341Makita 965404341 TIIVISTE 109.110I.111.115.PS43/52/540
174020131041Makita 020131041 VÄLILAIPPA 109.110I.111.115.PS-43/52/540
175965524022Makita 965524022 TIIVISTE 109.110I.111.115.PS-43/52/540
178020118030Makita 020118030 OHJAIN PALA
179908205658Makita 908205658 RUUVI 5X65 109.110I.111.115.PS-43/52/540
180924105300Makita 924105300 LEVY 5,3
181020171100Makita 020171100 LIITOSMUHVI 109.110I111.115.PS-43/52/540
182020117281Makita 020117281 KAASUVIPU 109.111110I.115.PS-43/52
185027150004
186027150880Makita 027150880 KURISTINVIPU 110I.115I.
187027150900Makita 027150900 HAKANEN 110I.115.

Sheet 9: Makita DCS5200I parts diagram

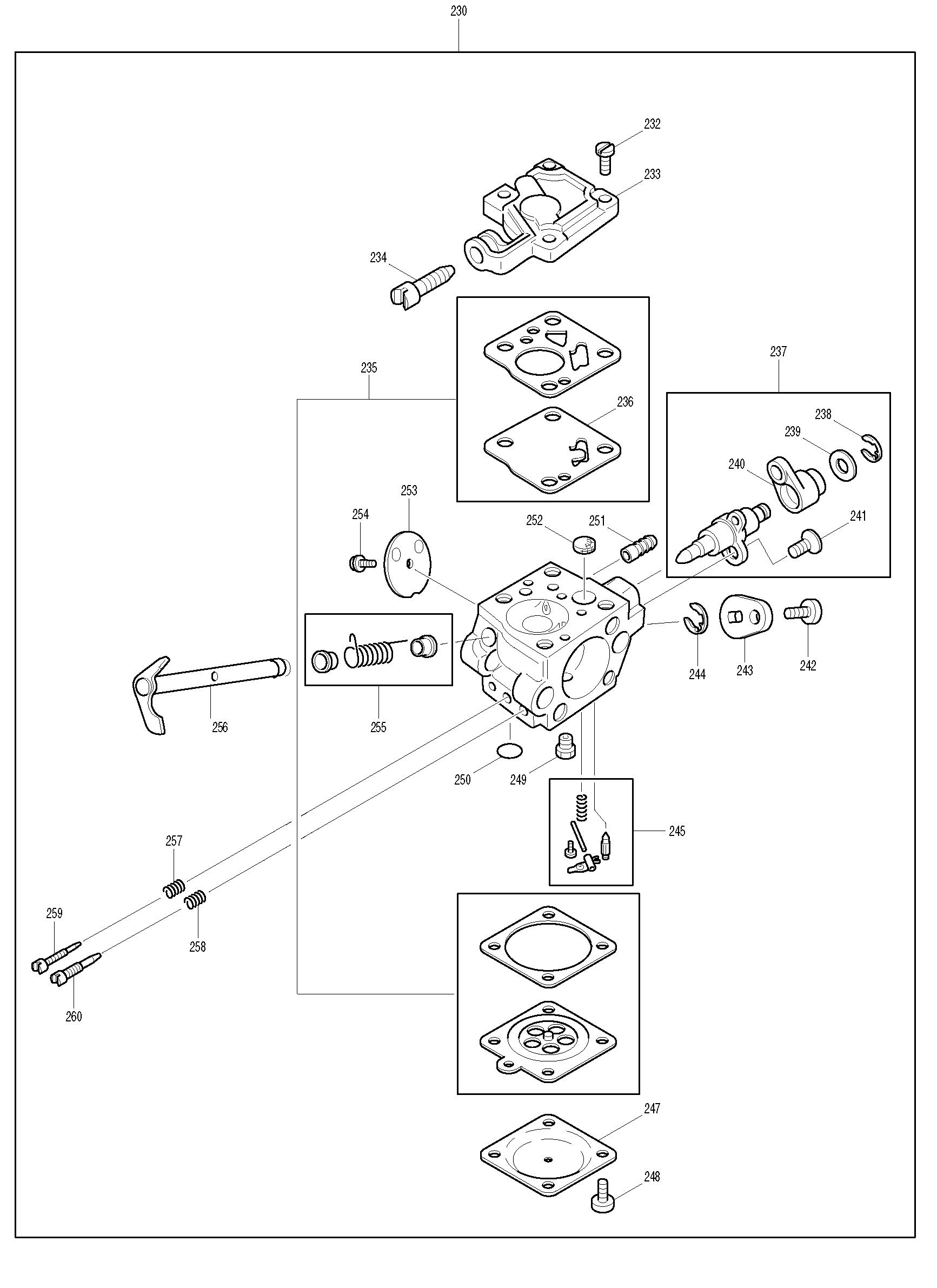

Makita DCS5200I parts diagram, sheet 9
No.Part numberPart name
232020150170Makita 020150170 KUPUKANTA RUUVI
233020150160Makita 020150160 PUMPPU KANSI
234020150240Makita 020150240 IDLE STOP RUUVI
236100150150Makita 100150150 KUMIKALVO (HU)110I.115I.
238119150350Makita 119150350 LUKKO RENGAS
239001150670Makita 001150670 LEVY
240027150860Makita 027150860 VIPU 110I.115I.
241113150220Makita 113150220 RUUVI 110I.115I.
242001150680Makita 001150680 RUUVI
243020150330Makita 020150330 VIPU
244100150350Makita 100150350 LUKKORENGAS 110I.115I.
245957150150Makita 957150150 SÄÄTÖ SRJ.(HU)110I.115I.
247104150120Makita 104150120 KALVO 110I.115I.
248001150620Makita 001150620 RUUVI
249020150130Makita 020150130 MAIN SUUTIN
250100150040Makita 100150040 KANSIRENGAS 110I.115I.
251020150051Makita 020150051 LIITOSVASTE
252020150180Makita 020150180 LIITOSVASTE
253001150321Makita 001150321 KAASU SULKIJA
254001150650Makita 001150650 RUUVI 110I.115I.
255957150310Makita 957150310 JOUSI SRJ.110I.115.
256001150610Makita 001150610 KAASU VARSI
257001150480Makita 001150480 JOUSI
258001150480Makita 001150480 JOUSI
259020150470Makita 020150470 SÄÄTÖRUUVI(L) 110I.115I.
260020150520Makita 020150520 SÄÄTÖRUUVI (H)110I.115I.

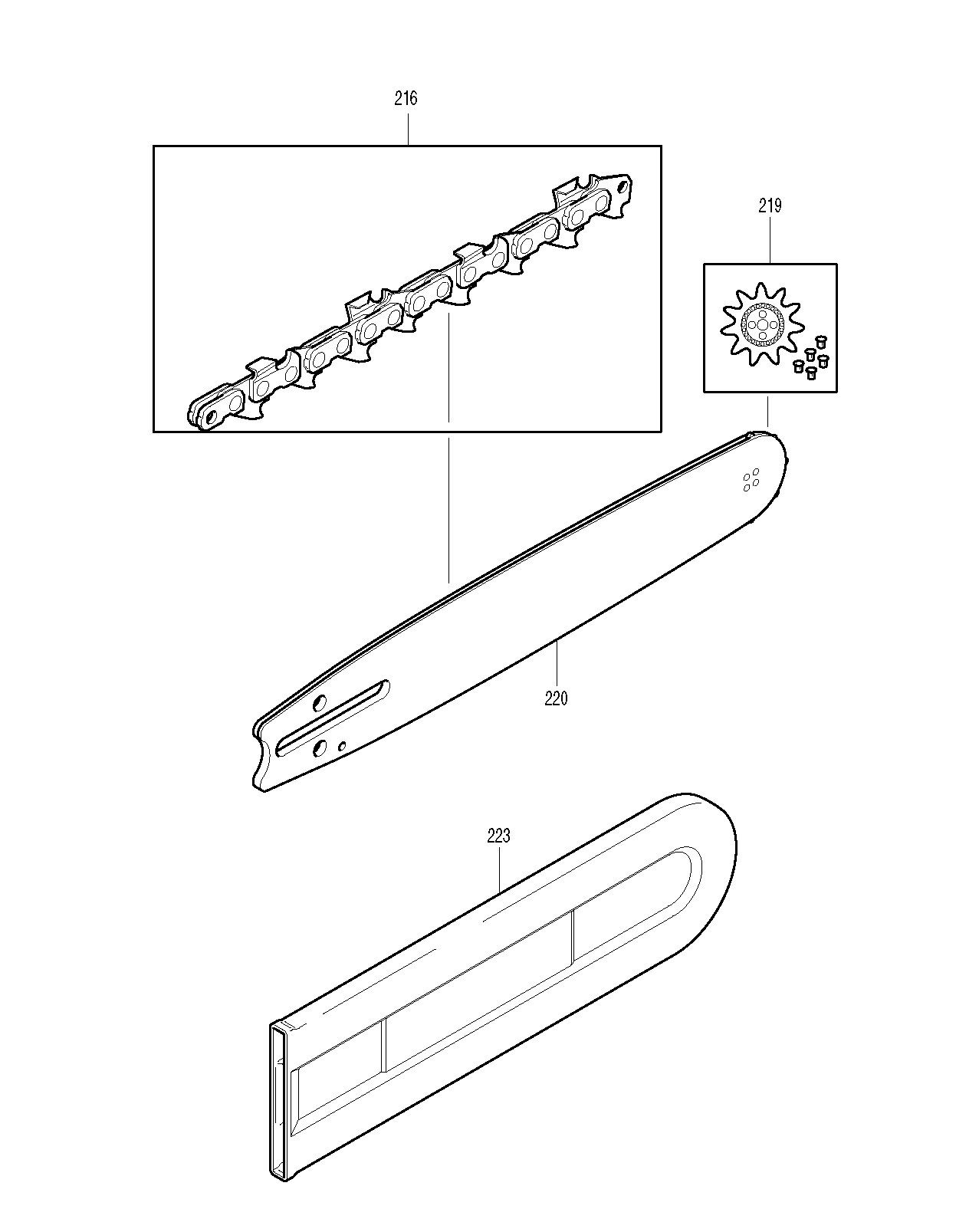

Sheet 10: Makita DCS5200I parts diagram

Makita DCS5200I parts diagram, sheet 10
No.Part numberPart name
216958099656
219415038730
220445033631
223952100643Makita 952100643 CHAIN PROTECTION COVER MAKITA
Selected parts0
