Makita DCS4630

Makita DCS4630: exploded parts diagram, 6 sheets, 174 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCS4630: 174 positions on 6 sheets

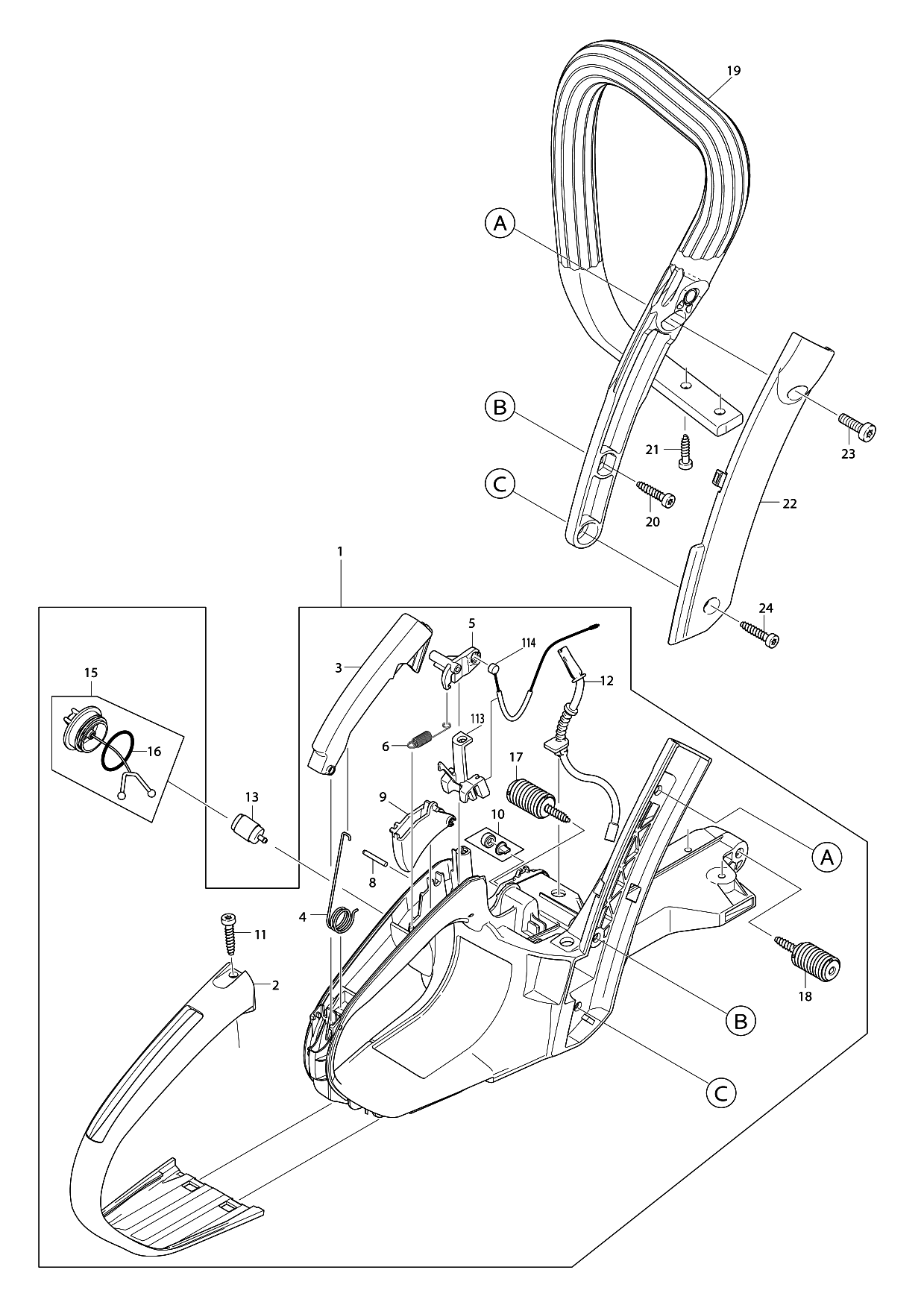

Sheet 1: Makita DCS4630 parts diagram

Makita DCS4630 parts diagram, sheet 1
No.Part numberPart name
2181117050Makita 181117050 GRIP OUTER SHELL, BLACK
3181117132
4181117031Makita 181117031 VARMISTIN JOUSI
5181117081Makita 181117081 KAASUN KAMPI
6181117111Makita 181117111 TENSION SPRING
8935930240Makita 935930240 LIERIÖTAPPI
9181117121Makita 181117121 THROTTLELEVERPS-5105
10957114061Makita 957114061 AIR VALVE CPL.
11913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
12181114065Makita 181114065 FUEL LINE
13163499-1Suction Head 125-52 For Dolmar For Makita Part 163499-1
16213080-9Makita 213080-9 O RING 29,5
17181114301Makita 181114301 SPRING CPL.
18181114301Makita 181114301 SPRING CPL.
19181310200Makita 181310200 TUBULAR HANDLE
20913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
21913455164Makita 913455164 SCREW110I.115.PS-43/52/54
22181114652Makita 181114652 COVER
23908006205Makita 908006205 SCREW
24913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
113181117094
114181117041

Sheet 2: Makita DCS4630 parts diagram

Makita DCS4630 parts diagram, sheet 2
No.Part numberPart name
27181118060Makita 181118060 INSERT
28181173090Makita 181173090 SUODATIN,MUST PS4600PS5000 TALVIKÄYTTÖ
29325593-9
30181171011
31908505555Makita 908505555 SCREW
32181155020Makita 181155020 CHOKE ON/OFF SWITCH
33970311550Makita 970311550 EARTH CABLE
34913455164Makita 913455164 SCREW110I.115.PS-43/52/54
36181131680
37908805205Makita 908805205 SCREWPS-420
41181131090Makita 181131090 TUBE
42181131040Makita 181131040 SUCTION HOSE
44181131070Makita 181131070 ANNULAR SPRING
45913455164Makita 913455164 SCREW110I.115.PS-43/52/54
46181155060Makita 181155060 CONTACTSPRINGPS-5105
47181155030Makita 181155030 ADJUSTING GUIDE
48913455164Makita 913455164 SCREW110I.115.PS-43/52/54
49928405000Makita 928405000 DISC
50980115961
53181174102Makita 181174102 MUFFLER
57181174062Makita 181174062 HEAT PLATE MUFLER 01LÄMPÖPELTI 01 MUFLER
58181174050Makita 181174050 GASKET
59908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
60181174091Makita 181174091 BRACKET
61909005105Makita 909005105 SCREW
62908805205Makita 908805205 SCREWPS-420
63346413-4Makita 346413-4 BUSH 17, PS-32
70181118070Makita 181118070 DAMPING PLUG
112181131140Makita 181131140 RUBBERBUSHPS-5105

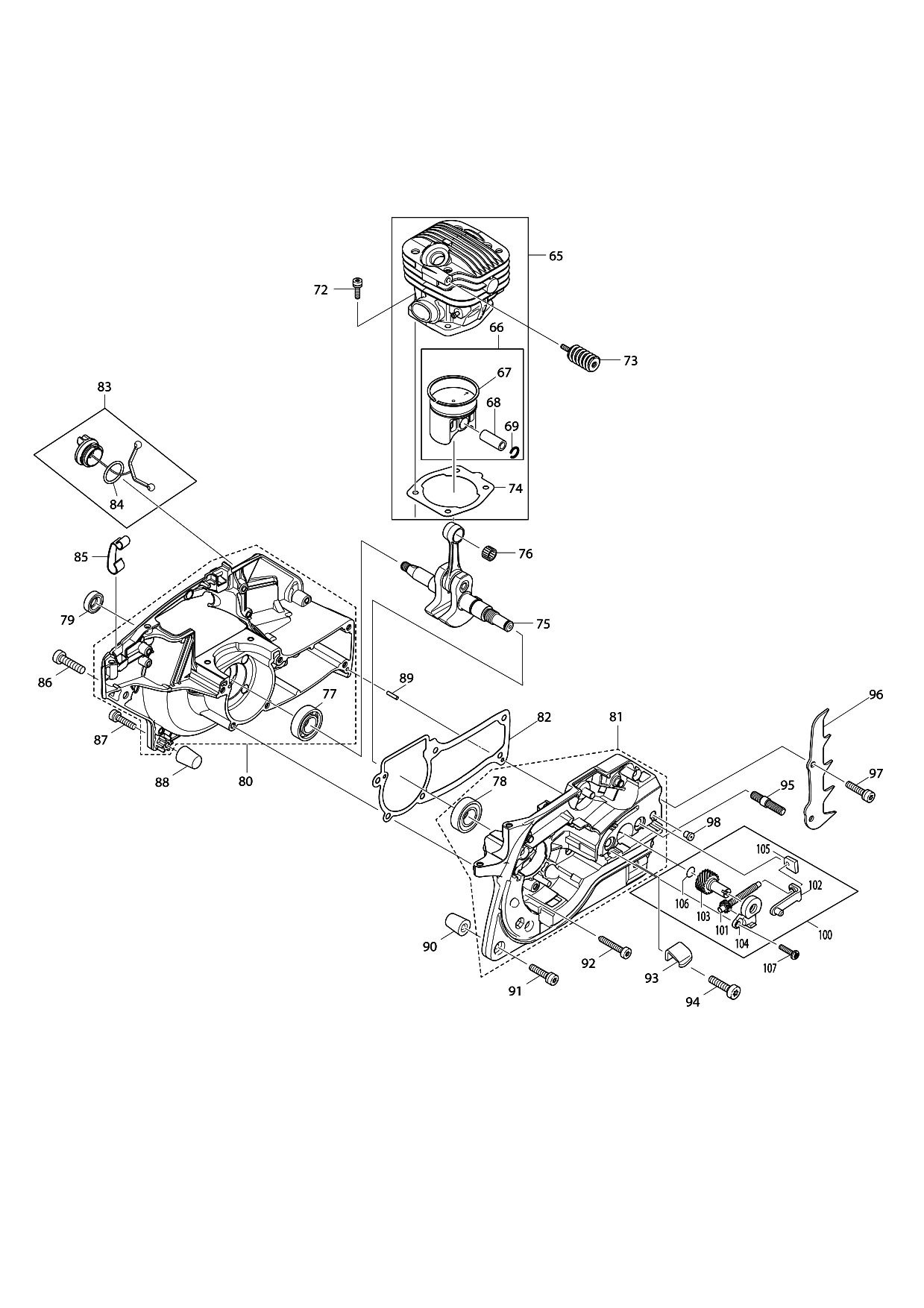

Sheet 3: Makita DCS4630 parts diagram

Makita DCS4630 parts diagram, sheet 3
No.Part numberPart name
67180132080Makita 180132080 PISTON RINGPS-5000
68181132090Makita 181132090 PISTON PIN
69181132050Makita 181132050 SPRING RING
72908805235Makita 908805235 SCREWPS-5105
73181114401Makita 181114401 Damping Spring, CPL. for PS5105 PS7910 EA5000
74181131133Makita 181131133 CYLINDER BASE GASKET
75181120100Makita 181120100 CRANKSHAFT CPL.PS-5000
76962210103Makita 962210103 NEEDLE CAGE
77211154-0
78960123159Makita 960123159 COMBILAAKERI
79962900156Makita 962900156 RADIAL RING
82181111061Makita 181111061 GASKET CRANKCASE 500460
84963225030Makita 963225030 O-RENGAS PS-4600
85181118050Makita 181118050 STEELCLIP
86908006205Makita 908006205 SCREW
87908805205Makita 908805205 SCREWPS-420
88181111230Makita 181111230 IMPACT PROTECTION
89936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
90181111230Makita 181111230 IMPACT PROTECTION
91908805205Makita 908805205 SCREWPS-420
92908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
93181111050Makita 181111050 CHAIN CATCH
94908006205Makita 908006205 SCREW
95905808210Makita 905808210 SCREW
96181250011Makita 181250011 SPIKE BARKAARNA RAUTA
97908805205Makita 908805205 SCREWPS-420
98010245030Makita 010245030 VENT VENTTIILI
101181213230Makita 181213230 TENSIONING SCREW
102181213240Makita 181213240 TENSION SLIDE
103181213250Makita 181213250 ADJUSTING SCREW
104452667-4Makita 452667-4 GUIDE, EA3200S
105181213260Makita 181213260 TENSIONING SCREW BEARING
106963207020Makita 963207020 PACKING RING
107908705125Makita 908705125 SCREW

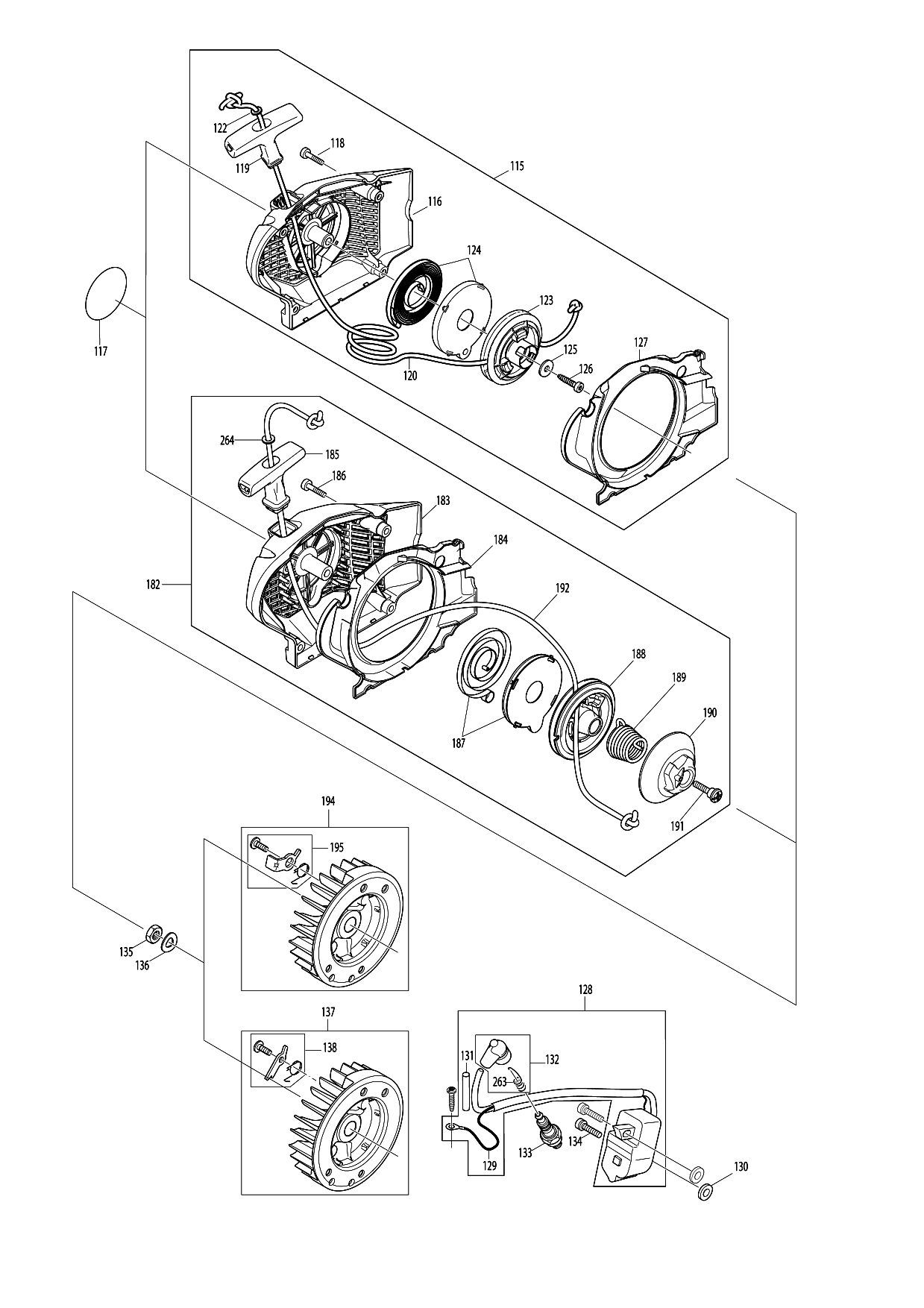

Sheet 4: Makita DCS4630 parts diagram

Makita DCS4630 parts diagram, sheet 4
No.Part numberPart name
116181112621Makita 181112621 FAN HOUSING BLUE
117980115500
118908805205Makita 908805205 SCREWPS-420
119001161020Makita 001161020 STARTER GRIPDPC PC
120108164020Makita 108164020 KÄYNNISTIN NARU 109110I.115.PS43/52
122928405000Makita 928405000 DISC
123181162150Makita 181162150 CABLE DRUM CPL.
124181163020Makita 181163020 REWIND SPRING IN HOUSING
125924605510Makita 924605510 WASHER
126913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
127181118120Makita 181118120 AIR GUIDE PLATE
129181147050Makita 181147050 IGNITION CABLE
130195143031Makita 195143031 ISOLATING WASHER
131970502110Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
133168648-5Makita 168648-5 SPARK PLUG (BPMR7A)
134908805205Makita 908805205 SCREWPS-420
135920208024Makita 920208024 KUUSIO MUTTERI M8X1
136926208001Makita 926208001 JOUSI LEVY B8
138181166050Makita 181166050 STARTERRATCHETCPL.PS-5105
183181112660Makita 181112660 STARTER ASSY. BLUE
184181118120Makita 181118120 AIR GUIDE PLATE
185181164010Makita 181164010 STARTER GRIP
186266942-0
187140587-1Makita 140587-1 Return Spring CPL. for EK7301 EK8100
188181162020Makita 181162020 CABLE DRUM
189234193-3Makita 234193-3 SPRING EASY START
190181163090Makita 181163090 DRIVER FOR EASY START, PS-5105
191181163095Makita 181163095 SCREW
192108164020Makita 108164020 KÄYNNISTIN NARU 109110I.115.PS43/52
195181166100
263965604180Makita 965604180 TULP.HATUN JOUSI 109110I.115.PS-43/52
264928405000Makita 928405000 DISC

Sheet 5: Makita DCS4630 parts diagram

Makita DCS4630 parts diagram, sheet 5
No.Part numberPart name
143181245120Makita 181245120 OIL LINE
146231975-4Makita 231975-4 SPRING, DCS230T
147452666-6Makita 452666-6 NIPPLE, EA3200S
149908705125Makita 908705125 SCREW
150181245090Makita 181245090 PUMP DRIVE
151267389-1
153232352-3Makita 232352-3 TENSION SPRING 6, PS420
154181224090Makita 181224090 FLAT WASHER 10
155181213011Makita 181213011 BRAKE BAND
157962300009Makita 962300009 NEEDLE SLEEVER
158181224040
159181224081Makita 181224081 DISCPS-420
160927408000Makita 927408000 WASHER
161927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
162185213100
163181213023Makita 181213023 TENSION SPRING
164181213170Makita 181213170 HANDGUARD GUIDE, CPL.
165181213371Makita 181213371 FOAM SPONGE 165
168810449-4
169181213310Makita 181213310 SPACER
170181213320Makita 181213320 BUSHING
171908805205Makita 908805205 SCREWPS-420
174181213400Makita 181213400 FOAM SPONG
176923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
177957213220Makita 957213220 CHIP GUIDE
178181213191Makita 181213191 BRAKE COVER
179908105126Makita 908105126 KUPUKANTA PÄÄ RUUVI

Sheet 6: Makita DCS4630 parts diagram

Makita DCS4630 parts diagram, sheet 6
No.Part numberPart name
203038153360Makita 038153360 SCREW
204181153040Makita 181153040 DIAPHRAGM COVER
205ZJ00000014
207181153050Makita 181153050 PUMP DIAPHRAGM TEFLON
208038153210Makita 038153210 FRICTION BALL
209181153070Makita 181153070 IDLE STOP SCREW
210036153040Makita 036153040 SCREEN
213957153070Makita 957153070 CONTROL PARTS
214028153480Makita 028153480 SPRING L AND H JET
215181153180Makita 181153180 IDLE ADJUSTMENT SCREW
216181153190Makita 181153190 MAIN ADJUSTMENT SCREW
217181153220Makita 181153220 WASHER L AND H JET
224181153110Makita 181153110 SPRING
225181153160Makita 181153160 SPRING
226181153210Makita 181153210 PLUG-WELCH
230038155012Makita 038155012 RETAINING CLIP
231965402995
251
252
253181153181
254181153191
255181153031
258181153570Makita 181153570 KIT THROTTLE SHAFT
259181153580
303038153360Makita 038153360 SCREW
304181153040Makita 181153040 DIAPHRAGM COVER
305ZJ00000014
326181153210Makita 181153210 PLUG-WELCH
330038155012Makita 038155012 RETAINING CLIP
331965402995
