Makita DCS4610

Makita DCS4610: exploded parts diagram, 4 sheets, 109 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCS4610: 109 positions on 4 sheets

Sheet 1: Makita DCS4610 parts diagram

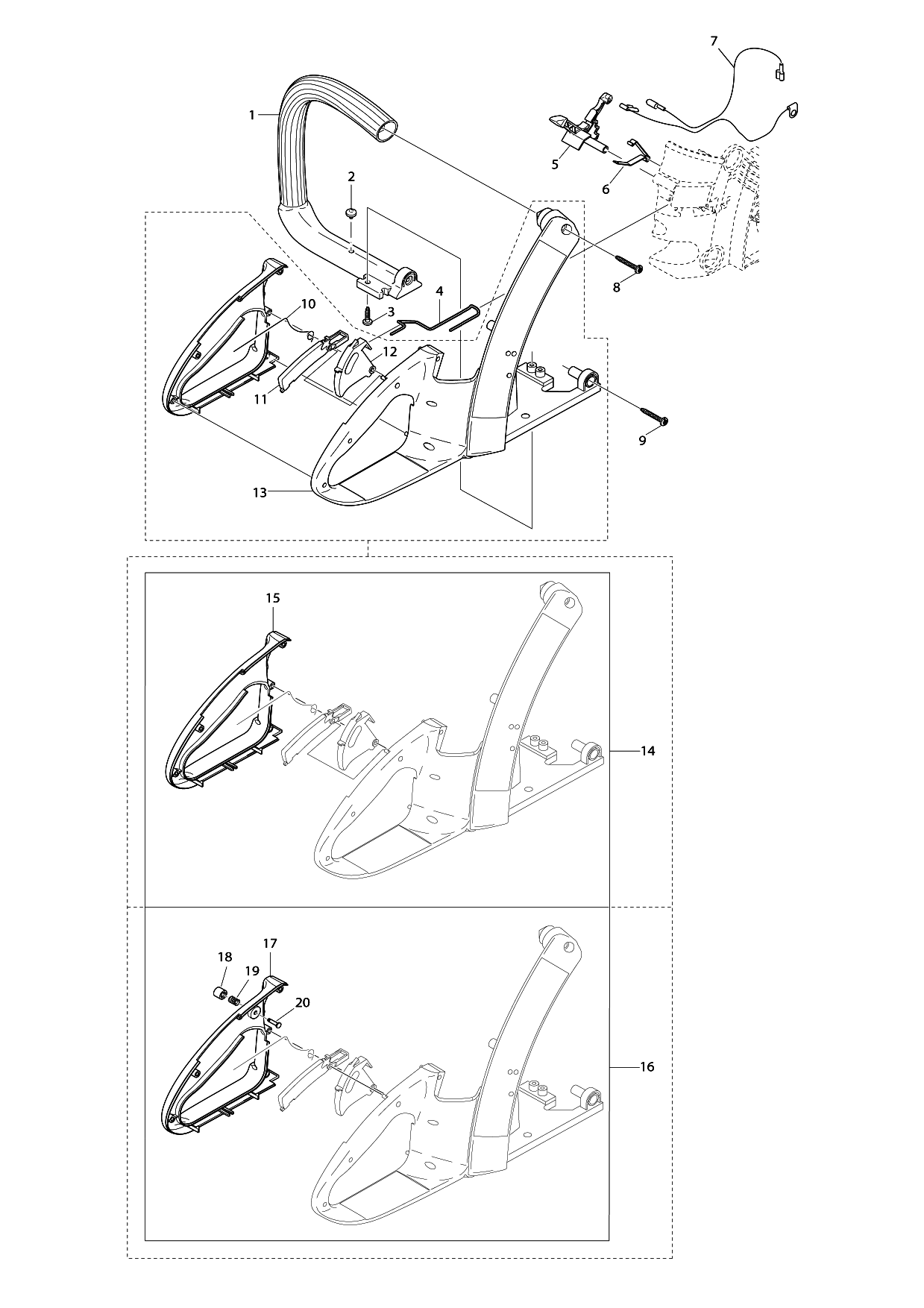

Makita DCS4610 parts diagram, sheet 1
No.Part numberPart name
1036310012Makita 036310012 ETUKAHVA
2965402360Makita 965402360 BUFFER
3913650154Makita 913650154 RUUVI
4036117022
5036155121Makita 036155121 CHOKE LEVER BLACK
6036155130
7970311490Makita 970311490 OIKOSULKU JOHTO
8913650304Makita 913650304 RUUVI
9913650304Makita 913650304 RUUVI
10036117051Makita 036117051 SPRING
11036117040Makita 036117040 KAASUN VARM. VIPU
12036117030Makita 036117030 KAASU VIPU
13036117611Makita 036117611 KAHVANPUOLISKO
15036117663
17036117661Makita 036117661 KAHVANPUOLISKO
18965451750Makita 965451750 NAPPI
19965551160Makita 965551160 PAINE SPRIN
20965551150Makita 965551150 STOP TAPPI

Sheet 2: Makita DCS4610 parts diagram

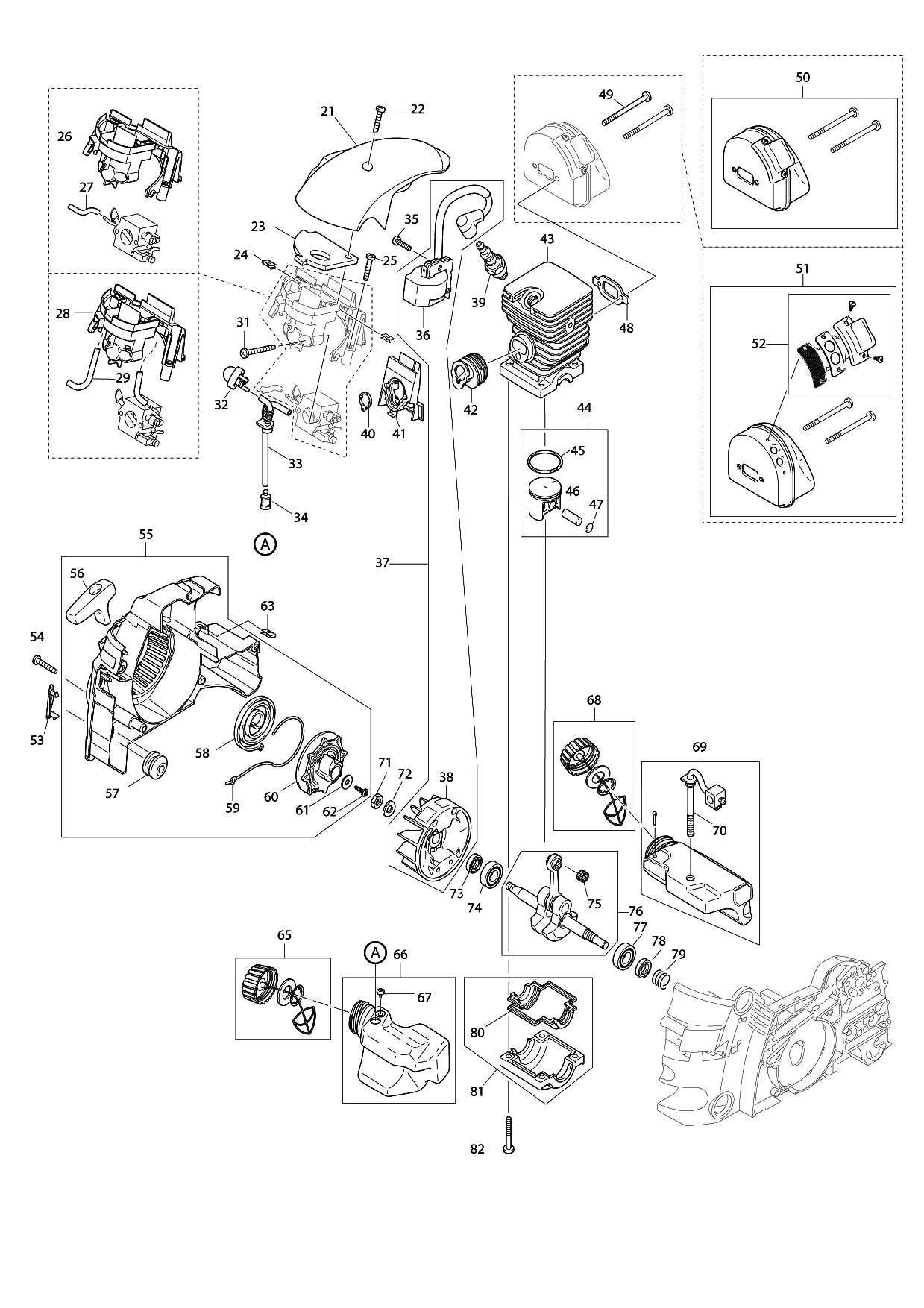

Makita DCS4610 parts diagram, sheet 2
No.Part numberPart name
21036118012Makita 036118012 HOOD
22913650304Makita 913650304 RUUVI
23036173011Makita 036173011 Air Filter for DCS34-35 PS34
24923750340Makita 923750340 MUTTERI
25913650304Makita 913650304 RUUVI
26036171011Makita 036171011 LIITOSMUHVI
27965452090Makita 965452090 TUBE
28036171032Makita 036171032 CONNECTING SLEEVE
29965452090Makita 965452090 TUBE
31913650504Makita 913650504 RUUVI
32369155010Makita 369155010 Primer
33965404980Makita 965404980 PA-LETKU PS-34
34163447-0Makita 163447-0 Gasoline Filter
35913340204Makita 913340204 RUUVI
36036143121Makita Dolmar 036143121 Ignition Electronic CPL PS-45 PS34 PS36 PS41 PS45
38036141130
39168648-5Makita 168648-5 SPARK PLUG (BPMR7A)
40036131030Makita 036131030 INSERT FOR IMU HOSE
41036171020Makita 036171020 KIINNITIN
42036131023Makita 036131023 IMU LETKU
43037131011Makita 037131011 CYLINDER
45037132020Makita 037132020 PISTON RING
46195132030Makita 195132030 PISTON PINPS-420
47108132050Makita 108132050 JOUSI RENGAS
48346304-9Makita 346304-9 GASKET, EA3200S
49913350654Makita 913350654 RUUVI
50036174211Makita 036174211 MUFFLER CPL.
52
53036112632
54913650154Makita 913650154 RUUVI
56965404031Makita 965404031 KÄYNNISTIN KAHVA
57965403491Makita 965403491 Rubber Buffer for 109 111 115 43 PS43/52/540/340
58036163010Makita 036163010 REWIND SRENGAS
59036164010Makita 036164010 KÄYNNISTIN NARU
60036162010Makita 036162010 NARU RUMPU
61924805310Makita 924805310 ALUSLEVY 5,3 110I.115.115I.
62913650154Makita 913650154 RUUVI
63923750340Makita 923750340 MUTTERI
65010114063Makita 010114063 TANKKI TULPPA TÄYD
67965404222Makita 965404222 VENTILATION VALVE
68010114063Makita 010114063 TANKKI TULPPA TÄYD
70965402491Makita 965402491 SUCTION LINE CPL.
71920208024Makita 920208024 KUUSIO MUTTERI M8X1
72926208001Makita 926208001 JOUSI LEVY B8
73962900057Makita 962900057 STEFA
74960102131Makita 960102131 BALL BEARING 109.110I.111115.PS-43/52/540
75962210092Makita 962210092 NEEDLE CAGE TORR.
77960102131Makita 960102131 BALL BEARING 109.110I.111115.PS-43/52/540
78962900057Makita 962900057 STEFA
79036245020Makita 036245020 PUMP DRIVE
80965531020Makita 965531020 GASKET
82913350404Makita 913350404 RUUVI

Sheet 3: Makita DCS4610 parts diagram

Makita DCS4610 parts diagram, sheet 3
No.Part numberPart name
83913335060Makita 913335060 RUUVI
84203245002Makita 203245002 ÖLJYPUMPPUUN KIINIKEUC3500A
86021245281Makita 021245281 REPAIR KIT
87913650304Makita 913650304 RUUVI
88036114020Makita 036114020 KIINNIKE PUSSLA
90965403491Makita 965403491 Rubber Buffer for 109 111 115 43 PS43/52/540/340
91965403491Makita 965403491 Rubber Buffer for 109 111 115 43 PS43/52/540/340
92965403491Makita 965403491 Rubber Buffer for 109 111 115 43 PS43/52/540/340
93036110021Makita 036110021 PULTTI, YELLOW
94036213052Makita 036213052 HAND GUARD
95036213081Makita 036213081 PUSSLA
96927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
97934150200Makita 934150200 PULTTI
98036213070Makita 036213070 PUSSLA
99266605-8Makita 266605-8 H.L.SOCKET HEAD BOLT M5X16, EA3200S
100036213030Makita 036213030 JOUSI
101001213042Makita 001213042 Nut with Pivot
102036213090Makita 036213090 STRAINING RUUVI
103962650128Makita 962650128 LIERIÖTAPPI
104163448-8Makita 163448-8 LINK PLATE, DCS230T
105028213201Makita 028213201 JOUSI
106028213502Makita 028213502 BRAKE BAND
107205250011Makita 205250011 TERÄVASTE
108913650154Makita 913650154 RUUVI
109036223115Makita 036223115 KYTKIN RUMPU T��yd
111036224050Makita 036224050 WASHER SET
112001182062Makita 001182062 SHIM
113181184010Makita 181184010 SPRING
114927306000Makita 927306000 LEVY 6,0
115036213041Makita 036213041 KANSI LEVY
116036213652Makita 036213652 SPROCKET GUARD CPL.
117923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM

Sheet 4: Makita DCS4610 parts diagram

Makita DCS4610 parts diagram, sheet 4
No.Part numberPart name
118036153910Makita 036153910 CARBURETOR CPL.
119036153016Makita 036153016 CARBURETOR CPL.
120038153360Makita 038153360 SCREW
122036153110Makita 036153110 TIIVISTE&KALVO KIT
123036153040Makita 036153040 SCREEN
124028153200Makita 028153200 RUUVI
125ZJ00000014
