All parts of Makita DCS431: 183 positions on 8 sheets

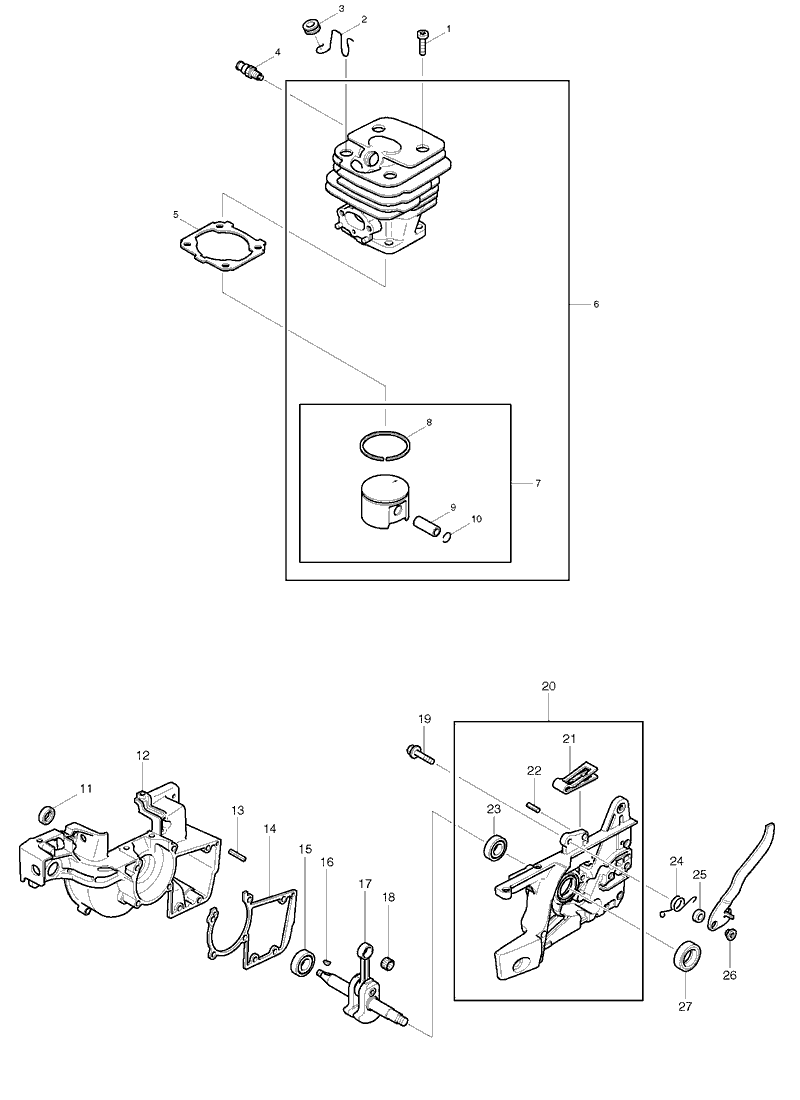

Sheet 1: Makita DCS431 parts diagram

Makita DCS431 parts diagram, sheet 1
No.Part numberPart name
1908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
2001142012Makita 001142012 KIINNITIN
3965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
4001131150Makita 001131150 PUOLIPURISTIN VENTTIILI PS5000
5965525042Makita 965525042 TIIVISTE 109.110I.111.115.PS-43/52/540
8021132230Makita 021132230 MÄNNÄNRENGAS 109.110I.PS-43
9001132010Makita 001132010 MÄNTÄ TAPPI
10020132050Makita 020132050 JOUSIRENGAS 109.110I111.115.PS-43/52/540
11962900050Makita 962900050 STEFA 109.110I.111.115.PS-43/52/540
12020111631Makita 020111631 KAMPIKOTELO MAGNETO-DE TÄYD
13936430160Makita 936430160 SPIRAL CLAMPING PIN3X16
14965525002Makita 965525002 WASHER 109.110I.111.115.PS-43/52/540
15960102129Makita 960102129 LAAKERI 109.110I.111115.PS-43/52/540
16939620371Makita 939620371 KIILA 2X3.7 109.110IREPAIR
17027120010Makita 027120010 KAMPIAKSELI 109.110I111.115.PS-43/52/540
18962211030Makita 962211030 NEEDLE CAGE TORR. 10/13X14
19027213520Makita 027213520 RUUVI 109.110I.111115.PS-43/52/540
21027213320Makita 027213320 JOUSI 109.110I.111.115.PS-43/52/540
22934950160Makita 934950160 KIINNITIN MUHVI
23960102159Makita 960102159 BALL BEARING ( 6202 )
24027213270Makita 027213270 JOUSI 109.110I.111.115.PS-43/52/540
25027213510Makita 027213510 RENGAS 109.110I.111.115.PS-43/52/540
26027213500Makita 027213500 MUTTERI 109.110I.111115.PS-43/52/540
27962900052Makita 962900052 RADIAL RING , D:15/24x7mm

Sheet 2: Makita DCS431 parts diagram

Makita DCS431 parts diagram, sheet 2
No.Part numberPart name
29963100050Makita 963100050 TIIVISTE 109.110I.111.115.PS-43/52/540
30020173061Makita 020173061 LUMISUODIN 109.110I.111.115.PS-43/52/540
31908605145Makita 908605145 RUUVI 5X14 109.110I.111.115.PS-43/52/540
32020173610Makita 020173610 KANSI FOR PRESUODIN(SININ.)
33020173011Makita 020173011 ESI-SUODIN 109.110I.111.115.PS-43/52/540
34908105204Makita 908105204 RUUVI 5X20 109.110I111.115.PS-43/52/540
35965401011Makita 965401011 KUMIPUSLA 109.110I111.115.PS-43/52/540
36908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
37923305000Makita 923305000 KUUSIO MUTTERI M5
38020111070Makita 020111070 PIDIN 109.110I.111.115.PS-43/52/540
39980113841Makita 980113841 KILPI ''I-0''
40957605112Makita 957605112 KYTKIN 109.110I.111.115.PS-43/52/540
42908005095Makita 908005095 SCREW111.115.PS-43/52/540
43389213080Makita Set 389213080 Clamp Screw + 001213020 Nut With Pivot
44001213020Makita 001213020 Nut With Pivot for DCS430 DCS520 DCS5200I
45905808305Makita 905808305 VAARNAPULTTI 8X30109.110I.115.PS-43
46020111172Makita 020111172 OHJAINLEVY 109.110I.111.115.PS-43/52/540
47915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
48010245010Makita 010245010 VENTTIILI 109.110I.111.115.PS-43/52/540
49908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
50020111082Makita 020111082 KETJUSIEPPO 109.110I111.115.PS-43/52/540
51001111011Makita 001111011 RUUVI 109.110I.111.115.PS-43/52/540

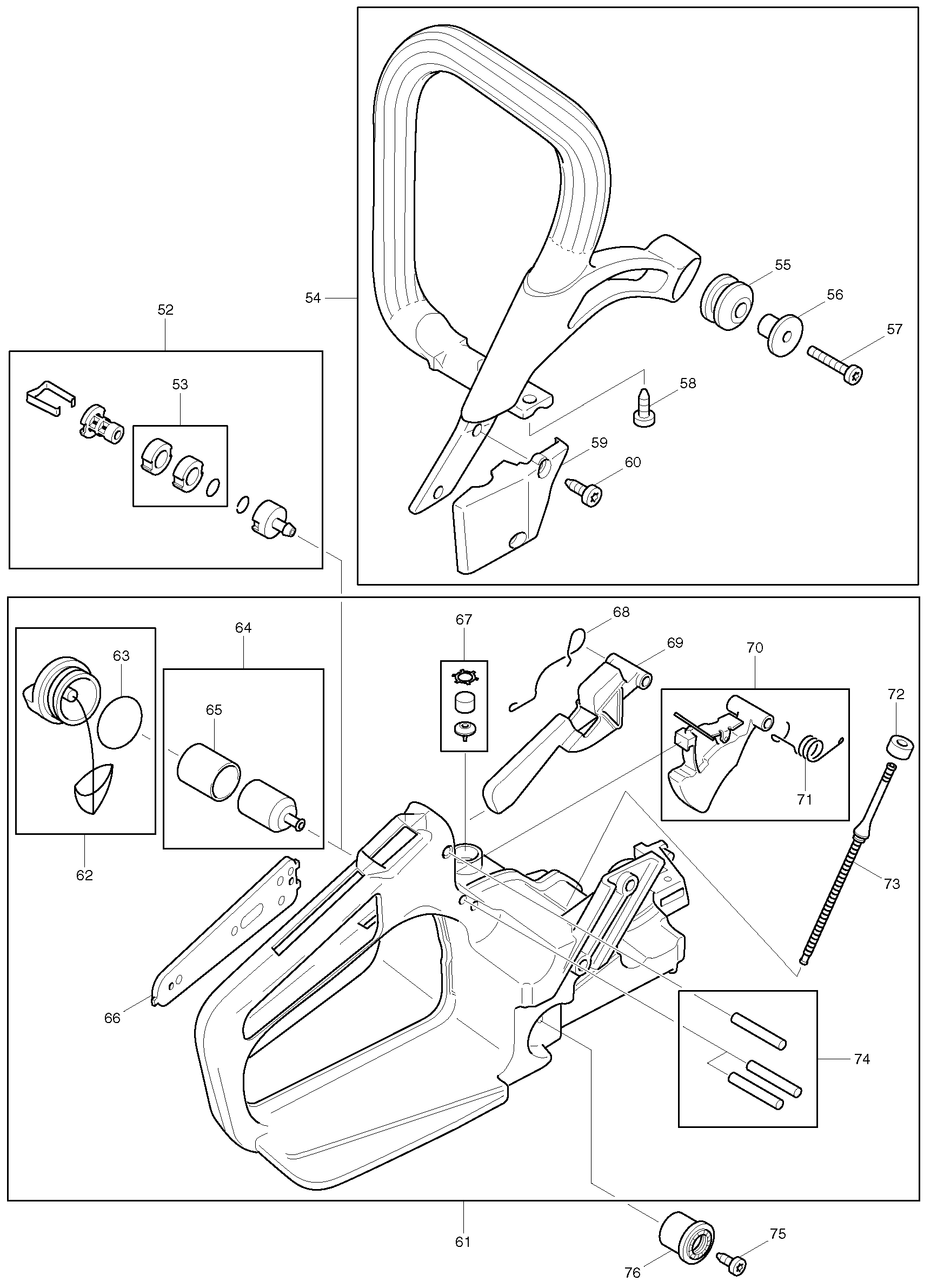

Sheet 3: Makita DCS431 parts diagram

Makita DCS431 parts diagram, sheet 3
No.Part numberPart name
53010114020Makita 010114020 REP.KIT SUODIN
55965403490Makita 965403490 KUMIVAIMENNIN 109.110I.115.PS43/52/540
56021114051Makita 021114051 KIIN.TULPPA 109.110I111.115.PS-43/52/540
57908005305Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
58913455164Makita 913455164 SCREW110I.115.PS-43/52/54
59020310600Makita 020310600 KANSI SININ.
60913455164Makita 913455164 SCREW110I.115.PS-43/52/54
63963232045Makita 963232045 O-RENGAS 109.110I.111.115.PS43/52/540
65963601240Makita 963601240 FELT FOR SUCTION HEAD
66020117301Makita 020117301 KAASU VARM.VIPU 109110I.115.PS-43/52
67957114010Makita 957114010 VENTTIILI 109.110I.111.115.PS-43/52/540
68020117160Makita 020117160 JOUSI 109.110I.111115.PS-43/52/540
69020117301Makita 020117301 KAASU VARM.VIPU 109110I.115.PS-43/52
71020117273Makita 020117273 KAASUVIVUN JOUSI 109110I.115.PS-43/52
72965404520Makita 965404520 TIIVISTE 109.110I.111.115.PS-43/52/540
73965404460Makita 965404460 BENSALETKU 109.110I.111.115.PS-43/52/540
74935932320Makita 935932320 CYL.TAPPI 3,25MM
75913447134Makita 913447134 RUUVI 4,7X13 109.111110I.115.PS-43/52
76965403280Makita 965403280 KUMIVAIMENNIN 109.110I.111.115.PS-43

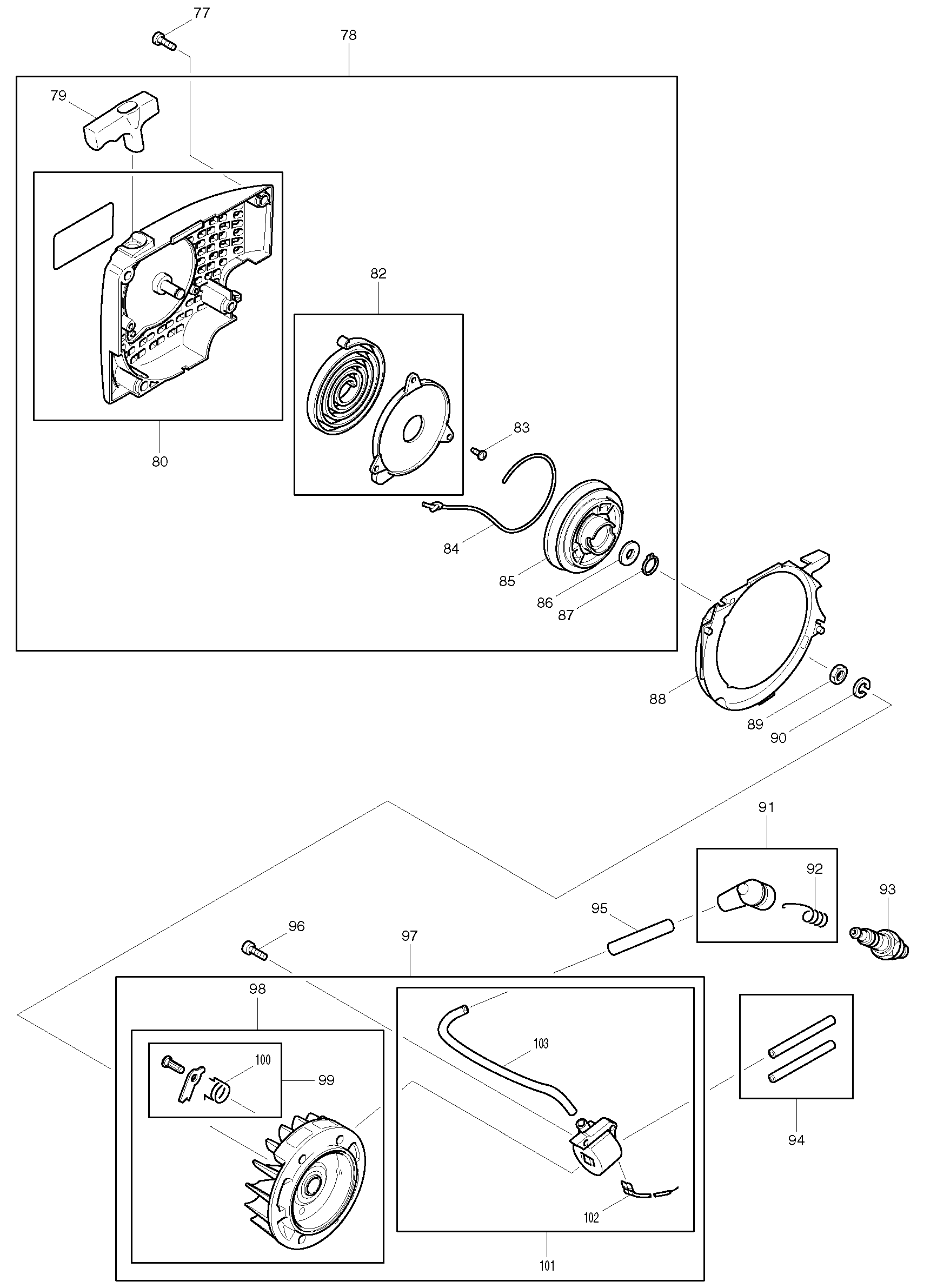

Sheet 4: Makita DCS431 parts diagram

Makita DCS431 parts diagram, sheet 4
No.Part numberPart name
77908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
79965402262Makita 965402262 KÄYNNISTIN KAHVA 109110I.115.PS43/52
80020112630Makita 020112630 TUULETINKOTELO
82020163031Makita 020163031 REWIND SPRING 109110I.115.PS-43/52
83915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
84985000155Makita 985000155 KÄYNNISTINNARU 3,5MM/100M
85027162070Makita 027162070 NARURUMPU 109.110I.111.115.PS-43/52/540
86924108400Makita 924108400 ALUSLEVY 109.110I.111.115.PS-43/52/540
87929108080Makita 929108080 LUKKORENGAS 109.110I111.115.PS-43/52/540
88020112010Makita 020112010 ILMAKANAVA 109.110I.111.115.PS-43/52/540
89920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
90928308001Makita 928308001 JOUSI LEVY 109.110I111.115.PS-43/52/540
92965604180Makita 965604180 TULP.HATUN JOUSI 109110I.115.PS-43/52
93965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
94970502050Makita 970502050 SUOJAPUTKI SÄHKÖ 1M109.110I.115.PS43/52
95970502110Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
96908605205Makita 908605205 RUUVI 5X20 109.110I111.115.PS-43/52/540
100122166020Makita 122166020 KYNNEN JOUSI 109.111110I.115.PS-43/52
102001147000Makita 001147000 OIKOSULKU JOHTO 109110I.111.115.PS-43YM
103970310200Makita 970310200 SYTYTYSJOHTO (1M)109110I.115.PS-43/52

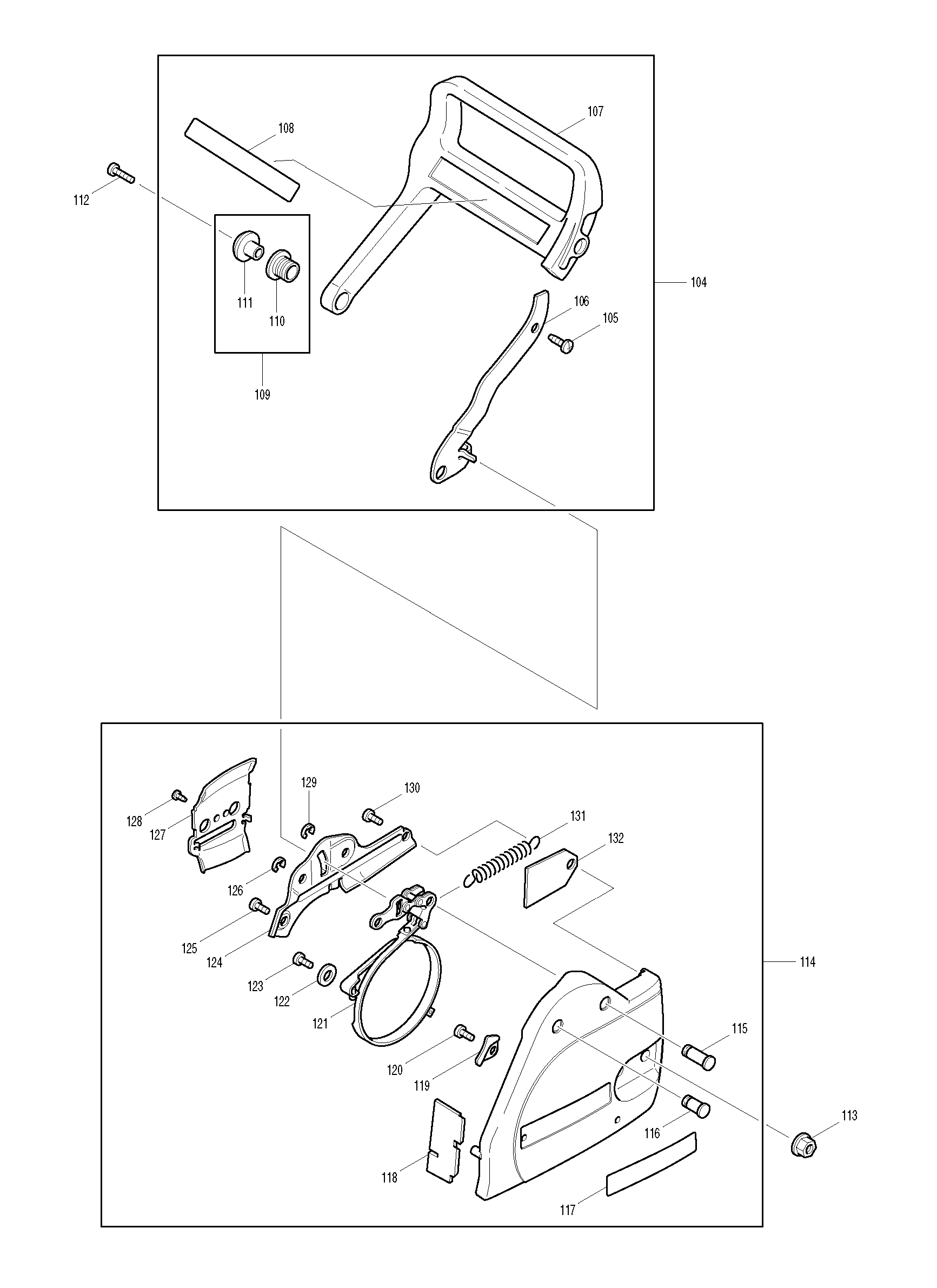

Sheet 5: Makita DCS431 parts diagram

Makita DCS431 parts diagram, sheet 5
No.Part numberPart name
105905005184Makita 905005184 RUUVI 5,5X18 109.111110I.115.PS-43/52
106027213221Makita 027213221 KÄSISUOJAN VIPU 109110I.115.PS-43/52YM
107027213462Makita 027213462 TAKAPOTKU KAHVA 109.110I.115.PS-43/52YM
108980114237Makita 980114237 KÄSISUOJ.SYMB.KILPI109.110I.115.PS-43YM
110027213150Makita 027213150 KUMIPUSSLA 109.110I.111.115.PS-43/52/540
111027213161Makita 027213161 PUSLA 109.110I.111.115.PS-43/52/540
112908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
113923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
115027213130Makita 027213130 JARRUVIVUN AKSELI109.110I.115.PS-43YM
116027213140Makita 027213140 AKSELI 109.110I.111115.PS-43/52/540
117980114389Makita 980114389 KILPI
118027213280Makita 027213280 SUOJAKANSI 109.110I111.115.PS-43/52/540
119027213350Makita 027213350 JARRUPANNAN PIDIN109.110I.115.PA-43YM
120913205125Makita 913205125 RUUVI 5X12 109.110I111.115.PS-43/52/540
121027213050Makita Dolmar 027213050 Brake Spring With Lever Cpl Dc
122924500049Makita 924500049 ALUSLEVY 109.110I.111.115.PS-43/52
123913205125Makita 913205125 RUUVI 5X12 109.110I111.115.PS-43/52/540
124027213111Makita 027213111 KANSILEVY 109.110I111.115.PS-43/52 YM
125913205125Makita 913205125 RUUVI 5X12 109.110I111.115.PS-43/52/540
126927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
127027111041Makita 027111041 OHJAINLEVY 109.110I111.115.PS-43/52/540
128915135100Makita 915135100 RUUVI 3,5X10 109.110I.115.5000H/52
129927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
130913205125Makita 913205125 RUUVI 5X12 109.110I111.115.PS-43/52/540
131027213120Makita 027213120 JOUSI 109.110I.111.115.PS-43/52/540
132027213560Makita 027213560 KUMILEVY 109.110I.111.115.PS-43/52/540

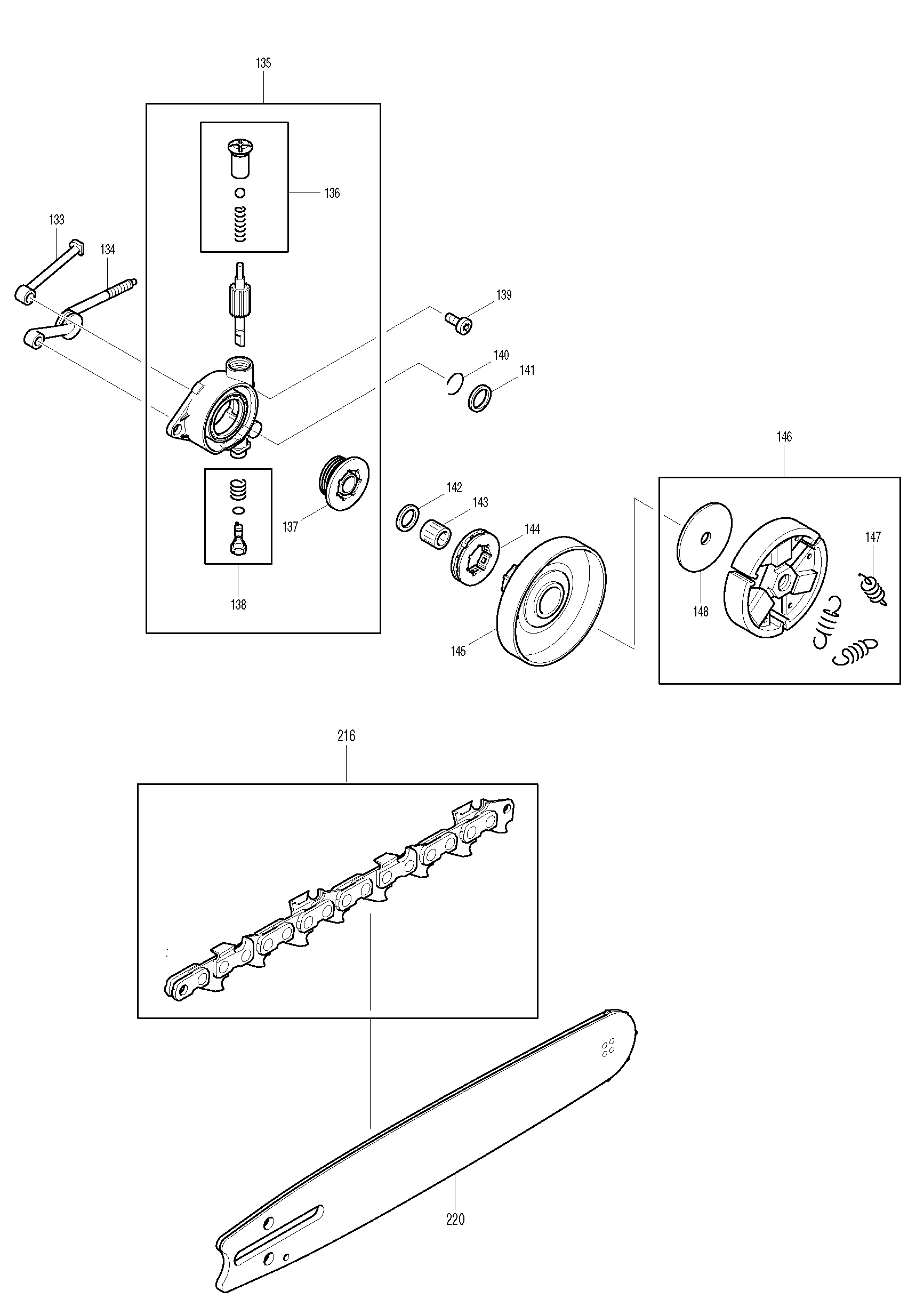

Sheet 6: Makita DCS431 parts diagram

Makita DCS431 parts diagram, sheet 6
No.Part numberPart name
133020245020Makita 020245020 PAINELETKU 109.110I111.115.PS-43/52/540
134020245020Makita 020245020 PAINELETKU 109.110I111.115.PS-43/52/540
136030245070Makita 030245070 ÖLJYPU.KORJ.SRJ.5/95109.110I.115.PS-43YM
137027245010Makita 027245010 VETOPYÖRÄ ÖLJYPUMP.109.110I.115.PS-43YM
138030245070Makita 030245070 ÖLJYPU.KORJ.SRJ.5/95109.110I.115.PS-43YM
139908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
140930916160Makita 930916160 SPRING RING
141001245320Makita 001245320 PIDÄTINRENGAS 109110I.111.115.PS-43YM
142027245020Makita 027245020 PIDÄTINLEVY 109.110I111.115.PS-43/52/540
143962210025Makita 962210025 NEULAKEHÄ 12X15X13109.110I.115.PS-43YM
144020224070
145027223020
147024184021Makita 024184021 KIRISTYSJOUSI 109110I.111.115.PS-43YM
148001182060Makita 001182060 SHIM
216528086664
220445038631

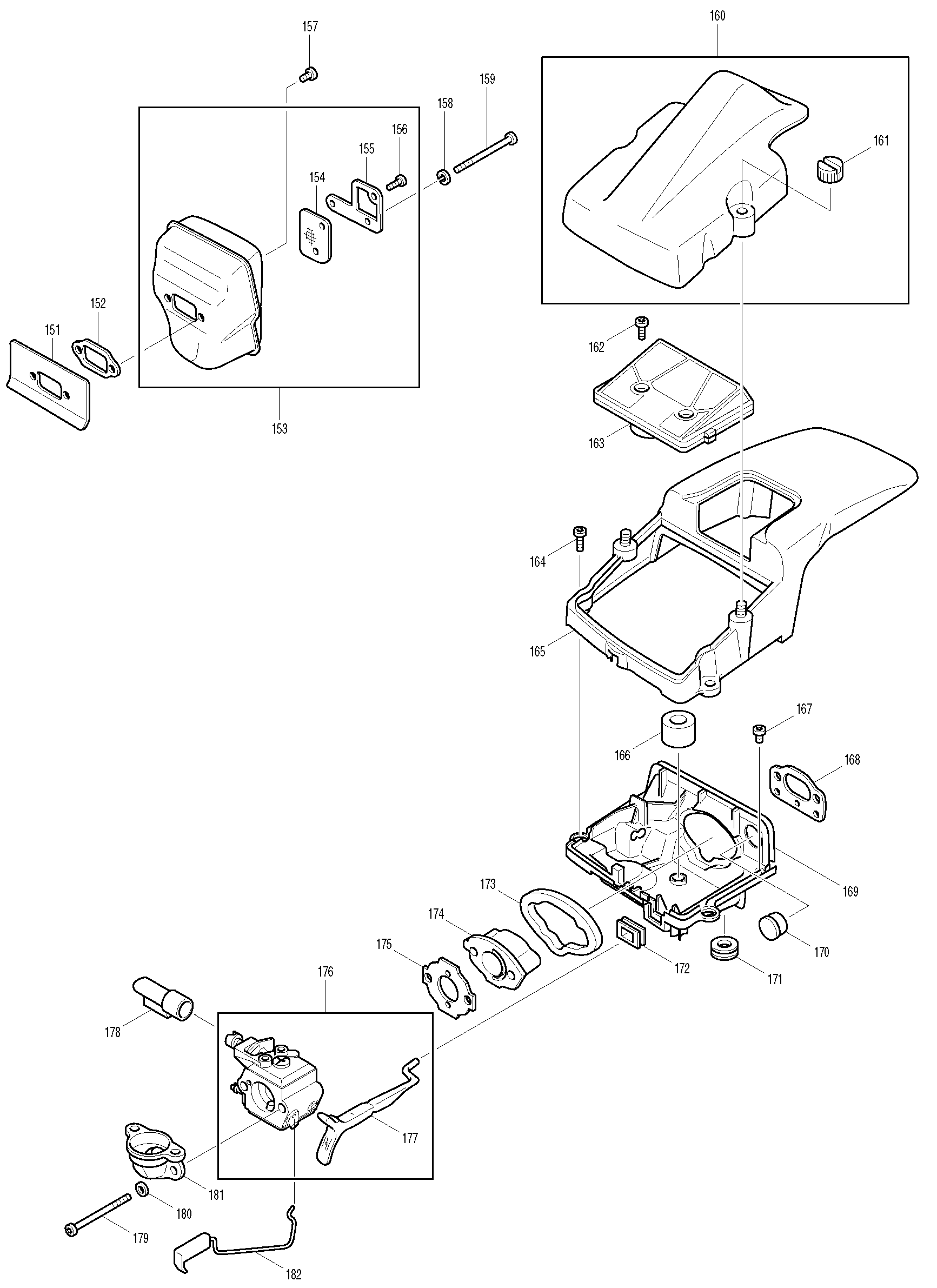

Sheet 7: Makita DCS431 parts diagram

Makita DCS431 parts diagram, sheet 7
No.Part numberPart name
151
152
154
155
156
157908005095Makita 908005095 SCREW111.115.PS-43/52/540
158928405000Makita 928405000 DISC
159908205625Makita 908205625 RUUVI 5X62 109.110I.111.115.PS-43/52/540
161001118062Makita 001118062 KANNEN MUTTERI 109110I.111.115.PS-43
162908605145Makita 908605145 RUUVI 5X14 109.110I.111.115.PS-43/52/540
163020173202Makita 020173202 ILMASUODATIN NYLON109.110I.115.PS-43YM
164908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
165027118250Makita 027118250 KOPPA TÄYD DEKO
166965404780Makita 965404780 TIIVISTE 109.110I.111.115.PS-43/52/540
167908005095Makita 908005095 SCREW111.115.PS-43/52/540
168965525032Makita 965525032 TIIVISTE 109.110I.111.115.PS-43/52/540
169027118054Makita 027118054 POHJA 109.110I.111.115.PS-43/52/540
170965404230Makita 965404230 TALVI.AS.KORKKI 109110I.111.115.PS-43YM
171965401024Makita 965401024 KUMIPUSLA 109.110I.111.115.PS-43/52/540
172965404410Makita 965404410 KUMIPUSLA 109.110I.111.115.PS-43/52/540
173965404341Makita 965404341 TIIVISTE 109.110I.111.115.PS43/52/540
174020131041Makita 020131041 VÄLILAIPPA 109.110I.111.115.PS-43/52/540
175965524022Makita 965524022 TIIVISTE 109.110I.111.115.PS-43/52/540
177027150830Makita 027150830 KURISTINVIPU 109.111115.PS-43/52
178020118030Makita 020118030 OHJAIN PALA
179908205658Makita 908205658 RUUVI 5X65 109.110I.111.115.PS-43/52/540
180924105300Makita 924105300 LEVY 5,3
181020171100Makita 020171100 LIITOSMUHVI 109.110I111.115.PS-43/52/540
182020117281Makita 020117281 KAASUVIPU 109.111110I.115.PS-43/52

Sheet 8: Makita DCS431 parts diagram

Makita DCS431 parts diagram, sheet 8
No.Part numberPart name
188001151240Makita 001151240 SÄÄTÖRUUVI(S)109.111109HS.115.PS-43/52
189021151230Makita 021151230 SÄÄTÖR.JOUSI(S)109.111.115.PS-43/52/540
190118151190Makita 118151190 RUUVI 109.109HS.111.115.PS-43/52/540
191001151165Makita 001151165 PUMPPU KANSI
193021151150Makita 021151150 PUMPPU KALVO 109.111109HS.115.PS-43/52
194021151180Makita 021151180 Screen for DPC6340, DCS330S, DCS340
195118151060Makita 118151060 RUUVI 109.109HS.111.115.PS-43/52/540
196021151320Makita 021151320 KAASULÄPPÄ 109.109HS111.115.PS-43/52/540
197001151580Makita 001151580 MUHVI
198001151590Makita 001151590 VIPU
199118151060Makita 118151060 RUUVI 109.109HS.111.115.PS-43/52/540
200001151600Makita 001151600 RIKASTINAKSELI 109.111.115.PS-43/52/540
201118151020Makita 118151020 RUUVI 109.109HS.111.115.PS-43/52/540
202021151120Makita 021151120 KALVO KANSI
203021151540Makita 021151540 TIIVISTE SRJ.(WT)109111.115.PS-43/52/540
204957150040Makita 957150040 SÄÄTÖOSA SRJ.WT.109.111.115.PS-43/52/540
205144150030Makita 144150030 KANSIRENGAS 109.111.109HS.115.PS-43/52
206001151260Makita 001151260 RYYPPY LÄPPÄ
207118151060Makita 118151060 RUUVI 109.109HS.111.115.PS-43/52/540
208118151170Makita 118151170 KUULA 109.109HS.111.115.PS-43/52/540
209118151160Makita 118151160 JOUSI 109.109HS.111.115.PS-43/52/540
210021151530Makita 021151530 SÄÄTÖR.JOUSI(H)109.111.115.PS-43/52/540
211001151310Makita 001151310 JOUSI 109.109HS.111.115.PS-43/52/540
212021151480Makita 021151480 SÄÄTÖR.JOUSI(L)109.111.115.PS-43/52/540
213001151301Makita 001151301 KAASUAKSELI 109.111.109HS.115.PS-43/52
214001151510Makita 001151510 SÄÄTÖ RUUVI
215001151470Makita 001151470 SÄÄTÖRUUVI(L)109.111109HS.115.PS-43/52
Selected parts0
