Makita DCS401

Makita DCS401: exploded parts diagram, 7 sheets, 128 positions. Spare parts with part numbers, availability and prices.

—

Scroll to zoom · drag to move

All parts on this sheet0 Only available

All parts of Makita DCS401: 128 positions on 7 sheets

Sheet 1: Makita DCS401 parts diagram

No.	Part number	Part name
2	001151670	Makita 001151670 KULMA LIITIN
3	965524042	Makita 965524042 TIIVISTE
5	021132230	Makita 021132230 MÄNNÄNRENGAS 109.110I.PS-43
6	021132020	Makita 021132020 MÄNTÄ TAPPI
7	108132050	Makita 108132050 JOUSI RENGAS
9	021123010	Makita 021123010 CONKANKI JA LAAKERI
10	962640061	Makita 962640061 RULLA 4X6
11	939615260	Makita 939615260 KEY 1,5X2,6REPAIR
12	920108044	Makita 920108044 KUUSIO MUTTERI M8X1L
13	108121010	Makita 108121010 STOP LEVY
14	965524011	Makita 965524011 TIIVISTE
16	936430160	Makita 936430160 SPIRAL CLAMPING PIN3X16
17	965403490	Makita 965403490 KUMIVAIMENNIN 109.110I.115.PS43/52/540
18	962300011	Makita 962300011 NEULALAAKERI 13X19X12
19	929319101	Makita 929319101 LUKKO RENGAS 19X1
20	962900049	Makita 962900049 STEFA
22	963100041	Makita 963100041 TIIVISTE
24	010245010	Makita 010245010 VENTTIILI 109.110I.111.115.PS-43/52/540
25	021245070	Makita 021245070 OHJAIN TAPPI 3X11
26	905808254	Makita 905808254 VAARNATAPPI 8X25
27	908005305	Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
28	001213042	Makita 001213042 Nut with Pivot
29	389213080	Makita Set 389213080 Clamp Screw + 001213020 Nut With Pivot
31	908105124	Makita 908105124 KUPUKANTA RUUVI 5X12
32	908405255	Makita 908405255 KUPUKANTA RUUVI 5X25
152	001131150	Makita 001131150 PUOLIPURISTIN VENTTIILI PS5000

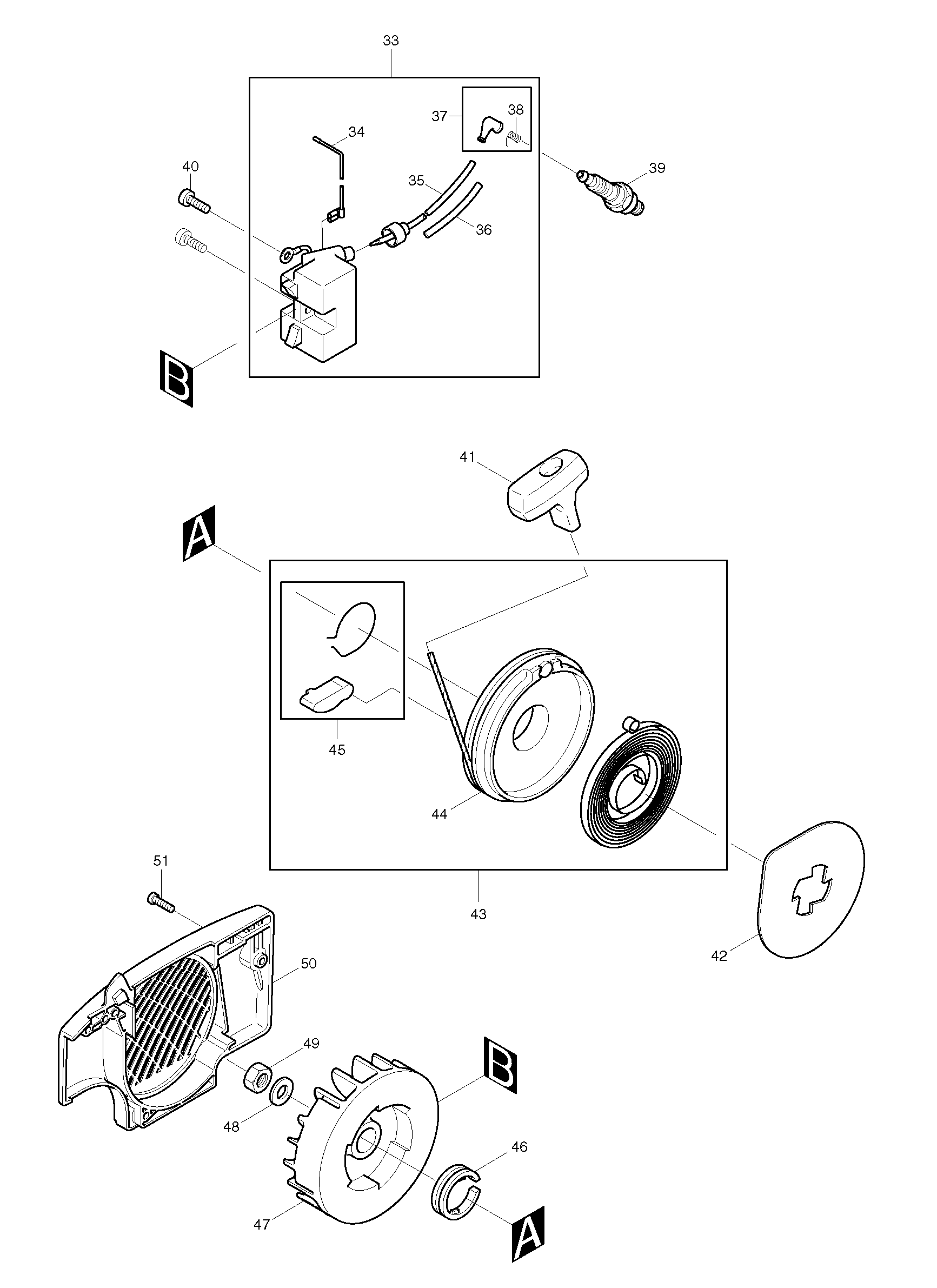

Sheet 2: Makita DCS401 parts diagram

No.	Part number	Part name
34	028147000	Makita 028147000 OIKOSULKU JOHTOSARJA
35	970310200	Makita 970310200 SYTYTYSJOHTO (1M)109110I.115.PS-43/52
36	970502110	Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
38	965604180	Makita 965604180 TULP.HATUN JOUSI 109110I.115.PS-43/52
39	965603018	Makita 965603018 TULPPA 6 K=KORVAAVABLISTERPAK MAK/DOL
40	908605145	Makita 908605145 RUUVI 5X14 109.110I.111.115.PS-43/52/540
41	965404031	Makita 965404031 KÄYNNISTIN KAHVA
42	900004375	Makita 900004375 VÄLILEVY
44	985000150	Makita 985000150 KÄYNIS.NARU D=3/100M RULLA
45	028166030	Makita 028166030 KÄYNNISTIN KÄPÄLÄ COL
46	021166040	Makita 021166040 LUKKO RENGAS KÄYNNIS
47	021141011	Makita 021141011 VAUHTIPYÖRÄ
48	928308001	Makita 928308001 JOUSI LEVY 109.110I111.115.PS-43/52/540
49	920308024	Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
50	028112630	Makita 028112630 TUULETINKOTELO
51	908005165	Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540

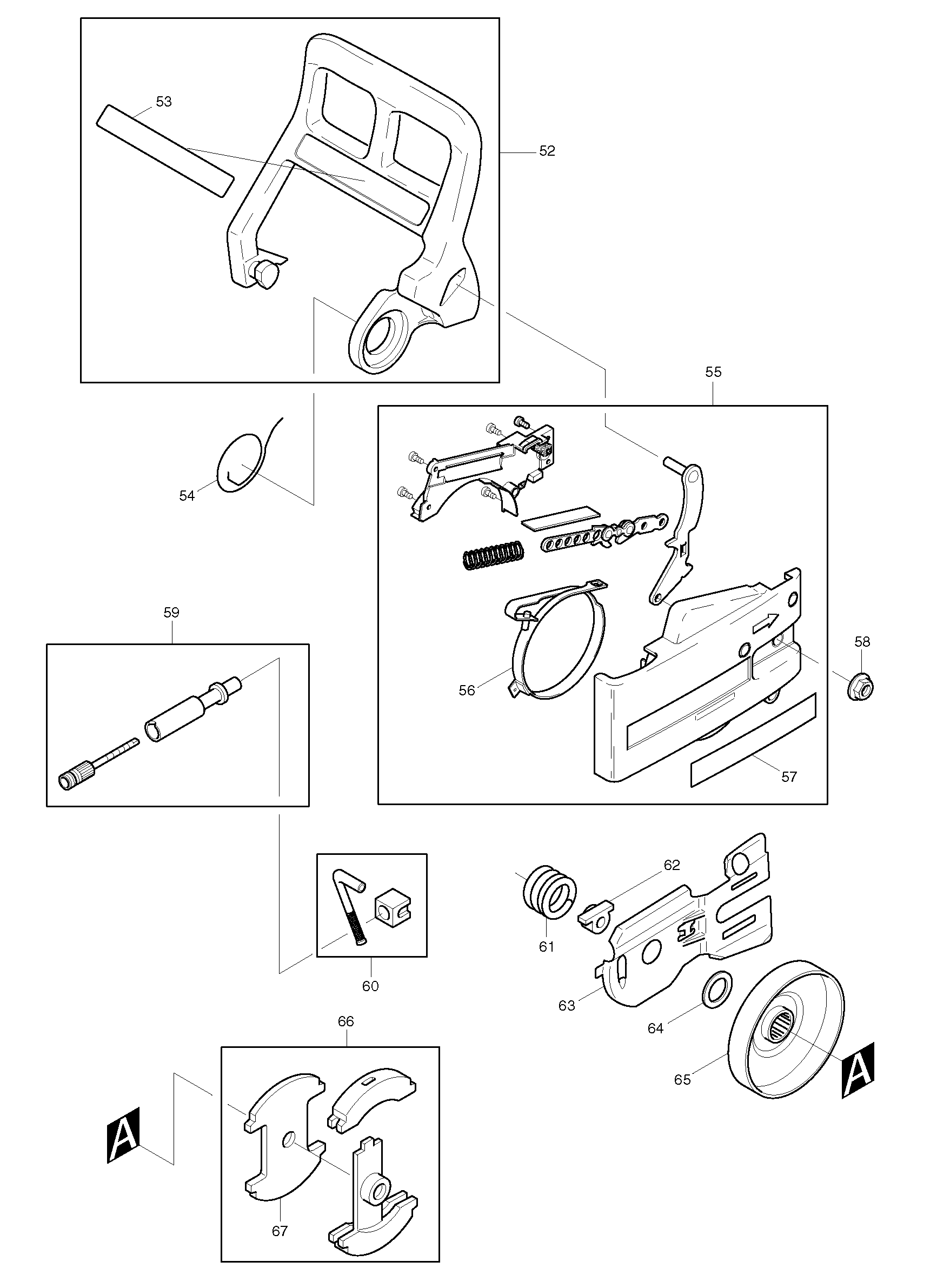

Sheet 3: Makita DCS401 parts diagram

No.	Part number	Part name
53	980114237	Makita 980114237 KÄSISUOJ.SYMB.KILPI109.110I.115.PS-43YM
54	028213560	Makita 028213560 JOUSI
56	028213501	Makita 028213501 JARRUJOUSIPS-410
57	980114251	Makita 980114251 KILPI
58	923208004	Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
59	021245003	Makita 021245003 ÖLJY PUMPPU TÄYDUC3501A UC3503A
60	965451962	Dolmar Oil suction line PS 33 39 330 340 341 342 344 390 400 401 410 411
61	021245040	Makita 021245040 MATO
62	021245080	Makita 021245080 SEALING KORKKI
63	021111037	Makita 021111037 OHJAIN LEVY
64	021224010	Makita 021224010 Disc
65	028223311	Makita 028223311 KYTKINRUMPU TÄYD340,410
67	028184020	Makita 028184020 JOUSI

Sheet 4: Makita DCS401 parts diagram

No.	Part number	Part name
69	908205605	Makita 908205605 KUPUKANTA RUUVI 5X60
70	928405000	Makita 928405000 DISC
71
73
74
75	965524062	Makita 965524062 TIIVISTE
77	028118180	Makita 028118180 SUOJUS KESÄ/TALVI
78	001118062	Makita 001118062 KANNEN MUTTERI 109110I.111.115.PS-43
79	028173041	Makita Dolmar 028173041 Air Filter Nylon PS-401 PS-340
81	908205605	Makita 908205605 KUPUKANTA RUUVI 5X60
82	028118150	Makita 028118150 KOPPA
83	908005165	Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540

Sheet 5: Makita DCS401 parts diagram

No.	Part number	Part name
84	028310050	Makita 028310050 ETUKAHVA
85	913455454	Makita 913455454 RUUVI 5,5X45
87	965404661	Makita 965404661 PA-LETKU
88	937130120	Makita 937130120 TULPPA
89	957114010	Makita 957114010 VENTTIILI 109.110I.111.115.PS-43/52/540
90	028117244	Makita 028117244 KAASU VIPU
91	965403490	Makita 965403490 KUMIVAIMENNIN 109.110I.115.PS43/52/540
92	913455204	Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
93	021114051	Makita 021114051 KIIN.TULPPA 109.110I111.115.PS-43/52/540
94	908005305	Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
95	913455304	Makita 913455304 RUUVI 5,5X30
96	980003583	Makita 980003583 NIPPUSIDE
97	963601130	Makita 963601130 IMU PÄÄ (PA.)
99	963228030	Makita 963228030 O-RENGAS 28X3
100	920205000	Makita 920205000 MUTTERI M5 110I.115115I.
101	965524120	Makita 965524120 TIIVISTE
102	965452060	Makita 965452060 BENSALETKU (1M)MS-4510
103	970502110	Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
104	965524092	Makita 965524092 TIIVISTE
105	965524131	Makita 965524131 TIIVISTE
106	028131061	Makita 028131061 VÄLI LAIPPA
107	965524082	Makita 965524082 TIIVISTE
108	028118271	Makita 028118271 POHJA
109	965404430	Makita 965404430 TIIVISTE
110	900205554	Makita 900205554 KUUSIO RUUVI 5X55
111	908005305	Makita 908005305 RUUVI 109.110I.111.115.PS-43/52/540
112	028150750	Makita 028150750 RYYPPY KAMPI
113	028150740	Makita 028150740 RYYPPY KYTKIN
114	028118121	Makita 028118121 STOP KYTKIN
115	965404421	Makita 965404421 TIIVISTE
116	028118160	Makita 028118160 VÄLI LEVY
117	028118112	Makita 028118112 CONTACT LEVY
118	908005165	Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540

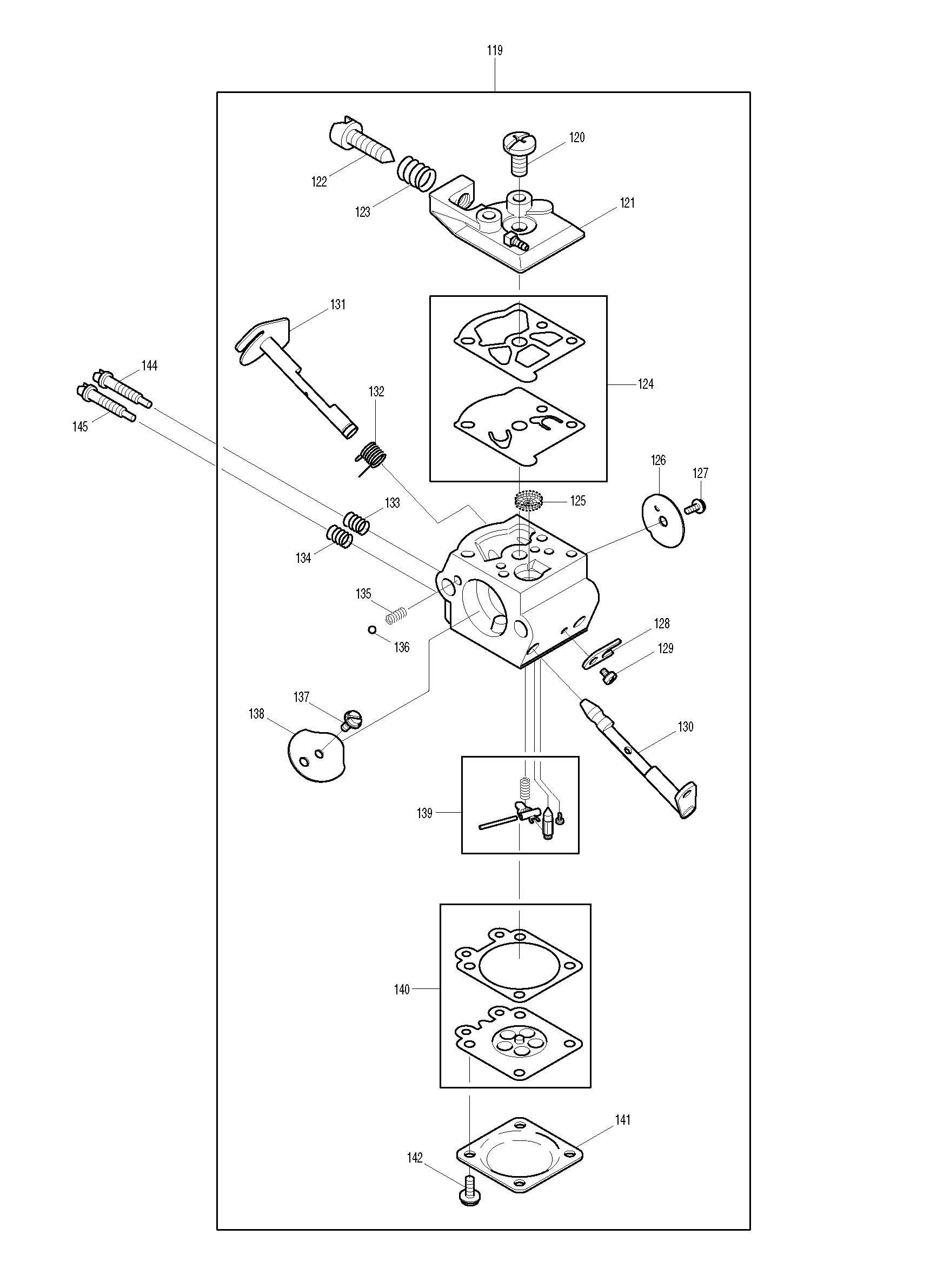

Sheet 6: Makita DCS401 parts diagram

No.	Part number	Part name
120	118151190	Makita 118151190 RUUVI 109.109HS.111.115.PS-43/52/540
121	001151140	Makita 001151140 PUMPPU KANSI
122	021151240	Makita 021151240 IDLE STOP RUUVI
123	021151230	Makita 021151230 SÄÄTÖR.JOUSI(S)109.111.115.PS-43/52/540
124	021151540	Makita 021151540 TIIVISTE SRJ.(WT)109111.115.PS-43/52/540
125	021151180	Makita 021151180 Screen for DPC6340, DCS330S, DCS340
126	108151320	Makita 108151320 KAASU SULKIJA
127	118151060	Makita 118151060 RUUVI 109.109HS.111.115.PS-43/52/540
128	108151350	Makita 108151350 VARSI CLIP
129	118151020	Makita 118151020 RUUVI 109.109HS.111.115.PS-43/52/540
130	001151255	Makita 001151255 RYYPPY VARSI
131	001151320	Makita 001151320 KAASU VARSI
132	001151310	Makita 001151310 JOUSI 109.109HS.111.115.PS-43/52/540
133	021151480	Makita 021151480 SÄÄTÖR.JOUSI(L)109.111.115.PS-43/52/540
134	021151530	Makita 021151530 SÄÄTÖR.JOUSI(H)109.111.115.PS-43/52/540
135	118151160	Makita 118151160 JOUSI 109.109HS.111.115.PS-43/52/540
136	118151170	Makita 118151170 KUULA 109.109HS.111.115.PS-43/52/540
137	118151060	Makita 118151060 RUUVI 109.109HS.111.115.PS-43/52/540
138	001151350	Makita 001151350 RYYPPY LÄPPÄ
139	957150040	Makita 957150040 SÄÄTÖOSA SRJ.WT.109.111.115.PS-43/52/540
140	021151540	Makita 021151540 TIIVISTE SRJ.(WT)109111.115.PS-43/52/540
141	021151120	Makita 021151120 KALVO KANSI
142	118151020	Makita 118151020 RUUVI 109.109HS.111.115.PS-43/52/540
144	021151470	Makita 021151470 IDLE SÄÄTÖ RUUVI
145	001151515	Makita 001151515 SÄÄTÖ RUUVI

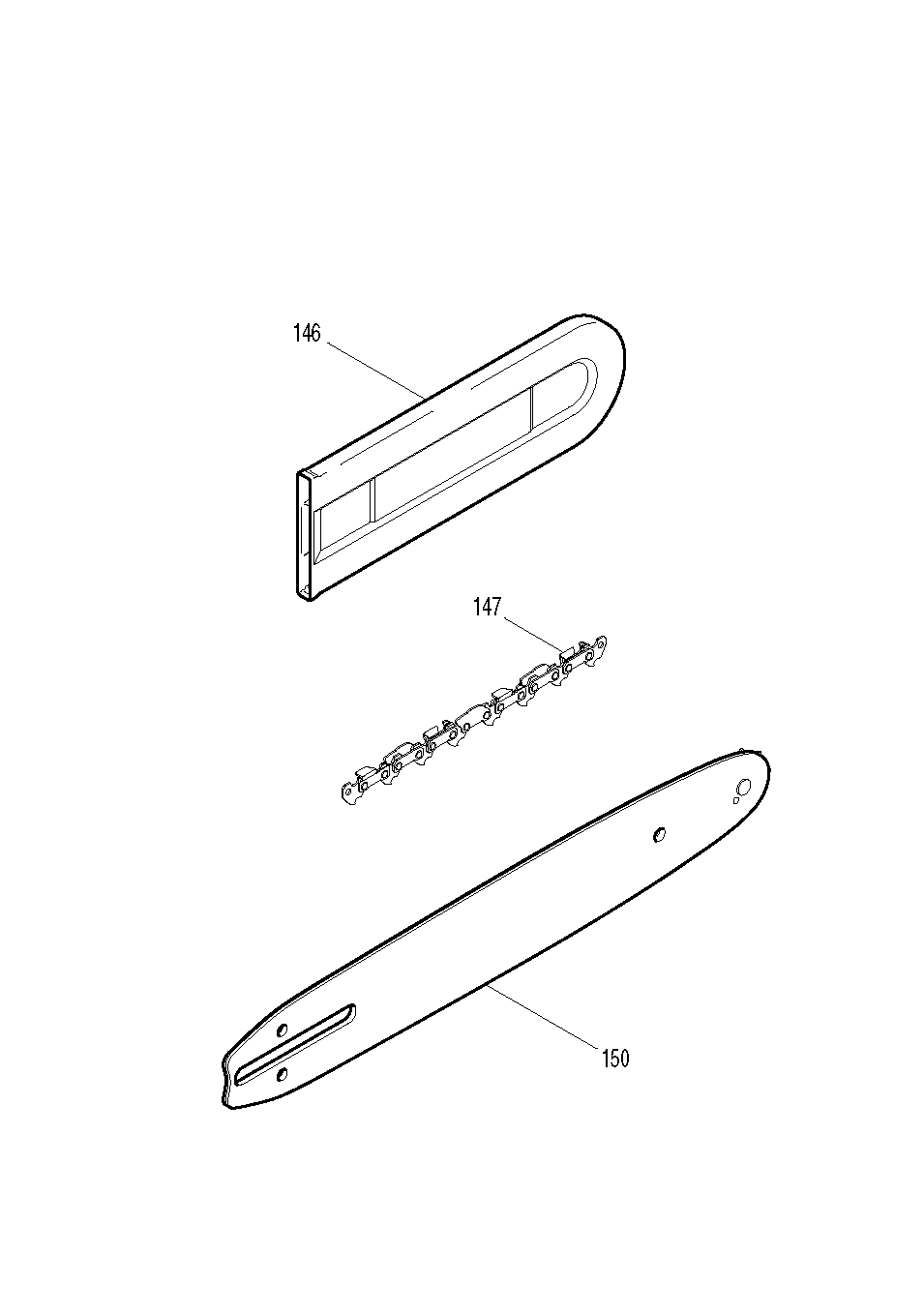

Sheet 7: Makita DCS401 parts diagram

No.	Part number	Part name
146	952100633
147	528092646
150	442030661
