Makita DCS3410TH

Makita DCS3410TH: exploded parts diagram, 6 sheets, 144 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCS3410TH: 144 positions on 6 sheets

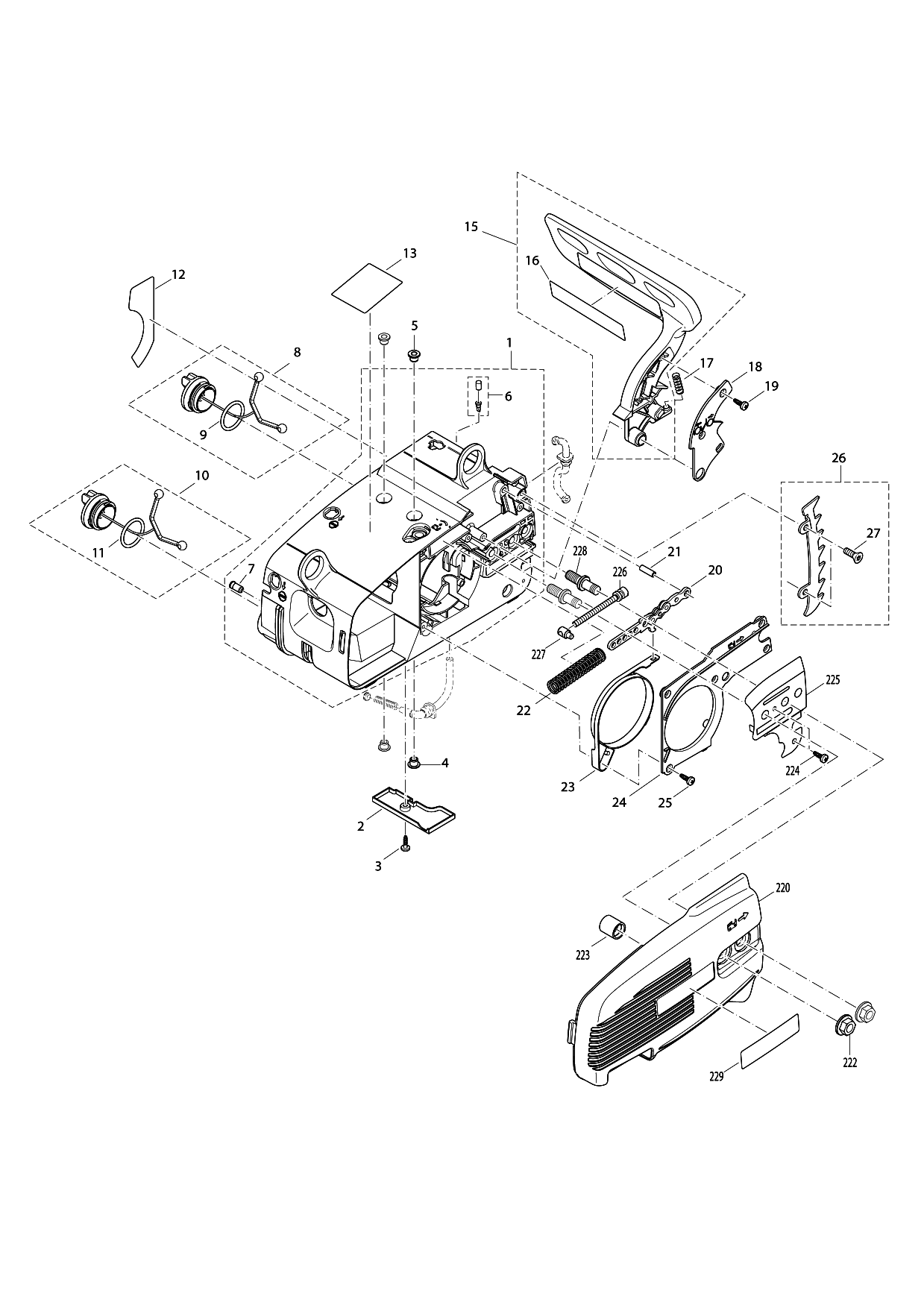

Sheet 1: Makita DCS3410TH parts diagram

Makita DCS3410TH parts diagram, sheet 1
No.Part numberPart name
2170111680Makita 170111680 COVER, BLUE BOTTOM 2SIN.
3915735100Makita 915735100 RUUVI
4170111050Makita 170111050 PUSSLA
5170111050Makita 170111050 PUSSLA
6170175010Makita 170175010 AIR VALVE CPL.
7010245030Makita 010245030 VENT VENTTIILI
9963225030Makita 963225030 O-RENGAS PS-4600
11963225030Makita 963225030 O-RENGAS PS-4600
12980114904Makita 980114904 LABEL
13980114919Makita 980114919 LABEL
16810449-4
17225213060Makita 225213060 KÄDENSUOJAIMEN JOUSI UC3500A
18170213040Makita 170213040 COVER
19915735100Makita 915735100 RUUVI
20028213532
21962650200Makita 962650200 CYLINDRICAL PIN
22028213521Makita 028213521 JOUSI UC3500A
23170213080Makita 170213080 JARRUJOUSI
24170213050Makita 170213050 COVER
25915735100Makita 915735100 RUUVI
27913850155Makita 913850155 SCREW
220170213602Makita 170213602 SPROCKET GUARD, BLUE
222923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
223170213100Makita 170213100 CHAIN CATCH
224915735100Makita 915735100 RUUVI
225170111070Makita 170111070 OHJAIN LEVY
226036213090Makita 036213090 STRAINING RUUVI
227001213042Makita 001213042 Nut with Pivot
228036110021Makita 036110021 PULTTI, YELLOW
229980114912Makita 980114912 TARRA MAKITA PURUKOP

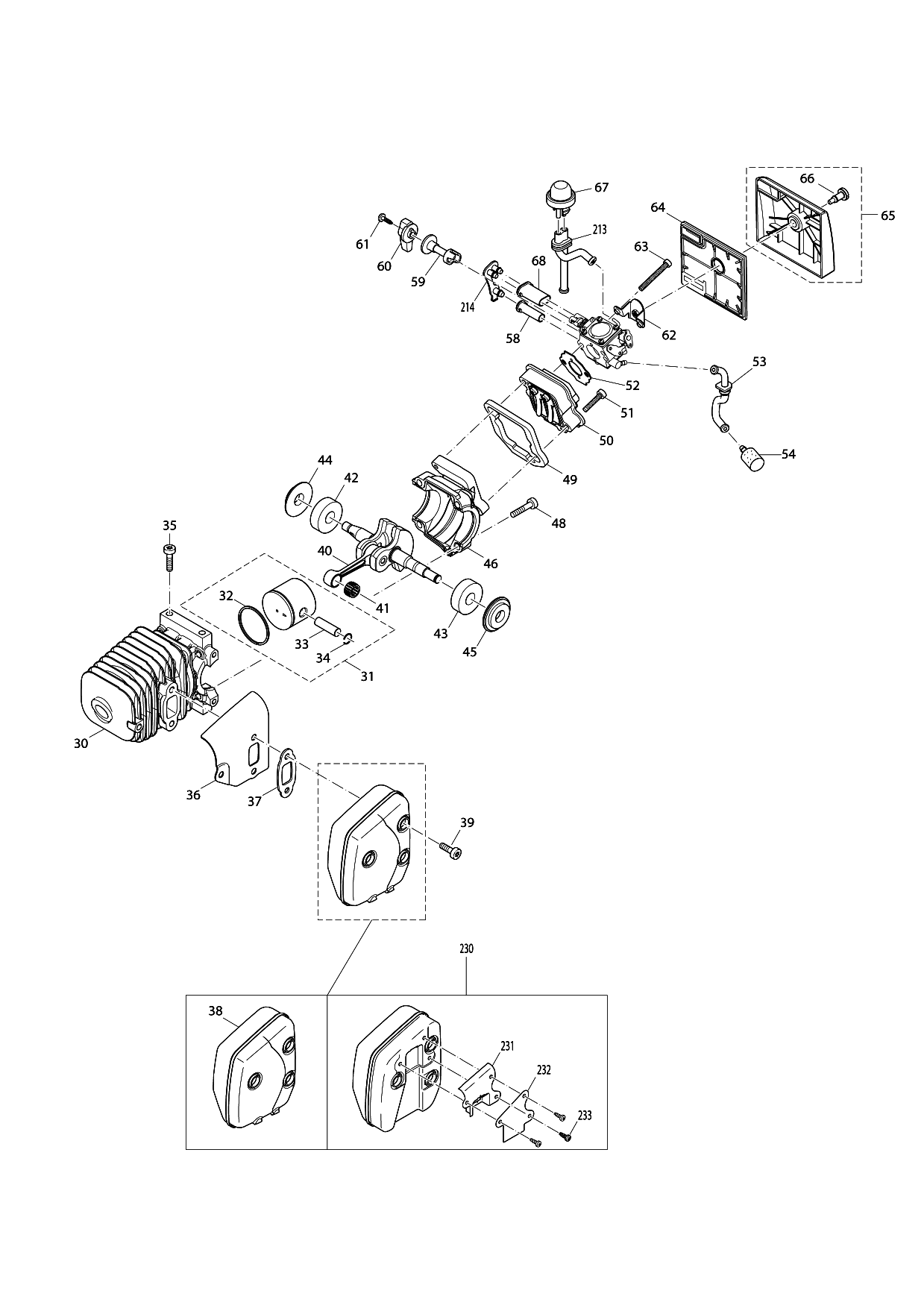

Sheet 2: Makita DCS3410TH parts diagram

Makita DCS3410TH parts diagram, sheet 2
No.Part numberPart name
30170131010Makita 170131010 SYLINTERI
32170132030Makita 170132030 MÄNTÄ RENGAS
33170132020Makita 170132020 MÄNTÄ TAPPI
34170132040Makita 170132040 JOUSI RENGAS
35266605-8Makita 266605-8 H.L.SOCKET HEAD BOLT M5X16, EA3200S
36170174081Makita 170174081 HEAT SHIELD
37170174050Makita 170174050 TIIVISTE
38170174100Makita 170174100 MUFFLER
39908405145Makita 908405145 KUPUKANTA RUUVI 5X14
40170120101Makita 170120101 CRANKSHAFT ASS'Y
41962211006Makita 962211006 NEEDLE CAGE
42960102131Makita 960102131 BALL BEARING 109.110I.111115.PS-43/52/540
43960102131Makita 960102131 BALL BEARING 109.110I.111115.PS-43/52/540
44962900060Makita 962900060 STEFA
45962900060Makita 962900060 STEFA
46170111201Makita 170111201 CRANKCASE COMPLETE
48908005205Makita 908005205 RUUVI 5X20 109.110I111.115.PA-43/52/540
49170131040Makita 170131040 TIIVISTE OSANUM 49
50170131100Makita 170131100 VÄLI LAIPPATÄYD
51913340204Makita 913340204 RUUVI
52965524023Makita 965524023 TIIVISTE 109.110I.111.115.PS-43/52/540
53170114070Makita 170114070 PA-LETKU
54163447-0Makita 163447-0 Gasoline Filter
58170118041Makita 170118041 ADJUSTING GUIDE S3410
59170155050Makita 170155050 RYYPPY VARSI 3410
60170155040Makita 170155040 RYYPPY VIPU 3410
61915735100Makita 915735100 RUUVI
62170151051Makita 170151051 AIR FILTER COVER MOUTING 3410
63908004406Makita 908004406 H.L. SOCKET HEAD BOLT
64170173021Makita 170173021 ILMASUODATIN
66170118020Makita 170118020 RUUVI
67168398-2Makita 168398-2 Primer Pump for DCS230T
68170118031Makita 170118031 ADJUSTING GUIDE L&H3410
213170118070Makita 170118070 PRIMER PIPE
214170118050Makita 170118050 PLUG
231
232
233

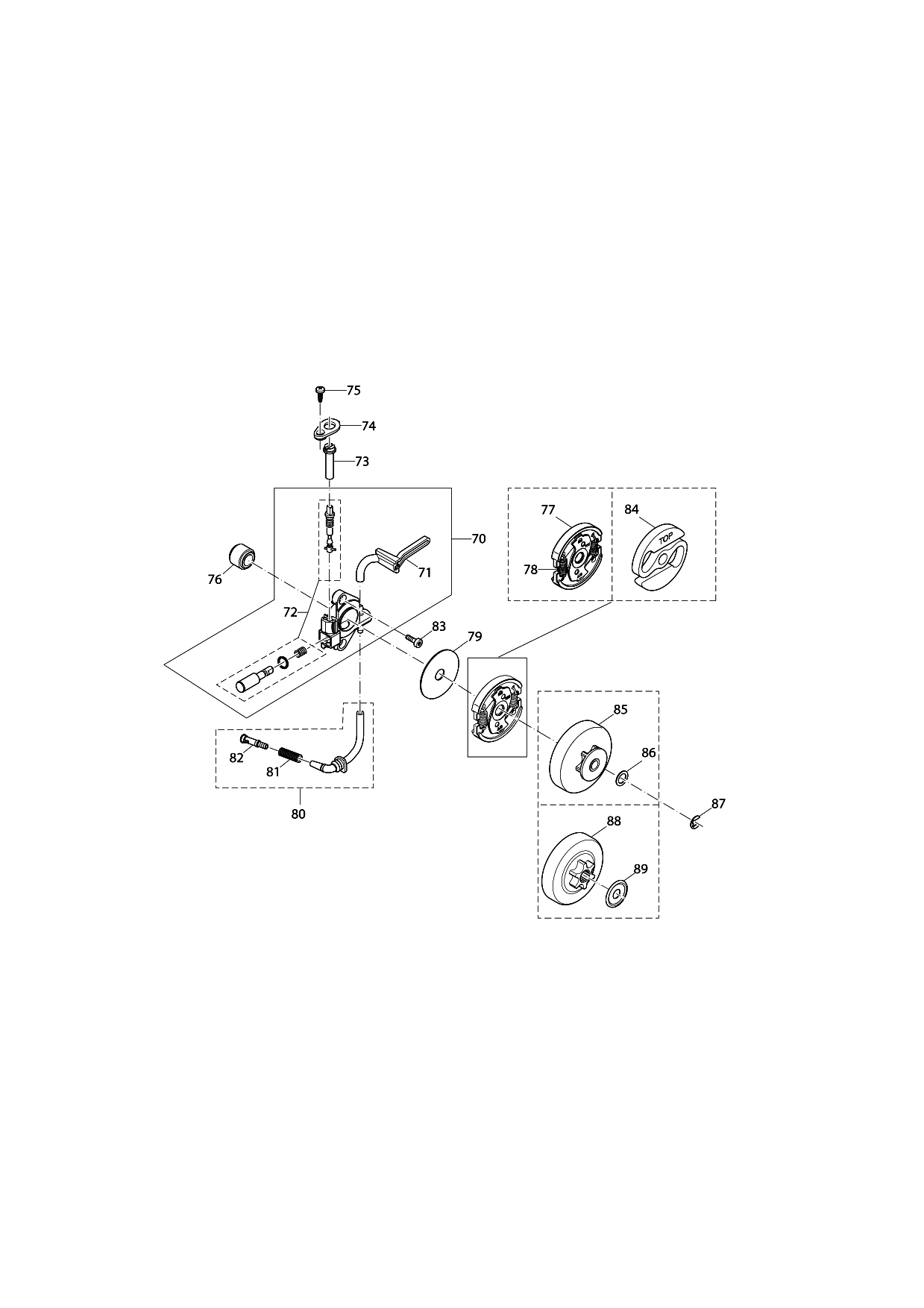

Sheet 3: Makita DCS3410TH parts diagram

Makita DCS3410TH parts diagram, sheet 3
No.Part numberPart name
71170245110Makita 170245110 OIL LINE
73170245030Makita 170245030 ADJUSTING LEVER
74170245090Makita 170245090 COVER
75915735100Makita 915735100 RUUVI
76170245130Makita 170245130 PUMP DRIVE
78165184020Makita 165184020 TENSION SPRING
79165182060Makita 165182060 FLAT WASHER
81231975-4Makita 231975-4 SPRING, DCS230T
82416274-7Makita 416274-7 CAP, UC3020A
83908004125Makita 908004125 KUPUKANTA RUUVI 4X12 T27
84170181010Makita 170181010 CLUTCH
85170223111Dolmar DOLMAR Kettenrad, 170.223.111, für PS 32 C, PS 35 C, PS 3400, PS 3400TH, PS 3410
86900006064
87927306000Makita 927306000 LEVY 6,0
88140484-1Makita 140484-1 CLUTCH DRUM ASSEMBLY
89267833-8Makita 267833-8 Cup Washer 8 for EA3201, 3500, 3501

Sheet 4: Makita DCS3410TH parts diagram

Makita DCS3410TH parts diagram, sheet 4
No.Part numberPart name
103980115959
104913340204Makita 913340204 RUUVI
105021164010Makita 021164010 KÄYNNISTIN NARU
106195160080Makita 195160080 WASHERPS-420
107170160760Makita 170160760 STARTER GRIP
108965404840Makita 965404840 TIIVISTE
109930216030Makita 930216030 TOOTHED LEVY
110170160730Makita 170160730 REWIND SPRING3410
111170160740Makita 170160740 CABLE DRUM 3410
112170160770Makita 170160770 SPRING EASYSTART
113170160780Makita 170160780 STARTER WHEEL
114170160790Makita 170160790 SCREW
120170160621Makita 170160621 AIR DUCT, BLUE
122915735100Makita 915735100 RUUVI
123168648-5Makita 168648-5 SPARK PLUG (BPMR7A)
124170147010Makita 170147010 JOHTO SARJA
125170143031Makita 170143031 GROUND CONNECTOR
126920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
127926208001Makita 926208001 JOUSI LEVY B8
129957166100Makita 957166100 STARTER RATCHET CPL
130170143110Makita Dolmar 170143110 Ignition Coil PS3400 PS3400TH PS3410 PS3410TH
131908004165Makita 908004165 SCREW

Sheet 5: Makita DCS3410TH parts diagram

Makita DCS3410TH parts diagram, sheet 5
No.Part numberPart name
170170311010Makita 170311010 HANDLE HALF LEFT
171170313010Makita 170313010 HANDLE HALF RIGHT
172913340204Makita 913340204 RUUVI
173965403491Makita 965403491 Rubber Buffer for 109 111 115 43 PS43/52/540/340
174170313080Makita 170313080 EYE TH
175913650304Makita 913650304 RUUVI
176170117040Makita 170117040 KAASUN VARM. VIPU
177170117030Makita 170117030 KAASU VIPU
178170117050Makita 170117050 JOUSI
179170312011Makita 170312011 BOWDEN CABLE ASS'Y
181913650304Makita 913650304 RUUVI
182170310010Makita 170310010 TUBULAR HANDLEPS3410TH
183913650304Makita 913650304 RUUVI
184036114020Makita 036114020 KIINNIKE PUSSLA
185965403491Makita 965403491 Rubber Buffer for 109 111 115 43 PS43/52/540/340
186170146050Makita 170146050 SHORT CIRCUIT SWITCH
187170146010Makita 170146010 LITTEÄ RENGAS CONNEC
188170111060Makita 170111060 TULPPA

Sheet 6: Makita DCS3410TH parts diagram

Makita DCS3410TH parts diagram, sheet 6
No.Part numberPart name
302378151210Makita 378151210 SUUTIN S JOUTOKÄYNTI
303170151260Makita 170151260 SPRING
304118151190Makita 118151190 RUUVI 109.109HS.111.115.PS-43/52/540
305021151160Makita 021151160 PUMPPU KANSI
307021151150Makita 021151150 PUMPPU KALVO 109.111109HS.115.PS-43/52
309119151350Makita 119151350 SAFETY WASHER CARB SHAFTS
310170151280Makita 170151280 SPRING
312119151350Makita 119151350 SAFETY WASHER CARB SHAFTS
313001151310Makita 001151310 JOUSI 109.109HS.111.115.PS-43/52/540
314021151180Makita 021151180 Screen for DPC6340, DCS330S, DCS340
315957151070Makita 957151070 KIIHDYSTYS PUMPPU TH
316957150040Makita 957150040 SÄÄTÖOSA SRJ.WT.109.111.115.PS-43/52/540
317021151120Makita 021151120 KALVO KANSI
318378151220Makita 378151220 SCREW
320001151810Makita 001151810 L-SUUTIN JOUTOKÄIN
321001151820Makita 001151820 H-SUUTIN JOUTOKÄIN
322021151530Makita 021151530 SÄÄTÖR.JOUSI(H)109.111.115.PS-43/52/540
323
324
325
