Makita DCS34

Makita DCS34: exploded parts diagram, 6 sheets, 106 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCS34: 106 positions on 6 sheets

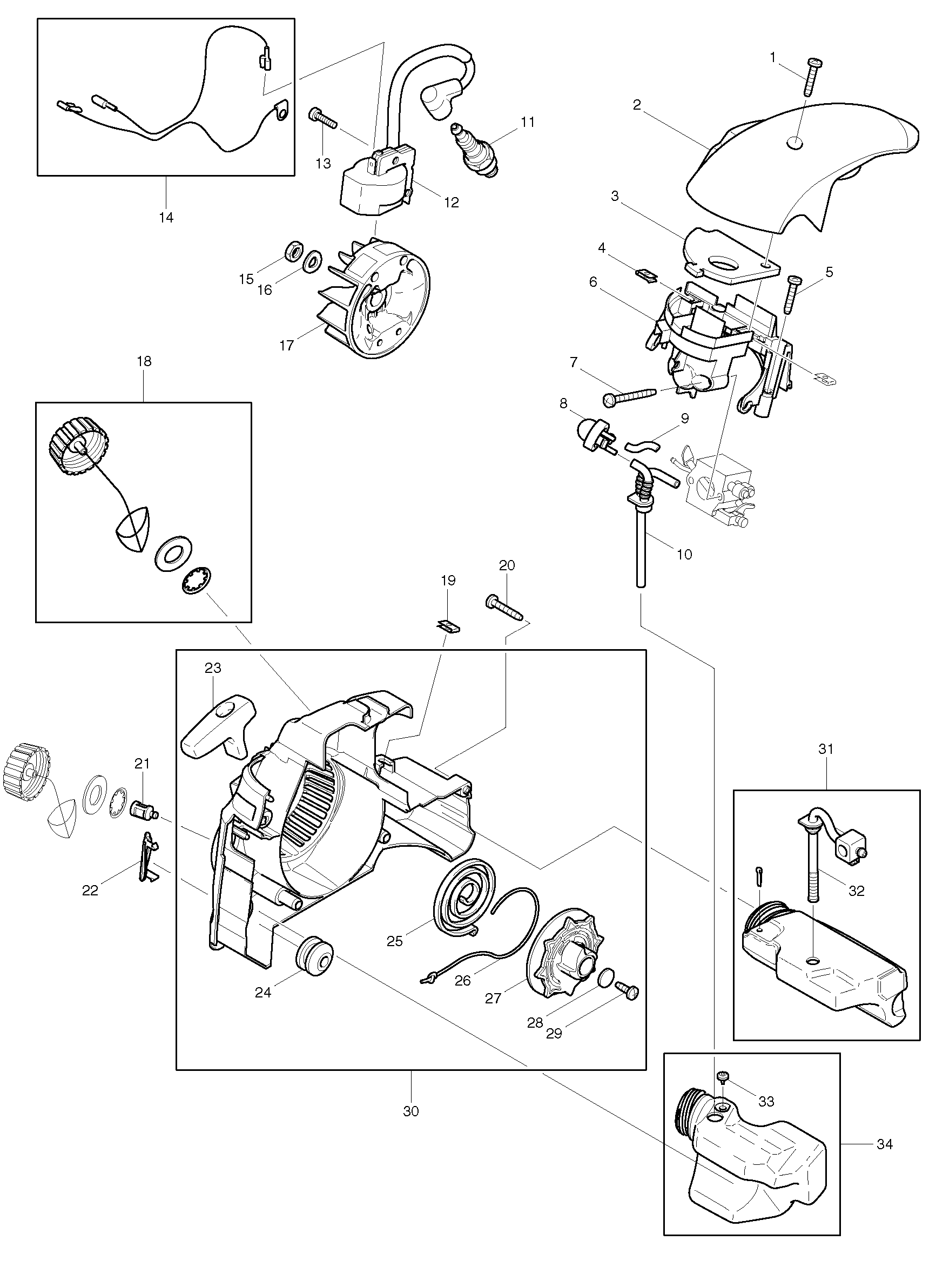

Sheet 1: Makita DCS34 parts diagram

Makita DCS34 parts diagram, sheet 1
No.Part numberPart name
1913650304Makita 913650304 RUUVI
2036118010Makita 036118010 KOPPA
3036173011Makita 036173011 Air Filter for DCS34-35 PS34
4923750340Makita 923750340 MUTTERI
5913650304Makita 913650304 RUUVI
6036171011Makita 036171011 LIITOSMUHVI
7913650504Makita 913650504 RUUVI
8369155010Makita 369155010 Primer
9965452060Makita 965452060 BENSALETKU (1M)MS-4510
10965404980Makita 965404980 PA-LETKU PS-34
11965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
12036140010Makita 036140010 SYTYTYS ELECTRONICTÄYD
13913340204Makita 913340204 RUUVI
14970311490Makita 970311490 OIKOSULKU JOHTO
15920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
16926208001Makita 926208001 JOUSI LEVY B8
17036141100Makita 036141100 XXX
18010114060Makita 010114060 TANKKI TULPPA TÄYD
19923750340Makita 923750340 MUTTERI
20913650304Makita 913650304 RUUVI
21963601380Makita 963601380 IMU PÄÄ
22036112630
23965404031Makita 965404031 KÄYNNISTIN KAHVA
24965403490Makita 965403490 KUMIVAIMENNIN 109.110I.115.PS43/52/540
25036163010Makita 036163010 REWIND SRENGAS
26985000155Makita 985000155 KÄYNNISTINNARU 3,5MM/100M
27036162010Makita 036162010 NARU RUMPU
28924805310Makita 924805310 ALUSLEVY 5,3 110I.115.115I.
29913650154Makita 913650154 RUUVI
32965402490Makita 965402490 IMU LETKUSARJA FOR ÖLJY
33965404220Makita 965404220 VENTTIILI

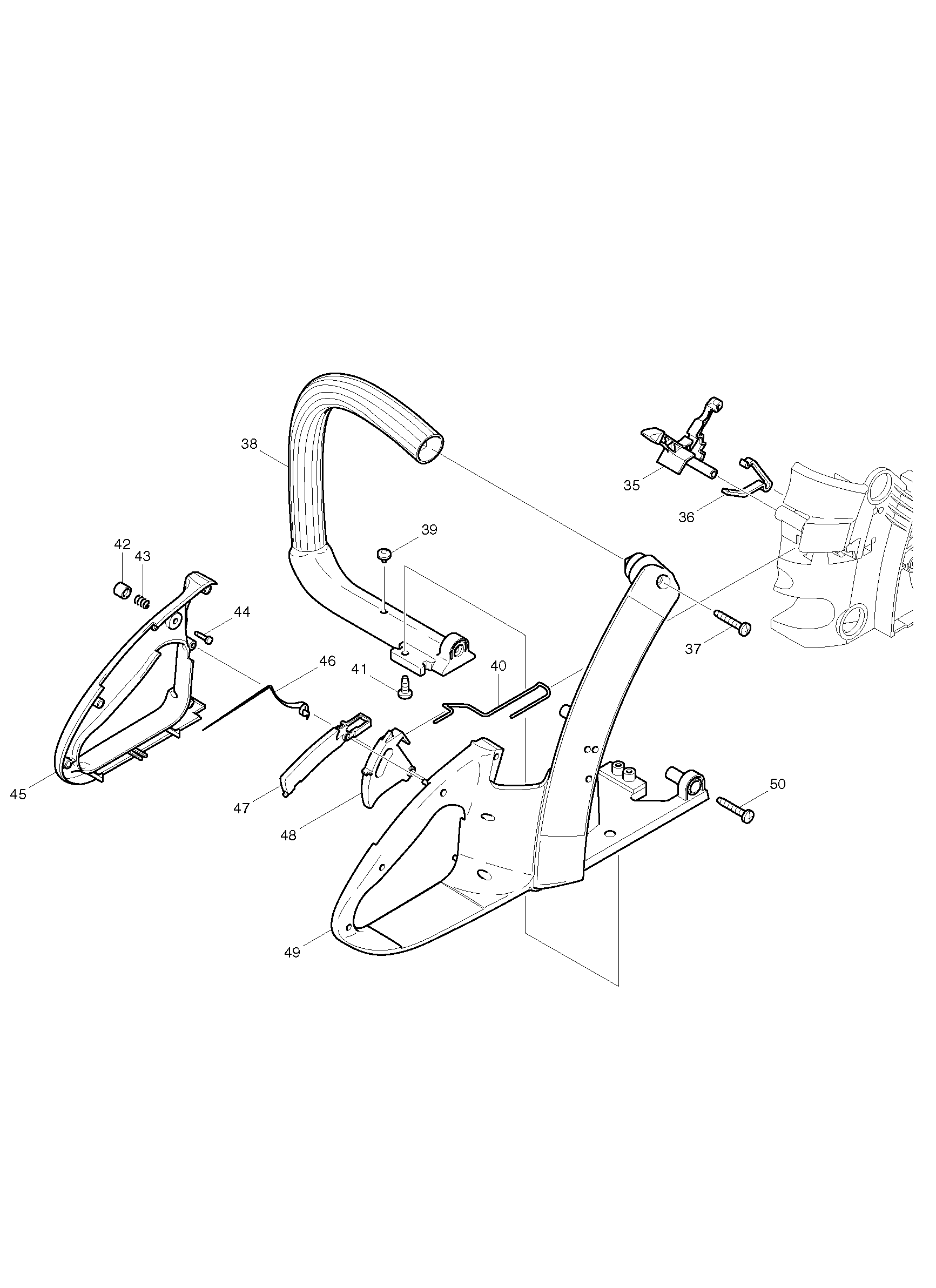

Sheet 2: Makita DCS34 parts diagram

Makita DCS34 parts diagram, sheet 2
No.Part numberPart name
35036155020Makita 036155020 RYYPPY VIPU
36036155031Makita 036155031 CONTACT JOUSI
37913650304Makita 913650304 RUUVI
38036310010Makita 036310010 ETUKAHVA
39965402360Makita 965402360 BUFFER
40036117020Makita 036117020 KAASU KAMPI
41913650154Makita 913650154 RUUVI
42965451750Makita 965451750 NAPPI
43965551160Makita 965551160 PAINE SPRIN
44965551150Makita 965551150 STOP TAPPI
45036117660
46036117050Makita 036117050 JOUSI
47036117040Makita 036117040 KAASUN VARM. VIPU
48036117030Makita 036117030 KAASU VIPU
49036117610Makita 036117610 KAHVANPUOLISKO
50913650304Makita 913650304 RUUVI

Sheet 3: Makita DCS34 parts diagram

Makita DCS34 parts diagram, sheet 3
No.Part numberPart name
52
53913350654Makita 913350654 RUUVI
54928405000Makita 928405000 DISC
55965522032Makita 965522032 TIIVISTE 109.110I.111.115.PS-43/52/540
56036131011Makita 036131011 Cylinder DCS34
57036131020
58036171020Makita 036171020 KIINNITIN
59036131030Makita 036131030 INSERT FOR IMU HOSE
61021132030Makita 021132030 MÄNTÄ RENGAS
62021132020Makita 021132020 MÄNTÄ TAPPI
63108132050Makita 108132050 JOUSI RENGAS
64962900057Makita 962900057 STEFA
65960102129Makita 960102129 LAAKERI 109.110I.111115.PS-43/52/540
66036120010Makita 036120010 KAMPIAKSELI SARJA
67960102129Makita 960102129 LAAKERI 109.110I.111115.PS-43/52/540
68962900057Makita 962900057 STEFA
70965531010Makita 965531010 TIIVISTE
71036111010Makita 036111010 KAMPIKOTELO POHJA
72913350404Makita 913350404 RUUVI
96036245020Makita 036245020 PUMP DRIVE

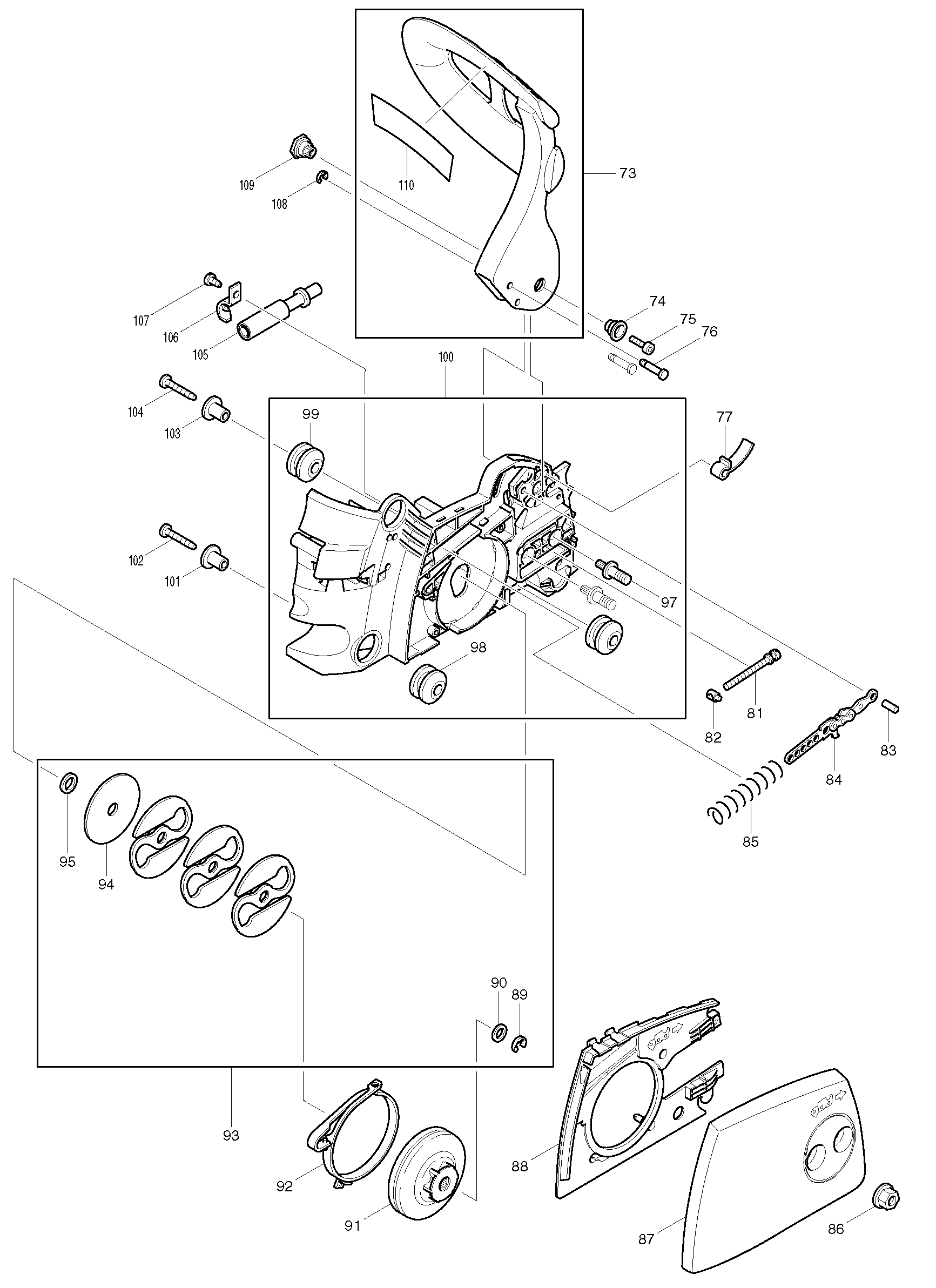

Sheet 4: Makita DCS34 parts diagram

Makita DCS34 parts diagram, sheet 4
No.Part numberPart name
74036213070Makita 036213070 PUSSLA
75908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
76934150200Makita 934150200 PULTTI
77036213030Makita 036213030 JOUSI
81036213090Makita 036213090 STRAINING RUUVI
82001213042Makita 001213042 Nut with Pivot
83962650128Makita 962650128 LIERIÖTAPPI
84036213020Makita 036213020 JARRU JOUSI PIDINTÄYD
85028213200Makita 028213200 JOUSI
86923208004Makita 923208004 KUUSIOMUTTERI M8 109110I.111.115.PS-43YM
87036213650
88036213040Makita 036213040 KANSI LEVY
89927306000Makita 927306000 LEVY 6,0
90900006065Makita 900006065 LEVY
91036223110Makita 036223110 KYTKIN RUMPU TÄYD
92028213501Makita 028213501 JARRUJOUSIPS-410
94027182030Makita 027182030 LEVY
95036224010Makita 036224010 LEVY
97036110020Makita 036110020 PULTTI
98965403490Makita 965403490 KUMIVAIMENNIN 109.110I.115.PS43/52/540
99965403490Makita 965403490 KUMIVAIMENNIN 109.110I.115.PS43/52/540
101036114020Makita 036114020 KIINNIKE PUSSLA
102913650304Makita 913650304 RUUVI
103036114020Makita 036114020 KIINNIKE PUSSLA
104913650304Makita 913650304 RUUVI
105021245003Makita 021245003 ÖLJY PUMPPU TÄYDUC3501A UC3503A
106203245001Makita 203245001 ÖLJYPUMPPUUN KIINIKEC3500A
107913335060Makita 913335060 RUUVI
108927304000Makita 927304000 LUKKORENGAS 109.110I111.115.PS-43/52/540
109036213081Makita 036213081 PUSSLA
110980114674

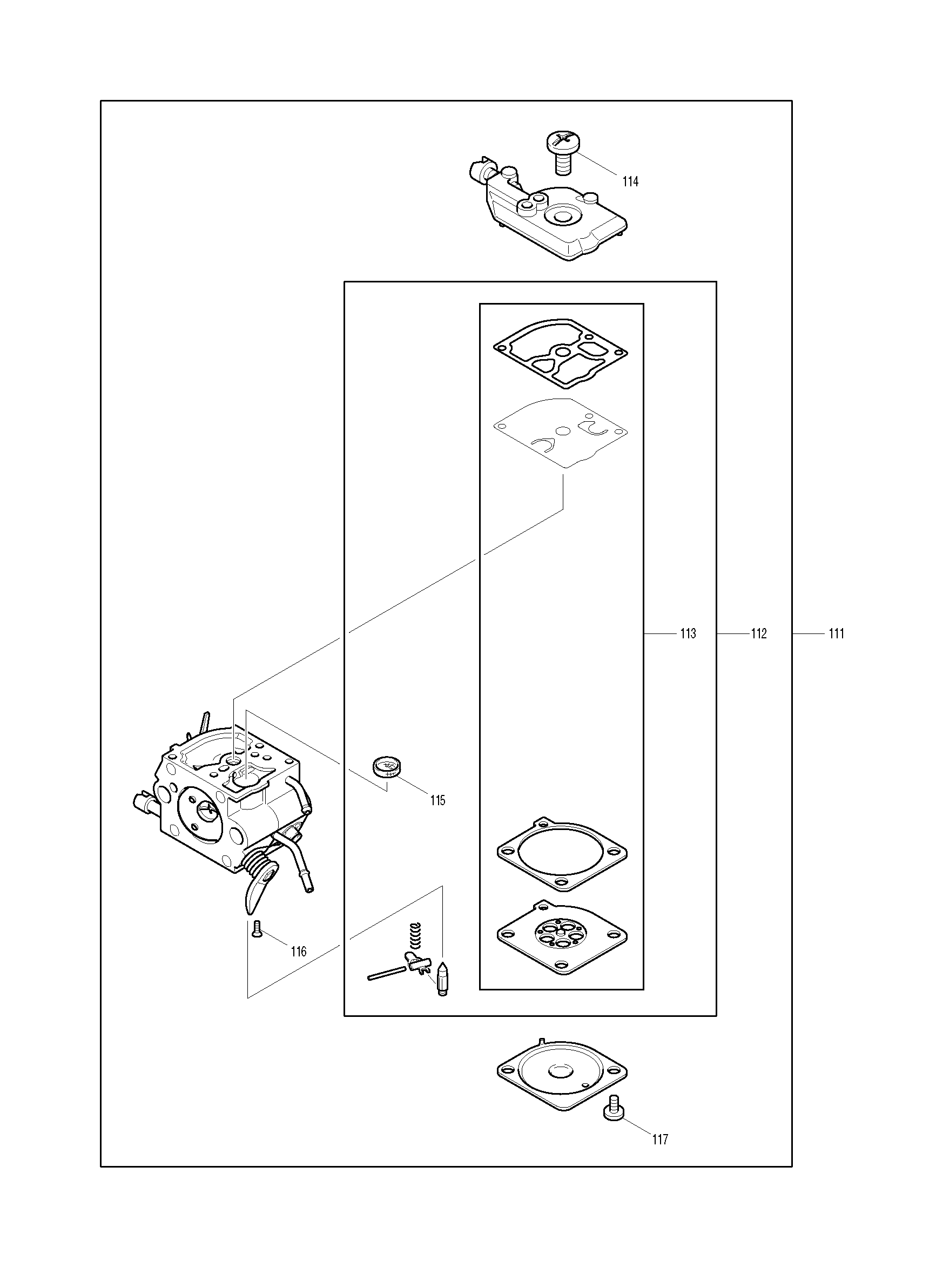

Sheet 5: Makita DCS34 parts diagram

Makita DCS34 parts diagram, sheet 5
No.Part numberPart name
113036153110Makita 036153110 TIIVISTE&KALVO KIT
114036153080Makita 036153080 RUUVI
115036153040Makita 036153040 SCREEN
116036153120Makita 036153120 RUUVI
117001153020Makita 001153020 SCREW

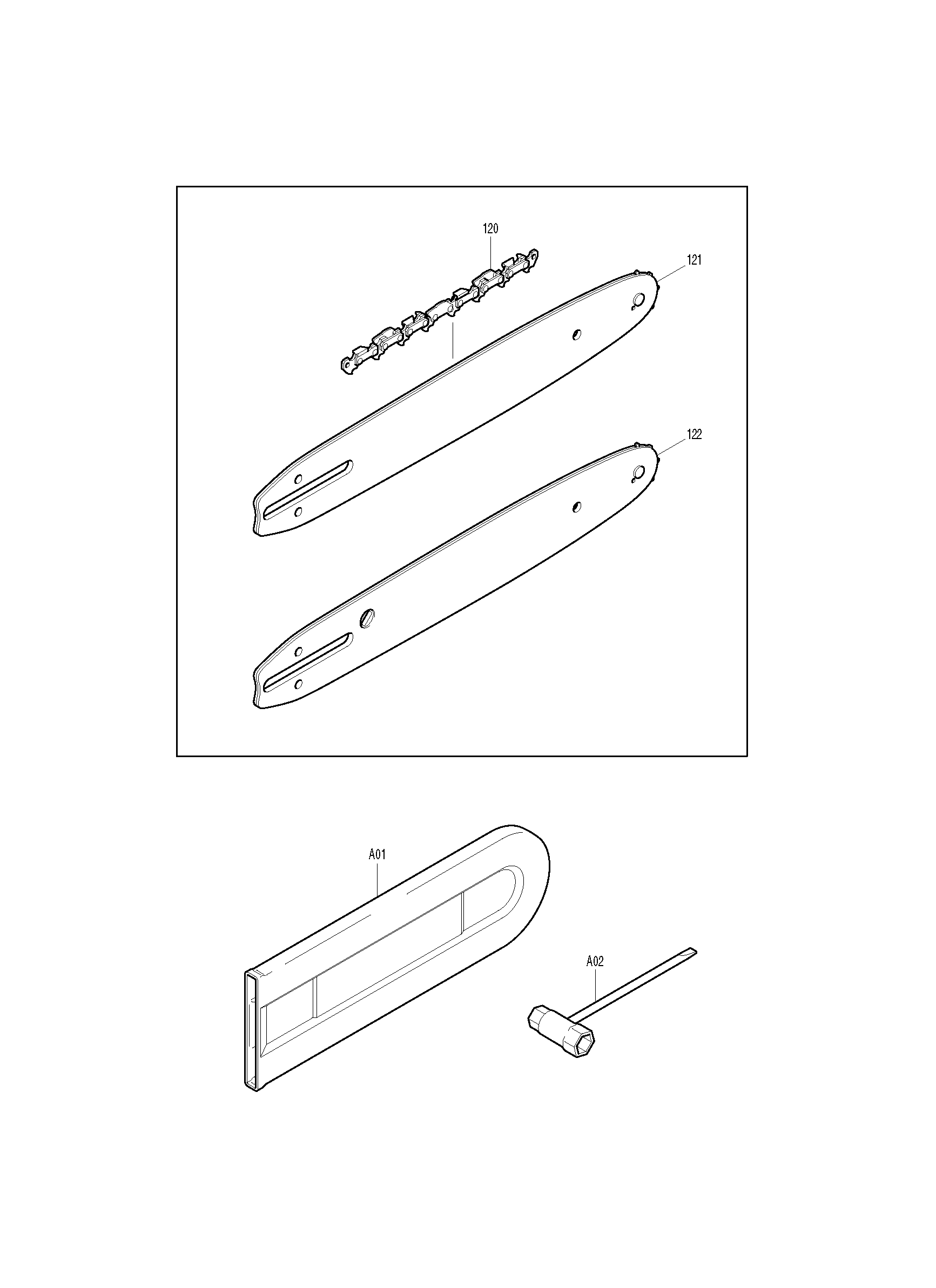

Sheet 6: Makita DCS34 parts diagram

Makita DCS34 parts diagram, sheet 6
No.Part numberPart name
120528092652
121442035661
122442035061
