Makita DCS330TH
Makita DCS330TH: exploded parts diagram, 4 sheets, 168 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCS330TH: 168 positions on 4 sheets

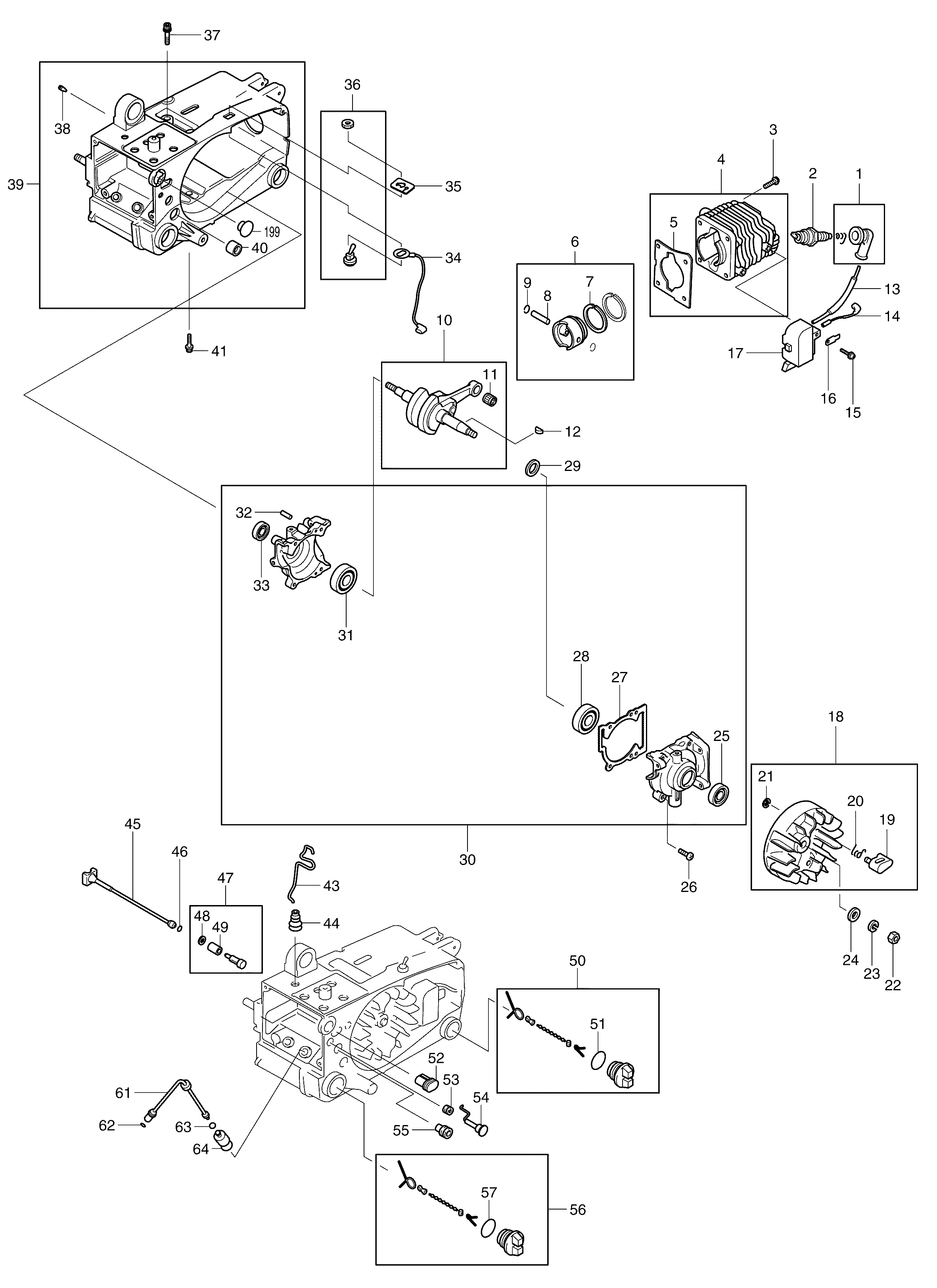

Sheet 1: Makita DCS330TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | TN00000010 | Makita TN00000010 SPARK PLUG CAP |
| 2 | TN00001950 | Makita TN00001950 SPARK PLUG RCJ-8 |
| 3 | TN00000040 | Makita TN00000040 PAN HEAD SCREW 5X16 |
| 5 | TN00000050 | Makita TN00000050 CYLINDER PACKING |
| 7 | TN00000060 | Makita TN00000060 PISTON RING |
| 8 | TN00000080 | Makita TN00000080 PISTON PIN 9X30 |
| 9 | TN00000090 | Makita TN00000090 RETAINING RING |
| 11 | TN00000110 | Makita TN00000110 NEEDLE BEARING |
| 12 | TN00000120 | Makita TN00000120 WOODRUFF KEY |
| 13 | TN00000360 | Makita TN00000360 INSULATION TUBE |
| 14 | TN00000400 | Makita TN00000400 CORD |
| 15 | TN00000230 | Makita TN00000230 PAN HEAD SCREW 4X18(WS) |
| 16 | TN00000240 | Makita TN00000240 TAB |
| 17 | TN00000250 | Makita TN00000250 IGNITION COIL |
| 19 | TN00000200 | Makita TN00000200 CLAW |
| 20 | TN00000210 | Makita TN00000210 CLAW SPRING |
| 21 | TN00000220 | Makita TN00000220 E-STOP RING 4 |
| 22 | TN00000160 | Makita TN00000160 FLYWHEEL NUT |
| 23 | TN00000170 | Makita TN00000170 SPRING WASHER 7 |
| 24 | TN00000180 | Makita TN00000180 WASHER 7 |
| 25 | TN00000280 | Makita TN00000280 OIL SEAL |
| 26 | TN00000260 | Makita TN00000260 PAN HEAD SCREW 5X20S |
| 27 | TN00000290 | Makita TN00000290 CRANKCASE PACKING |
| 28 | TN00000300 | Makita TN00000300 BALL BEARING 6201 |
| 29 | TN00000130 | Makita TN00000130 SHIM 0.1 |
| 31 | TN00000300 | Makita TN00000300 BALL BEARING 6201 |
| 32 | TN00000310 | Makita TN00000310 NEEDLE ROLLER |
| 33 | TN00000280 | Makita TN00000280 OIL SEAL |
| 34 | TN00000390 | Makita TN00000390 GROUNDING CORD |
| 35 | TN00000380 | Makita TN00000380 SWITCH PLATE |
| 36 | TN00000370 | Makita TN00000370 STOP SWITCH ASS Y |
| 37 | TN00000350 | Makita TN00000350 HEX.SOCKET HEAD BOLT 5X20 |
| 38 | TN00000330 | Makita TN00000330 VENTILATING VALVE |
| 40 | TN00000340 | Makita TN00000340 TANK CAP (INSIDE CAP) ASS |
| 41 | TN00000350 | Makita TN00000350 HEX.SOCKET HEAD BOLT 5X20 |
| 43 | TN00000750 | Makita TN00000750 THROTTLE ROD |
| 44 | TN00000760 | Makita TN00000760 THROTTLE GUIDE |
| 45 | TN00000700 | Makita TN00000700 OIL PIPE (B) |
| 46 | TN00000710 | Makita TN00000710 CLIP |
| 48 | TN00000460 | Makita TN00000460 WASHER 5 |
| 49 | TN00000730 | Makita TN00000730 OIL FILTER |
| 51 | TN00000840 | Makita TN00000840 O-RING P-18 |
| 52 | TN00000850 | Makita TN00000850 ADJUSTING CAP |
| 53 | TN00000860 | Makita TN00000860 RUBBER PLUG (F/CHOKE ROD) |
| 54 | TN00000870 | Makita TN00000870 CHOKE BUTTON |
| 55 | TN00000880 | Makita TN00000880 IDLE GROMMET |
| 57 | TN00000890 | Makita TN00000890 O-RING P-20 |
| 61 | TN00000790 | Makita TN00000790 RUBBER PIPE |
| 62 | TN00000710 | Makita TN00000710 CLIP |
| 63 | TN00000710 | Makita TN00000710 CLIP |
| 64 | TN00000800 | Makita TN00000800 PUMP FILTER BODY |
| 199 | TN00001970 | Makita TN00001970 BLIND CAP (A) |
Sheet 2: Makita DCS330TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 65 | TN00000410 | Makita TN00000410 SCREW |
| 67 | TN00000440 | Makita TN00000440 CLEANER ELEMENT |
| 68 | TN00000430 | Makita TN00000430 CLEANER SPONGE |
| 70 | TN00000590 | Makita TN00000590 PAN HEAD SCREW 5X40 |
| 71 | TN00000460 | Makita TN00000460 WASHER 5 |
| 72 | TN00000620 | Makita TN00000620 MUFFLER BODY (B) |
| 73 | TN00000630 | Makita TN00000630 INNER MUFFLER PIPE |
| 74 | TN00000640 | Makita TN00000640 MUFFLER COUPLING PACKING |
| 75 | TN00000650 | Makita TN00000650 MUFFLER BODY (A) |
| 76 | TN00000660 | Makita TN00000660 MUFFLER PACKING |
| 77 | TN00000690 | Makita TN00000690 SEAL COVER |
| 79 | TN00000580 | Makita TN00000580 SUCTION PIPE PACKING |
| 80 | TN00000570 | Makita TN00000570 INSULATING PLATE F/CARBUR ETOR |
| 81 | TN00000550 | Makita TN00000550 REED HOLDER |
| 82 | TN00000560 | Makita TN00000560 BIND SCREW 3X12 |
| 83 | TN00000540 | Makita TN00000540 REED VALVE |
| 85 | TN00000500 | Makita TN00000500 CARBURETOR PACKING |
| 86 | TN00000470 | Makita TN00000470 CHOKE VALVE SHIM 0.8 |
| 87 | TN00000450 | Makita TN00000450 PAN HEAD SCREW 5X45S |
| 88 | TN00000470 | Makita TN00000470 CHOKE VALVE SHIM 0.8 |
| 89 | TN00000460 | Makita TN00000460 WASHER 5 |
| 90 | TN00000450 | Makita TN00000450 PAN HEAD SCREW 5X45S |
| 91 | TN00001580 | Makita TN00001580 SCREW 4.5X14 |
| 92 | TN00002000 | Makita TN00002000 CLEANER COVER (B) |
| 93 | TN00000480 | Makita TN00000480 CHOKE VALVE |
| 94 | TN00000510 | Makita TN00000510 HEX. SOCKET HEAD BOLT 5X2 |
| 95 | TN00000520 | Makita TN00000520 WASHER 5 |
| 96 | TN00001240 | Makita TN00001240 SET SCREW |
| 97 | TN00001120 | Makita TN00001120 DIAPHRAGM COVER |
| 98 | TN00001130 | Makita TN00001130 METERING DIAPHRAGM |
| 99 | TN00001140 | Makita TN00001140 DIAPHRAGM PACKING |
| 100 | TN00001110 | Makita TN00001110 HINGE PIN |
| 101 | TN00001080 | Makita TN00001080 CONTROL LEVER |
| 102 | TN00001150 | Makita TN00001150 NEEDLE VALVE |
| 106 | TN00001090 | Makita TN00001090 HINGE PIN SET SCREW |
| 107 | TN00001100 | Makita TN00001100 VALVE SPRING |
| 110 | TN00001070 | Makita TN00001070 LOW ADJUST SPRING |
| 111 | TN00001060 | Makita TN00001060 LOW ADJUST SCREW |
| 112 | TN00001220 | Makita TN00001220 HIGH ADJUST SCREW |
| 113 | TN00001190 | Makita TN00001190 THROTTLE SHAFT |
| 114 | TN00001230 | Makita TN00001230 HIGH ADJUST SPRING |
| 115 | TN00001180 | Makita TN00001180 THROTTLE SPRING |
| 116 | TN00001010 | Makita TN00001010 INLET SCREEN |
| 117 | TN00001050 | Makita TN00001050 PUMP DIAPHRAGM |
| 118 | TN00001040 | Makita TN00001040 PUMP PACKING |
| 119 | TN00001020 | Makita TN00001020 PUMP BODY |
| 120 | TN00001030 | Makita TN00001030 SET SCREW |
| 121 | TN00001200 | Makita TN00001200 IDLE ADJUST SPRING |
| 122 | TN00001210 | Makita TN00001210 IDLE ADJUST SCREW |
Sheet 3: Makita DCS330TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 124 | TN00001280 | Makita TN00001280 CHAIN BAR FIXING NUT |
| 126 | TN00002200 | Makita TN00002200 SIDE COVER ASS Y |
| 127 | TN00001670 | Makita TN00001670 SLEEVE (F/CLEANER) |
| 128 | TN00001630 | Makita TN00001630 REINFORCING PLATE (F/BRAK E) |
| 129 | TN00001700 | Makita TN00001700 BRAKE LEVER SPRING |
| 130 | TN00001600 | Makita TN00001600 BRAKE HANDLE |
| 131 | TN00002190 | Makita TN00002190 BRAKE LINK COVER |
| 132 | TN00001640 | Makita TN00001640 NEEDLE ROLLER 3X9.8 |
| 133 | TN00001660 | Makita TN00001660 BRAKE BAND |
| 134 | TN00001650 | Makita TN00001650 BRAKE LINK |
| 135 | TN00001680 | Makita TN00001680 COLLAR 7 |
| 136 | TN00001620 | Makita TN00001620 BRAKE SPRING |
| 137 | TN00001710 | Makita TN00001710 HIGH-LOW SCREW 4X15 |
| 138 | TN00002160 | Makita TN00002160 CHAIN BLADE 10 -3/8 |
| 139 | 165214-9 | Makita 165214-9 GUIDE BAR |
| 140 | TN00001290 | Makita TN00001290 CLUTCH |
| 141 | TN00001300 | Makita TN00001300 NEEDLE BEARING |
| 142 | TN00001310 | Makita TN00001310 CLUTCH HOUSING |
| 143 | TN00001320 | Makita TN00001320 CLUTCH WASHER 2.0 |
| 144 | TN00001530 | Makita TN00001530 CRANKSHAFT COLLAR 7.7 |
| 145 | TN00001330 | Makita TN00001330 PAN HEAD SCREW 5X14WS |
| 146 | TN00001340 | Makita TN00001340 OIL PUMP COVER |
| 147 | TN00001370 | Makita TN00001370 AIR VENT |
| 148 | TN00001360 | Makita TN00001360 GEAR |
| 150 | TN00001390 | Makita TN00001390 OIL ADJUST GROMMET |
| 151 | TN00001400 | Makita TN00001400 OIL PUMP ADJUSTER |
| 152 | TN00001410 | Makita TN00001410 O-RING P-6 |
| 154 | TN00001410 | Makita TN00001410 O-RING P-6 |
| 155 | TN00001490 | Makita TN00001490 HIGH-LOW SCREW 4X10 |
| 156 | TN00001500 | Makita TN00001500 PLATE |
| 157 | TN00002150 | Makita TN00002150 CHAIN ADJUST SCREW |
| 158 | TN00001580 | Makita TN00001580 SCREW 4.5X14 |
| 159 | TN00001350 | Makita TN00001350 OIL PIPE (A) |
| 160 | TN00000920 | Makita TN00000920 SCREW 5X14 |
| 161 | TN00001540 | Makita TN00001540 FUEL PIPE |
| 162 | TN00001550 | Makita TN00001550 CHAIN CATCHER |

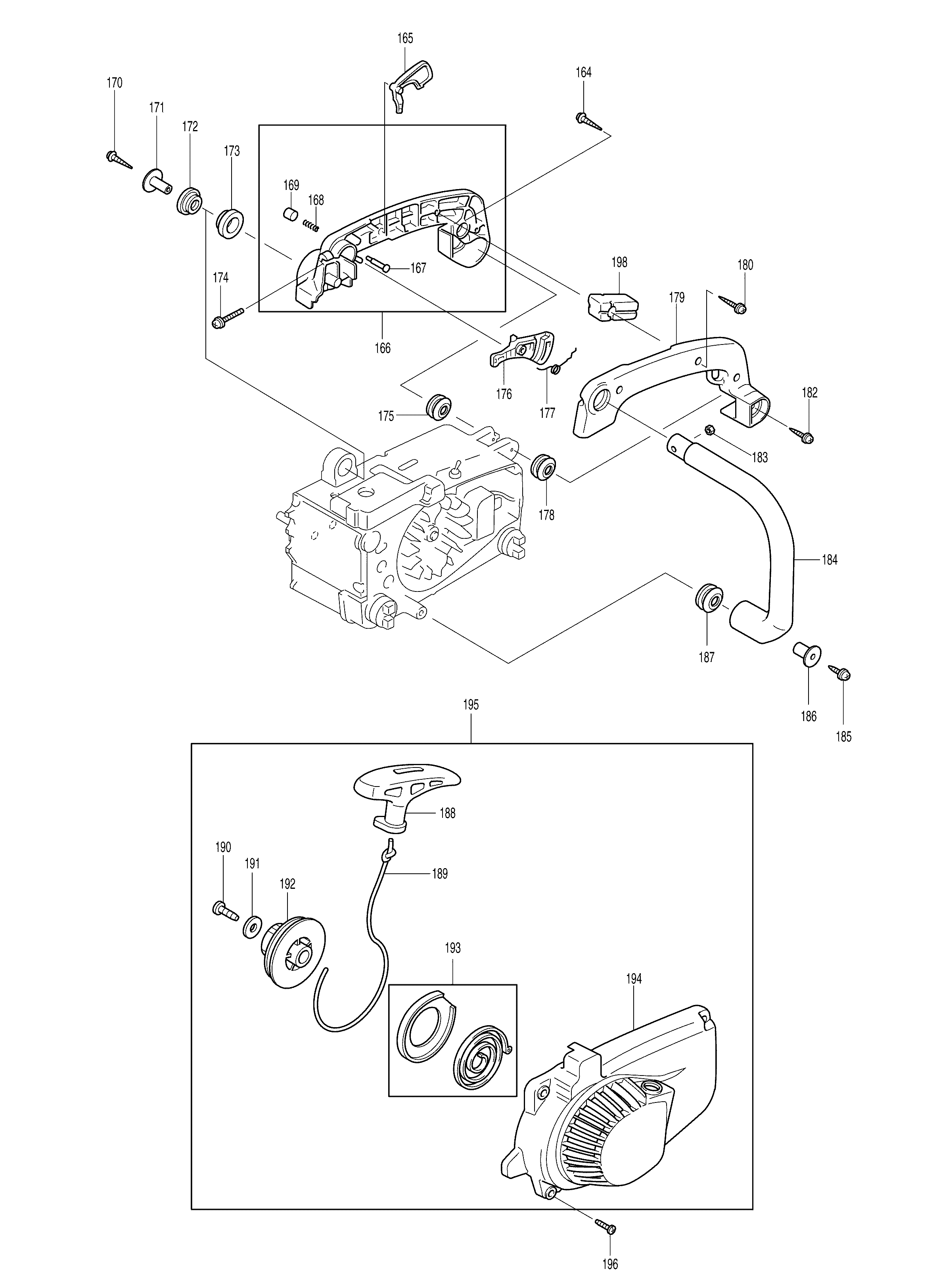

Sheet 4: Makita DCS330TH parts diagram
| No. | Part number | Part name |
|---|---|---|
| 164 | TN00000920 | Makita TN00000920 SCREW 5X14 |
| 165 | TN00001820 | Makita TN00001820 SAFETY LEVER |
| 167 | TN00001810 | Makita TN00001810 PUSH PIN |
| 168 | TN00001800 | Makita TN00001800 STOPPER SPRING |
| 169 | TN00001790 | Makita TN00001790 PUSH PIN CAP |
| 170 | TN00001730 | Makita TN00001730 SCREW 5X40 |
| 171 | TN00001740 | Makita TN00001740 DAMPER COLLAR (A) |
| 172 | TN00001750 | Makita TN00001750 DAMPER (A) |
| 173 | TN00001750 | Makita TN00001750 DAMPER (A) |
| 174 | TN00001760 | Makita TN00001760 PAN HEAD SCREW 4X30PS |
| 175 | TN00002250 | Makita TN00002250 DAMPER COMPLETE |
| 176 | TN00001830 | Makita TN00001830 THROTTLE LEVER |
| 177 | TN00001840 | Makita TN00001840 THROTTLE LEVER SPRING |
| 178 | TN00002250 | Makita TN00002250 DAMPER COMPLETE |
| 179 | TN00001850 | Makita TN00001850 REAR HANDLE (A) |
| 180 | TN00001710 | Makita TN00001710 HIGH-LOW SCREW 4X15 |
| 182 | TN00000920 | Makita TN00000920 SCREW 5X14 |
| 183 | TN00001720 | Makita TN00001720 NYLON NUT 4 |
| 184 | TN00001880 | Makita TN00001880 FRONT HANDLE |
| 185 | TN00001860 | Makita TN00001860 SCREW 5X35 |
| 186 | TN00001900 | Makita TN00001900 DAMPER COLLAR (B) |
| 187 | TN00001890 | Makita TN00001890 DAMPER (B) |
| 188 | TN00000970 | Makita TN00000970 STARTER HANDLE |
| 189 | TN00000950 | Makita TN00000950 ROPE 3X90 |
| 190 | TN00000920 | Makita TN00000920 SCREW 5X14 |
| 191 | TN00000930 | Makita TN00000930 BRAKE SHAFT WASHER 1.6 |
| 192 | TN00000940 | Makita TN00000940 STATER PULLEY |
| 193 | TN00000960 | Makita TN00000960 SPIRAL SPRING CASE ASS Y |
| 194 | TN00000980 | Makita TN00000980 FAN CASE ASS Y |
| 196 | TN00000990 | Makita TN00000990 SCREW 4.5X20 |
| 198 | TN00002260 | Makita TN00002260 HANDLE WEIGHT |
