Makita DCO180
Makita DCO180: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCO180: 32 positions on 1 sheet

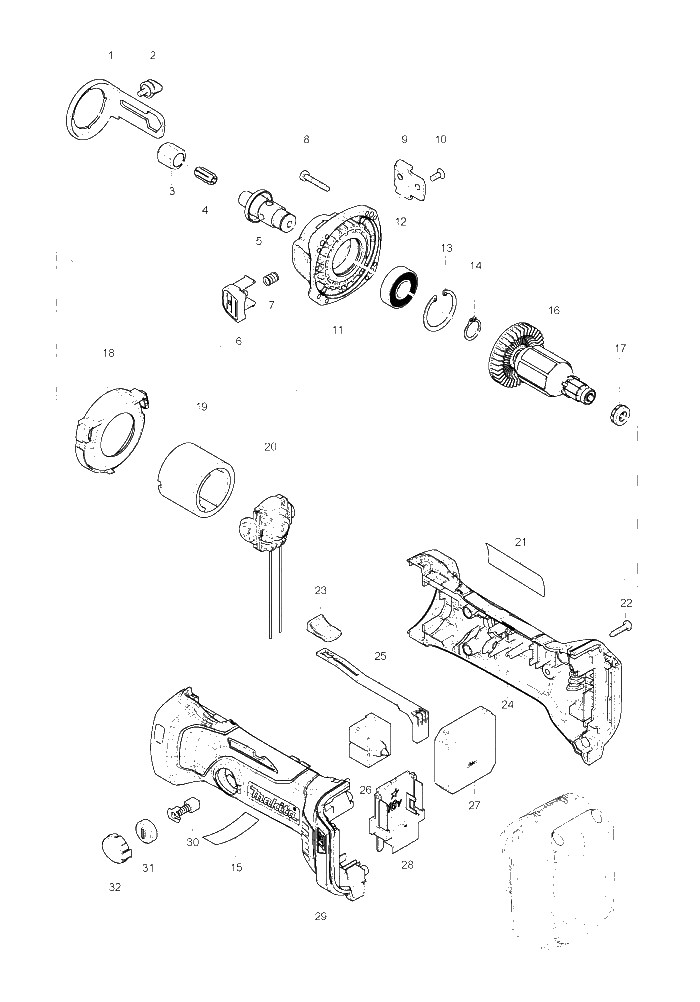

Sheet 1: Makita DCO180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 346796-2 | Makita 346796-2 SHOE PLATE |
| 2 | 266898-7 | Makita 266898-7 THUMB SCREW M4*8 |
| 3 | 763675-3 | Makita 763675-3 Collet Nut for DCO180 |
| 4 | 763677-9 | Makita 763677-9 Collet Cone 3.18 |
| 5 | 142656-4 | Makita 142656-4 SPINDLE COMPLETE |
| 6 | 455181-9 | Makita 455181-9 SHAFT LOCK |
| 7 | 234332-5 | Makita 234332-5 COMPRESSION SPRING 7 |
| 8 | 266374-1 | Makita 266374-1 TAPPING SCREW 4*25, GA9020 |
| 9 | 346795-4 | Makita 346795-4 SHOE SUPPORT |
| 10 | 912107-9 | Makita 912107-9 Countersunk Head Screw M4X8 5740NB 5037NB |
| 11 | 142655-6 | Makita 142655-6 BEARING BOX COMPLETEBEARING BOX COMPLETE |
| 12 | 211236-8 | Makita 211236-8 Ball Bearing 6002DDW, BO3700 |
| 13 | 962151-6 | Makita 962151-6 RETAINING RING R-32, 9523NB |
| 14 | 961055-9 | Makita 961055-9 RETAINING RING S-15, HR2010 |
| 15 | ||
| 16 | 619344-3 | Makita 619344-3 ARMATURE |
| 17 | ||
| 18 | 455182-7 | Makita 455182-7 BAFFLE PLATE |
| 19 | 638627-2 | Makita 638627-2 Yoke Unit for GA452D DGA450 BGA450 BGA452 6319 6319D 6339 |
| 20 | 632C14-5 | Makita 632C14-5 ENDBELL COMPLETE |
| 21 | 815U77-6 | |
| 22 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 23 | 419566-3 | Makita 419566-3 Angle Grinder Switch Knob for 9557NB GA5030 |
| 24 | 187871-3 | Makita 187871-3 HOUSING SET |
| 25 | 419519-2 | Makita 419519-2 SWITCH LEVER, GA400D |
| 26 | 650579-7 | Makita 650579-7 Switch GA400D 9564PCV 9565PCV BGA450 BGA452 BPJ180 |
| 27 | 620308-2 | Makita 620308-2 CONTROLLER |
| 28 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 29 | 187871-3 | Makita 187871-3 HOUSING SET |
| 30 | 191971-3 | Makita 191971-3 Carbon Brushes CB-430 |
| 31 | 643929-3 | Makita 643929-3 Holder Cap for 6213D |
| 32 | 455183-5 | Makita 455183-5 HOLDER CAP COVER |
