Makita DCL284F
Makita DCL284F: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCL284F: 30 positions on 1 sheet

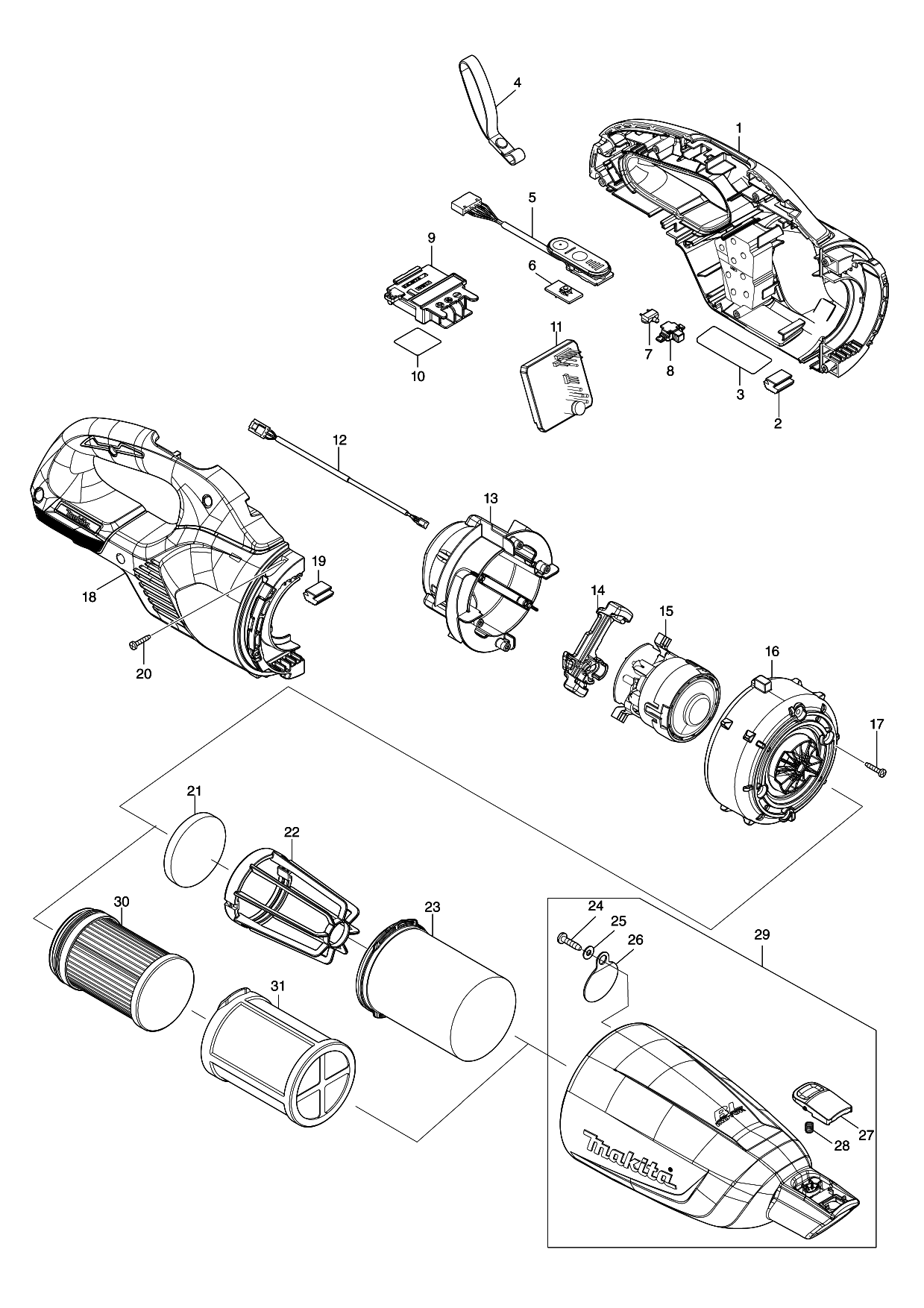

Sheet 1: Makita DCL284F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183Y66-6 | |
| 2 | 422460-0 | Makita 422460-0 RUBBER PLATE, DCL2807281F/282F |
| 3 | 8588G2-5 | |
| 4 | 163400-6 | Makita 163400-6 HANDSTRAP |
| 5 | 141B54-1 | Makita 141B54-1 INDICATION CIRCUIT COMPLETE |
| 6 | 620E74-1 | Makita 620E74-1 SWITCH UNIT |
| 7 | 620E82-2 | |
| 8 | 141H09-2 | |
| 9 | 643874-2 | Makita 643874-2 Terminal |
| 10 | 8588H4-8 | |
| 11 | 620L20-6 | |
| 12 | 632S32-9 | Makita 632S32-9 LEAD UNIT |
| 13 | 141E55-7 | Makita 141E55-7 MOTOR COVER R COMPLETE |
| 14 | 422723-4 | Makita 422723-4 MOTOR COVER SEAL |
| 15 | 629B87-1 | |
| 16 | 413645-9 | Makita 413645-9 MOTOR COVER F |
| 17 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 18 | 183Y66-6 | |
| 19 | 422460-0 | Makita 422460-0 RUBBER PLATE, DCL2807281F/282F |
| 20 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 21 | 422268-2 | |
| 22 | 458467-0 | Makita 458467-0 STAY, CL180D |
| 23 | 459325-3 | |
| 24 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 25 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 26 | 424208-6 | Makita 424208-6 VALVE, CL140FD |
| 27 | 413F33-6 | |
| 28 | 232485-4 | |
| 30 | ||
| 31 |
