Makita DCL281F: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCL281F: 21 positions on 1 sheet

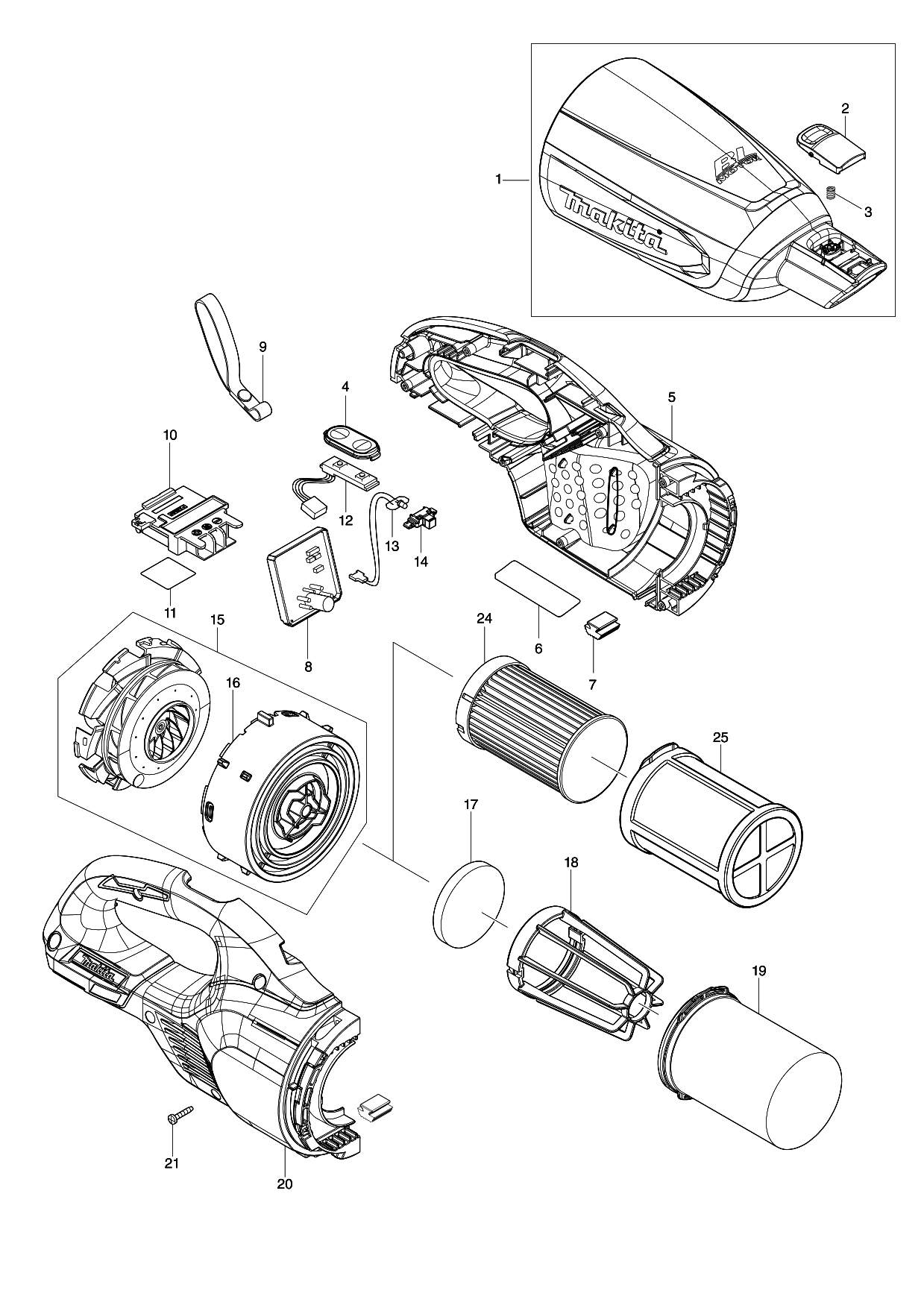

Sheet 1: Makita DCL281F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 458939-5 | |
| 3 | 232485-4 | |
| 4 | 144096-2 | |
| 5 | 183M13-5 | |
| 6 | 855T19-2 | |
| 7 | 422460-0 | Makita 422460-0 RUBBER PLATE, DCL2807281F/282F |
| 8 | 620A75-5 | Makita 620A75-5 CONTROLLER |
| 9 | ||
| 10 | 643874-2 | Makita 643874-2 Terminal |
| 11 | 855T26-5 | |
| 12 | 620A77-1 | Makita 620A77-1 SWITCH UNIT, DCL281F/282 |
| 13 | 620A76-3 | Makita 620A76-3 LED CIRCUIT, DCL280F/281/282 |
| 14 | 459478-8 | Makita 459478-8 LENS CASE, DCL280F/281F/282F |
| 16 | 459322-9 | Makita 459322-9 FAN COVER, DCL280F/281/282F |
| 17 | 422268-2 | |
| 18 | 458467-0 | Makita 458467-0 STAY, CL180D |
| 19 | 199966-0 | Makita 199966-0 EASY SHAKE OFF DUST FILTER DCL280, DCL180 |
| 20 | 183M13-5 | |
| 21 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 24 | ||
| 25 |
