Makita DCL184
Makita DCL184: exploded parts diagram, 1 sheet, 25 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCL184: 25 positions on 1 sheet

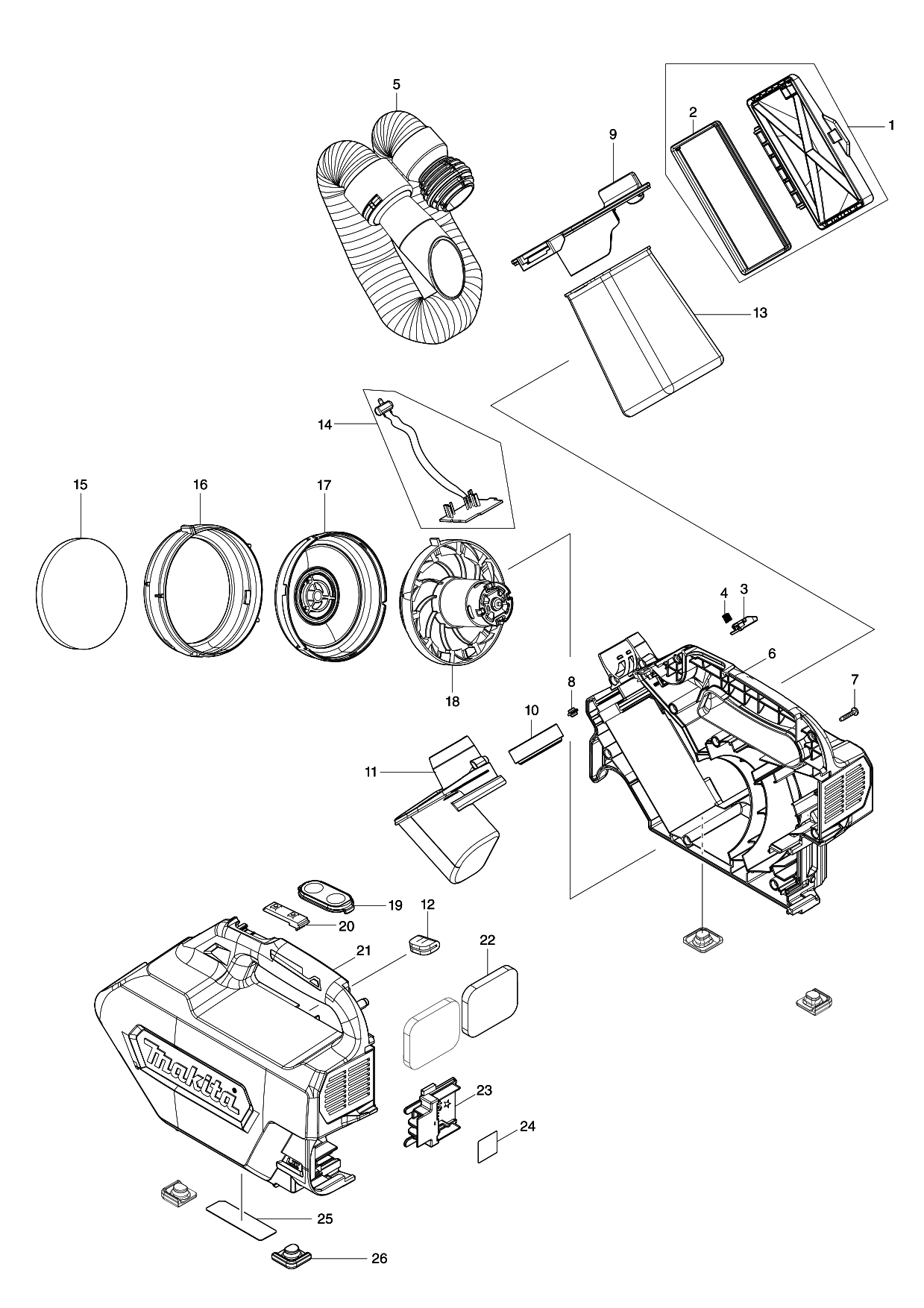

Sheet 1: Makita DCL184 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 422433-3 | |
| 3 | 459050-6 | |
| 4 | 232485-4 | |
| 5 | 140H92-6 | |
| 6 | 183R28-2 | Makita 183R28-2 HOUSING SET, DCL184 |
| 7 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 8 | 450522-4 | Makita 450522-4 LENS, 4075D |
| 9 | 143677-9 | |
| 10 | 422434-1 | |
| 11 | 459048-3 | |
| 12 | 424246-8 | |
| 13 | 166084-9 | Makita 166084-9 Dust Bag for DCL282 DCL182 CL107 4072DW |
| 14 | 620D44-4 | |
| 15 | 422440-6 | |
| 16 | 422421-0 | |
| 17 | 459035-2 | |
| 18 | 127655-7 | Makita 127655-7 MOTOR ASSEMBLY, DCL184 |
| 19 | 144096-2 | |
| 20 | 631973-2 | Makita 631973-2 SWITCH UNIT, CL141FD |
| 21 | 183R28-2 | Makita 183R28-2 HOUSING SET, DCL184 |
| 22 | 422439-1 | |
| 23 | 643874-2 | Makita 643874-2 Terminal |
| 24 | 857N50-8 | |
| 25 | 857N43-5 | |
| 26 | 422435-9 |
