Makita DCL181F: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCL181F: 23 positions on 1 sheet

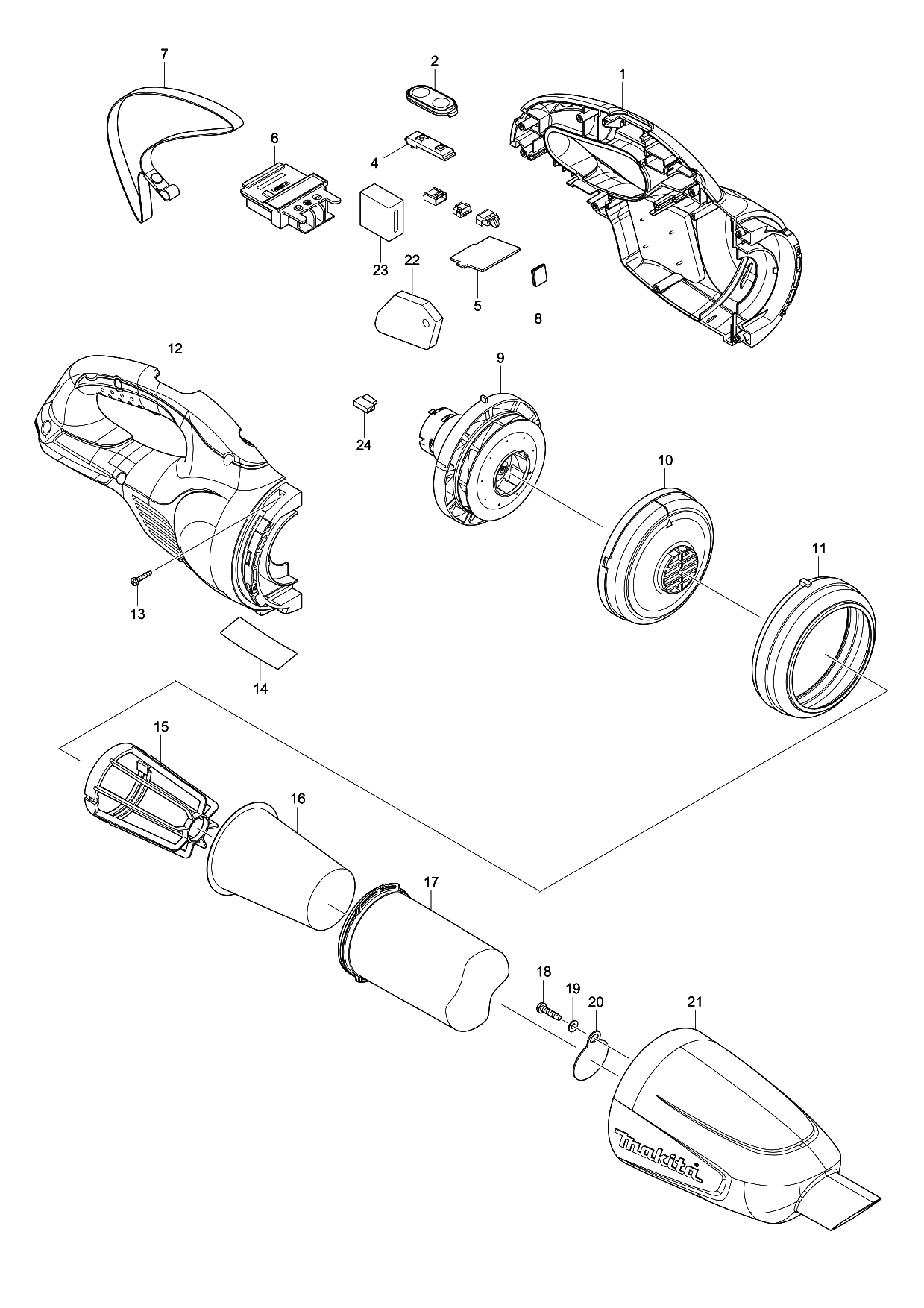

Sheet 1: Makita DCL181F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 183D38-5 | |
| 2 | 140463-9 | Makita 140463-9 SWITCH PLATE COMPLETE, CL141FD |
| 4 | 631973-2 | Makita 631973-2 SWITCH UNIT, CL141FD |
| 5 | 632K88-4 | |
| 6 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 7 | ||
| 8 | 424248-4 | Makita 424248-4 SPONGE, CL140FD |
| 9 | 125932-1 | Makita 125932-1 MOTOR ASSEMBLY |
| 10 | 416030-5 | Makita 416030-5 Fan Cover for 4075D |
| 11 | 424320-2 | Makita 424320-2 RUBBER RING, CL140FD |
| 12 | 183D38-5 | |
| 13 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 14 | 853F62-1 | |
| 15 | 410237-5 | Makita 410237-5 Stay CL140FD |
| 16 | ||
| 17 | 455176-2 | |
| 18 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 19 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 20 | 424208-6 | Makita 424208-6 VALVE, CL140FD |
| 21 | 451226-1 | |
| 22 | 424308-2 | |
| 23 | 685725-3 | Makita 685725-3 SPONGE SHEET HK1800 |
| 24 | 686039-3 | Makita 686039-3 RECEPTABLE SLEEVE |
