Makita DCL180
Makita DCL180: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCL180: 20 positions on 1 sheet

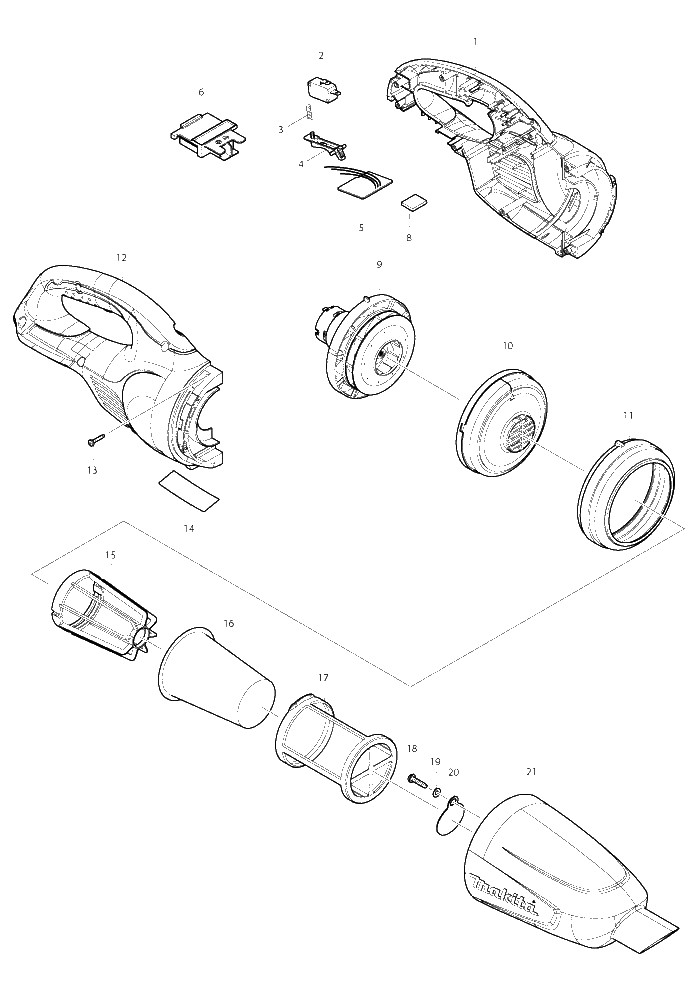

Sheet 1: Makita DCL180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 187458-1 | OTHR New Genuine Makita 187458-1 HOUSING SET, BCL180, TEC. 92563 |
| 2 | 651891-8 | Makita 651891-8 Switch, 6900DW SS330D |
| 3 | 231473-8 | Makita 231473-8 COMPRESSION SPRING 4, MNH352 |
| 4 | 451227-9 | Makita 451227-9 SWITCH LEVER, CL140FD |
| 5 | 638935-1 | Makita 638935-1 CONTROLLER UNIT, BCL140/180, TEC.92563 |
| 6 | 643860-3 | Makita 643860-3 Terminal for CL182D DDF480 BTP141 LXGC01 |
| 8 | 424248-4 | Makita 424248-4 SPONGE, CL140FD |
| 9 | 125867-6 | Makita 125867-6 Motor Assembly DCL180 BCL180 18V |
| 10 | 416030-5 | Makita 416030-5 Fan Cover for 4075D |
| 11 | 424320-2 | Makita 424320-2 RUBBER RING, CL140FD |
| 12 | 187458-1 | OTHR New Genuine Makita 187458-1 HOUSING SET, BCL180, TEC. 92563 |
| 13 | 266429-2 | Makita 266429-2 TAPPING SCREW PT 3*16, 6935FD |
| 14 | 815F73-4 | |
| 15 | 410237-5 | Makita 410237-5 Stay CL140FD |
| 16 | 443060-3 | Makita 443060-3 Filter for BCL140 BCL180 LC012 |
| 17 | 451208-3 | Makita 451208-3 Pre Filter for BCL140 BCL180 DCL180ZB, CL106FDZW |
| 18 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 19 | 941051-3 | Makita 941051-3 FLAT WASHER, 2012NB |
| 20 | 424208-6 | Makita 424208-6 VALVE, CL140FD |
| 21 | 451235-0 | Makita 451235-0 Capsule for CL140D DCL140 Cordless Cleaner |
