Makita DCF102: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DCF102: 49 positions on 1 sheet

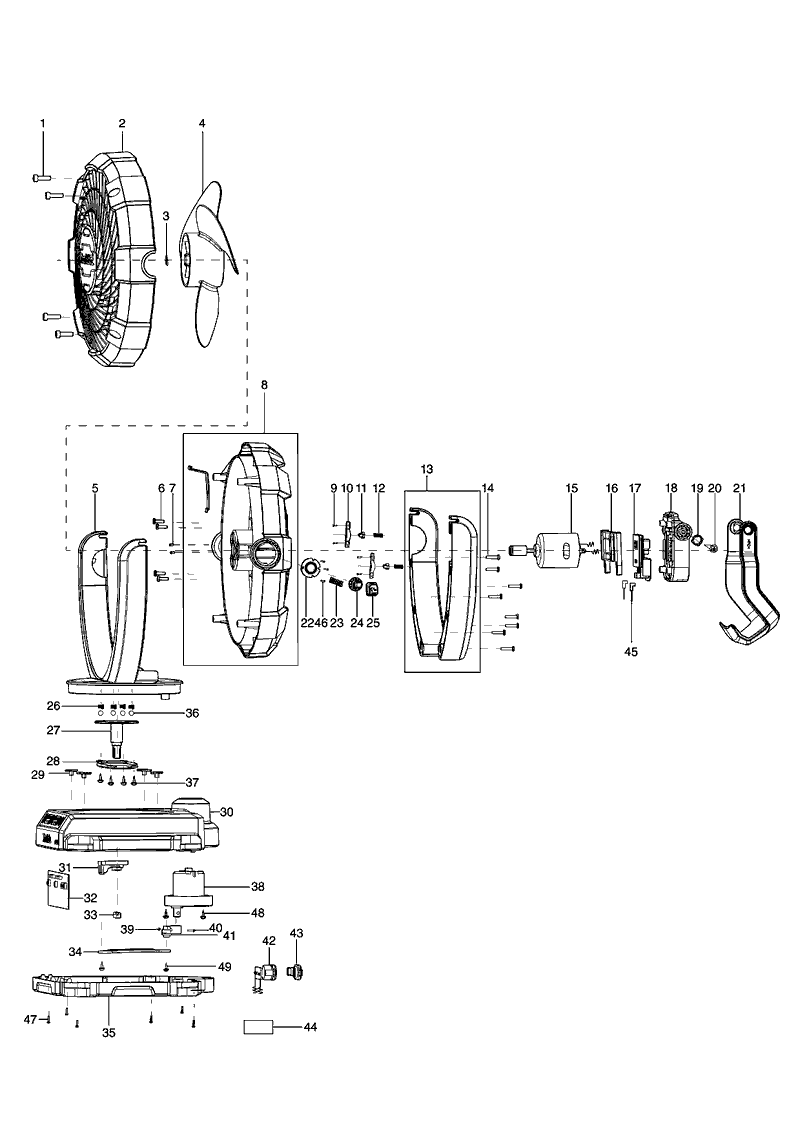

Sheet 1: Makita DCF102 parts diagram

Makita DCF102 parts diagram, sheet 1
No.Part numberPart name
1TE00000201Makita TE00000201 INNER HEXAGON 4*14
2TE00000258
3TE00000199Makita TE00000199 CIRCLIP
4TE00000186Makita TE00000186 FAN BLADE
5TE00000259
6TE00000202Makita TE00000202 SCREW 3*10
7TE00000206Makita TE00000206 P.H. SCREW M3*5
8TE00000260
9TE00000203Makita TE00000203 SELF-TAPPING SCREW 2.5*8
10TE00000189Makita TE00000189 SMALL GEAR PRESSING PARTS
11TE00000190Makita TE00000190 SPARE PARTS FOR POM
12TE00000197Makita TE00000197 SPRING1
13TE00000261
14TE00000204Makita TE00000204 SCREW 3*14
15TE00000262
16TE00000263
17TE00000313
18TE00000264
19TE00000191Makita TE00000191 POM?POSITION?PART
20TE00000205Makita TE00000205 CROSS BELT PAD SCREW 4*10
21TE00000265
22TE00000266
23TE00000267
24TE00000268
25TE00000269
26TE00000270
27TE00000271
28TE00000272
29TE00000089
30TE00000273
31TE00000274
32TE00000275Makita TE00000275 PCB, CF102D
33TE00000276
34TE00000277
35TE00000278
36TE00000063
37TE00000279
38TE00000280Makita TE00000280 SUB MOTOR, CF102D
39TE00000281
40TE00000102
41TE00000282Makita TE00000282 SHAKE HEAD-POM CONNECT PARTS2, CF102D
42TE00000283
43TE00000192Makita TE00000192 CHARGING SOCKET PLUG
44TE00000303
45TE00000284
46TE00000203Makita TE00000203 SELF-TAPPING SCREW 2.5*8
47TE00000204Makita TE00000204 SCREW 3*14
48TE00000279
49TE00000279
