Makita DC9711
Makita DC9711: exploded parts diagram, 1 sheet, 7 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC9711: 7 positions on 1 sheet

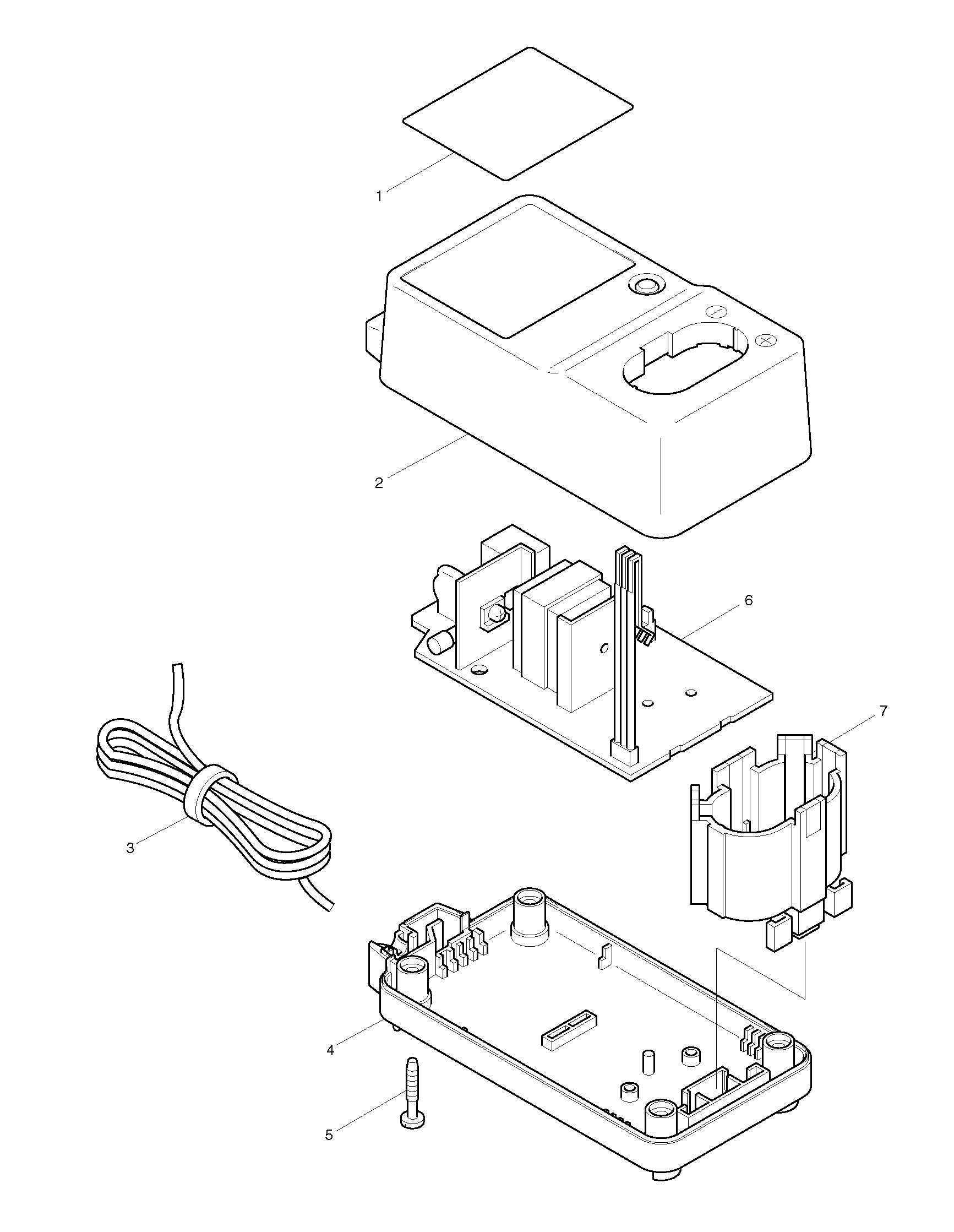

Sheet 1: Makita DC9711 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | ||
| 2 | 183277-3 | Makita 183277-3 CHARGER CASE SET |
| 3 | 667822-7 | |
| 4 | 183277-3 | Makita 183277-3 CHARGER CASE SET |
| 5 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 6 | 631399-8 | DISC New Genuine Makita 631399-8 CIRCUIT BO |
| 7 | 417163-9 | Makita 417163-9 BATTERY BOX |
