Makita DC4600
Makita DC4600: exploded parts diagram, 1 sheet, 14 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC4600: 14 positions on 1 sheet

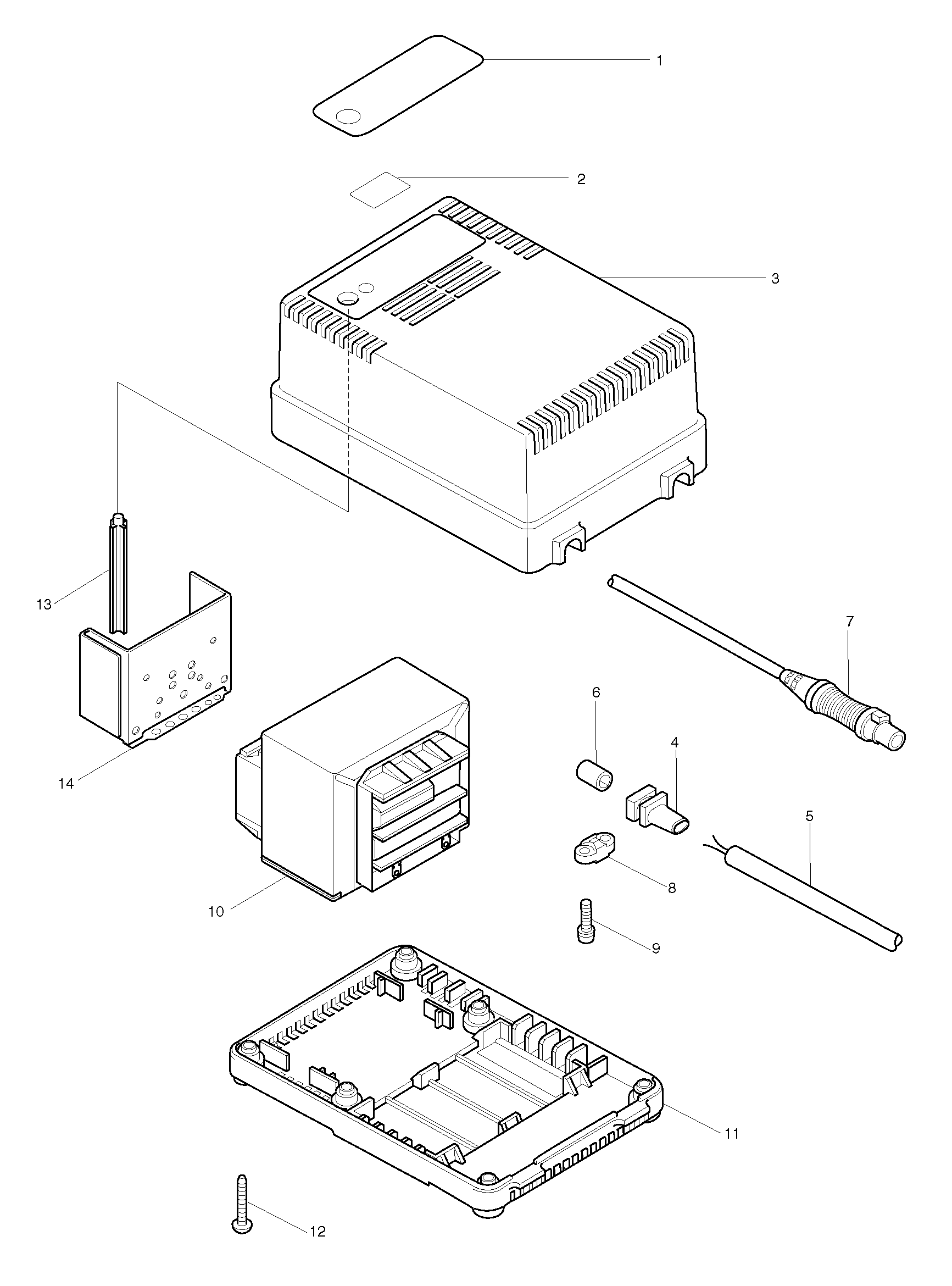

Sheet 1: Makita DC4600 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 851991-6 | |
| 2 | 414571-5 | Makita 414571-5 PLATE |
| 3 | 183148-4 | Makita 183148-4 CHARGER CASE SET |
| 4 | 682525-2 | Makita 682525-2 CORD GUARD |
| 5 | 667957-4 | |
| 6 | 683195-0 | Makita 683195-0 POLYETHYLENE TUBE |
| 7 | 661981-9 | Makita 661981-9 CONNECTION CORD |
| 8 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 9 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 10 | 649205-3 | Makita 649205-3 TRANSFORMER |
| 11 | 183148-4 | Makita 183148-4 CHARGER CASE SET |
| 12 | 265874-8 | |
| 13 | 414491-3 | Makita 414491-3 SWITCH BUTTON |
| 14 | 631350-8 | Makita 631350-8 CIRCUIT BOARD |
