Makita DC240
Makita DC240: exploded parts diagram, 1 sheet, 10 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC240: 10 positions on 1 sheet

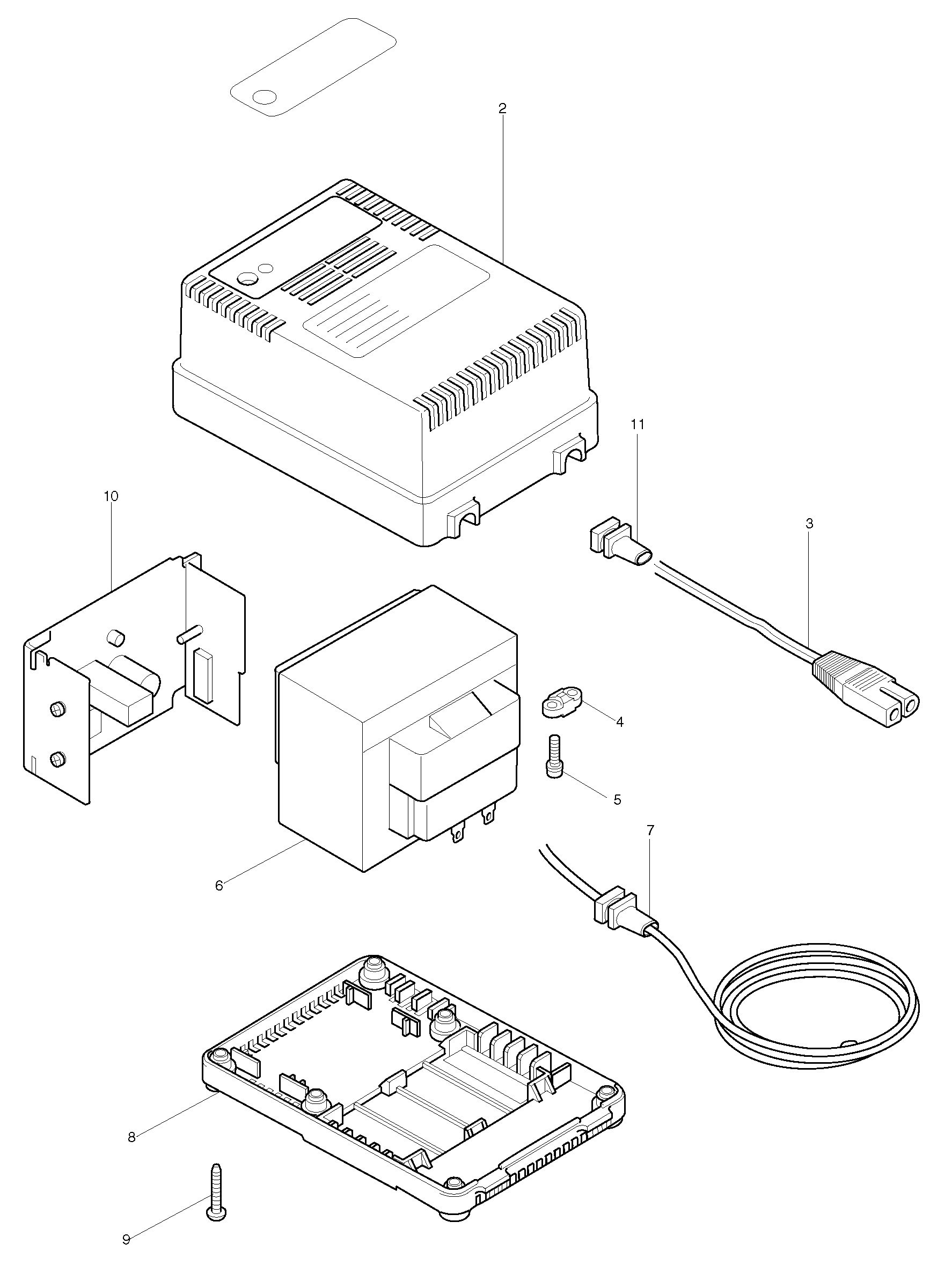

Sheet 1: Makita DC240 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 182928-5 | Makita 182928-5 CHARGER CASE SET |
| 3 | 661977-0 | Makita 661977-0 INTER-CONNECTING CORD |
| 4 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 5 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 6 | 649176-4 | Makita 649176-4 TRANSFORMER 230V |
| 7 | 667957-4 | |
| 8 | 182928-5 | Makita 182928-5 CHARGER CASE SET |
| 9 | 265874-8 | |
| 10 | 631242-1 | Makita 631242-1 CIRCUIT BOARD COMPLETE |
| 11 | 682525-2 | Makita 682525-2 CORD GUARD |
