Makita DC18SE: exploded parts diagram, 1 sheet, 16 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC18SE: 16 positions on 1 sheet

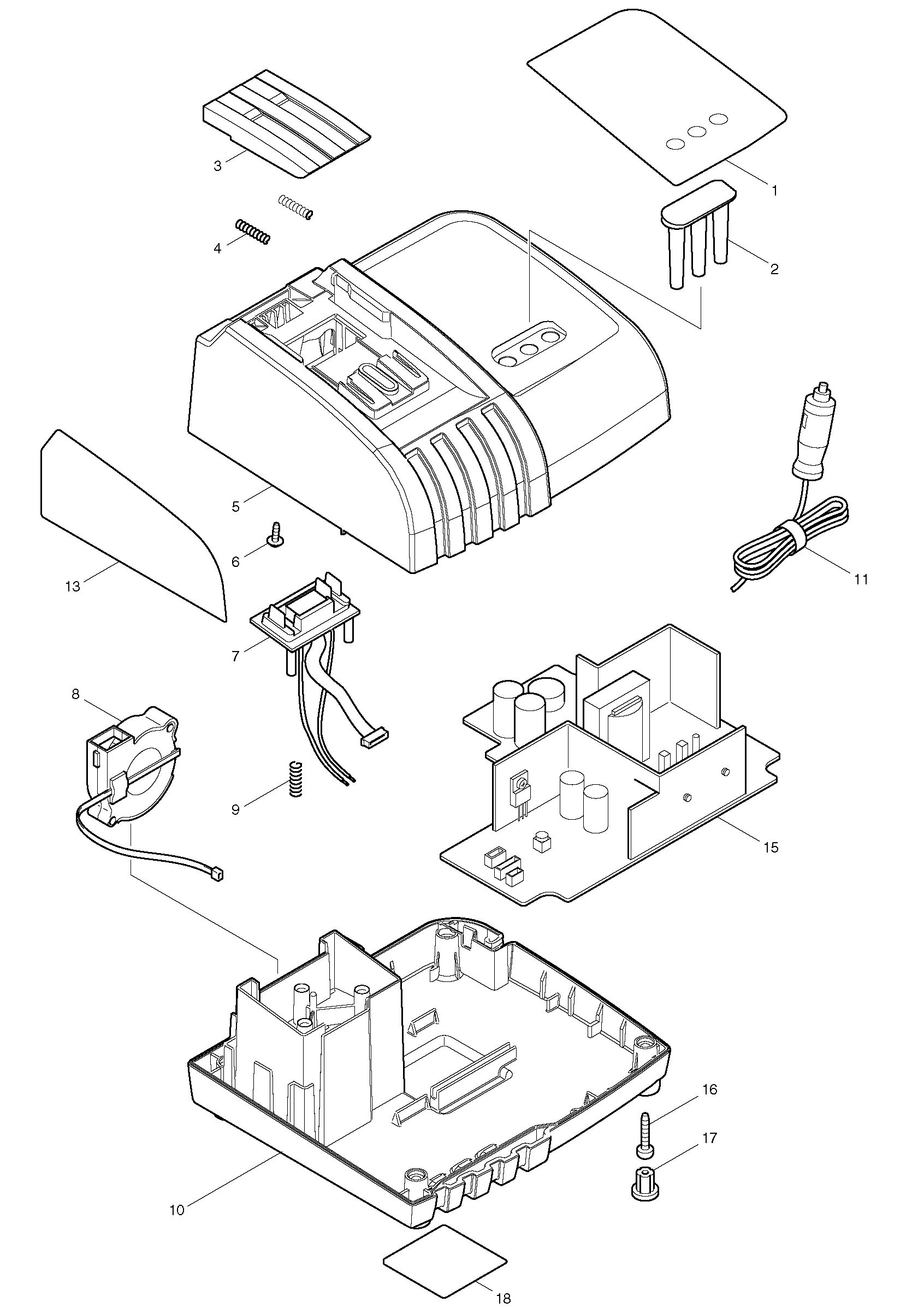

Sheet 1: Makita DC18SE parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 807531-8 | |
| 2 | 419570-2 | |
| 3 | 419569-7 | |
| 4 | 231474-6 | |
| 5 | 158135-2 | |
| 6 | 266278-7 | |
| 7 | 638602-8 | |
| 8 | 638499-5 | Makita 638499-5 Scirocco Fan, Dc18Ra |
| 9 | 233194-8 | Makita 233194-8 COMPRESSION SPRING 4 |
| 10 | 419567-1 | |
| 11 | 667857-8 | Makita 667857-8 POWER SUPPLY CORD |
| 13 | ||
| 15 | 631826-5 | |
| 16 | 266346-6 | |
| 17 | 286255-3 | Makita 286255-3 Cap 13 |
| 18 | 865865-5 |
