Makita DC18SC: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC18SC: 18 positions on 1 sheet

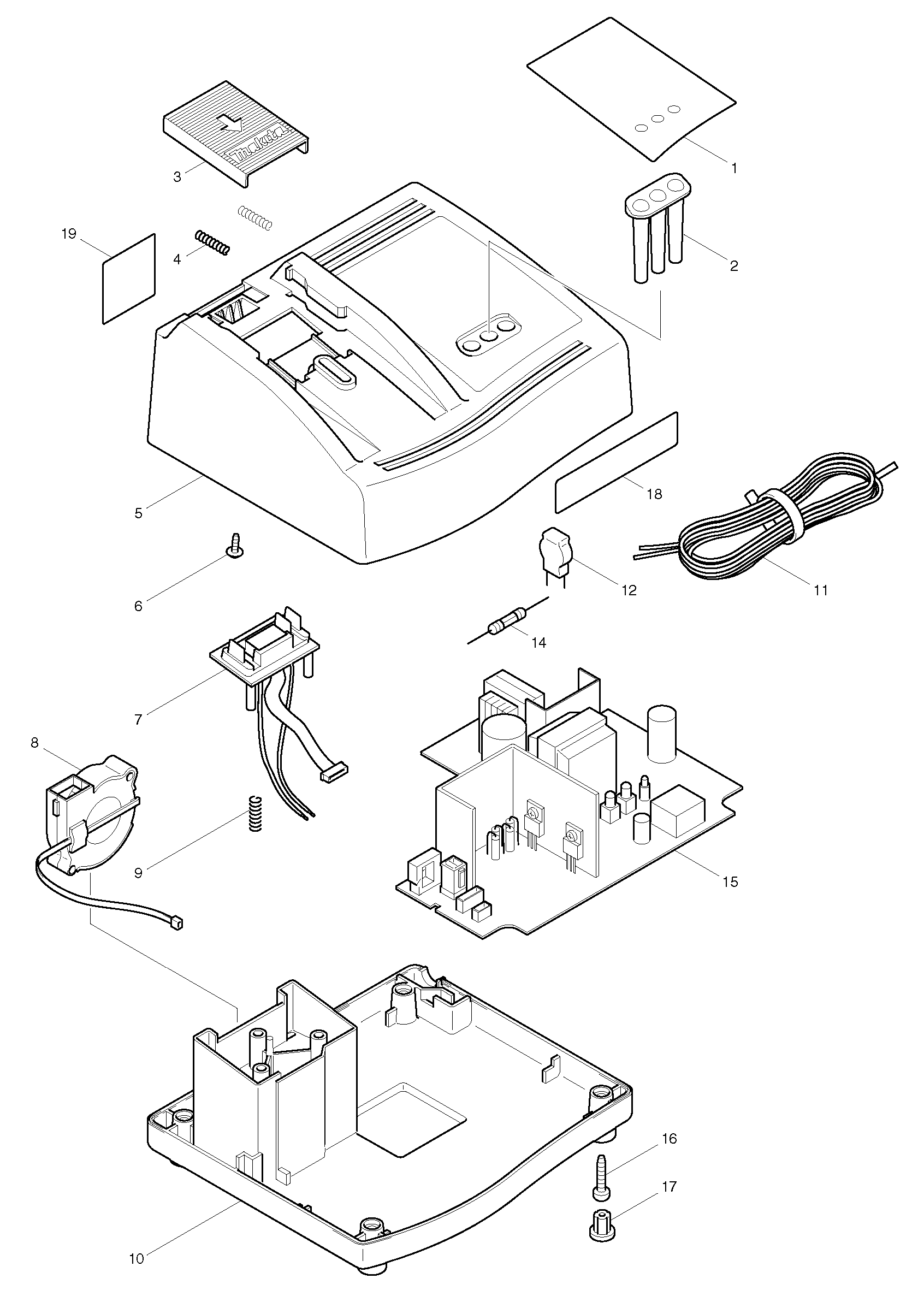

Sheet 1: Makita DC18SC parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 803613-4 | |
| 2 | 418278-5 | |
| 3 | 418181-0 | |
| 4 | 231474-6 | |
| 5 | 188053-0 | |
| 6 | 266278-7 | |
| 7 | 638357-5 | |
| 8 | 638084-4 | Makita 638084-4 SCIROCCO FAN DC24SA |
| 9 | 233194-8 | Makita 233194-8 COMPRESSION SPRING 4 |
| 10 | 419357-2 | |
| 11 | 667985-9 | Makita 667985-9 Vinyl Cord 0.75-2-2.0 |
| 12 | 647306-1 | Makita 647306-1 VARISTOR, DC1414 |
| 14 | 652781-8 | |
| 15 | 631697-0 | Makita 631697-0 CHARGING CIRCUITDC18SC |
| 16 | 266346-6 | |
| 17 | 286255-3 | Makita 286255-3 Cap 13 |
| 18 | 819226-1 | |
| 19 |
