Makita DC1470
Makita DC1470: exploded parts diagram, 1 sheet, 7 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC1470: 7 positions on 1 sheet

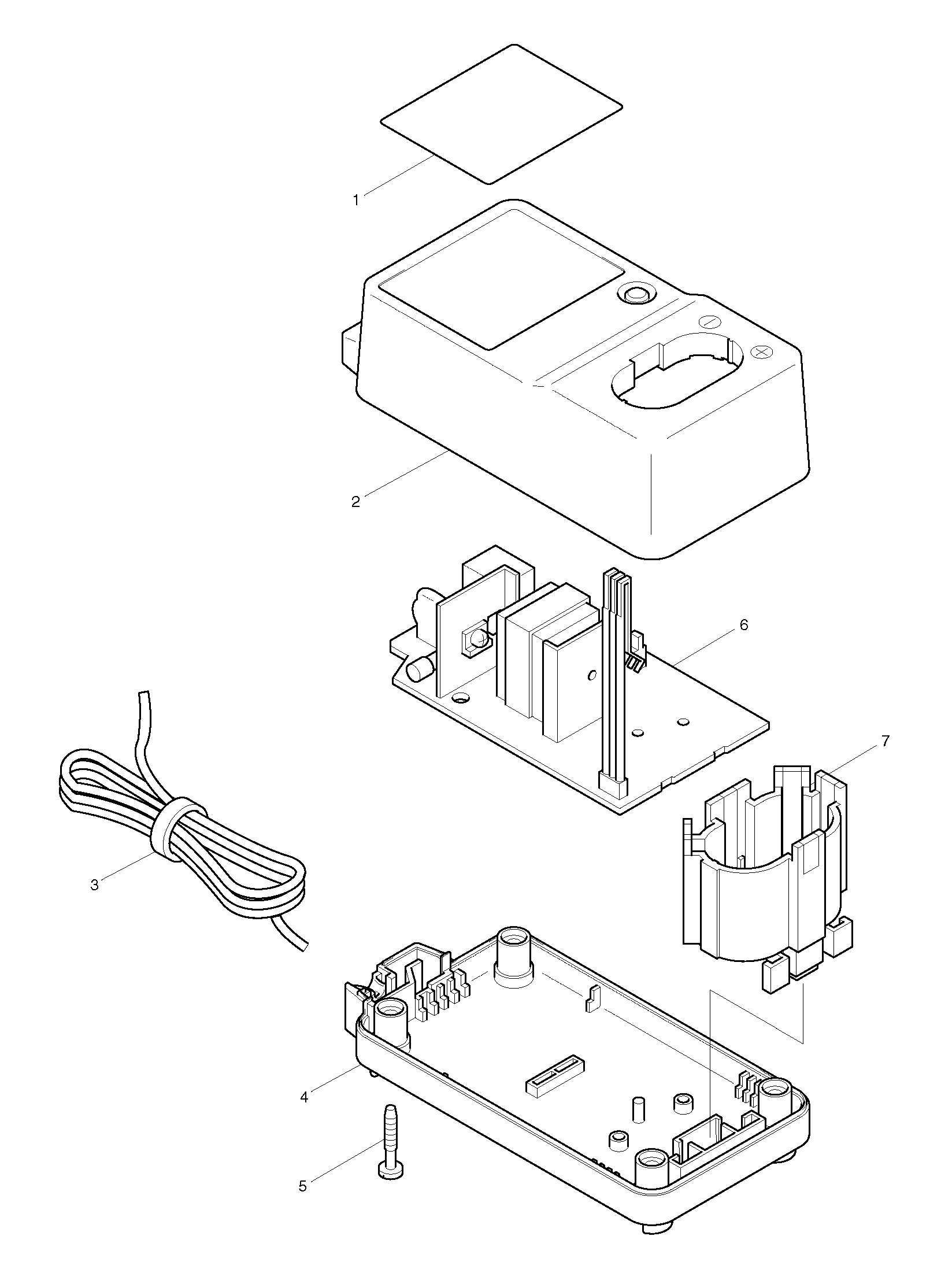

Sheet 1: Makita DC1470 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 852471-5 | |
| 2 | 183217-1 | Makita 183217-1 CHARGER CASE SET |
| 3 | 667985-9 | Makita 667985-9 Vinyl Cord 0.75-2-2.0 |
| 4 | 183217-1 | Makita 183217-1 CHARGER CASE SET |
| 5 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 6 | 631392-2 | Makita 631392-2 CIRCUIT BOARD |
| 7 | 417163-9 | Makita 417163-9 BATTERY BOX |
