Makita DC1412
Makita DC1412: exploded parts diagram, 1 sheet, 7 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC1412: 7 positions on 1 sheet

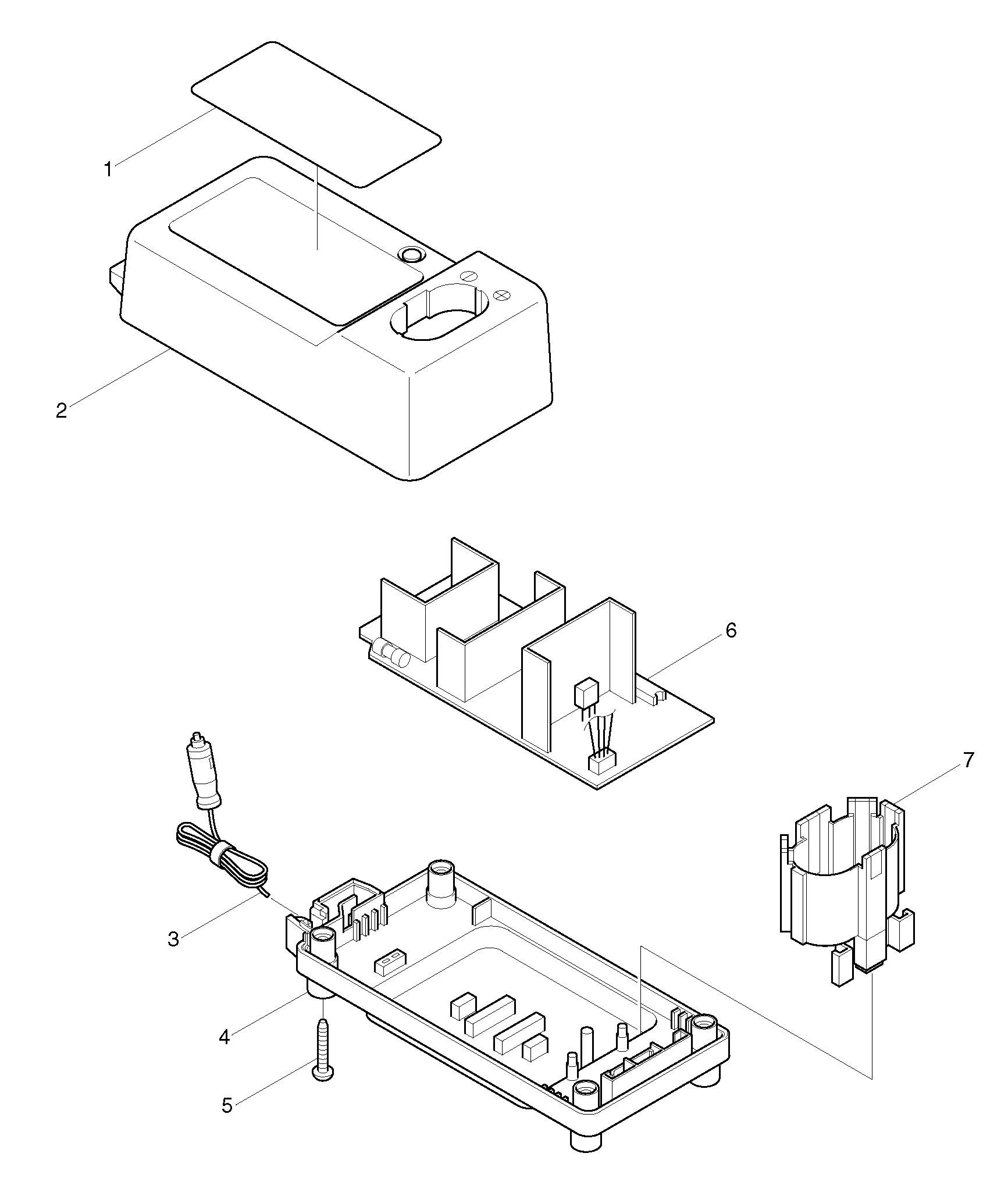

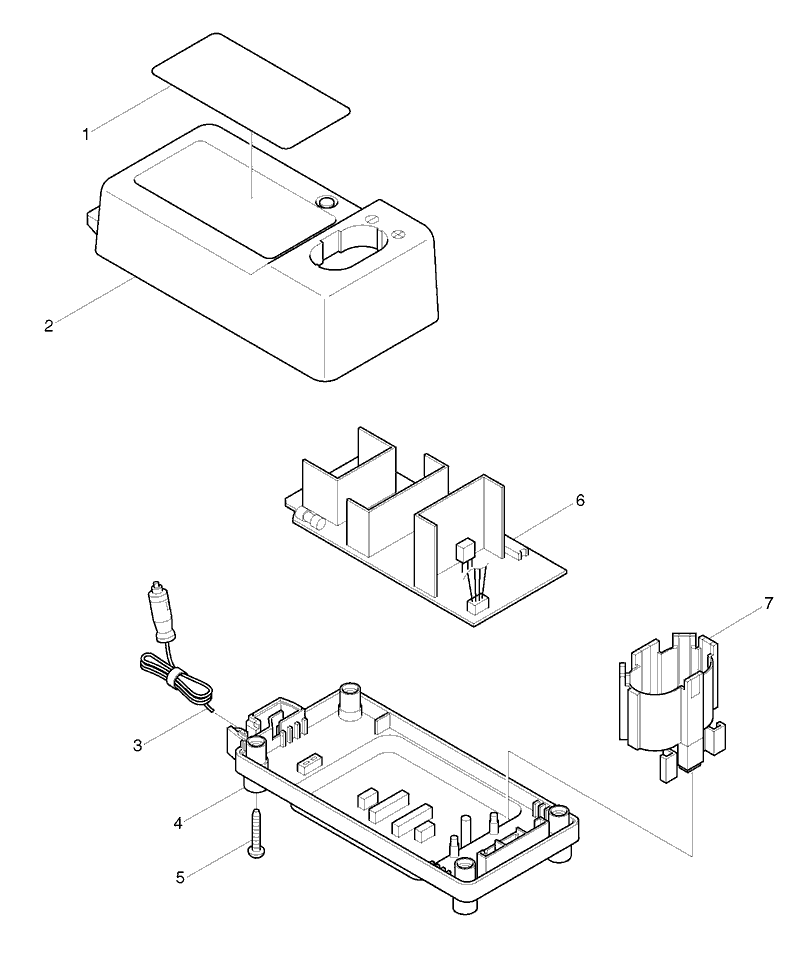

Sheet 1: Makita DC1412 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 858783-4 | Makita 858783-4 NAME PLATE DC1412 |
| 2 | 182861-1 | Makita 182861-1 CHARGER CASE SET |
| 3 | 667990-6 | Makita 667990-6 POWER SUPPLY CORD 18-2-2 |
| 4 | 182861-1 | Makita 182861-1 CHARGER CASE SET |
| 5 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 6 | 631234-0 | Makita 631234-0 CIRCUIT BOARD |
| 7 | 415950-0 | Makita 415950-0 BATTERY BOX |
