Makita DC1290
Makita DC1290: exploded parts diagram, 1 sheet, 8 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC1290: 8 positions on 1 sheet

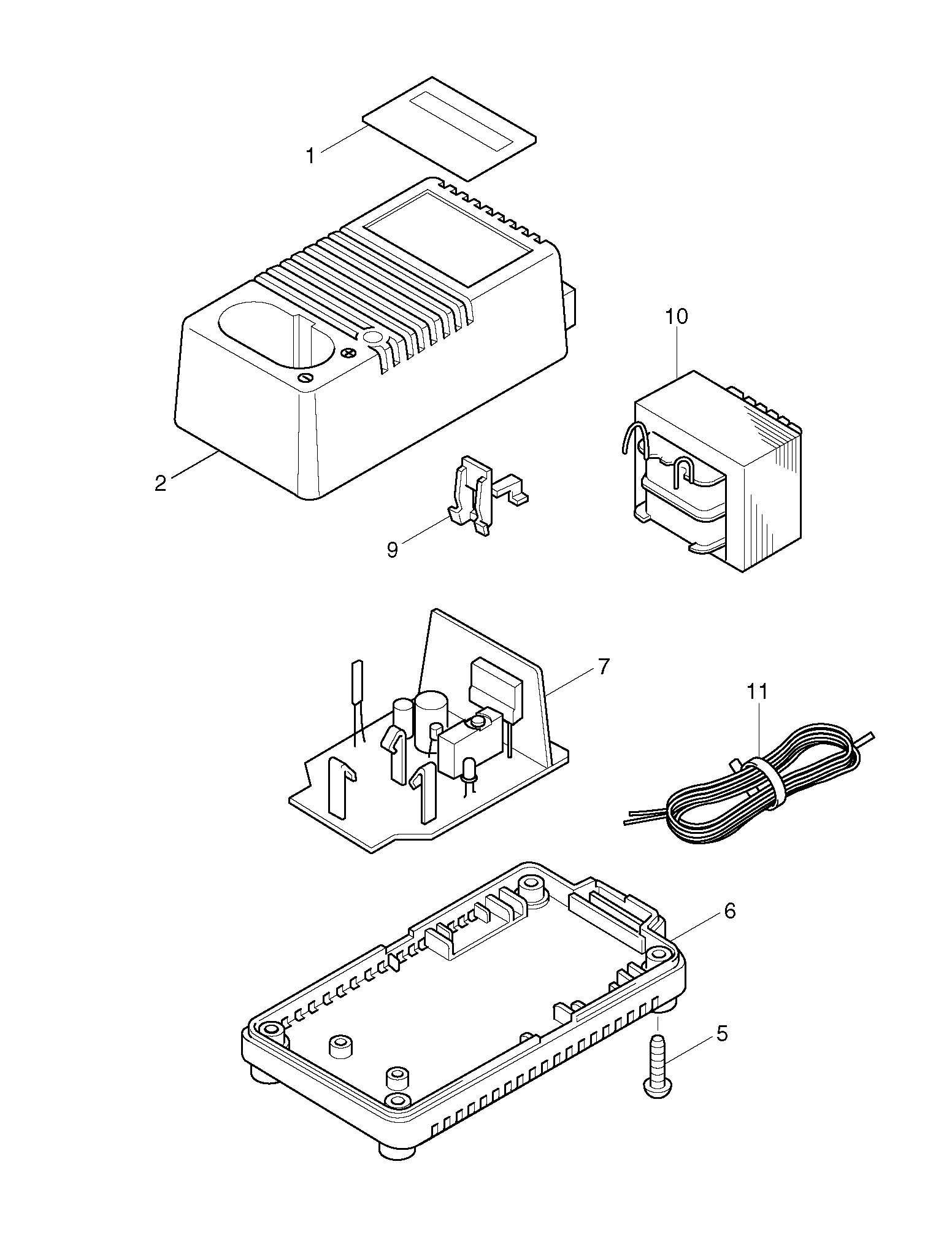

Sheet 1: Makita DC1290 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 859530-6 | Makita 859530-6 NAME PLATE DC1290 |
| 2 | 182966-7 | Makita 182966-7 CHARGER CASE SET |
| 5 | 265874-8 | |
| 6 | 182966-7 | Makita 182966-7 CHARGER CASE SET |
| 7 | 631254-4 | Makita 631254-4 CIRCUIT BOARD |
| 9 | 414597-7 | Makita 414597-7 LEVER |
| 10 | 649193-4 | Makita 649193-4 TRANSFORMER 230V |
| 11 | 667984-1 | Makita 667984-1 POWER SUPPLY CORD 0.75-2- |
