Makita DC122
Makita DC122: exploded parts diagram, 1 sheet, 9 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DC122: 9 positions on 1 sheet

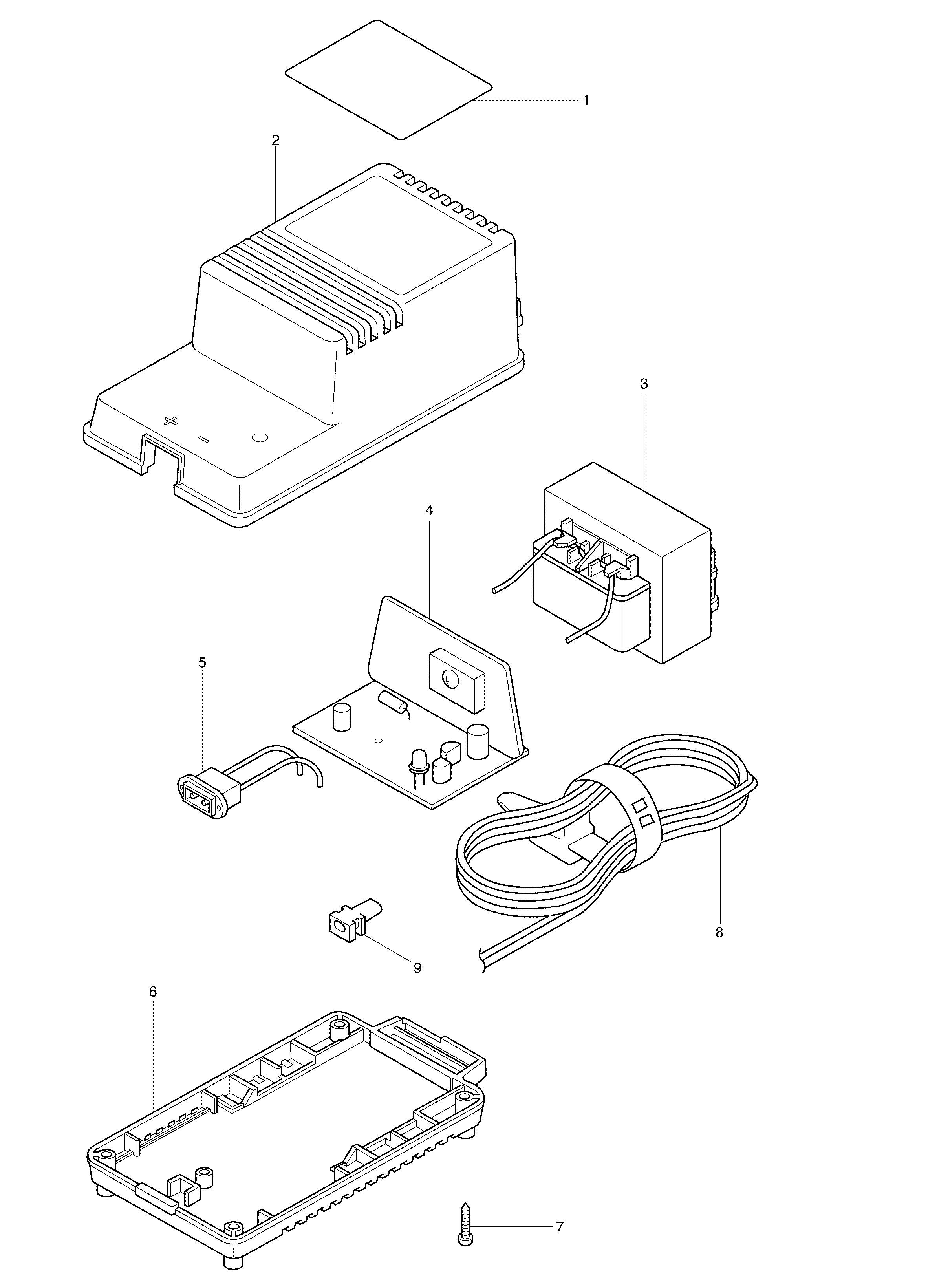

Sheet 1: Makita DC122 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 182748-7 | Makita 182748-7 CHARGER CASE SET |
| 2 | 857905-3 | Makita 857905-3 NAME PLATE |
| 3 | 649166-7 | Makita 649166-7 TRANSFORMER 220V |
| 4 | 631220-1 | Makita 631220-1 CIRCUIT BOARD |
| 5 | 655409-7 | Makita 655409-7 INLET |
| 6 | 182748-7 | Makita 182748-7 CHARGER CASE SET |
| 7 | 265874-8 | |
| 8 | 667974-4 | Makita 667974-4 POWER SUPPLY CORD 0.75-2- |
| 9 |
