Makita DBS180: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DBS180: 51 positions on 1 sheet

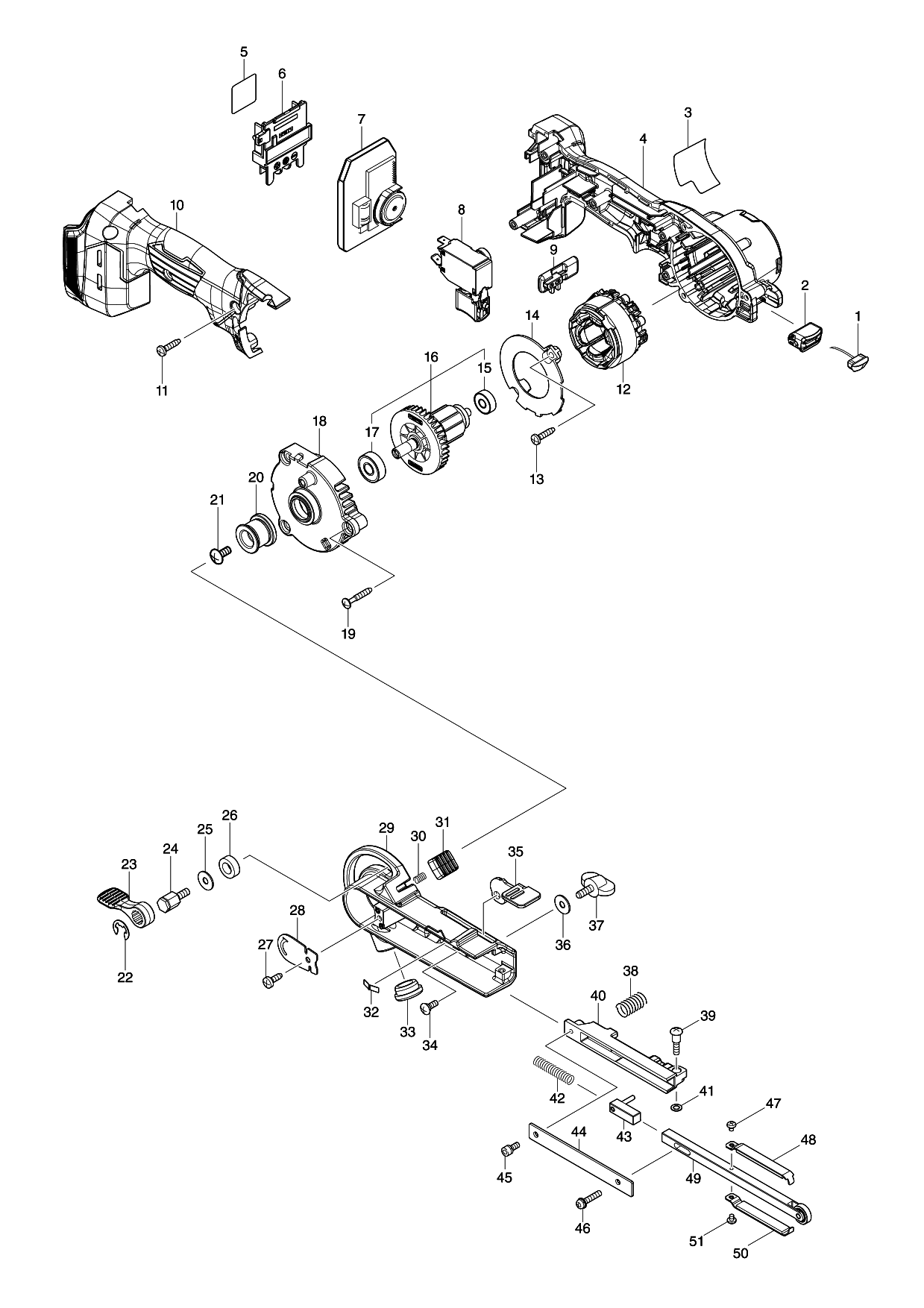

Sheet 1: Makita DBS180 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 620D54-1 | Makita 620D54-1 LED CIRCUIT, DBS180 |
| 2 | 412719-3 | Makita 412719-3 LED HOUSING, DBS180 |
| 3 | 857S44-3 | |
| 4 | 183R39-7 | |
| 5 | 857S52-4 | |
| 6 | 643874-2 | Makita 643874-2 Terminal |
| 7 | 620D53-3 | |
| 8 | 651493-0 | Makita 651493-0 SWITCH |
| 9 | 412720-8 | |
| 10 | 183R39-7 | |
| 11 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 12 | 629A24-9 | |
| 13 | 266326-2 | Makita 266326-2 TAPPING SCREW PT 4X18, MT951 |
| 14 | 412718-5 | Makita 412718-5 BAFFLE PLATE, DBS180 |
| 15 | 210031-3 | |
| 16 | 519645-8 | |
| 17 | 210005-4 | Makita 210005-4 BALL BEARING 608DDW, UB1100 |
| 18 | 312A10-4 | |
| 19 | 265999-8 | Makita 265999-8 TAPPING SCREW 4*25, 6827 |
| 20 | 317522-6 | Makita 317522-6 DRIVING ROLLER 9032 |
| 21 | 265092-8 | Makita 265092-8 TRUSS HEAD SCREW M5X12 |
| 22 | 961014-3 | Makita 961014-3 STOP RING E-8, SS610D |
| 23 | 272229-0 | Makita 272229-0 LEVER 40, 3901 |
| 24 | 265494-8 | Makita 265494-8 HEX.BOLT M5X13 9032 |
| 25 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 26 | 257249-5 | Makita 257249-5 RING 9 9032 |
| 27 | 266026-4 | Makita 266026-4 TAPPING SCREW CT 4X12, 5806B |
| 28 | 345196-3 | Makita 345196-3 SAFETY COVER 9032 |
| 29 | 140U96-6 | Makita 140U96-6 PULLEY COVER COMPLETE, DBS180 |
| 30 | 231026-3 | Makita 231026-3 COMPRESSION SPRING 4, LS0714 |
| 31 | 412721-6 | Makita 412721-6 KNOB, DBS180 |
| 32 | 232185-6 | Makita 232185-6 LEAF SPRING, KP0800 |
| 33 | 421198-4 | Makita 421198-4 CAP FOR |
| 34 | 265028-7 | Makita 265028-7 + PAN HEAD SCREW M4X11 |
| 35 | 345197-1 | Makita 345197-1 CAM LEVER 9032 |
| 36 | 253807-5 | Makita 253807-5 FLAT WASHER 5, LS0714 |
| 37 | 265720-5 | Makita 265720-5 Thumb Screw M5X14, HR2412 |
| 38 | 233333-0 | Makita 233333-0 COMPRESSION SPRING 9032 |
| 39 | 265090-2 | Makita 265090-2 PAN HEAD SCREW M4X20 |
| 40 | 317525-0 | Makita 317525-0 ARM HOLDER 9032 |
| 41 | 941052-1 | Makita 941052-1 FLAT WASHER 4 |
| 42 | 233332-2 | Makita 233332-2 COMPRESSION SPRING 6 |
| 43 | 153312-1 | Makita 153312-1 ARM TENSIONER COMP.9032 |
| 44 | 345195-5 | Makita 345195-5 ARM COVER 9032 |
| 45 | 922111-0 | Makita 922111-0 H.S.HEAD BOLT M4*10 WITH W, EBH252L |
| 46 | 911138-5 | Makita 911138-5 P.H.SCREW M4*20, M442 |
| 47 | 265040-7 | Makita 265040-7 PAN HEAD SCREW M3X4 9032 |
| 48 | 153314-7 | Makita 153314-7 SHOE 9 COMP. 9032 |
| 49 | 153310-5 | |
| 50 | 153314-7 | Makita 153314-7 SHOE 9 COMP. 9032 |
| 51 | 265040-7 | Makita 265040-7 PAN HEAD SCREW M3X4 9032 |
