Makita DBO480
Makita DBO480: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DBO480: 36 positions on 1 sheet

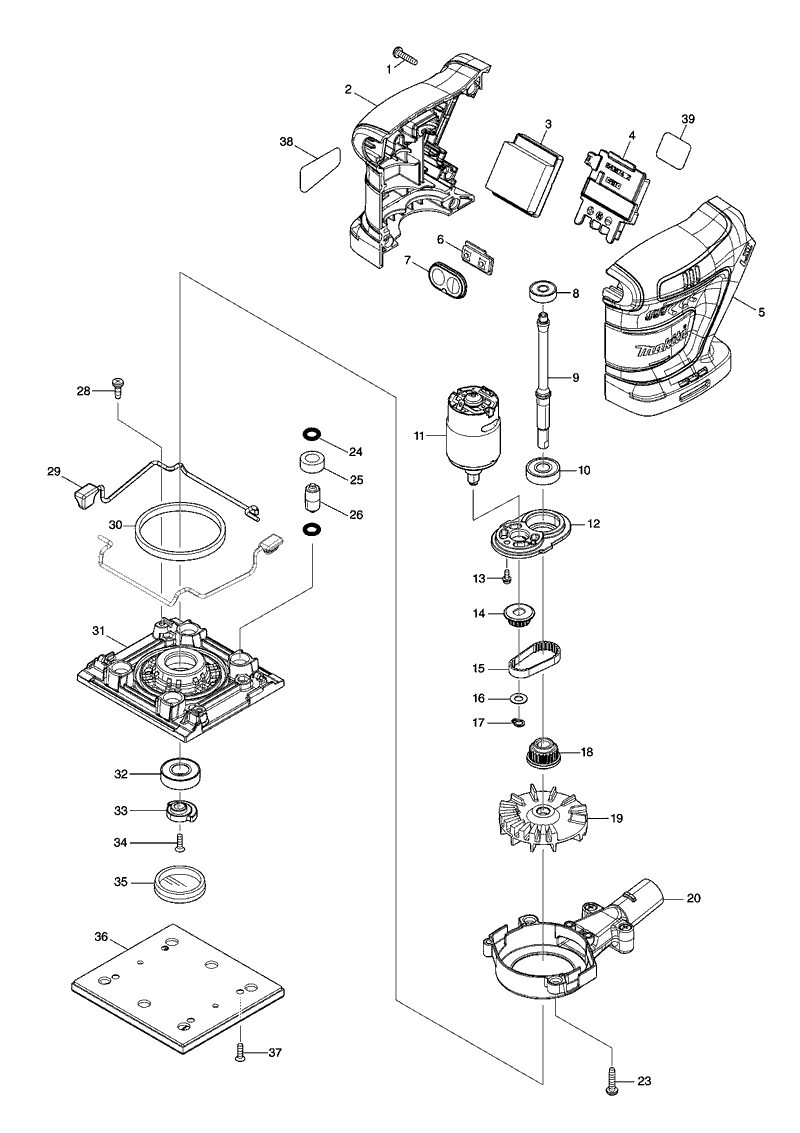

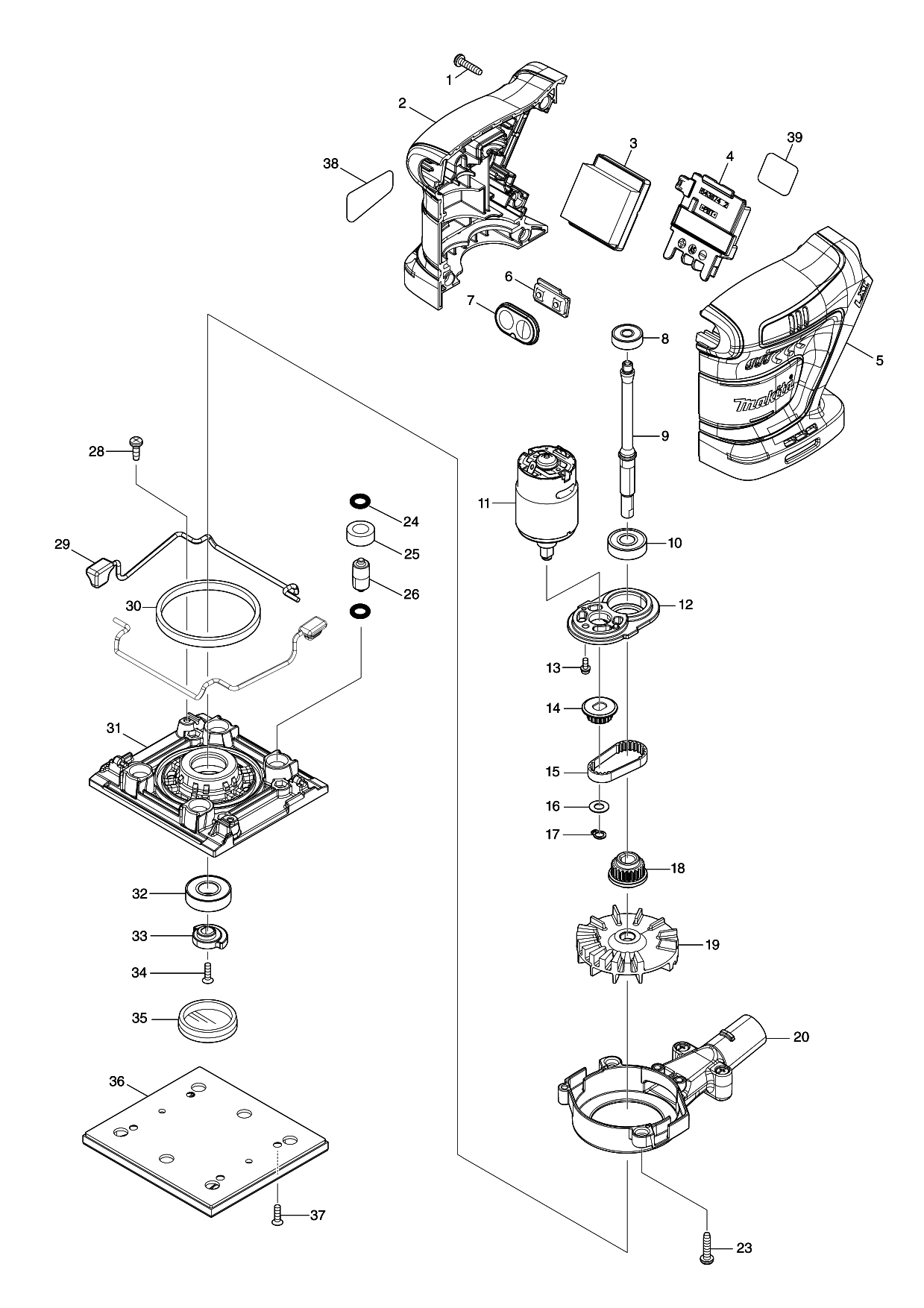

Sheet 1: Makita DBO480 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 2 | 183U93-9 | |
| 3 | 632S79-3 | |
| 4 | 643874-2 | Makita 643874-2 Terminal |
| 5 | 183U93-9 | |
| 6 | 632K92-3 | Makita 632K92-3 SWITCH UNIT |
| 7 | 141B15-1 | |
| 8 | 210143-2 | Makita 210143-2 BALL BEARING 626ZZ |
| 9 | 327807-2 | |
| 10 | 211491-2 | |
| 11 | 629B07-5 | |
| 12 | 413619-0 | |
| 13 | 265173-8 | Makita 265173-8 PAN HEAD SCREW M3*8, TD021D |
| 14 | 222200-4 | |
| 15 | 225105-7 | |
| 16 | 253715-0 | Makita 253715-0 FLAT WASHER 6, LS1040 |
| 17 | 961002-0 | Makita 961002-0 RETAINING RING S-6, 9523NB |
| 18 | 222199-3 | |
| 19 | 240224-8 | |
| 20 | 122B40-1 | |
| 23 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 24 | 213983-7 | Makita 213983-7 O-RING 4, B03700 |
| 25 | 424023-8 | Makita 424023-8 SPONGE SLEEVE, MT920 |
| 26 | 318151-8 | Makita 318151-8 FOOT, MT920 |
| 28 | 266020-6 | Makita 266020-6 TAPPING SCREW 4X12, 5007NB |
| 29 | 162259-8 | OTHR New Genuine Makita 162259-8 Lever Complete for BO4555 1pc |
| 30 | 424684-4 | Makita 424684-4 SPONGE 6X87X3 |
| 31 | 413618-2 | |
| 32 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 33 | 313141-6 | Makita 313141-6 BALANCER, BO4555 |
| 34 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 35 | 422711-1 | |
| 36 | 191Y24-8 | |
| 37 | 912117-6 | Makita 912117-6 COUNTERSUNK HEAD SCREW M4X12, BO4556 |
| 38 | 8115T2-9 | |
| 39 | 8115T5-3 |
