Bosch DBH 740 rotary hammer: exploded parts diagram, 2 sheets, 51 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

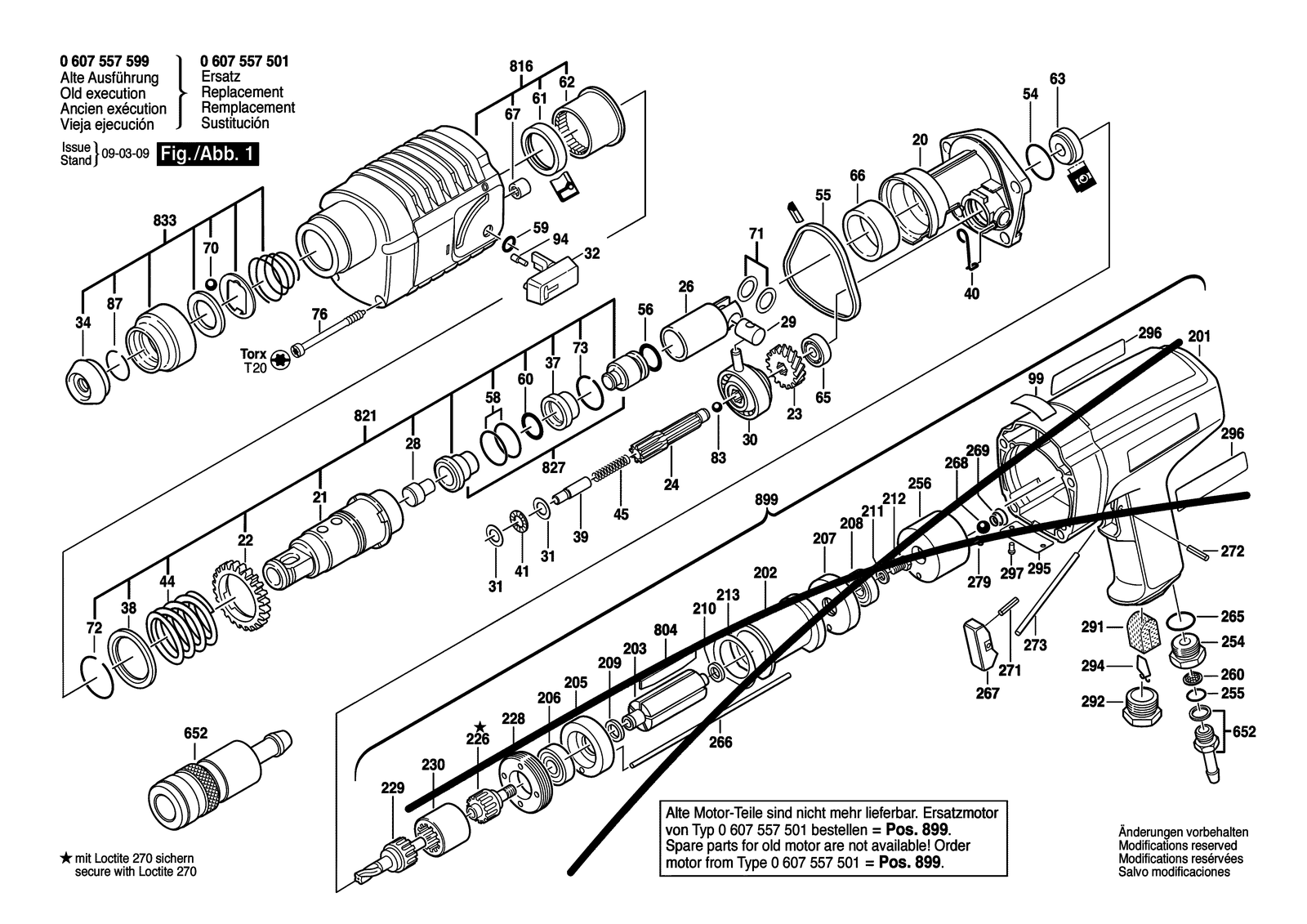

All parts of Bosch DBH 740: 51 positions on 2 sheets
Bosch DBH 740 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|

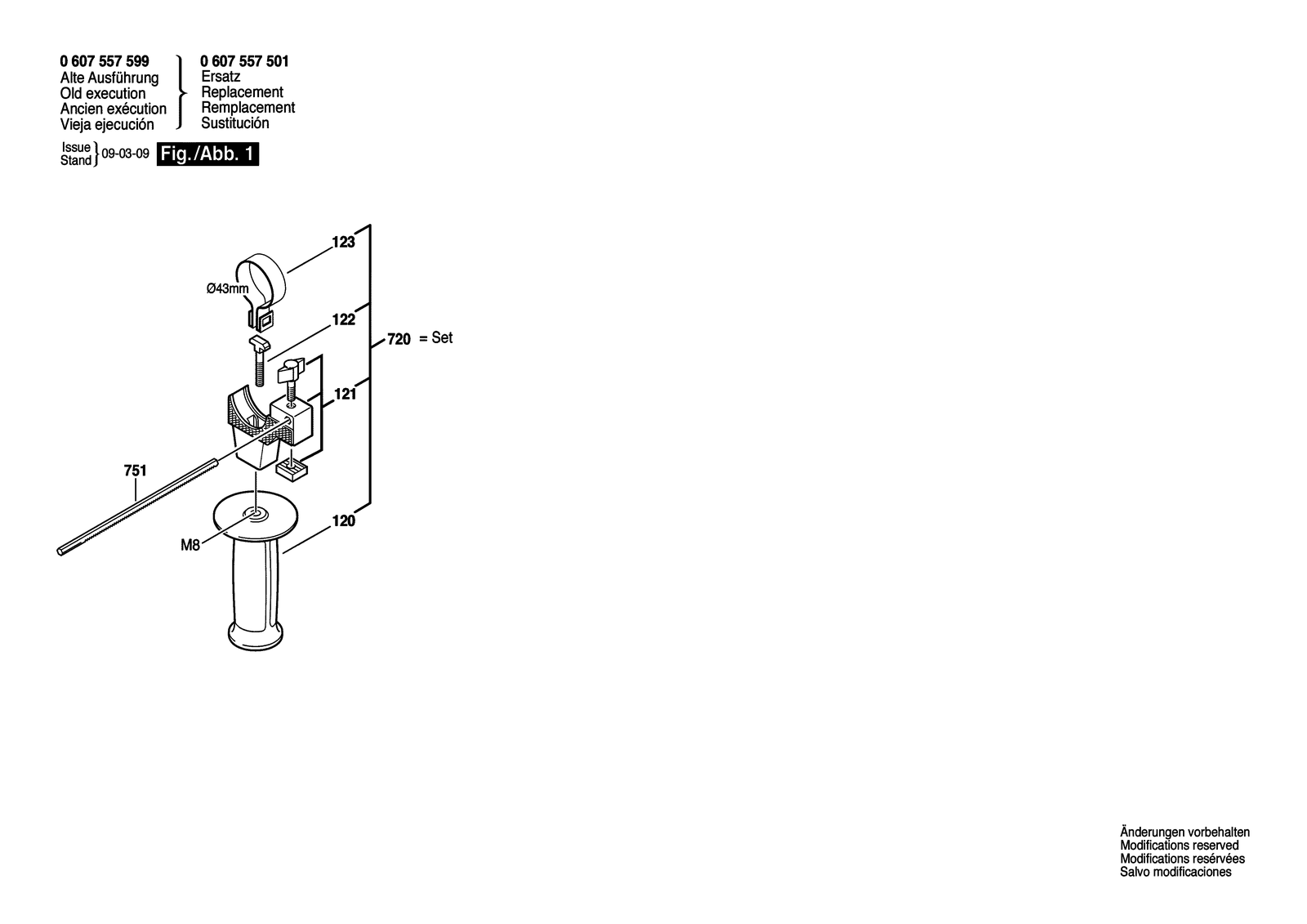

| 120 | 1612025019 | Auxiliary Handle M8 |
| 121 | 1618040048 | Support clamp Ø43 MM |
| 122 | 1613490002 | T-Head Bolt M8X40 MM |
| 123 | 1611316006 | Clamping Band Ø43 MM |
| 20 | 1615700037 | Intermediate Flange |
| 21 | 1616490058 | Ratchet Sleeve Sds-Plus |
| 22 | 1616320007 | Cylindrical Gear Z=46 |
| 23 | 3606320012 | Cylindrical Gear Z=6/19 |
| 24 | 1613060010 | Toothed Shaft Z=6/10 |
| 26 | 1618700052 | Hammer Piston |
| 28 | 1613124026 | Striker Pin |
| 29 | 1613105012 | Piston Pin |
| 30 | 1615819005 | Drive bearing |
| 31 | 1610100003 | Support Disc Thick 0,8 MM |
| 32 | 1612026023 | Clamp Handle Black |
| 34 | 1610508008 | Protective Cap L=17 Mm, Sds-Plus |
| 37 | 1610390011 | Damping Bushing |
| 38 | 1610102022 | Supporting Disc |
| 39 | 1613100013 | Straight Pin |
| 40 | 1614690001 | Holding Spring |
| 41 | 1610920003 | Roller-Cage Assembly |
| 44 | 1614633001 | Compression Spring |
| 45 | 1614614001 | Compression Spring |
| 54 | 1610210068 | O-Ring 24,0X2,5 MM |
| 55 | 1610206023 | Seal Ring |
| 56 | 1610210070 | O-Ring 14,0X3,0 MM |
| 58 | 1610210058 | O-Ring 18,0X3,0 MM |
| 59 | 1610210069 | O-Ring 6,0X2,5 MM |
| 60 | 1610210073 | O-Ring 10,0X3,5 MM |
| 61 | 1610283017 | Rotary shaft lip seal |
| 62 | 1610202026 | Plain bearing |
| 63 | 1610905048 | Groove ball bearing 9X24X7 |
| 65 | 1900900228 | Groove ball bearing 8X22X7 |
| 652 | 1609233013 | Hose Coupling |
| 66 | 1610301000 | Bushing Ø30XØ37X15,7 MM |
| 67 | 1610910064 | Needle bearing |
| 70 | 1903230013 | Ball DIN 5401-Ø7MM-III-ST |
| 71 | 1610101011 | Shim washer Thick 1,2 MM |
| 72 | 2916540018 | Retaining ring DIN 7993-A32 |
| 720 | 2602025070 | Auxiliary Handle Ø43 MM |
| 73 | 1614601009 | Retaining ring DIN 9045-24 |
| 751 | 1613001003 | Depth-Gauge SW 6X330 MM |
| 76 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 816 | 1615806077 | Gear Housing Black |
| 821 | 1617000931 | Ratchet Sleeve |
| 827 | 1617000338 | Striker |
| 83 | 1903230309 | Ball 5 MM V DIN 5401 |
| 833 | 1617000163 | Protection Sleeve Sds-Plus |
| 87 | 2916540012 | Retaining ring DIN 7993-A22 |
| 899 | 3607030139 | Pneumatic Motor |
| 94 | 1613120017 | Detent Pin |
