Sheet 1: Makita DBC3310 parts diagram

Makita DBC3310 parts diagram, sheet 1
No.Part numberPart name
2384131011Makita 384131011 SYLINTERI D=37
4021132030Makita 021132030 MÄNTÄ RENGAS
5385132030Makita 385132030 MÄNTÄ TAPPI
6385132040Makita 385132040 JOUSI RENGAS
7965527010Makita 965527010 TIIVISTE
8385111100Makita 385111100 KAMPIKOTELO SARJA
10960102129Makita 960102129 LAAKERI 109.110I.111115.PS-43/52/540
11939620371Makita 939620371 KIILA 2X3.7 109.110IREPAIR
12960102129Makita 960102129 LAAKERI 109.110I.111115.PS-43/52/540
13962211033Makita 962211033 NEULA KEHIKKO TORR.114X13
14962900057Makita 962900057 STEFA
15900006217Makita 900006217 LEVY
16962900024Makita 962900024 STEFA 12/32X
17908505555Makita 908505555 SCREW
18913467304Makita 913467304 RUUVI 6,7X30
19385118011Makita 385118011 KOPPA
20
21908605205Makita 908605205 RUUVI 5X20 109.110I111.115.PS-43/52/540
23001131020Makita 001131020 NIPPA
24965452060Makita 965452060 BENSALETKU (1M)MS-4510
25965404240Makita 965404240 STOPPARI
26965404240Makita 965404240 STOPPARI

Sheet 2: Makita DBC3310 parts diagram

Makita DBC3310 parts diagram, sheet 2
No.Part numberPart name
27385217000Makita 385217000 KYTKIN KOTELO TÄYD
28965403380Makita 965403380 KUMIVAIMENNIN
29965903061
30908006255Makita 908006255 RUUVI
31913467254Makita 913467254 KUPUKANTA RUUVI 6,7X25 KST.
33385184020Makita 385184020 JOUSI
34385141011Makita 385141011 FLYWHEEL
35928308001Makita 928308001 JOUSI LEVY 109.110I111.115.PS-43/52/540
36920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
37385143030Makita 385143030 SYTYTYS PUOLA
38965605411Makita 965605411 TULPPA
39908605205Makita 908605205 RUUVI 5X20 109.110I111.115.PS-43/52/540
40970502110Makita 970502110 SUOJAPUTKI ALI.P.1M109.110I.PS43/52/YM.
41970310200Makita 970310200 SYTYTYSJOHTO (1M)109110I.115.PS-43/52
42385147100Makita 385147100 TULPAN HATTU
43965603021Makita 965603021 SYTYTYSTULPPA BPMR7A

Sheet 3: Makita DBC3310 parts diagram

Makita DBC3310 parts diagram, sheet 3
No.Part numberPart name
45387164010Makita 387164010 KÄYNNISTIN NARU
46957404691Makita 957404691 KÄYNNISTIN KAHVA TÄY
47957160385Makita 957160385 KÄYNNISTIN KORJAUS-SARJA MS-4510,4010
48385162020Makita 385162020 NARU RUMPU
49385163100Makita 385163100 KÄYNNISTYSJOUSI
50385166040Makita 385166040 KÄYNNISTIN PYÖRÄ
51920308024Makita 920308024 KUUSIOMUTTERI M8 109110I.111.115.PS43/52
52908605205Makita 908605205 RUUVI 5X20 109.110I111.115.PS-43/52/540
53980114147Makita 980114147 KILPI

Sheet 4: Makita DBC3310 parts diagram

Makita DBC3310 parts diagram, sheet 4
No.Part numberPart name
58908405145Makita 908405145 KUPUKANTA RUUVI 5X14
59965527040Makita 965527040 TIIVISTE
60385174011Makita 385174011 JÄÄHDYTYS LEVY
61965527030Makita 965527030 TIIVISTE
62385131071Makita 385131071 VÄLI LAIPPATÄYD
63
64965527020Makita 965527020 TIIVISTE
65385154010Makita 385154010 OHJAIN PALA
66028150740Makita 028150740 RYYPPY KYTKIN
67385150030Makita 385150030 RYYPPY KAMPI
68385150020Makita 385150020 JOUSI SHACKLE
69915135130Makita 915135130 RUUVI 3,5X13
70001173060Makita 001173060 KUUSIO MUTTERI
71965527060Makita 965527060 TIIVISTE
72385173100Makita 385173100 ILM. SUODIN TÄYD
73385118060Makita 385118060 JÄÄHDYTYS KANSI
74908605145Makita 908605145 RUUVI 5X14 109.110I.111.115.PS-43/52/540

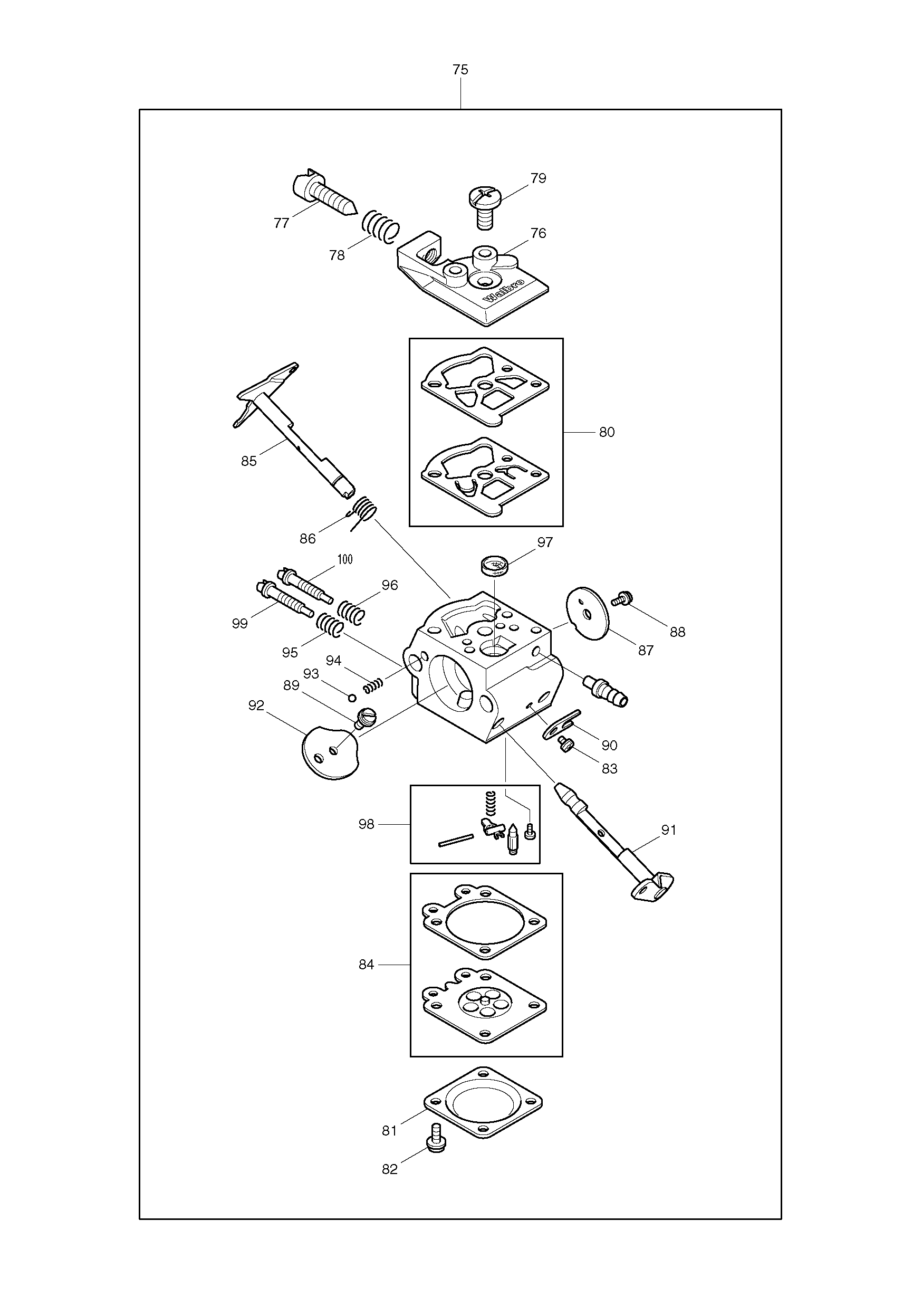

Sheet 5: Makita DBC3310 parts diagram

Makita DBC3310 parts diagram, sheet 5
No.Part numberPart name
76021151160Makita 021151160 PUMPPU KANSI
77001151400Makita 001151400 IDLE STOP RUUVI
78021151230Makita 021151230 SÄÄTÖR.JOUSI(S)109.111.115.PS-43/52/540
79118151190Makita 118151190 RUUVI 109.109HS.111.115.PS-43/52/540
80957151010Makita 957151010 PUMPPU DIAPHRAM SARJ
81021151120Makita 021151120 KALVO KANSI
82118151020Makita 118151020 RUUVI 109.109HS.111.115.PS-43/52/540
83118151020Makita 118151020 RUUVI 109.109HS.111.115.PS-43/52/540
84957151020Makita 957151020 PUMPPUPUKALVO SARJA WT
85385151040Makita 385151040 KAASU VARSI
86371151310Makita 371151310 JOUSI
87001151680Makita 001151680 KAASU SULKIJA
88118151060Makita 118151060 RUUVI 109.109HS.111.115.PS-43/52/540
89118151060Makita 118151060 RUUVI 109.109HS.111.115.PS-43/52/540
90108151350Makita 108151350 VARSI CLIP
91385151020Makita 385151020 RYYPPY VARSI
92001151350Makita 001151350 RYYPPY LÄPPÄ
93118151170Makita 118151170 KUULA 109.109HS.111.115.PS-43/52/540
94118151160Makita 118151160 JOUSI 109.109HS.111.115.PS-43/52/540
95021151530Makita 021151530 SÄÄTÖR.JOUSI(H)109.111.115.PS-43/52/540
96021151480Makita 021151480 SÄÄTÖR.JOUSI(L)109.111.115.PS-43/52/540
97021151180Makita 021151180 Screen for DPC6340, DCS330S, DCS340
98957150040Makita 957150040 SÄÄTÖOSA SRJ.WT.109.111.115.PS-43/52/540
99001151420Makita 001151420 MAIN SÄÄTÖM. RUUVI
100001151410Makita 001151410 IDLING SÄÄTÖM. SCREW

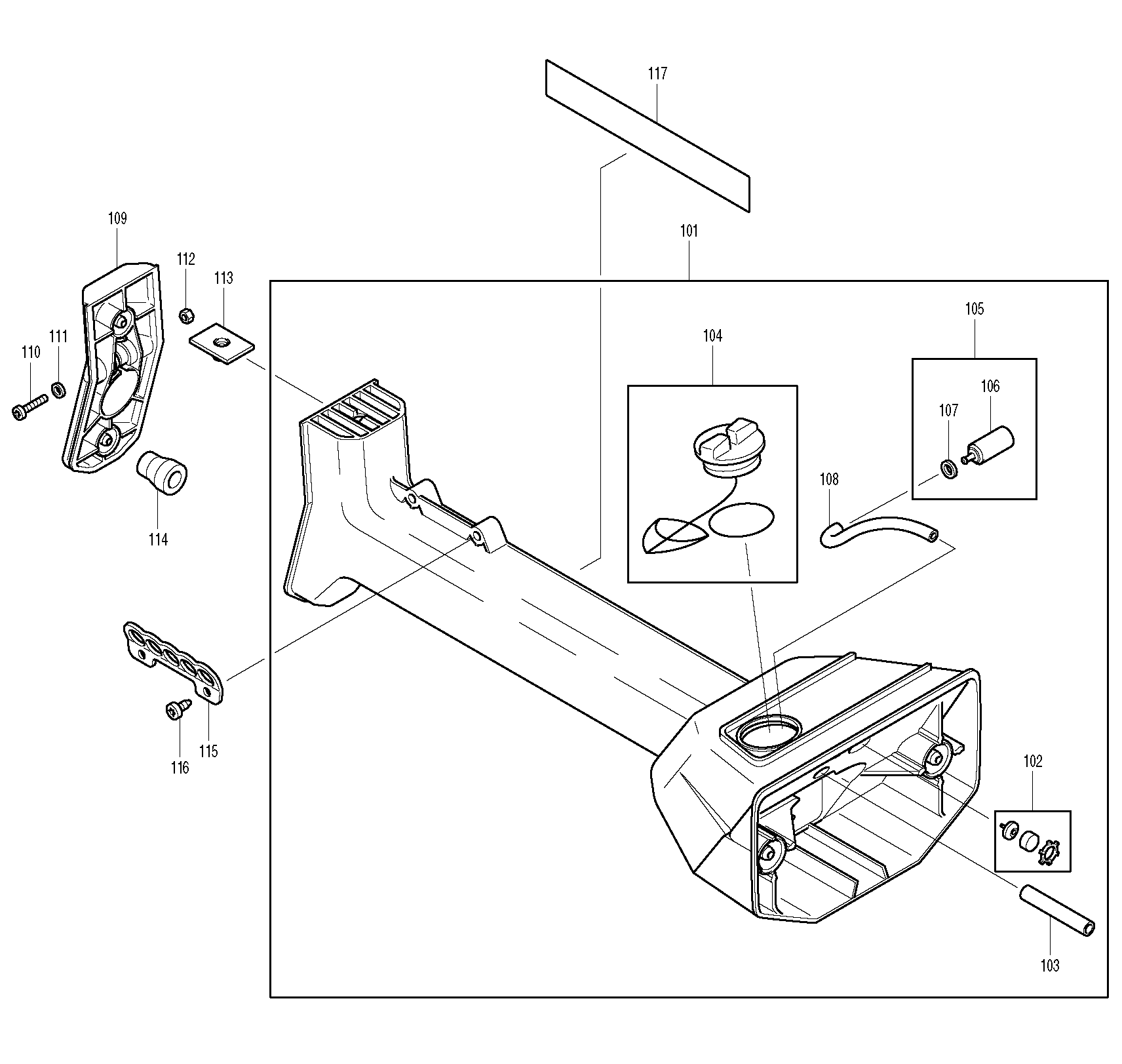

Sheet 6: Makita DBC3310 parts diagram

Makita DBC3310 parts diagram, sheet 6
No.Part numberPart name
102957114010Makita 957114010 VENTTIILI 109.110I.111.115.PS-43/52/540
103965452060Makita 965452060 BENSALETKU (1M)MS-4510
104010114045Makita 010114045 TANKKI TULPPA TÄYD
106963601150Makita 963601150 PA. IMU PÄÄ
107928605500Makita 928605500 LEVY 5,5
108965452480Makita 965452480 LETKU 4X2
109385310631Makita 385310631 KIINNITIN PALA
110908006305Makita 908006305 KUPUKANTA RUUVI 6X30
111924106400Makita 924106400 LEVY 6,4
112920206000Makita 920206000 KUUSIO MUTTERI M6
113385365010Makita 385365010 STOPP LEVY
114965403380Makita 965403380 KUMIVAIMENNIN
115385316010Makita 385316010 PUOLI KIINNITYS
116913467164Makita 913467164 KUPUKANTA RUUVI 6,7X16 KST.
117980114145Makita 980114145 KILPI

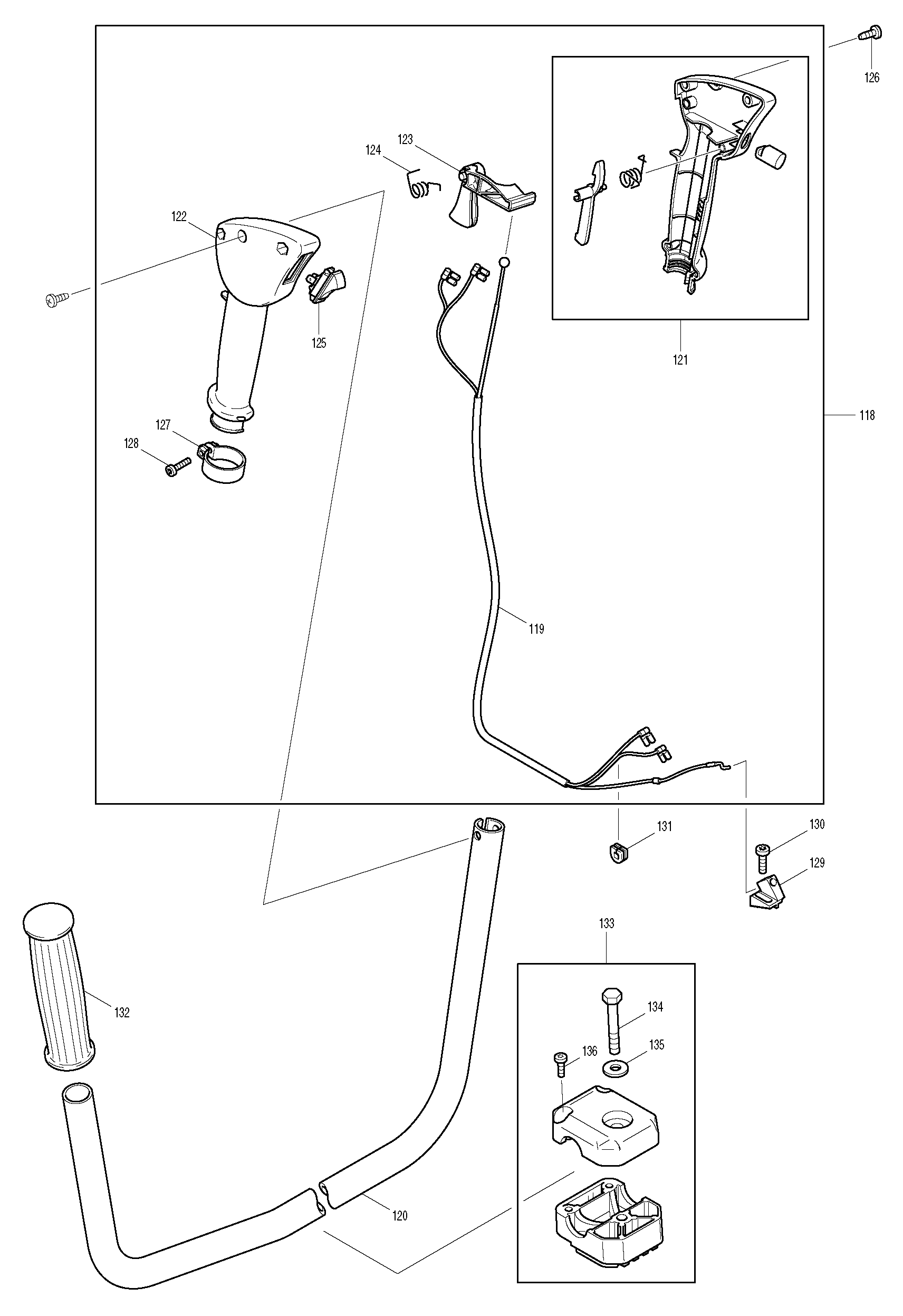

Sheet 7: Makita DBC3310 parts diagram

Makita DBC3310 parts diagram, sheet 7
No.Part numberPart name
119385726070Makita 385726070 KAASUVAIJERI TÄYD
120385310161Makita 385310161 KAHVA
121369313290Makita 369313290 KAHVANPUOLISKO, OIKEPL.
122369313080Makita 369313080 KAHVANPUOLISKO VASEN2
123369311080Makita 369311080 KAASU VIPU
124369311071Makita 369311071 JOUSI
125975001210Makita 975001210 KYTKIN
126915735100Makita 915735100 RUUVI
127965903080Makita 965903080 KIINNITIN RENGAS
128908006255Makita 908006255 RUUVI
129385176010Makita 385176010 PIDIN
130913455204Makita 913455204 KUPUKANTA RUUVI 5,5X20 KST.
131965401018Makita 965401018 MURTOSUOJA
132387311100Makita 387311100 KAHVA, VASEN
134900108555Makita 900108555 KUUSIO RUUVI 8X55
135924108400Makita 924108400 ALUSLEVY 109.110I.111.115.PS-43/52/540
136908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540

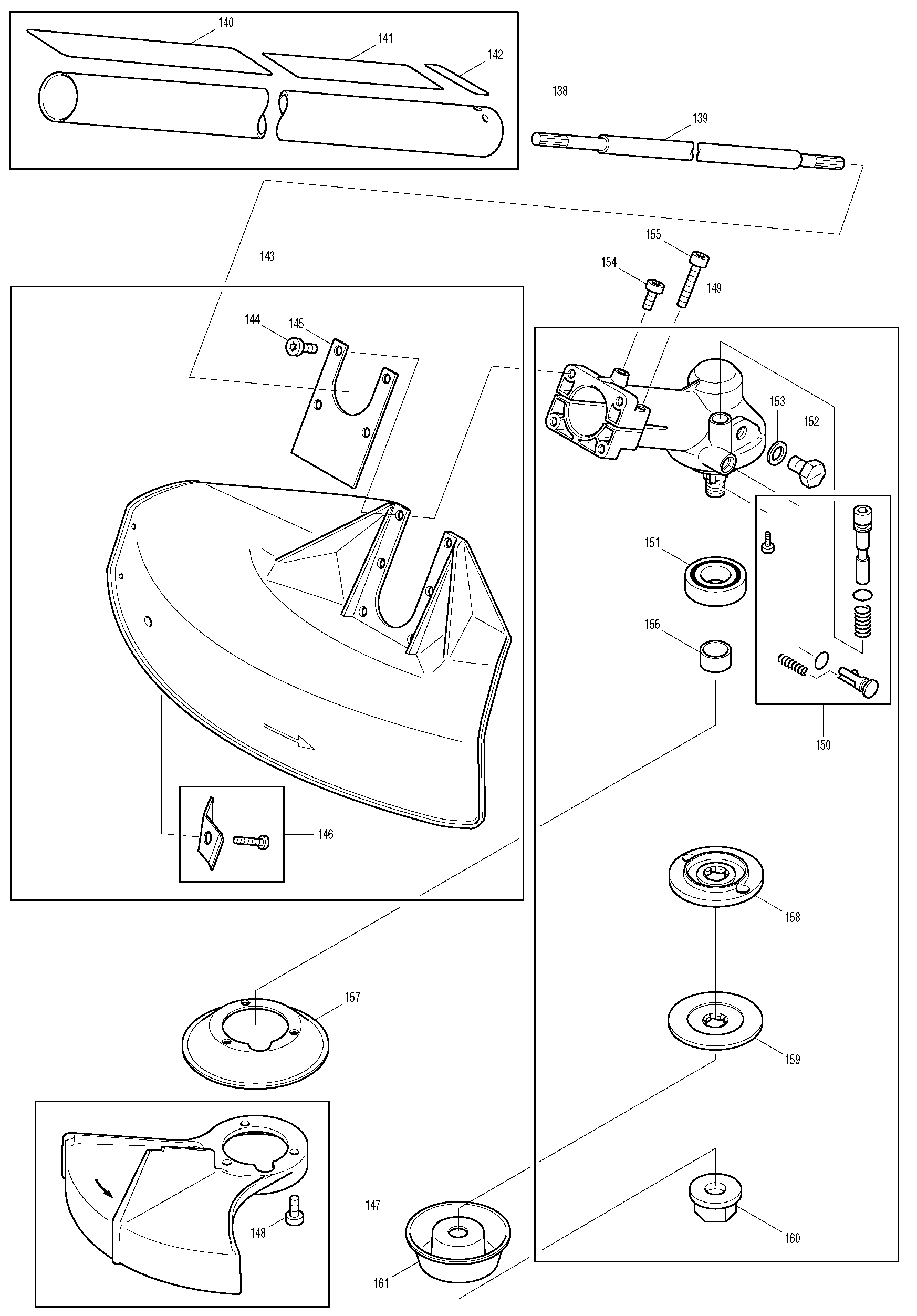

Sheet 8: Makita DBC3310 parts diagram

Makita DBC3310 parts diagram, sheet 8
No.Part numberPart name
139385228030Makita 385228030 VOIMANSIIRTO VARSI
140980114628Makita 980114628 KILPI
141980114148Makita 980114148 KILPI
142980114119Makita 980114119 KILPI
144908005165Makita 908005165 RUUVI 5X16 109.110I111.115.PS-43/52/540
145385341021Makita 385341021 KIINNITYS RAUTA SEKTORI SUOJAMS4510
146957341010Makita 957341010 SIIMATERÄ JA RUUVI
148908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
150957385272Makita 957385272 REP SARJA
151962900055Makita 962900055 STEFA 20X35X
152900210104Makita 900210104 KUUSIO PULTTI 10X1,25
153963604084Makita 963604084 LEVY B10X16X1.5
154908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
155908005255Makita 908005255 RUUVI
156385228020Makita 385228020 VÄLILEVY
157385224410
158385224012Makita 385224012 KIINNITYS LEVY
159385224022Makita 385224022 PAINE LEVY
160385228041Makita 385228041 MUTTERI raivuriin
161385218020Makita 385218020 MAAOHJAIN METALLITERILLE (RAIVAUSSAHAT)
