Makita DBC300

Makita DBC300: exploded parts diagram, 5 sheets, 98 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DBC300: 98 positions on 5 sheets

Sheet 1: Makita DBC300 parts diagram

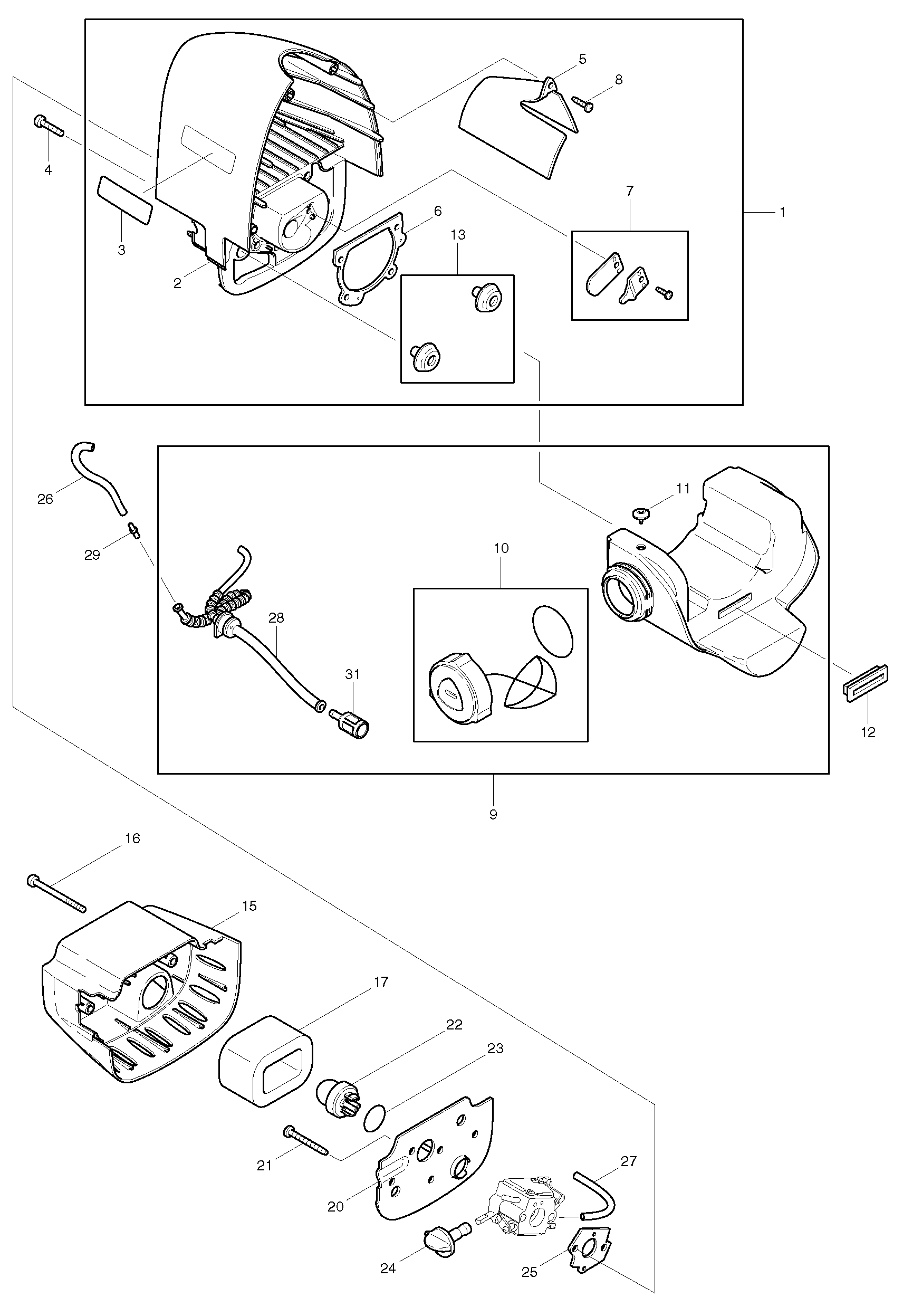

Makita DBC300 parts diagram, sheet 1
No.Part numberPart name
2369118651Makita 369118651 MOOTTORI KOPPA
3980114296Makita 980114296 TYYPPIKILPI UH 4830/6330
4913205255Makita 913205255 RUUVI
5369118041Makita 369118041 INSULATION
6965527100Makita 965527100 TIIVISTE
7957179010Makita 957179010 REEDVENTTIILI TÄYD
8913540185Makita 913540185 RUUVI
10010114049Makita 010114049 TANKKI TULPPA TÄYD
11965404220Makita 965404220 VENTTIILI
12965404941Makita 965404941 KUMIVAIMENNIN
13965404960Makita 965404960 KUMIVAIMENNIN
15369118020Makita 369118020 KANSI
16904905605Makita 904905605 RUUVI
17369173050Makita 369173050 ILM. SUODIN
20369173030Makita 369173030 LEVY
21913750455Makita 913750455 KUPUKANTA RUUVI
22369155010Makita 369155010 Primer
23963225020Makita 963225020 O-RENGAS
24369155020Makita 369155020 RYYPPY VIPU
25965527110Makita 965527110 TIIVISTE
26965452060Makita 965452060 BENSALETKU (1M)MS-4510
27965452060Makita 965452060 BENSALETKU (1M)MS-4510
28965404661Makita 965404661 PA-LETKU
29001131030Makita 001131030 NIPPA
31963601380Makita 963601380 IMU PÄÄ

Sheet 2: Makita DBC300 parts diagram

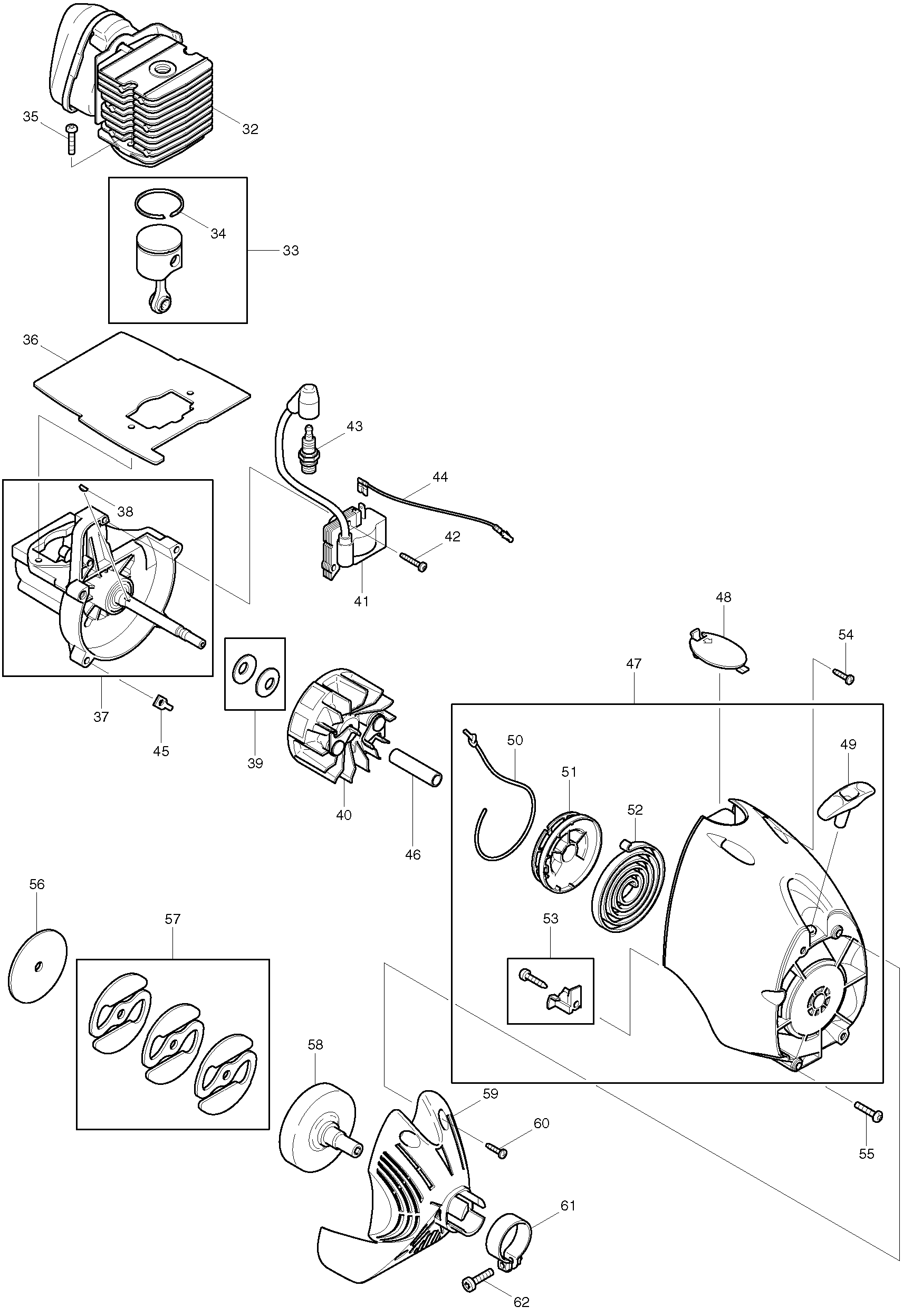

Makita DBC300 parts diagram, sheet 2
No.Part numberPart name
32369131100Makita 369131100 SYLINTERI JA MUHVILER TÄYD
34021132030Makita 021132030 MÄNTÄ RENGAS
35913205255Makita 913205255 RUUVI
36965527081Makita 965527081 TIIVISTE
38939615260Makita 939615260 KEY 1,5X2,6REPAIR
39928025005Makita 928025005 CUP JOUSI
40369141100
41369143010Makita 369143010 SYTYTYS TÄYD
42913204255Makita 913204255 RUUVI
43965603021Makita 965603021 SYTYTYSTULPPA BPMR7A
44970311450Makita 970311450 OIKOSULKU JOHTO
45965605411Makita 965605411 TULPPA
46369129010Makita 369129010 VÄLILEVY
48369118072Makita 369118072 KANSI F.SYTYTYS TULP
49965404710Makita 965404710 KÄYNNISTIN KAHVA
50985000150Makita 985000150 KÄYNIS.NARU D=3/100M RULLA
51369162021Makita 369162021 NARU RUMPU
52369163101Makita 369163101 KÄYNNISTYSJOUSI
53369162050Makita 369162050 OHJAIN PALA W.RUUVI
54913540185Makita 913540185 RUUVI
55913205255Makita 913205255 RUUVI
56369188011Makita 369188011 STOP LEVY
57369181110Makita 369181110 KYTKIN
58369223101Makita 369223101 KYTKINRUMPU TÄYD
59369217611
60913660254Makita 913660254 RUUVI
61965903080Makita 965903080 KIINNITIN RENGAS
62908006255Makita 908006255 RUUVI

Sheet 3: Makita DBC300 parts diagram

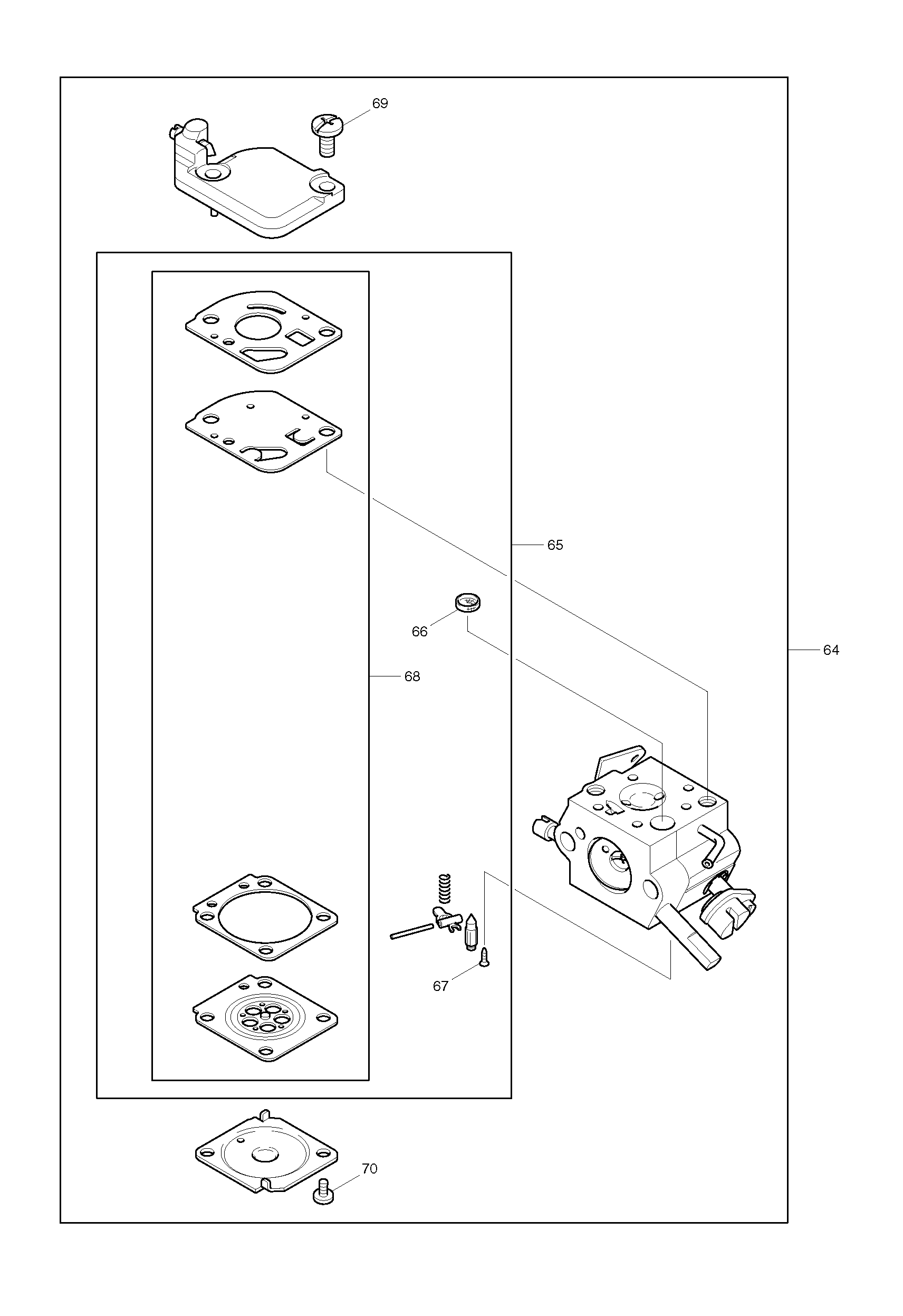

Makita DBC300 parts diagram, sheet 3
No.Part numberPart name
66001153180Makita 001153180 SIHTI
67001153010Makita 001153010 RUUVI
68010153010Makita 010153010 TIIVISTE&KALVO KIT
69001153190Makita 001153190 RUUVI
70001153020Makita 001153020 SCREW

Sheet 4: Makita DBC300 parts diagram

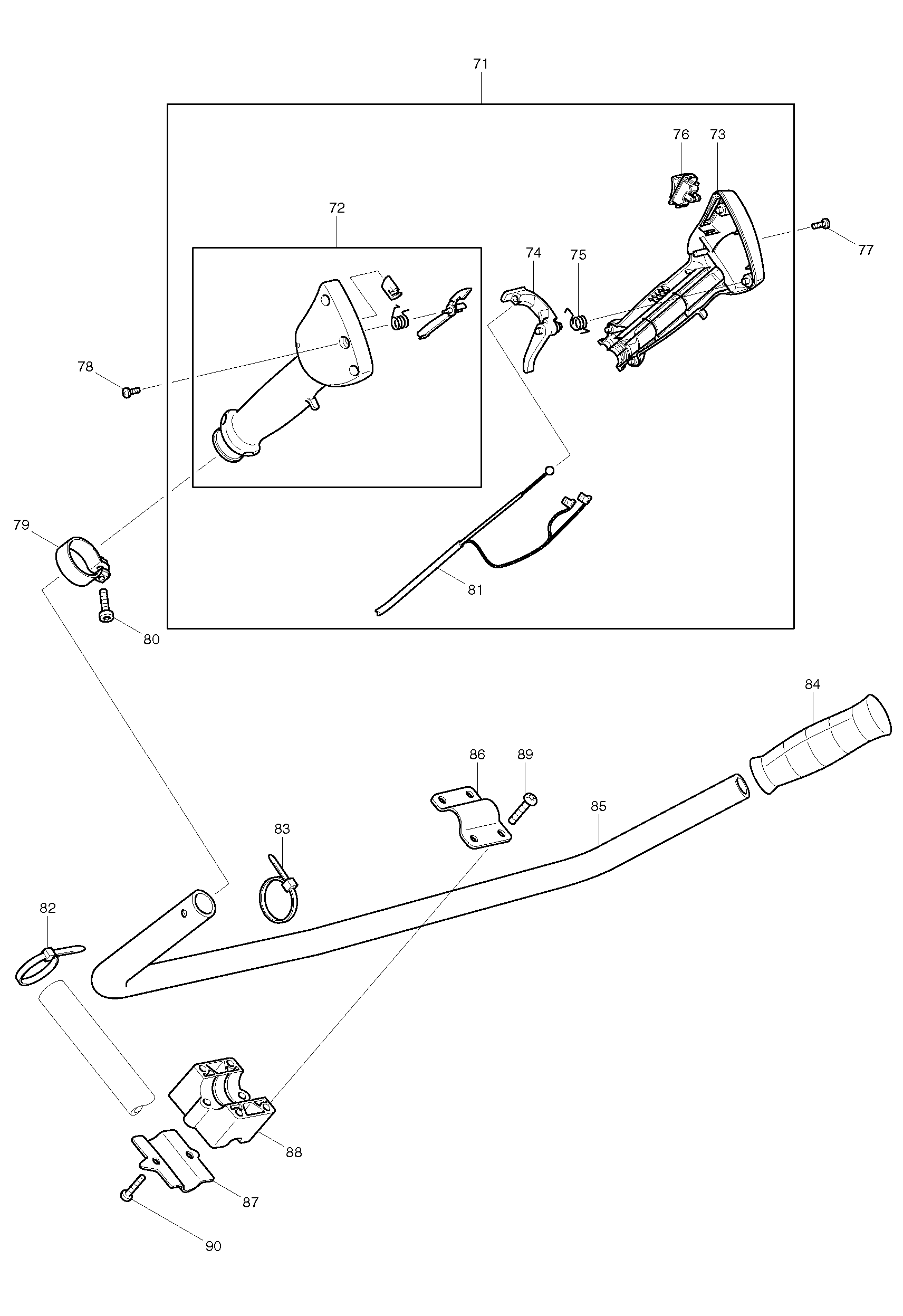

Makita DBC300 parts diagram, sheet 4
No.Part numberPart name
72369313290Makita 369313290 KAHVANPUOLISKO, OIKEPL.
73369313080Makita 369313080 KAHVANPUOLISKO VASEN2
74369311042Makita 369311042 KAASUVIPULERVER
75369311071Makita 369311071 JOUSI
76975001210Makita 975001210 KYTKIN
77915735100Makita 915735100 RUUVI
78915735100Makita 915735100 RUUVI
79965903080Makita 965903080 KIINNITIN RENGAS
80908006255Makita 908006255 RUUVI
81369726010Makita 369726010 KAASUVAIJERI MS-30
82980600100Makita 980600100 FLAT FASTENING
83980600100Makita 980600100 FLAT FASTENING
84387311100Makita 387311100 KAHVA, VASEN
85369310051Makita 369310051 KAHVA
86387310030Makita 387310030 KIINNITYS PIDIN
87369310020Makita 369310020 KIINNITYS PIDIN
88369310030Makita 369310030 KIINNITIN PALA
89913205255Makita 913205255 RUUVI
90913205255Makita 913205255 RUUVI

Sheet 5: Makita DBC300 parts diagram

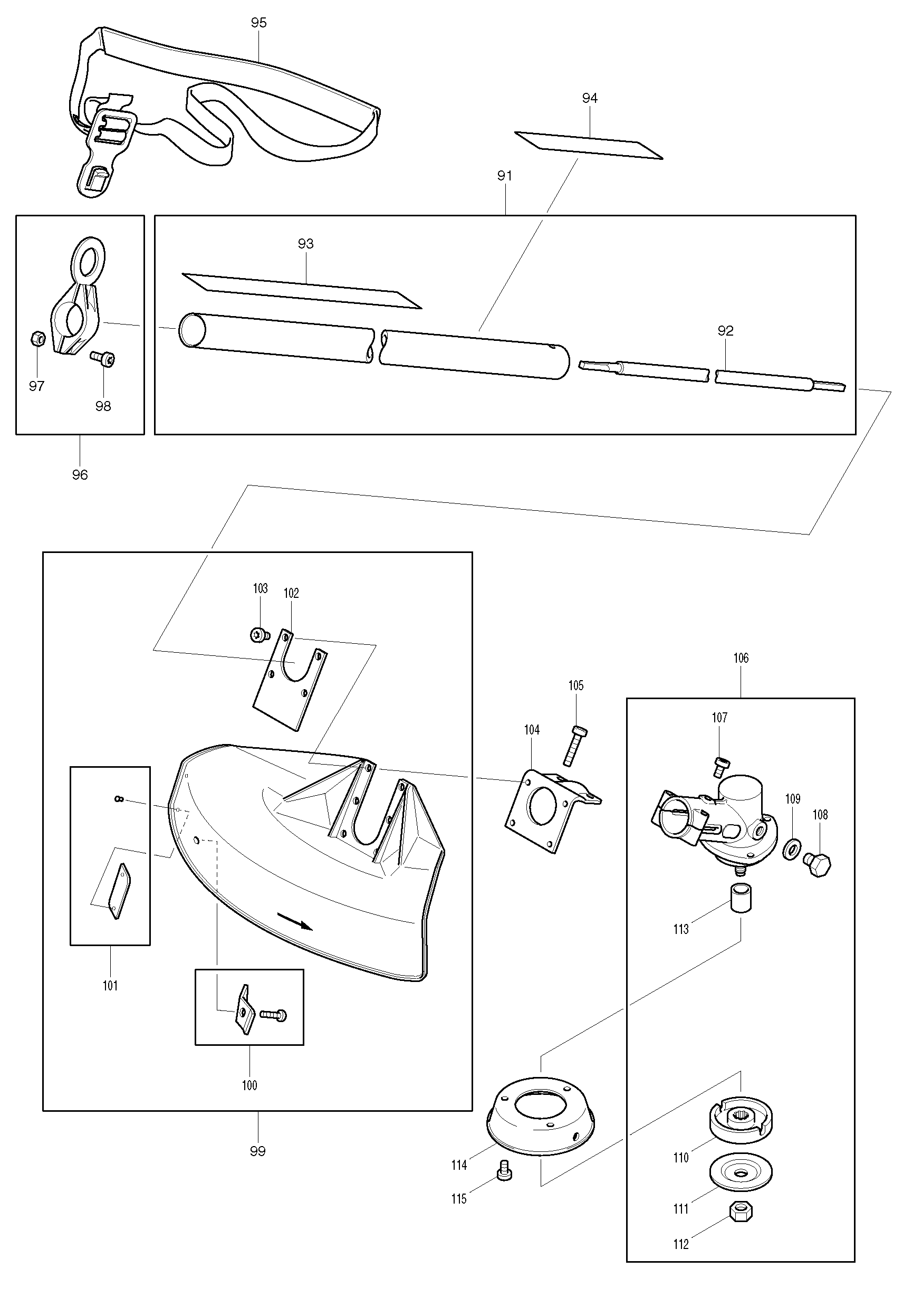

Makita DBC300 parts diagram, sheet 5
No.Part numberPart name
92369228140
93980114484Makita 980114484 KILPI
94980114148Makita 980114148 KILPI
95369260300
97920205000Makita 920205000 MUTTERI M5 110I.115115I.
98908005125Makita 908005125 RUUVI 5X12 109.110I.111.115.PS-43/52/540
100957341010Makita 957341010 SIIMATERÄ JA RUUVI
101957341020Makita 957341020 PROT.COV. REINFORCEMENT TÄYD
102385341021Makita 385341021 KIINNITYS RAUTA SEKTORI SUOJAMS4510
103908005095Makita 908005095 SCREW111.115.PS-43/52/540
104387341031Makita 387341031 LAIPPALEVY
105908005255Makita 908005255 RUUVI
107908005095Makita 908005095 SCREW111.115.PS-43/52/540
108900208104Makita 900208104 RUUVI
109963604306Makita 963604306 TIIVISTE
110387224011Makita 387224011 KIINNITYS LEVY
111387224020Makita 387224020 PAINE LEVY
112387228040Makita 387228040 TURVA MUTTERI
113387228020Makita 387228020 VÄLI RENGAS
114387224050Makita 387224050 WINDING PREVENTER
115908005095Makita 908005095 SCREW111.115.PS-43/52/540
