Makita DBC260U

Makita DBC260U: exploded parts diagram, 4 sheets, 134 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DBC260U: 134 positions on 4 sheets

Sheet 1: Makita DBC260U parts diagram

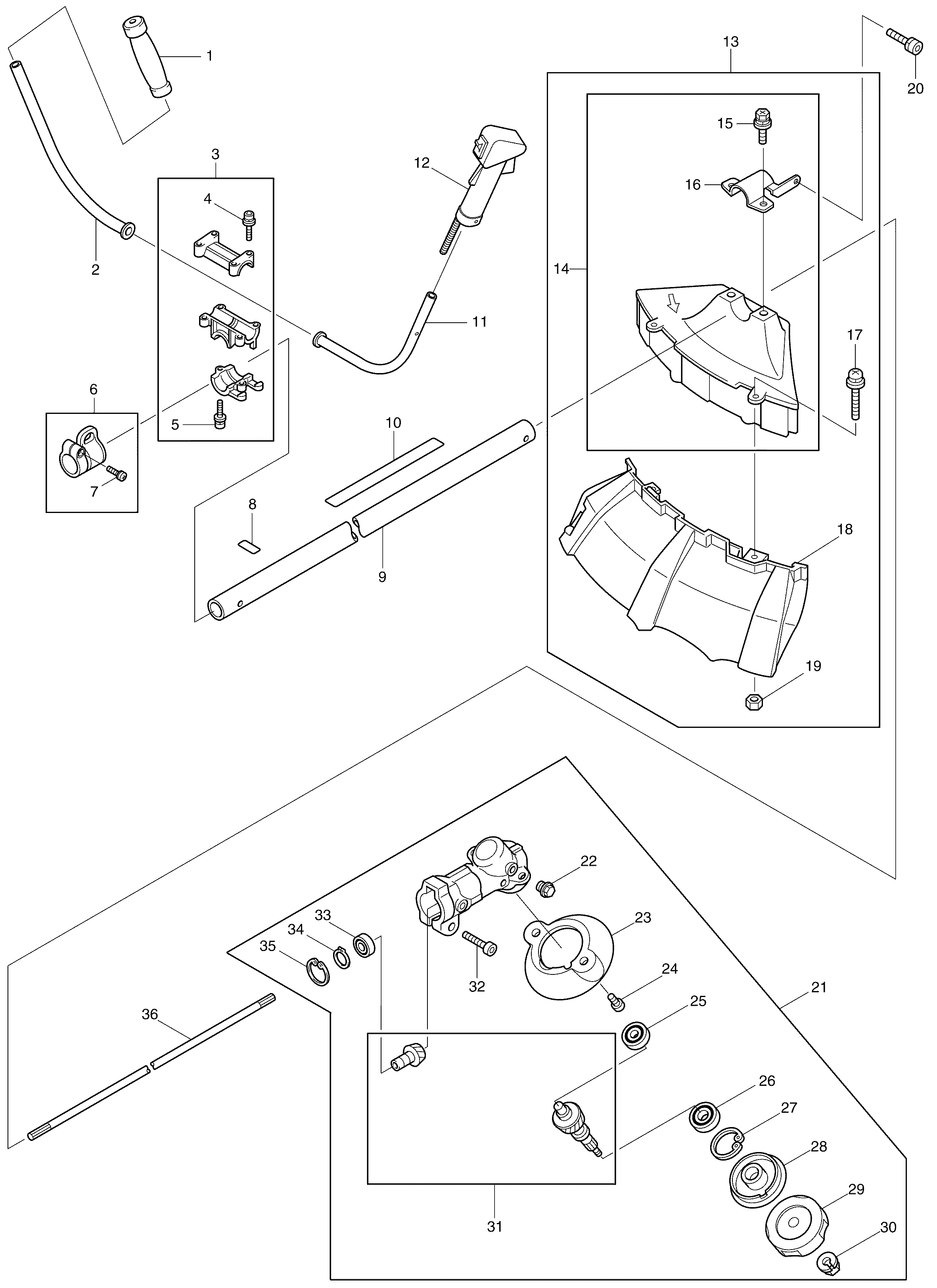

Makita DBC260U parts diagram, sheet 1
No.Part numberPart name
16274501000Makita 6274501000 GRIP
26274500901Makita 6274500901 HANDLEDBC260U
40119059890Makita 0119059890 SOCKET HEAD BOLT M5X25
50119059940Makita 0119059940 HEX. SOCKET HEAD BOLT M5X30
70140059360Makita 0140059360 SCREW & WASHER ASS'YMS26C
86259514700Makita 6259514700 CAUTION LABEL
96251056000Makita 6251056000 PIPEMS26C
106259549500Makita 6259549500 CAUTION LABELDBC260U
116274501200Makita 6274501200 HANDLEDBC260U
126255069000Makita 6255069000 CONTROL LEVER ASSYDBC260U
150100069790Makita 0100069790 BOLT M6X30MS26C
166258509400Makita 6258509400 PROTECTOR CLAMPMS26C
170140059380Makita 0140059380 SCREW ASSEMBLYMS26C
186258053001Makita 6258053001 PROTECTOR COMPLETEMS26C
190021805000Makita 0021805000 NUT
200119059490Makita 0119059490 SOCKET HEAD BOLT M5X14 (W,SW)
226253011012Makita 6253011012 OIL BOLT M6X9
236218500200Makita 6218500200 GUARD
240140059390Makita 0140059390 SCREW ASSEMBLYMS26C
250600069990Makita 0600069990 BALL BEARING 626ZZ
260600109910Makita 0600109910 BALL BEARING 6000DDUMS26C
270031426000Makita 0031426000 INNER SNAP RING
286218501601Makita 6218501601 RECEIVE WASHER
296218003001Makita 6218003001 CLAMP COMPL. WASHERMS26C
306258505001Makita 6258505001 NUT
316243008002OTHR Makita 6243008002 CUTTER SHAFT SETMS26C
320119059890Makita 0119059890 SOCKET HEAD BOLT M5X25
336212500300Makita 6212500300 BALL BEARING 609ZZ
346193006120Makita 6193006120 OUTER SNAP RINGMS26C
350031424000Makita 0031424000 INNER SNAP RING
366191500401Makita 6191500401 SHAFT

Sheet 2: Makita DBC260U parts diagram

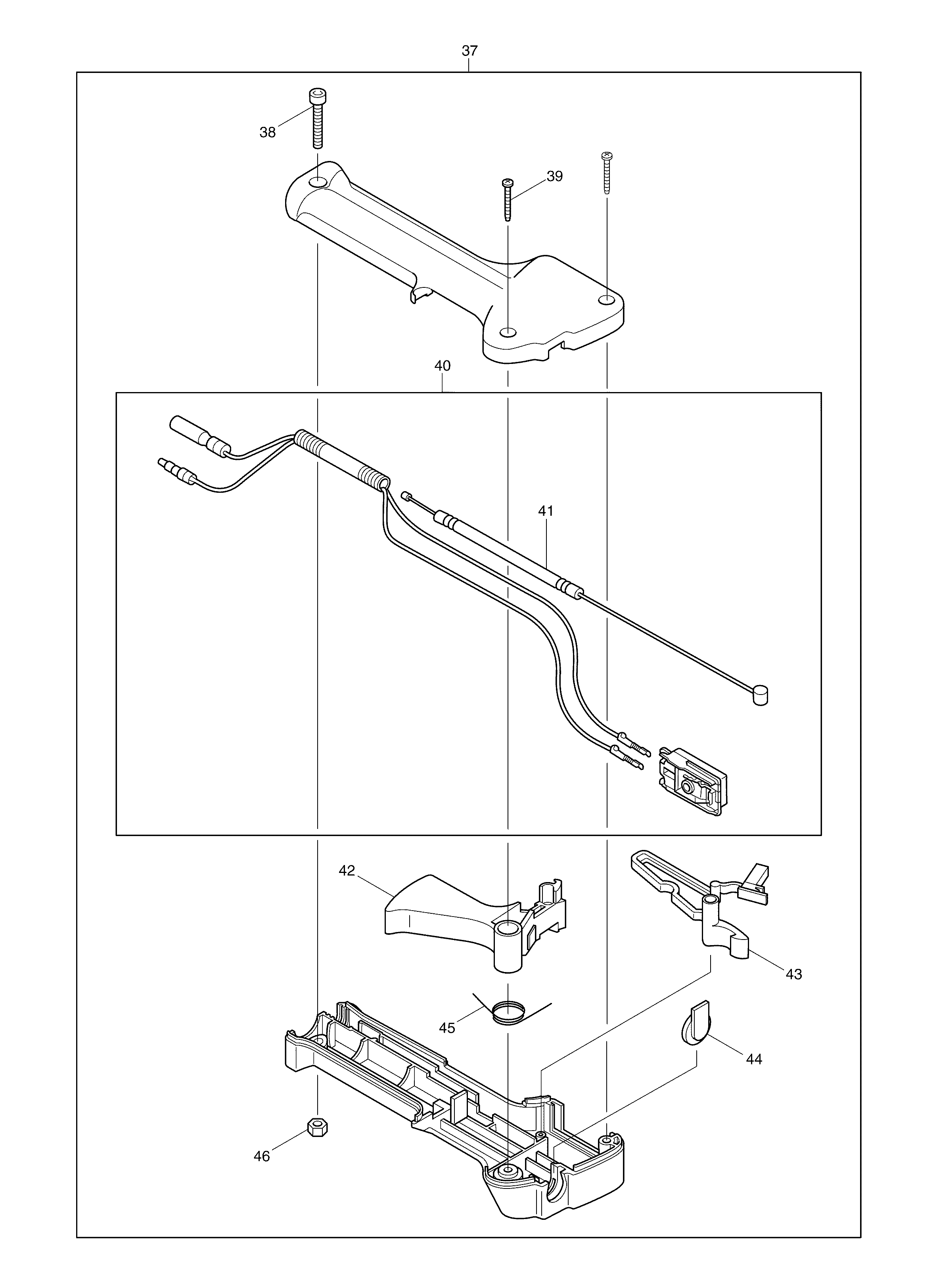

Makita DBC260U parts diagram, sheet 2
No.Part numberPart name
380119059980Makita 0119059980 SOCKET HEAD BOLT M5X30
396195006060Makita 6195006060 TAPPING SCREW M4X20
416255069020Makita 6255069020 WIRE COMPLETEDBC260U
426215022030Makita 6215022030 LEVER
436195013010Makita 6195013010 LEVER MS26C
446195006150Makita 6195006150 TOPMS26C
456195006050Makita 6195006050 SPRING
466215022040Makita 6215022040 NUT M5

Sheet 3: Makita DBC260U parts diagram

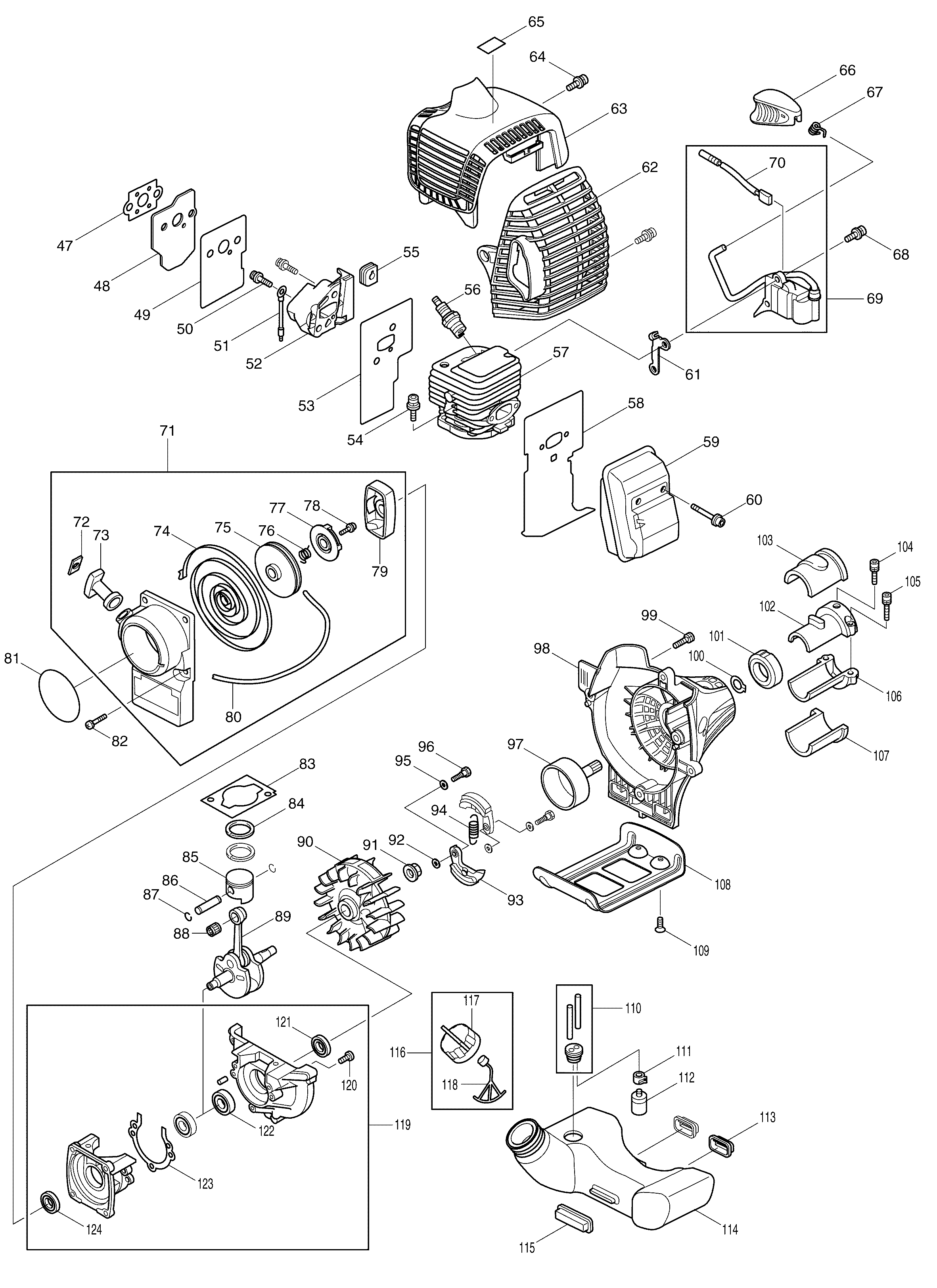

Makita DBC260U parts diagram, sheet 3
No.Part numberPart name
47S135994451Makita S135994451 CARBURETOR GASKETMS26C
48S135173092Makita S135173092 CARBURETOR INSULATORMS26C
49S135993842Makita S135993842 CARBURETOR GASKETMS26C
500119059640Makita 0119059640 SOCKET HEAD BOLT M5X25
515267007000Makita 5267007000 WIRE COMPLETEMS26C
52S199513670Makita S199513670 INSULATORMS26C
53S135994490Makita S135994490 INSULATOR GASKETMS26C
540119059730Makita 0119059730 SOCKET HEAD BOLT M5X20
55S198113530Makita S198113530 RUBBERMS26C
560650149661Makita 0650149661 SPARK PLUG
57S110213770Makita S110213770 CYLINDERMS26C
585263501200Makita 5263501200 MUFFLER GASKETMS26C
59S135043271Makita S135043271 EXHAUST MUFFERMS26C
600119059550Makita 0119059550 SOCKET HEAD BOLTMS26C
61S199513451Makita S199513451 INSULATOR, IGNITIONMS26C
62450399-7Makita 450399-7 MUFFLER COVERMS26C
63450397-1Makita 450397-1 CYLINDER COVERDBC260U
640140059360Makita 0140059360 SCREW & WASHER ASS'YMS26C
650736309870Makita 0736309870 LABELPB-7600.4
66424079-1Makita 424079-1 PLUG CAPMS26C
670654009931Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4
680119049970Makita 0119049970 SOCKET HEAD BOLTMS26C
70S185603500Makita S185603500 WIRE COMPLETEMS26C
725315001030Makita 5315001030 STOPPER
735215002110Makita 5215002110 STARTER KNOB
745215002030Makita 5215002030 SPIRAL SPRINGBHX2500/PB-250.4
755265007030Makita 5265007030 REELMS26C
765265007050Makita 5265007050 DAMPER SPRINGMS26C
775265007040Makita 5265007040 CAM PLATEMS26C
785195002060Makita 5195002060 SET SCREWBHX2500/PB-250.4
795195018000Makita 5195018000 PULLEYMS26C
805265007110Makita 5265007110 STARTER ROPEMS26C
815269500500Makita 5269500500 MODEL LABELDBC260U
820140059330Makita 0140059330 SCREW M5X20(W,SW)MS26C
83S110993460Makita S110993460 CYLINDER GASKETMS26C
84S115113650Makita S115113650 PISTON RINGMS26C
85S115313750Makita S115313750 PISTONMS26C
86S115323041Makita S115323041 PISTON PINMS26C
87S198343210Makita S198343210 CLIPMS26C
88S042709008
895262004000Makita 5262004000 CRANKSHAFT COMPLETEMS26C
90S150103600Makita S150103600 FLYWHEEL COMPLETEMS26C
91S020109107Makita S020109107 NUTMS26C
925928500300Makita 5928500300 WASHER
935928500000Makita 5928500000 CLUTCH SHOE
945928500600Makita 5928500600 SPRINGMS26C
950200089911Makita 0200089911 WASHER M8
965928500400Makita 5928500400 CLUTCH BOLTMS26C
976252022000Makita 6252022000 CLUTCH DRUM COMPLETEMS26C
98450395-5Makita 450395-5 CLUTCH CASEDBC260U
990119059730Makita 0119059730 SOCKET HEAD BOLT M5X20
1000031512000Makita 0031512000 OUTER SNAP RING
101424123-4Makita 424123-4 BUFFER RUBBERMS26C
102318249-1Makita 318249-1 PIPE HOLDER, DBC260
103424082-2Makita 424082-2 BUFFER RUBBER, DBC260U
1040119059900Makita 0119059900 SOCKET HEAD BOLT M5X12
1050119059730Makita 0119059730 SOCKET HEAD BOLT M5X20
106318250-6Makita 318250-6 PIPE HOLDER, DBC260U
107424083-0Makita 424083-0 BUFFER RUBBER, DBC260U
108345882-6Makita 345882-6 STANDMS26C
109266020-6Makita 266020-6 TAPPING SCREW 4X12, 5007NB
1100851209880Makita 0851209880 TUBE COMPLETEMS26C
1110561059990Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4
1125236503900Makita 5236503900 FILTERBHX2500/PB-250.4
113424080-6Makita 424080-6 BUFFER RUBBER, DBC260U
114450400-8Makita 450400-8 FUEL TANKMS26C
115424081-4Makita 424081-4 BUFFER RUBBER, DBC260U
1175266010000Makita 5266010000 CAP FUEL TANK ASSYMS26C
1185256067000Makita 5256067000 STRAPEPH1000
1200119059570Makita 0119059570 SOCKET HEAD BOLT M5X30
121S050209070Makita S050209070 OIL SEALMS26C
1220600129790Makita 0600129790 BALL BEARINGMS26C
123S110993450Makita S110993450 CRANK CASE GASKETMS26C
1240440129940Makita 0440129940 OIL SEALMS26C

Sheet 4: Makita DBC260U parts diagram

Makita DBC260U parts diagram, sheet 4
No.Part numberPart name
1265246001210Makita 5246001210 SWIVELMS26C
1275426005030Makita 5426005030 WASHERBHX2500/PB-250.4
1285266009020Makita 5266009020 SCREWMS26C
1295316005120Makita 5316005120 RINGBHX2500/PB-250.4
1305266009030Makita 5266009030 CABLE BRACKETMS26C
1315926002040Makita 5926002040 PUMP GASKETBHX2500/PB-250.4
1325246001040Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4
1345016004010Makita 5016004010 INLET SCREENBHX2500/PB-250.4
1355236046040Makita 5236046040 METERING DIAPHRAGM GBHX2500/PB-250.4
1365266009010Makita 5266009010 METERING DIAPHRAGM AMS26C
1375236046060Makita 5236046060 AIR PURGE BODY ASS Y
1385246001150Makita 5246001150 PRIMER PUMPBHX2500/PB-250.4
1395236046050Makita 5236046050 PRIMER PUMP COVERBHX2500/PB-250.4
1405236046010Makita 5236046010 PUMP COVER SCREWBHX2500/PB-250.4
1415263005000Makita 5263005000 AIR CLEANER PLATE ASMS26C
1425253503900Makita 5253503900 GASKET,CARBURETORMS26C
1435013502400Makita 5013502400 AIR CLEANER PLATE ASMS26C
1445263501300Makita 5263501300 AIR FILTERMS26C
1450043105603Makita 0043105603 PAN HEAD SCREW M5X60MS26C
146450403-2Makita 450403-2 AIR CLEANER COVERMS26C
1470140059360Makita 0140059360 SCREW & WASHER ASS'YMS26C
