Makita DBC260L

Makita DBC260L: exploded parts diagram, 4 sheets, 131 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DBC260L: 131 positions on 4 sheets

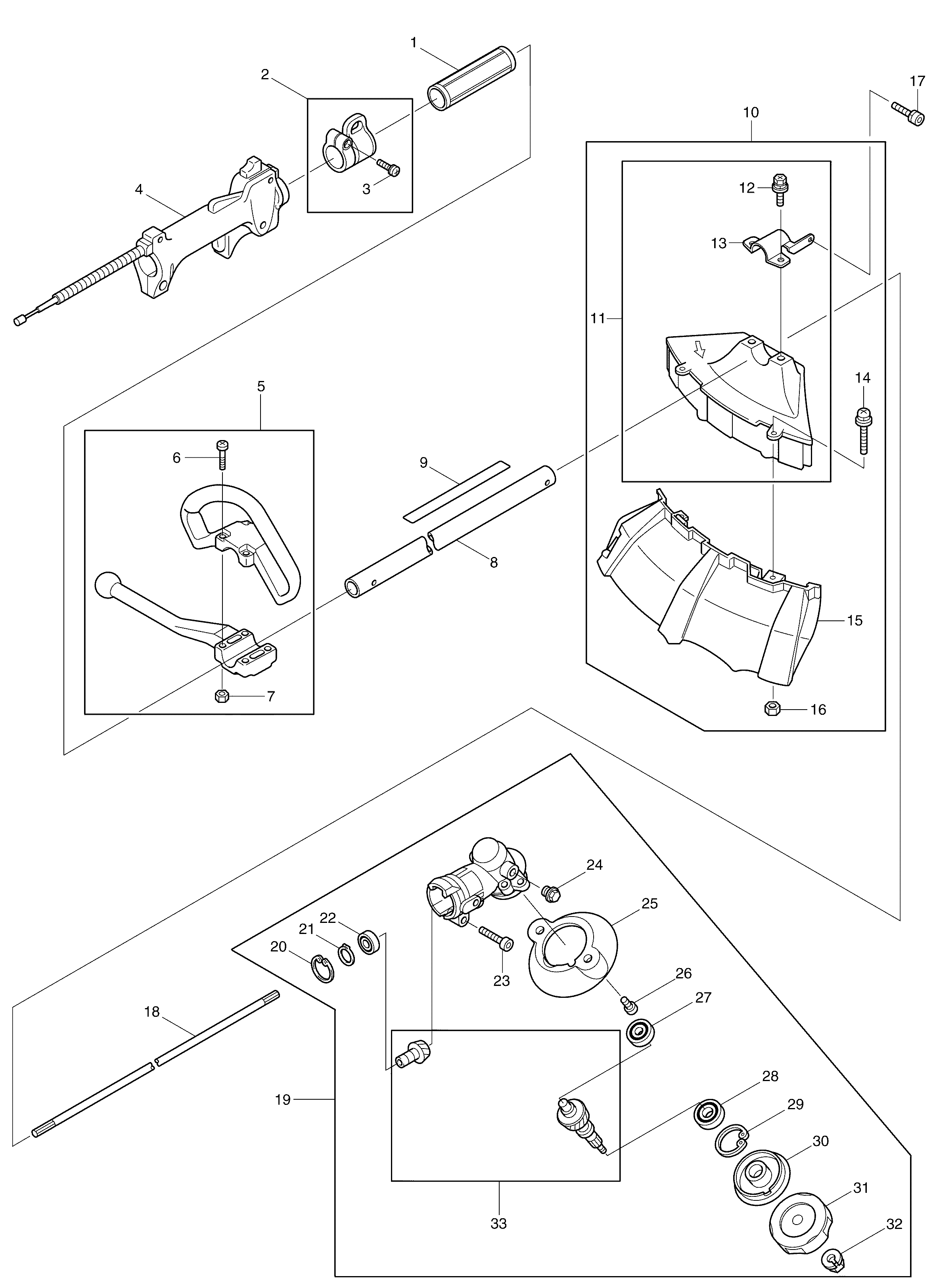

Sheet 1: Makita DBC260L parts diagram

Makita DBC260L parts diagram, sheet 1
No.Part numberPart name
16271501501Makita 6271501501 SPACERMS26C
30140059360Makita 0140059360 SCREW & WASHER ASS'YMS26C
46255070000Makita 6255070000 CONTROL LEVER ASSYMS26C
66214016030Makita 6214016030 SCREWMS26C
70022705000Makita 0022705000 NUT M5
86251056000Makita 6251056000 PIPEMS26C
96259549600
120100069790Makita 0100069790 BOLT M6X30MS26C
136258509400Makita 6258509400 PROTECTOR CLAMPMS26C
140140059380Makita 0140059380 SCREW ASSEMBLYMS26C
156258053001Makita 6258053001 PROTECTOR COMPLETEMS26C
160021805000Makita 0021805000 NUT
170119059490Makita 0119059490 SOCKET HEAD BOLT M5X14 (W,SW)
186191500401Makita 6191500401 SHAFT
200031424000Makita 0031424000 INNER SNAP RING
216193006120Makita 6193006120 OUTER SNAP RINGMS26C
226212500300Makita 6212500300 BALL BEARING 609ZZ
230119059890Makita 0119059890 SOCKET HEAD BOLT M5X25
246253011012Makita 6253011012 OIL BOLT M6X9
256218500200Makita 6218500200 GUARD
260140059390Makita 0140059390 SCREW ASSEMBLYMS26C
270600069990Makita 0600069990 BALL BEARING 626ZZ
280600109910Makita 0600109910 BALL BEARING 6000DDUMS26C
290031426000Makita 0031426000 INNER SNAP RING
306218501601Makita 6218501601 RECEIVE WASHER
316218003001Makita 6218003001 CLAMP COMPL. WASHERMS26C
326258505001Makita 6258505001 NUT
336243008002OTHR Makita 6243008002 CUTTER SHAFT SETMS26C

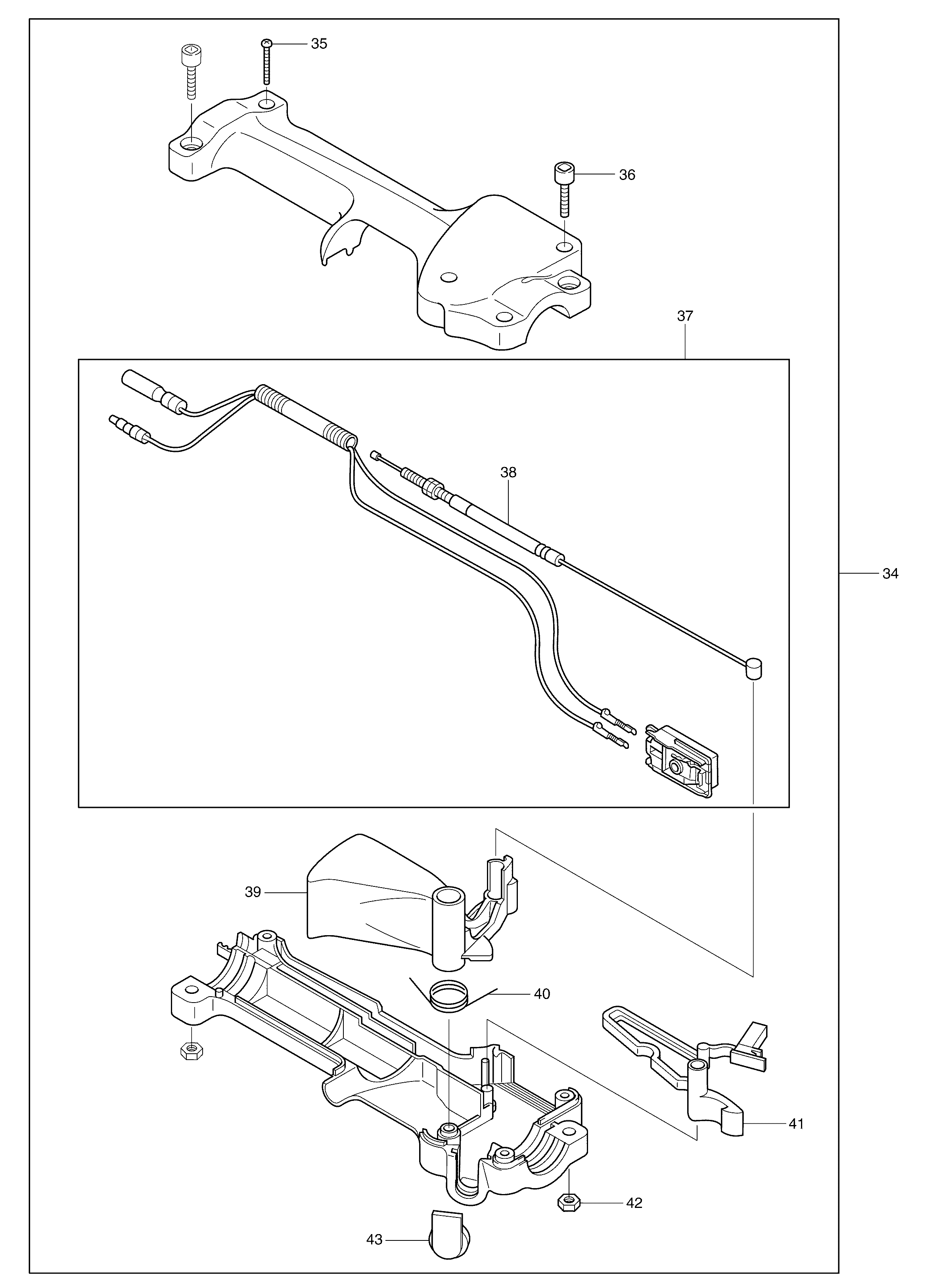

Sheet 2: Makita DBC260L parts diagram

Makita DBC260L parts diagram, sheet 2
No.Part numberPart name
356195006060Makita 6195006060 TAPPING SCREW M4X20
360119059720Makita 0119059720 SOCKET HEAD BOLT M5X20
386255070020Makita 6255070020 WIRE COMPLETEMS26C
396195006030Makita 6195006030 LEVER
406195006050Makita 6195006050 SPRING
416195013010Makita 6195013010 LEVER MS26C
426415011160Makita 6415011160 NUT
436195006150Makita 6195006150 TOPMS26C

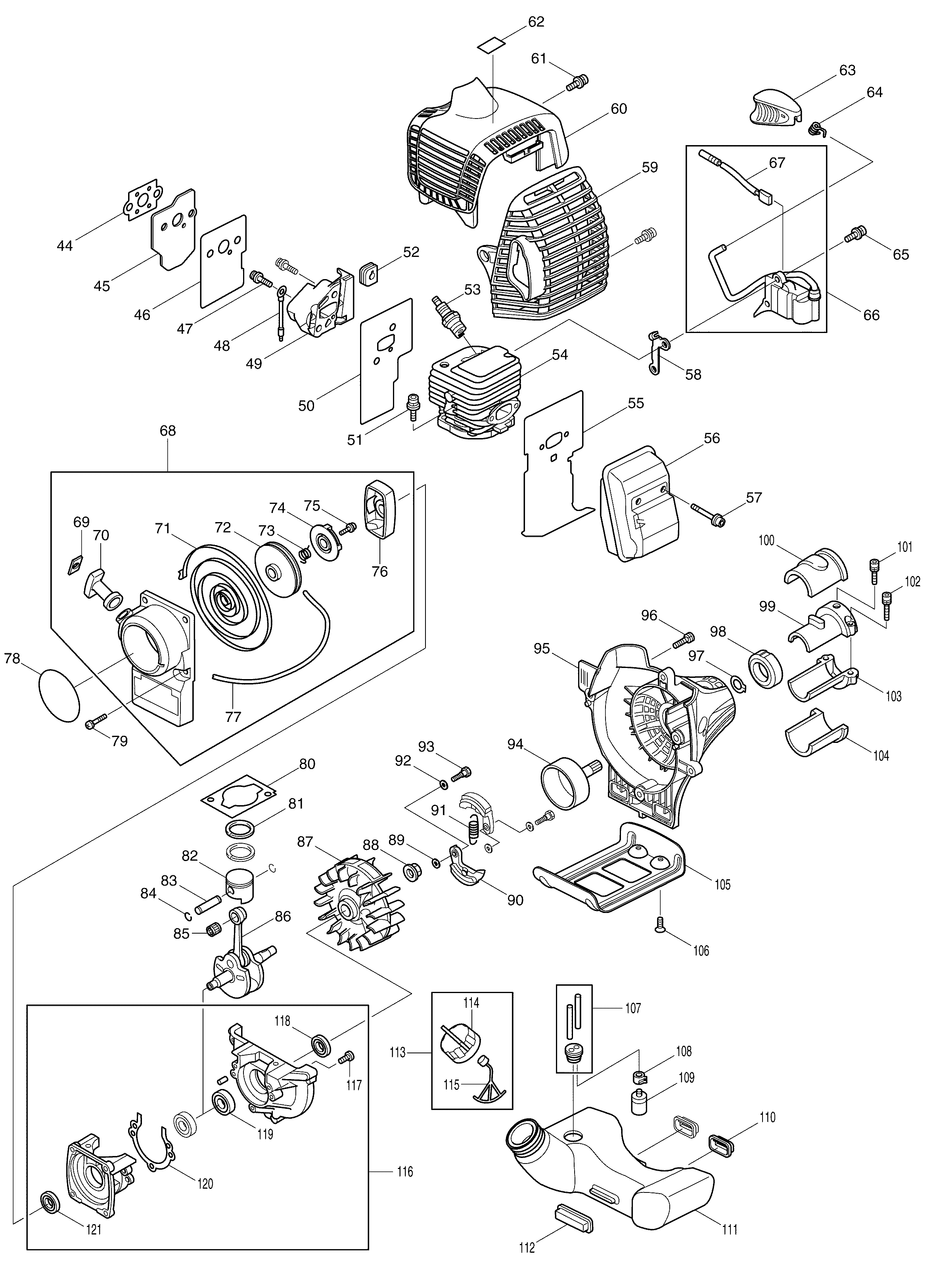

Sheet 3: Makita DBC260L parts diagram

Makita DBC260L parts diagram, sheet 3
No.Part numberPart name
44S135994451Makita S135994451 CARBURETOR GASKETMS26C
45S135173092Makita S135173092 CARBURETOR INSULATORMS26C
46S135993842Makita S135993842 CARBURETOR GASKETMS26C
470119059640Makita 0119059640 SOCKET HEAD BOLT M5X25
485267007000Makita 5267007000 WIRE COMPLETEMS26C
49S199513670Makita S199513670 INSULATORMS26C
50S135994490Makita S135994490 INSULATOR GASKETMS26C
510119059730Makita 0119059730 SOCKET HEAD BOLT M5X20
52S198113530Makita S198113530 RUBBERMS26C
530650149661Makita 0650149661 SPARK PLUG
54S110213770Makita S110213770 CYLINDERMS26C
555263501200Makita 5263501200 MUFFLER GASKETMS26C
56S135043271Makita S135043271 EXHAUST MUFFERMS26C
570119059550Makita 0119059550 SOCKET HEAD BOLTMS26C
58S199513451Makita S199513451 INSULATOR, IGNITIONMS26C
59450399-7Makita 450399-7 MUFFLER COVERMS26C
60450397-1Makita 450397-1 CYLINDER COVERDBC260U
610140059360Makita 0140059360 SCREW & WASHER ASS'YMS26C
620736309870Makita 0736309870 LABELPB-7600.4
63424079-1Makita 424079-1 PLUG CAPMS26C
640654009931Makita 0654009931 PLUG CAP SPRINGBHX2500/PB-250.4
650119049970Makita 0119049970 SOCKET HEAD BOLTMS26C
67S185603500Makita S185603500 WIRE COMPLETEMS26C
695315001030Makita 5315001030 STOPPER
705215002110Makita 5215002110 STARTER KNOB
715215002030Makita 5215002030 SPIRAL SPRINGBHX2500/PB-250.4
725265007030Makita 5265007030 REELMS26C
735265007050Makita 5265007050 DAMPER SPRINGMS26C
745265007040Makita 5265007040 CAM PLATEMS26C
755195002060Makita 5195002060 SET SCREWBHX2500/PB-250.4
765195018000Makita 5195018000 PULLEYMS26C
775265007110Makita 5265007110 STARTER ROPEMS26C
785269500600
790140059330Makita 0140059330 SCREW M5X20(W,SW)MS26C
80S110993460Makita S110993460 CYLINDER GASKETMS26C
81S115113650Makita S115113650 PISTON RINGMS26C
82S115313750Makita S115313750 PISTONMS26C
83S115323041Makita S115323041 PISTON PINMS26C
84S198343210Makita S198343210 CLIPMS26C
85S042709008
865262004000Makita 5262004000 CRANKSHAFT COMPLETEMS26C
87S150103600Makita S150103600 FLYWHEEL COMPLETEMS26C
88S020109107Makita S020109107 NUTMS26C
895928500300Makita 5928500300 WASHER
905928500000Makita 5928500000 CLUTCH SHOE
915928500600Makita 5928500600 SPRINGMS26C
920200089911Makita 0200089911 WASHER M8
935928500400Makita 5928500400 CLUTCH BOLTMS26C
946252022000Makita 6252022000 CLUTCH DRUM COMPLETEMS26C
95450395-5Makita 450395-5 CLUTCH CASEDBC260U
960119059730Makita 0119059730 SOCKET HEAD BOLT M5X20
970031512000Makita 0031512000 OUTER SNAP RING
98424123-4Makita 424123-4 BUFFER RUBBERMS26C
99318249-1Makita 318249-1 PIPE HOLDER, DBC260
100424082-2Makita 424082-2 BUFFER RUBBER, DBC260U
1010119059900Makita 0119059900 SOCKET HEAD BOLT M5X12
1020119059730Makita 0119059730 SOCKET HEAD BOLT M5X20
103318250-6Makita 318250-6 PIPE HOLDER, DBC260U
104424083-0Makita 424083-0 BUFFER RUBBER, DBC260U
105345882-6Makita 345882-6 STANDMS26C
106266020-6Makita 266020-6 TAPPING SCREW 4X12, 5007NB
1070851209880Makita 0851209880 TUBE COMPLETEMS26C
1080561059990Makita 0561059990 HOSE CLAMPBHX2500/PB-250.4
1095236503900Makita 5236503900 FILTERBHX2500/PB-250.4
110424080-6Makita 424080-6 BUFFER RUBBER, DBC260U
111450400-8Makita 450400-8 FUEL TANKMS26C
112424081-4Makita 424081-4 BUFFER RUBBER, DBC260U
1145266010000Makita 5266010000 CAP FUEL TANK ASSYMS26C
1155256067000Makita 5256067000 STRAPEPH1000
1170119059570Makita 0119059570 SOCKET HEAD BOLT M5X30
118S050209070Makita S050209070 OIL SEALMS26C
1190600129790Makita 0600129790 BALL BEARINGMS26C
120S110993450Makita S110993450 CRANK CASE GASKETMS26C
1210440129940Makita 0440129940 OIL SEALMS26C

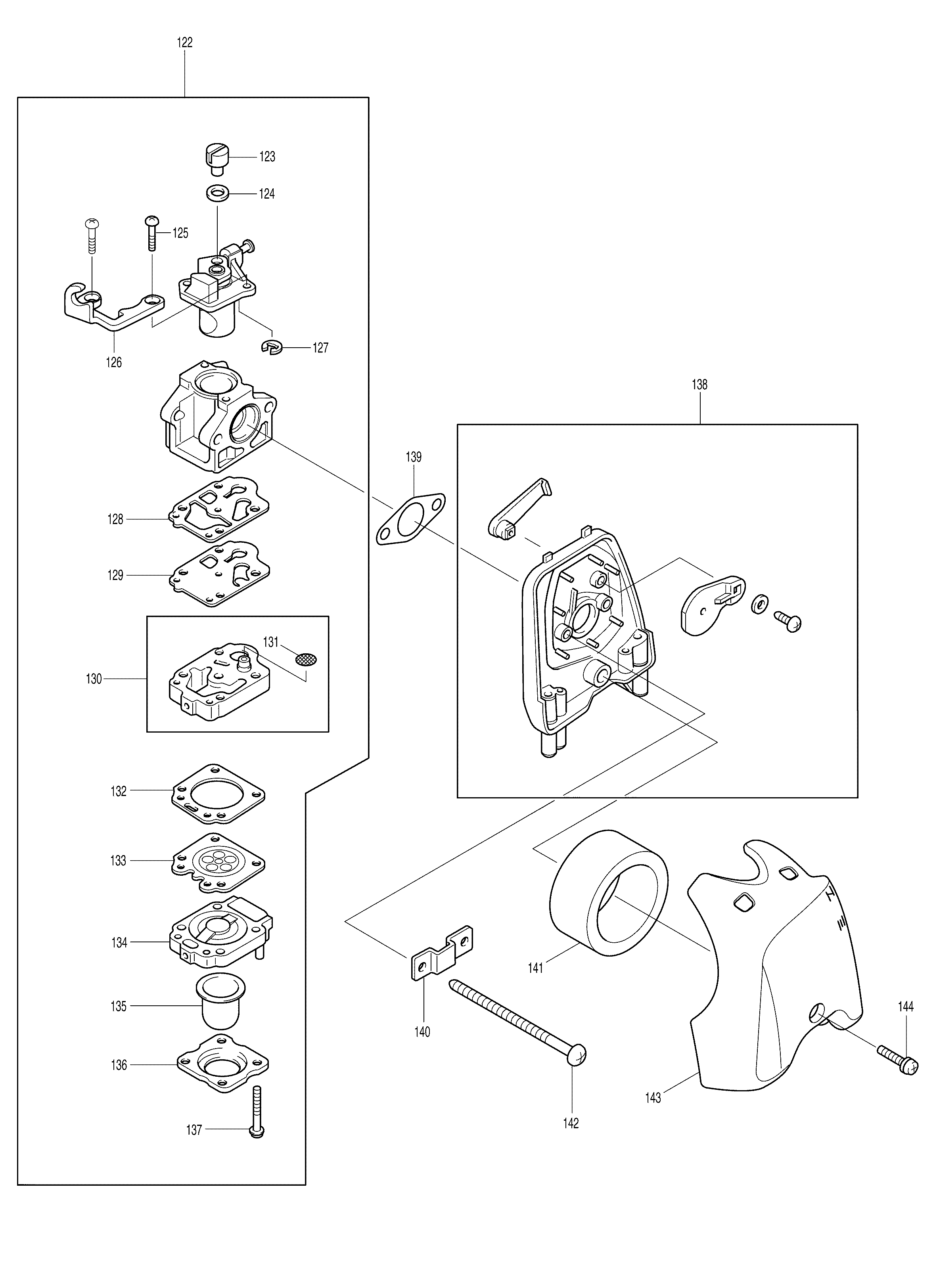

Sheet 4: Makita DBC260L parts diagram

Makita DBC260L parts diagram, sheet 4
No.Part numberPart name
1235246001210Makita 5246001210 SWIVELMS26C
1245426005030Makita 5426005030 WASHERBHX2500/PB-250.4
1255266009020Makita 5266009020 SCREWMS26C
1265266009030Makita 5266009030 CABLE BRACKETMS26C
1275316005120Makita 5316005120 RINGBHX2500/PB-250.4
1285926002040Makita 5926002040 PUMP GASKETBHX2500/PB-250.4
1295246001040Makita 5246001040 PUMP DIAPHRAGMBHX2500/PB-250.4
1315016004010Makita 5016004010 INLET SCREENBHX2500/PB-250.4
1325236046040Makita 5236046040 METERING DIAPHRAGM GBHX2500/PB-250.4
1335266009010Makita 5266009010 METERING DIAPHRAGM AMS26C
1345236046060Makita 5236046060 AIR PURGE BODY ASS Y
1355246001150Makita 5246001150 PRIMER PUMPBHX2500/PB-250.4
1365236046050Makita 5236046050 PRIMER PUMP COVERBHX2500/PB-250.4
1375236046010Makita 5236046010 PUMP COVER SCREWBHX2500/PB-250.4
1385263005000Makita 5263005000 AIR CLEANER PLATE ASMS26C
1395253503900Makita 5253503900 GASKET,CARBURETORMS26C
1405013502400Makita 5013502400 AIR CLEANER PLATE ASMS26C
1415263501300Makita 5263501300 AIR FILTERMS26C
1420043105603Makita 0043105603 PAN HEAD SCREW M5X60MS26C
143450403-2Makita 450403-2 AIR CLEANER COVERMS26C
1440140059360Makita 0140059360 SCREW & WASHER ASS'YMS26C
