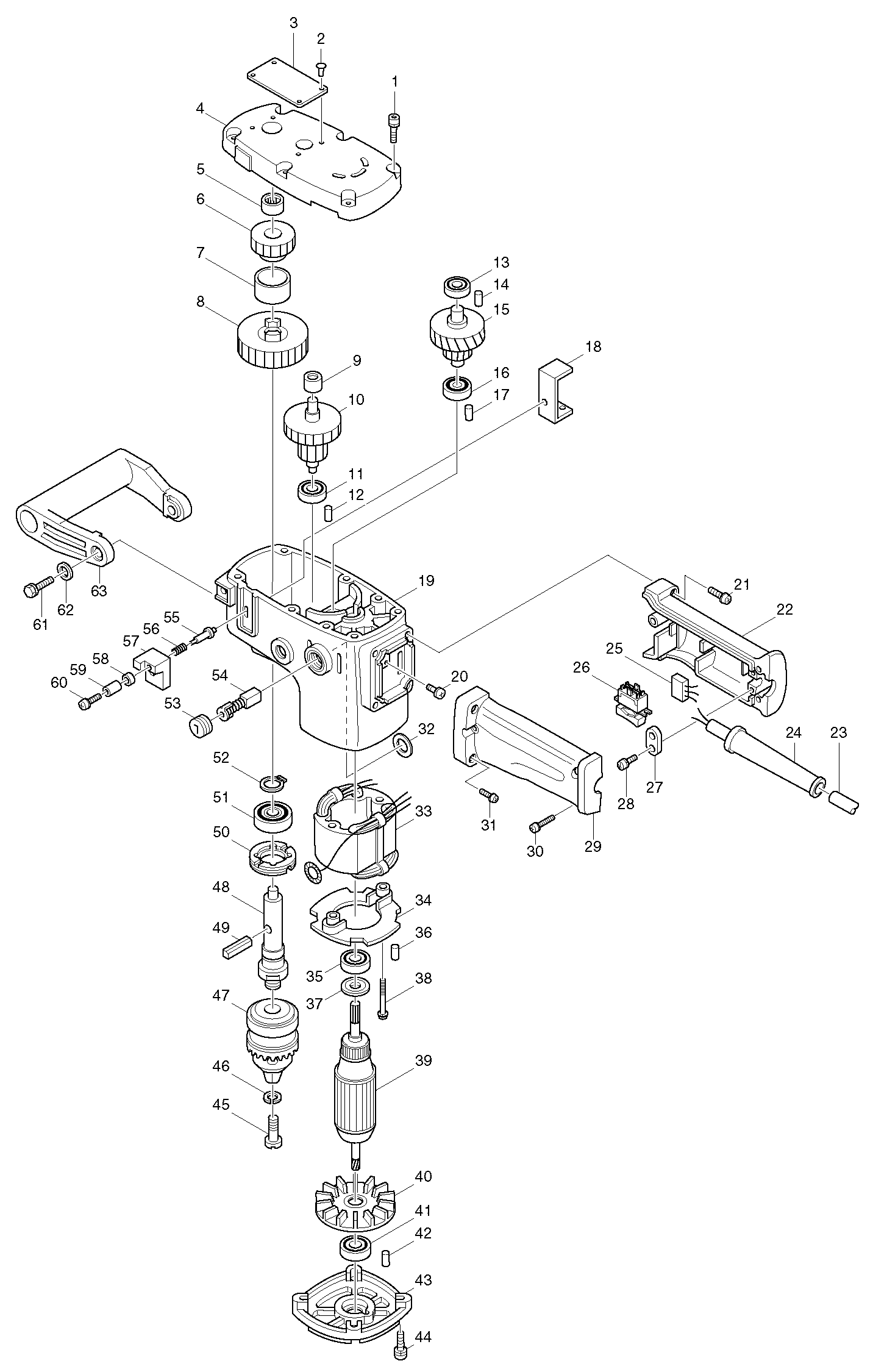

Sheet 1: Makita DA6300 parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 911241-2 | Makita 911241-2 PAN HEAD SCREW M5X25 W, JR300VT |
| 2 | 953106-2 | Makita 953106-2 RIVET 0-5 |
| 3 | 856630-3 | Makita 856630-3 NAME PLATE DA6300 |
| 4 | 157398-7 | |
| 5 | 212052-1 | Makita 212052-1 NEEDLE BEARING 1010, 5007NB |
| 6 | 221877-2 | |
| 7 | 257573-6 | Makita 257573-6 SLEEVE 26 |
| 8 | 226227-6 | Makita 226227-6 SPUR GEAR 28 |
| 9 | 212004-2 | Makita 212004-2 NEEDLE BEARING 810 |
| 10 | 226102-6 | MAKITA 226102-6 GEAR COMPLETE 10-45 |
| 11 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 12 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 13 | 211028-5 | Makita 211028-5 BALL BEARING 627LB, 1900B |
| 14 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 15 | 226101-8 | Makita 226101-8 GEAR COMPLETE 12-59 |
| 16 | 211018-8 | Makita 211018-8 BALL BEARING 626LB |
| 17 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 18 | 341749-6 | Makita 341749-6 SLIDER |
| 19 | 159790-3 | |
| 20 | 652014-1 | Makita 652014-1 PAN HEAD SCREW M4X8 |
| 21 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 22 | 182280-1 | Makita 182280-1 HANDLE SET |
| 23 | 666333-9 | Makita 666333-9 POWER SUPPLY CORD 1.00-3- |
| 24 | 682503-2 | Makita 682503-2 Cord Guard 8-90, 5806B |
| 25 | 645253-0 | Makita 645253-0 CAPACITOR, 6410 |
| 26 | 651558-8 | Makita 651558-8 SWITCH SL220SD-4 |
| 27 | 687001-1 | Makita 687001-1 STRAIN RELIEF B04510 |
| 28 | 911133-5 | Makita 911133-5 PAN HEAD SCREW M4X8 WITH WR, 438 |
| 29 | 182280-1 | Makita 182280-1 HANDLE SET |
| 30 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 31 | 911216-1 | Makita 911216-1 PAN HEAD SCREW M5X14 |
| 32 | 681001-3 | |
| 33 | 522528-3 | Makita 522528-3 FIELD ASS'Y 220V |
| 34 | 411895-0 | |
| 35 | 211061-7 | Makita 211061-7 BALL BEARING 6000LLB, 6220D |
| 36 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 37 | 213059-0 | Makita 213059-0 DUST SEAL 10 |
| 38 | 911681-4 | |
| 39 | 512738-0 | Makita 512738-0 Armature Ass'y 220V |
| 40 | 241635-0 | Makita 241635-0 FAN 70 |
| 41 | 211033-2 | Makita 211033-2 BALL BEARING 608LB, 4100NH |
| 42 | 263002-9 | Makita 263002-9 RUBBER PIN 4, 5704R |
| 43 | 152209-1 | |
| 44 | 911236-5 | Makita 911236-5 PAN HEAD SCREW M5X22 |
| 45 | 251442-3 | Makita 251442-3 FLAT HEAD SCREW M6 |
| 46 | 942151-2 | Makita 942151-2 SPRING WASHER 6, 5806B |
| 47 | 192883-3 | Makita 192883-3 DRILLCHUCK 13MM, 5/8" |
| 48 | 322421-9 | |
| 49 | 321530-1 | Makita 321530-1 PIN 6 |
| 50 | 285809-3 | Makita 285809-3 BEARING RETAINER 23-36, N5900B |
| 51 | 211251-2 | Makita 211251-2 BALL BEARING 6003VVCM, 5277NB |
| 52 | 961057-5 | Makita 961057-5 RETAINING RING S-17, LS1016 |
| 53 | 643600-9 | Makita 643600-9 Holder Cup for DA6300 |
| 54 | 181030-1 | Makita 181030-1 Carbon Brushes CB-100 for 6906 9005B 9901 PC1100 |
| 55 | 321891-9 | Makita 321891-9 STOPPER PIN |
| 56 | 231098-8 | Makita 231098-8 COMPRESSION SPRING 6 |
| 57 | 410627-2 | |
| 58 | 321892-7 | Makita 321892-7 NUT |
| 59 | 257574-4 | Makita 257574-4 SLEEVE 5 |
| 60 | 911218-7 | Makita 911218-7 PAN HEAD SCREW M5X14, EBH252U |
| 61 | 921441-6 | |
| 62 | 941202-8 | Makita 941202-8 FLAT WASHER 8 |
| 63 | 273628-9 | Makita 273628-9 GRIP |
