Makita DA390D
Makita DA390D: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DA390D: 20 positions on 1 sheet

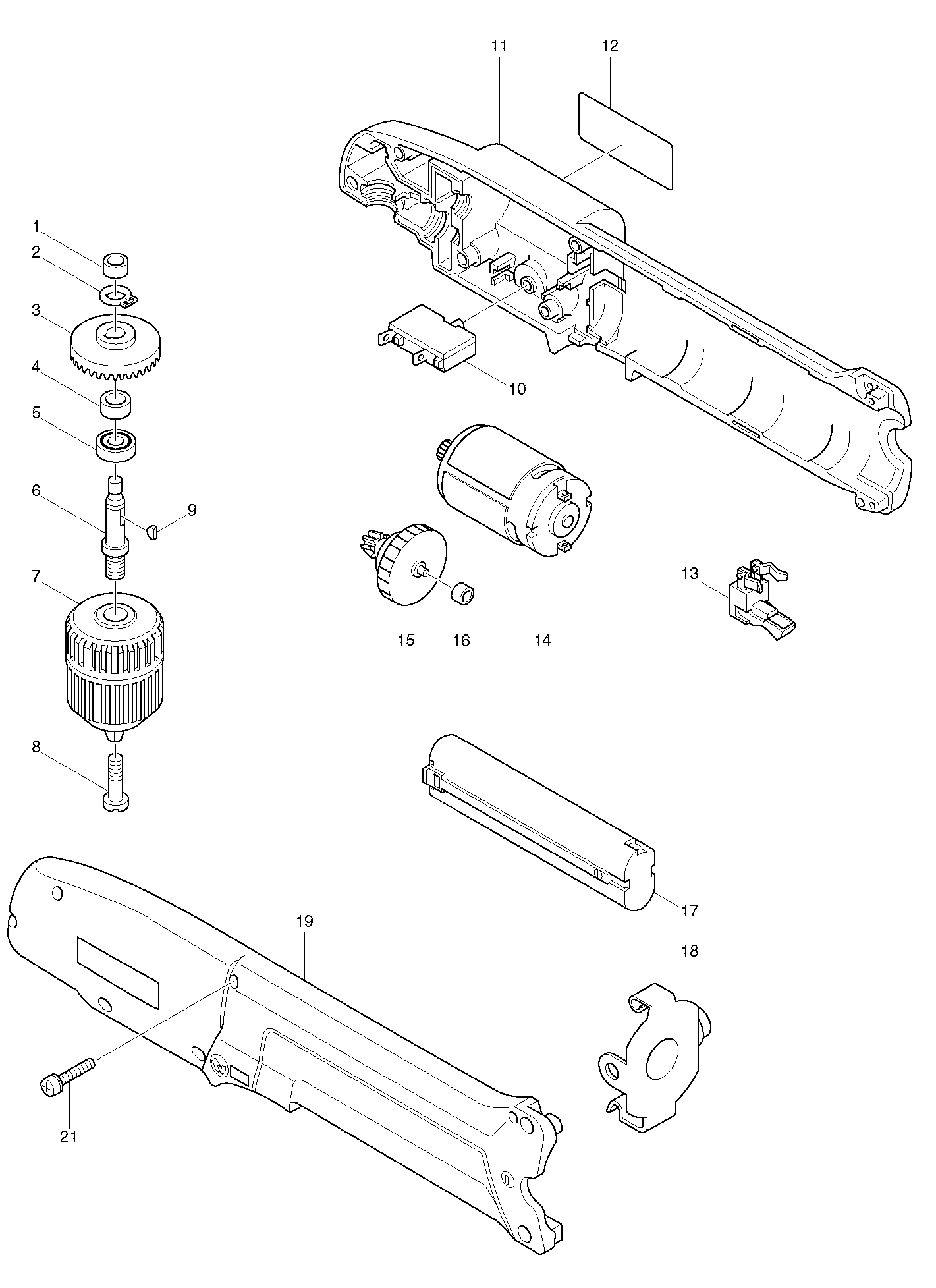

Sheet 1: Makita DA390D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 2 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
| 3 | 221387-9 | Makita 221387-9 SPIRAL BEVEL GEAR 36 |
| 4 | 257106-7 | Makita 257106-7 RING 8 |
| 5 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 6 | 322278-8 | Makita 322278-8 SPINDLE |
| 7 | 763083-8 | |
| 8 | 251451-2 | Makita 251451-2 Pan Head Screw M5X22 for 6220D |
| 9 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 10 | 652532-9 | Makita 652532-9 OVER CURRENT RELAY BC51 |
| 11 | 182366-1 | Makita 182366-1 HOUSING SET |
| 12 | 856410-7 | Makita 856410-7 NAME PLATE DA390D |
| 13 | 531043-6 | Makita 531043-6 Switch for TG60A 6010DW 4103DW |
| 14 | 629595-0 | Makita 629595-0 DC MOTOR 9.6V |
| 15 | 153193-3 | Makita 153193-3 GEAR COMPLETE |
| 16 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 17 | 191681-2 | |
| 18 | 163157-9 | Makita 163157-9 SET PLATE |
| 19 | 182366-1 | Makita 182366-1 HOUSING SET |
| 21 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
