Makita DA333D: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DA333D: 36 positions on 1 sheet

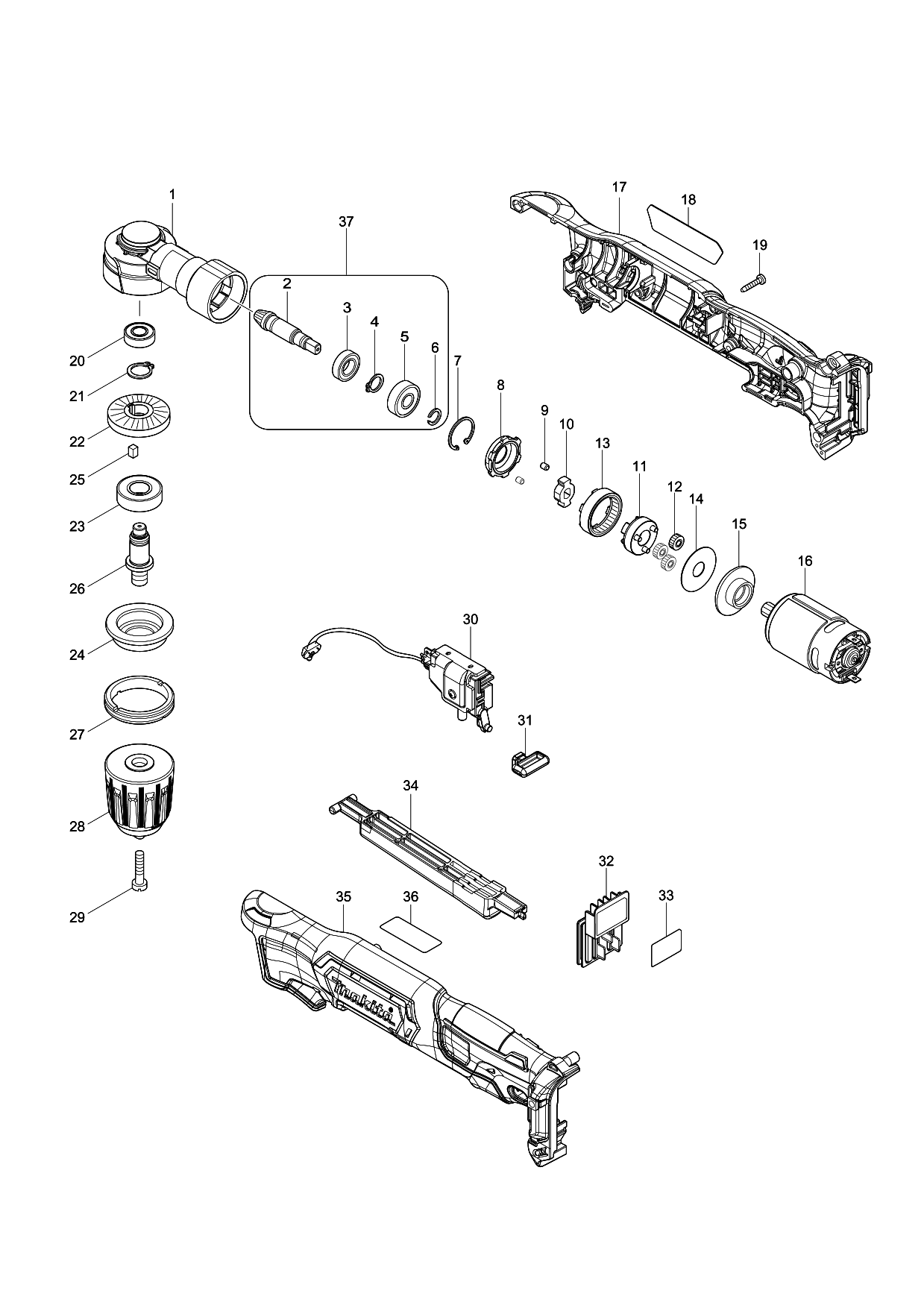

Sheet 1: Makita DA333D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 319635-9 | Makita 319635-9 GEAR HOUSING |
| 2 | 221570-8 | Makita 221570-8 SPIRAL BEVEL GEAR 6 |
| 3 | 210171-7 | Makita 210171-7 BALL BEARING 6800ZZ |
| 4 | 961006-2 | Makita 961006-2 RETAINING RING S-10, JR300VT |
| 5 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 6 | 961034-7 | Makita 961034-7 Retaining Ring (EXT) WR-8 for HR281FT |
| 7 | 962102-9 | Makita 962102-9 RETAINING RING R-22 |
| 8 | 310831-2 | Makita 310831-2 LOCK RING |
| 9 | 256372-3 | Makita 256372-3 PIN 3.5 |
| 10 | 310832-0 | Makita 310832-0 LOCK CAM |
| 11 | 144702-9 | Makita 144702-9 CARRIER COMPLETE |
| 12 | 221572-4 | Makita 221572-4 SPUR GEAR 17 |
| 13 | 221569-3 | Makita 221569-3 INTERNAL GEAR 48 |
| 14 | 253396-0 | Makita 253396-0 FLAT WASHER 10 |
| 15 | 457972-4 | Makita 457972-4 MOTOR BRACKET |
| 16 | 629291-0 | Makita 629291-0 DC MOTOR |
| 17 | 183H38-9 | Makita 183H38-9 HOUSING SET |
| 18 | 853T75-6 | |
| 19 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 20 | 211166-3 | Makita 211166-3 BALL BEARING 698DDW |
| 21 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 22 | 227603-7 | Makita 227603-7 SPIRAL BEVEL GEAR 31 |
| 23 | 210163-6 | Makita 210163-6 BALL BEARING 6001DDW |
| 24 | 317633-7 | Makita 317633-7 BEARING BOX, DA3011/BDA |
| 25 | 254201-4 | Makita 254201-4 KEY 4 |
| 26 | 327015-5 | Makita 327015-5 SPINDLE |
| 27 | 285842-5 | Makita 285842-5 BEARING RETAINER 36-43 |
| 28 | 763228-8 | Makita 763228-8 Keyless Drill Chuck 10 for DF331D DF331DZ DF330D |
| 29 | 251451-2 | Makita 251451-2 Pan Head Screw M5X22 for 6220D |
| 30 | 651097-8 | Makita 651097-8 SWITCH |
| 31 | 450126-2 | Makita 450126-2 FR CHANGE LEVERBTL061 |
| 32 | 644813-5 | Makita 644813-5 Terminal |
| 33 | 853T79-8 | |
| 34 | 457973-2 | Makita 457973-2 SWITCH LEVER |
| 35 | 183H38-9 | Makita 183H38-9 HOUSING SET |
| 36 |
