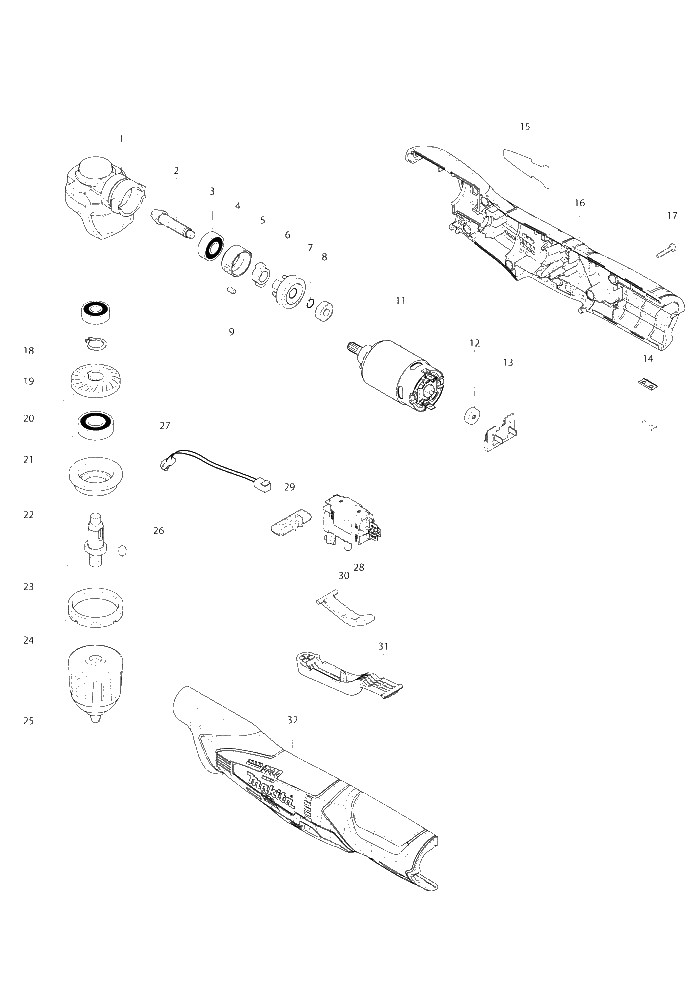

Sheet 1: Makita DA331D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 318934-6 | Makita 318934-6 GEAR HOUSING |
| 2 | 227602-9 | Makita 227602-9 SPIRAL BEVEL GEAR 6 |
| 3 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 4 | 324930-4 | Makita 324930-4 LOCK RING ,BDA341 |
| 5 | 331647-2 | Makita 331647-2 LOCK CAM, DDA351 |
| 6 | 227278-2 | Makita 227278-2 SPUR GEAR 32 |
| 7 | 231956-8 | Makita 231956-8 RING SPRING 6 |
| 8 | 210033-9 | Makita 210033-9 Ball Bearing 696ZZ, 9535NB |
| 9 | 268100-4 | Makita 268100-4 PIN 3,5 ,BDA341/351 |
| 10 | ||
| 11 | 629115-0 | |
| 12 | 424529-6 | Makita 424529-6 CAP |
| 13 | 643830-2 | Makita 643830-2 TERMINAL, DF030D |
| 14 | 345998-7 | Makita 345998-7 SET PLATE, DF030D |
| 15 | 814C04-2 | |
| 16 | 187529-4 | Makita 187529-4 HOUSING SET |
| 17 | 266130-9 | Makita 266130-9 Tapping Screw PT 3X16, 6935FD |
| 18 | 210029-0 | Makita 210029-0 BALL BEARING 608ZZ, MT410 |
| 19 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 20 | 227603-7 | Makita 227603-7 SPIRAL BEVEL GEAR 31 |
| 21 | 211131-2 | Makita 211131-2 BALL BEARING 6001DDW, 5903R |
| 22 | 317633-7 | Makita 317633-7 BEARING BOX, DA3011/BDA |
| 23 | 326215-4 | Makita 326215-4 SPINDLE |
| 24 | 285842-5 | Makita 285842-5 BEARING RETAINER 36-43 |
| 25 | 766007-3 | |
| 26 | 254201-4 | Makita 254201-4 KEY 4 |
| 27 | 620177-1 | Makita 620177-1 LED CIRCUIT |
| 28 | 650666-2 | Makita 650666-2 SWITCH JR100D |
| 29 | 450610-7 | Makita 450610-7 F/R CHANGE LEVER, BDA340 |
| 30 | 454100-2 | Makita 454100-2 LINK |
| 31 | 454102-8 | Makita 454102-8 SWITCH LEVER |
| 32 | 187529-4 | Makita 187529-4 HOUSING SET |
