All parts of Makita DA301D: 20 positions on 1 sheet

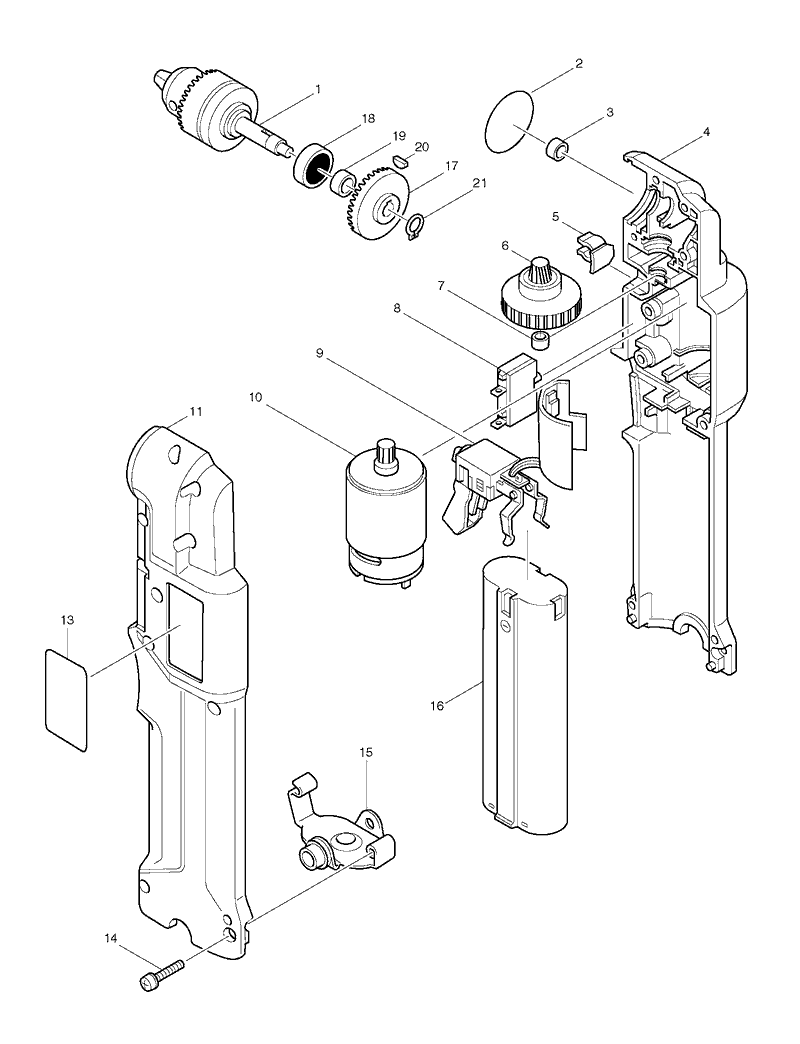

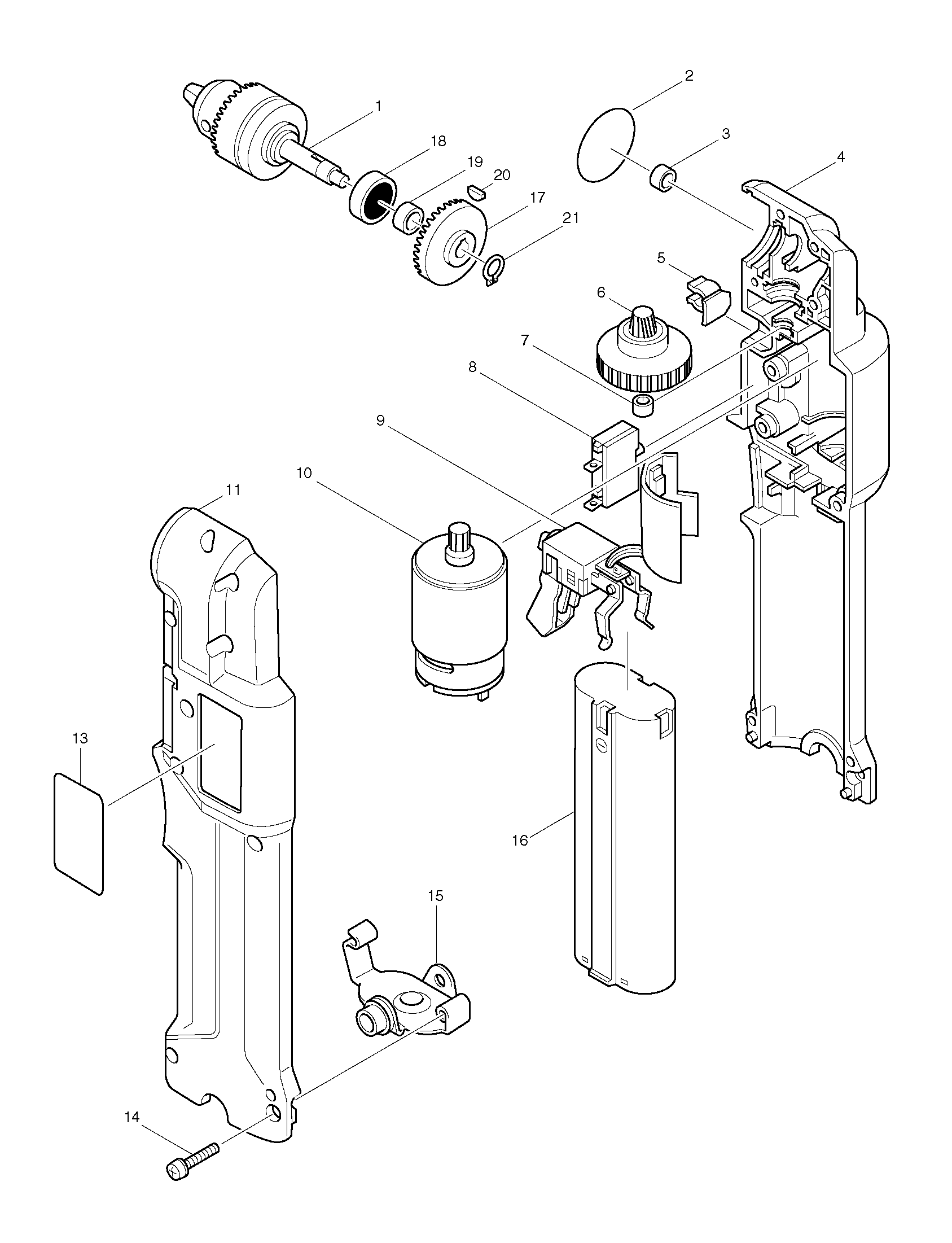

Sheet 1: Makita DA301D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 192885-9 | |
| 2 | 213458-6 | Makita 213458-6 O RING 34 |
| 3 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 4 | 182381-5 | Makita 182381-5 HOUSING SET |
| 5 | 411640-3 | Makita 411640-3 HOLDER 6 |
| 6 | 153153-5 | Makita 153153-5 GEAR COMPLETE |
| 7 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 8 | 652532-9 | Makita 652532-9 OVER CURRENT RELAY BC51 |
| 9 | 651913-4 | Makita 651913-4 Switch TG55A |
| 10 | 629514-6 | Makita 629514-6 DC Motor 7.2V for 6012D 6010D |
| 11 | 182381-5 | Makita 182381-5 HOUSING SET |
| 13 | 856859-1 | Makita 856859-1 NAME PLATE DA301D |
| 14 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 15 | 163157-9 | Makita 163157-9 SET PLATE |
| 16 | 191679-9 | |
| 17 | 221384-5 | Makita 221384-5 SPIRAL BEVEL GEAR 36 |
| 18 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 19 | 257106-7 | Makita 257106-7 RING 8 |
| 20 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 21 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
