Makita DA3010F
Makita DA3010F: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DA3010F: 46 positions on 1 sheet

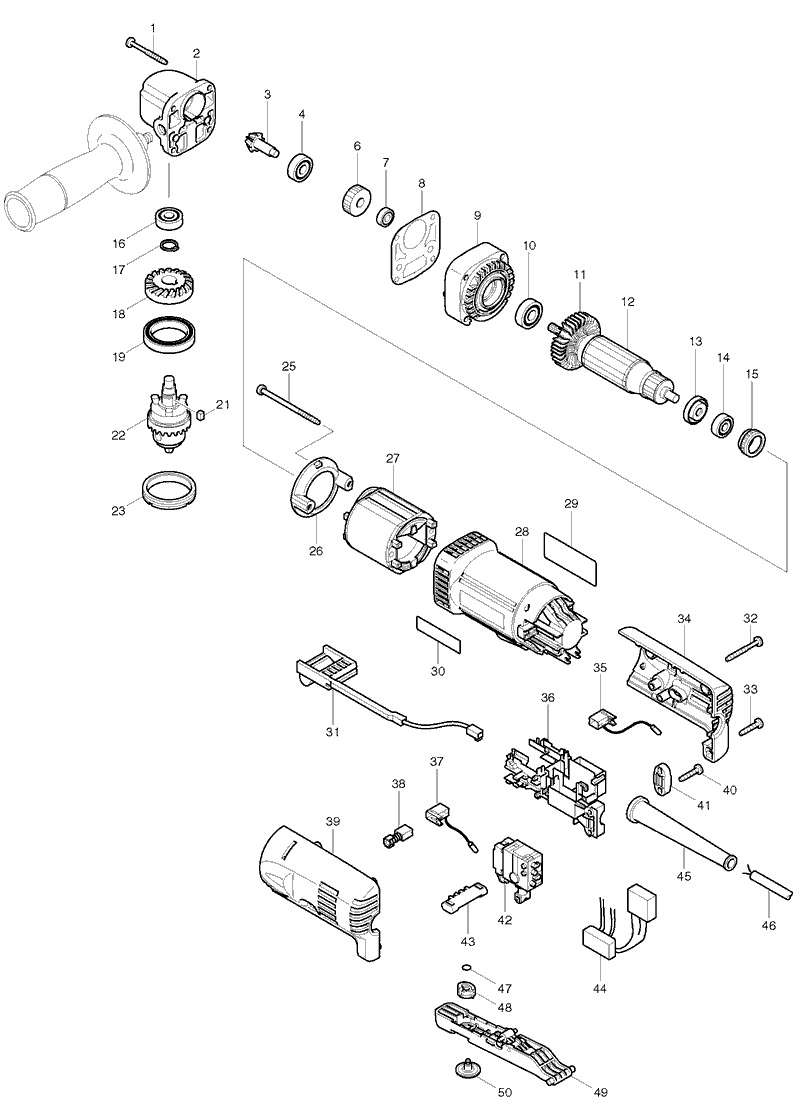

Sheet 1: Makita DA3010F parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 266048-4 | Makita 266048-4 TAPPING SCREW 4*40, HR2453 |
| 2 | 317635-3 | Makita 317635-3 GEAR HOUSING DA3010F |
| 3 | 227436-0 | Makita 227436-0 SPIRAL BEVEL GEAR 9 |
| 4 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 6 | 226567-2 | Makita 226567-2 HELICAL GEAR 10 |
| 7 | 210026-6 | Makita 210026-6 BALL BEARING 696ZZ |
| 8 | 418036-9 | Makita 418036-9 GASKET DA3010F |
| 9 | 418042-4 | Makita 418042-4 GEAR HOUSING COVER |
| 10 | 211051-0 | Makita 211051-0 BALL BEARING 609LLB, HR2412 |
| 12 | 517583-8 | Makita 517583-8 ARMATURE ASS'Y DA3010F |
| 13 | 681636-0 | Makita 681636-0 INSULATION WASHER, MT190 |
| 14 | 211021-9 | Makita 211021-9 BALL BEARING 607LLB, HR2412 |
| 15 | 421494-0 | Makita 421494-0 Labyrinthhian Rubber Ring 9, 4304Z |
| 16 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 17 | 961052-5 | Makita 961052-5 RETAINING RING S-12, 4100NH |
| 18 | 227437-8 | Makita 227437-8 SPIRAL BEVEL GEAR 26 FOR, DA3010F |
| 19 | 211419-0 | Makita 211419-0 BALL BEARING 6806DDW, DA3010F |
| 21 | 254201-4 | Makita 254201-4 KEY 4 |
| 22 | 763174-5 | Makita 763174-5 DRILLCHUCK 10MM, DA3010F, BULK |
| 23 | 285842-5 | Makita 285842-5 BEARING RETAINER 36-43 |
| 25 | 266315-7 | Makita 266315-7 TAPPING SCREW 4X65 |
| 26 | 418033-5 | Makita 418033-5 BAFFLE PLATE DA3010F |
| 27 | 635078-0 | Makita 635078-0 FIELD DA3010F |
| 28 | 183560-8 | Makita 183560-8 MOTOR HOUSING DA3010F |
| 29 | 850083-8 | Makita 850083-8 NAME PLATE DA3010F |
| 30 | 819063-3 | Makita 819063-3 MAKITA LOGO LABEL, 9523NB |
| 31 | 631516-0 | Makita 631516-0 LED CIRCUIT DA3010F |
| 32 | 266053-1 | Makita 266053-1 TAPPING SCREW 4*35, UB1101 |
| 33 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 34 | 183559-3 | |
| 35 | 643801-9 | Makita 643801-9 BRUSH HOLDER DA3010F |
| 36 | 687139-2 | Makita 687139-2 SUPPORT DA3010F |
| 37 | 643801-9 | Makita 643801-9 BRUSH HOLDER DA3010F |
| 38 | 191962-4 | Old code CB-419 = CB-407 |
| 39 | 183559-3 | |
| 40 | 265995-6 | Makita 265995-6 TAPPING SCREW 4X18, 4100NH |
| 41 | 687052-4 | Makita 687052-4 CORD CLAMP, 4100NH |
| 42 | 650539-9 | Makita 650539-9 Switch TG803BSA-1 dor DA3010 DA3010F DA3011 DA3011F |
| 43 | 418038-5 | Makita 418038-5 F/R CHANGE LEVER DA3010F |
| 44 | 631527-5 | Makita 631527-5 POWER SUPPLY CIRCUIT, DA3010F |
| 45 | 682559-5 | Makita 682559-5 CORD GUARD 8-110, 6826 |
| 46 | 665394-6 | Makita 665394-6 POWER S.CORD, 9553NB |
| 47 | 213034-6 | Makita 213034-6 O RING 3 DA3010F |
| 48 | 418040-8 | Makita 418040-8 CAM DA3010F |
| 49 | 153477-9 | Makita 153477-9 SWITCH LEVER COMPL, DA3010F |
| 50 | 418037-7 | Makita 418037-7 SPEED CHANGE LEVER, DA3010F |
