Makita DA3000D: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita DA3000D: 20 positions on 1 sheet

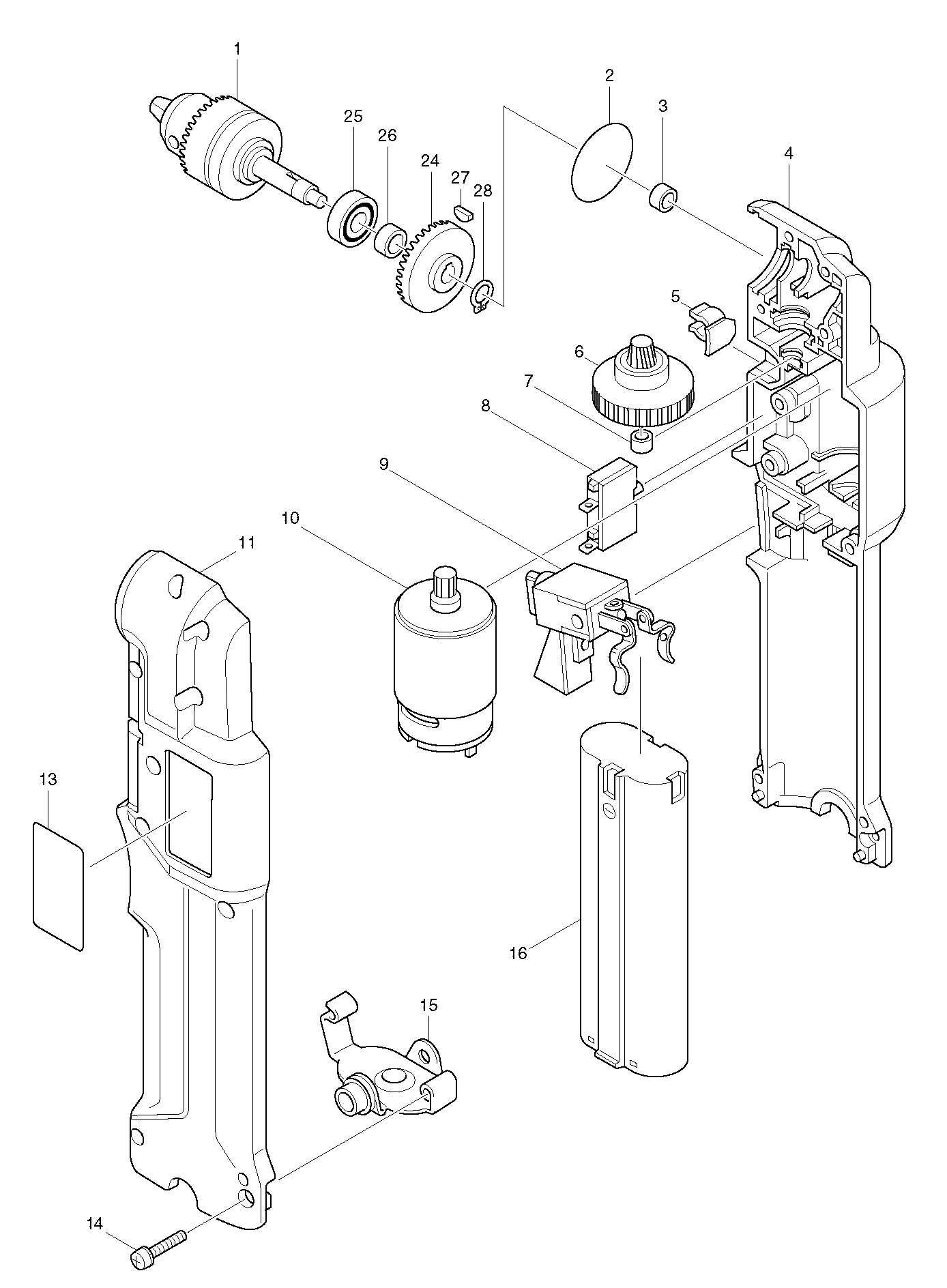

Sheet 1: Makita DA3000D parts diagram
| No. | Part number | Part name |
|---|---|---|
| 1 | 192885-9 | |
| 2 | 213458-6 | Makita 213458-6 O RING 34 |
| 3 | 214017-9 | Makita 214017-9 PLANE BEARING 5 |
| 4 | 182382-3 | Makita 182382-3 HOUSING SET |
| 5 | 411640-3 | Makita 411640-3 HOLDER 6 |
| 6 | 153153-5 | Makita 153153-5 GEAR COMPLETE |
| 7 | 214019-5 | Makita 214019-5 PLANE BEARING 4 |
| 8 | 652532-9 | Makita 652532-9 OVER CURRENT RELAY BC51 |
| 9 | 531027-4 | |
| 10 | 629514-6 | Makita 629514-6 DC Motor 7.2V for 6012D 6010D |
| 11 | 182382-3 | Makita 182382-3 HOUSING SET |
| 13 | 855062-1 | Makita 855062-1 NAME PLATE DA3000D |
| 14 | 911143-2 | Makita 911143-2 PAN HEAD SCREW M4X22 WR, 6223D |
| 15 | 163157-9 | Makita 163157-9 SET PLATE |
| 16 | 191679-9 | |
| 24 | 221384-5 | Makita 221384-5 SPIRAL BEVEL GEAR 36 |
| 25 | 211031-6 | Makita 211031-6 BALL BEARING 608LLB, LS0714 |
| 26 | 257106-7 | Makita 257106-7 RING 8 |
| 27 | 254031-3 | Makita 254031-3 WOODRUFF KEY 3 |
| 28 | 961004-6 | Makita 961004-6 RETAINING RING S-8 |
