Bosch CSW41

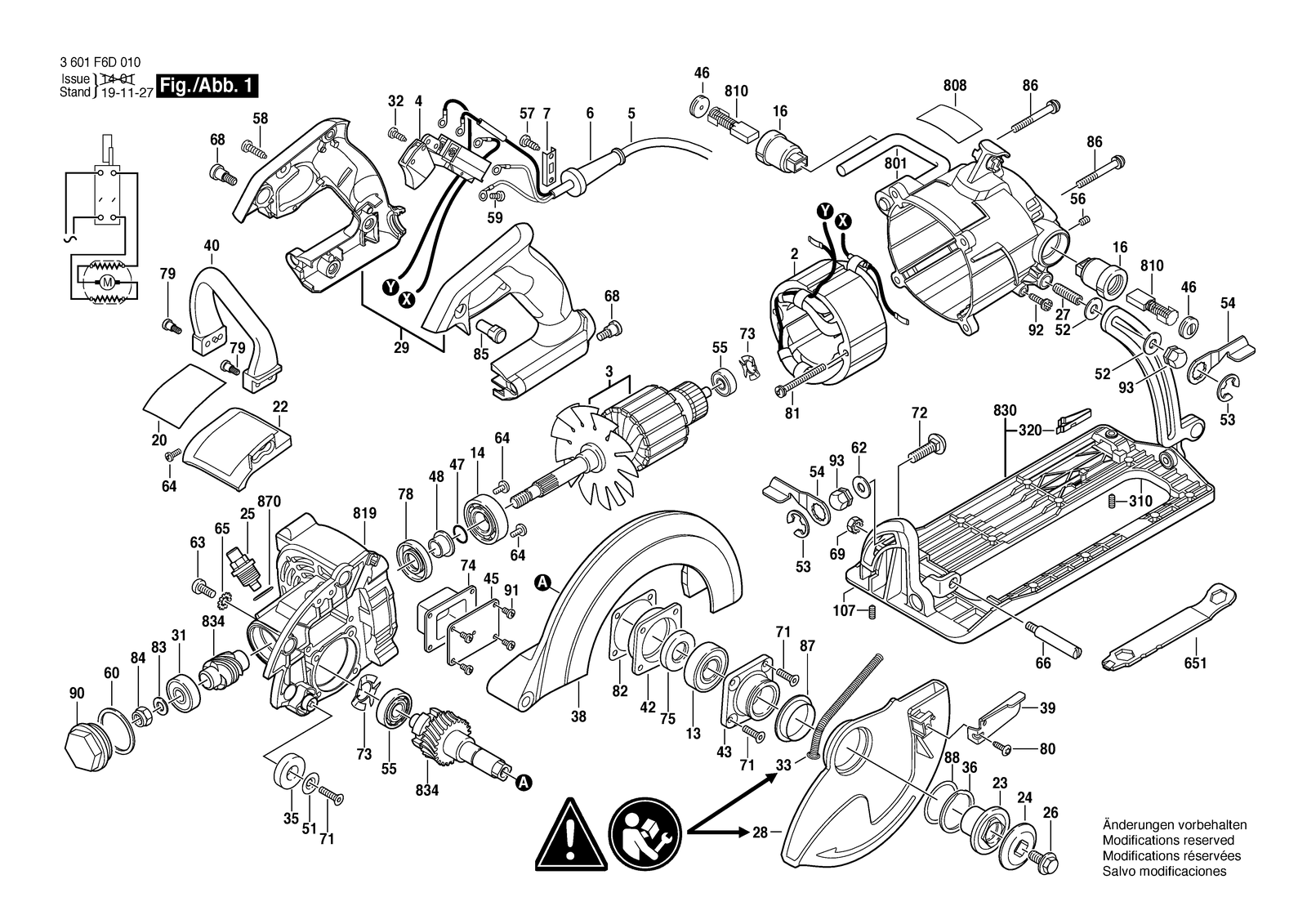

Bosch CSW41 circular saw: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CSW41: 80 positions on 1 sheet
Bosch CSW41 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 107 | 2610911889 | Set screw |
| 13 | 2610024748 | Ball Bearing |
| 14 | 1619X04676 | Ball Bearing |
| 16 | 1619X04708 | Brush Holder |
| 2 | 1619P08102 | Field 115V |
| 20 | 1619X08041 | Warning Plate |
| 22 | 1619X08715 | Hood |
| 23 | 1619X01249 | Washer |
| 24 | 1619X04683 | Washer |
| 25 | 1619X04684 | Oil Drain Plug |
| 26 | 1619X03643 | Collar bolt |
| 27 | 1619X01262 | Stud |
| 28 | 1619X04693 | Lower guard |
| 29 | 1619X07727 | Handle |
| 3 | 1619P08002 | Armature 115V |
| 31 | 2610017875 | Ball Bearing |
| 310 | 1619X04768 | Set screw |
| 32 | 2610901971 | Screw |
| 320 | 1619X04669 | Spring |
| 33 | 1619X04765 | Extension Spring |
| 35 | 2610319494 | End stop |
| 36 | 2610341359 | Spring retaining ring |
| 38 | 1619X07730 | Upper guard |
| 39 | 1619X07688 | Lever |
| 4 | 1619X08724 | Switch |
| 40 | 1619X08714 | Auxiliary Handle |
| 42 | 1619X01253 | Bearing Plate |
| 43 | 1619X01255 | Guard Plate |
| 45 | 1619X04783 | Cover |
| 46 | 1619X01268 | Device cap |
| 47 | 1619X04712 | O-Ring |
| 48 | 1619X04780 | Collar |
| 5 | 1619X08527 | Power supply cord |
| 51 | 2610004341 | Washer |
| 52 | 2610912616 | Washer |
| 53 | 2610968747 | Spring retaining ring |
| 54 | 1619X04719 | Locking Lever |
| 55 | 2610017348 | Groove ball bearing |
| 56 | 2610027039 | Set screw |
| 57 | 2610315299 | Screw |
| 58 | 2610315380 | Screw |
| 59 | 1619X03644 | Screw |
| 6 | 1619X08308 | Grommet |
| 60 | 1619X06222 | O-Ring |
| 62 | 1619X07724 | Washer |
| 63 | 2610329955 | Screw |
| 64 | 1619X01786 | Contact Screw |
| 65 | 2610306355 | Washer |
| 651 | 1619X04755 | Wrench Socket |
| 66 | 1619X01263 | Stud |
| 68 | 2610932332 | Screw |
| 69 | 1619X09155 | Lock Nut |
| 7 | 1619X04671 | Cable Clip |
| 71 | 2610027002 | Screw |
| 72 | 2610911837 | Bolt |
| 73 | 2610004459 | Spring Washer |
| 74 | 1619X01257 | Rubber Gasket |
| 75 | 1619X07731 | Seal |
| 78 | 1619X04740 | Seal |
| 79 | 1619X04738 | Screw |
| 80 | 1619X06749 | Screw |
| 801 | 1619X08036 | Motor Housing |
| 808 | 1619X08039 | Nameplate |
| 81 | 1619X04754 | Screw |
| 810 | 1619X07410 | Carbon-Brush Set |
| 819 | 1619X06299 | Gear Housing |
| 82 | 1619X01258 | Mat seal |
| 83 | 1619X05847 | Washer |
| 830 | 1619X08044 | Base Plate |
| 834 | 1619X07035 | Set Of Gears |
| 84 | 2610318324 | Nut |
| 85 | 1619X08712 | Special Nut |
| 86 | 1619X04746 | Screw |
| 87 | 1619X06242 | Bushing |
| 870 | 1616B10364 | O-Ring |
| 88 | 1619X06254 | Washer |
| 90 | 1619X05948 | Bearing Cover |
| 91 | 1619X06749 | Screw |
| 92 | 2610932218 | Screw |
| 93 | 1619X01283 | Nut |
