Bosch CSG15
Bosch CSG15 concrete grinder: exploded parts diagram, 2 sheets, 63 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

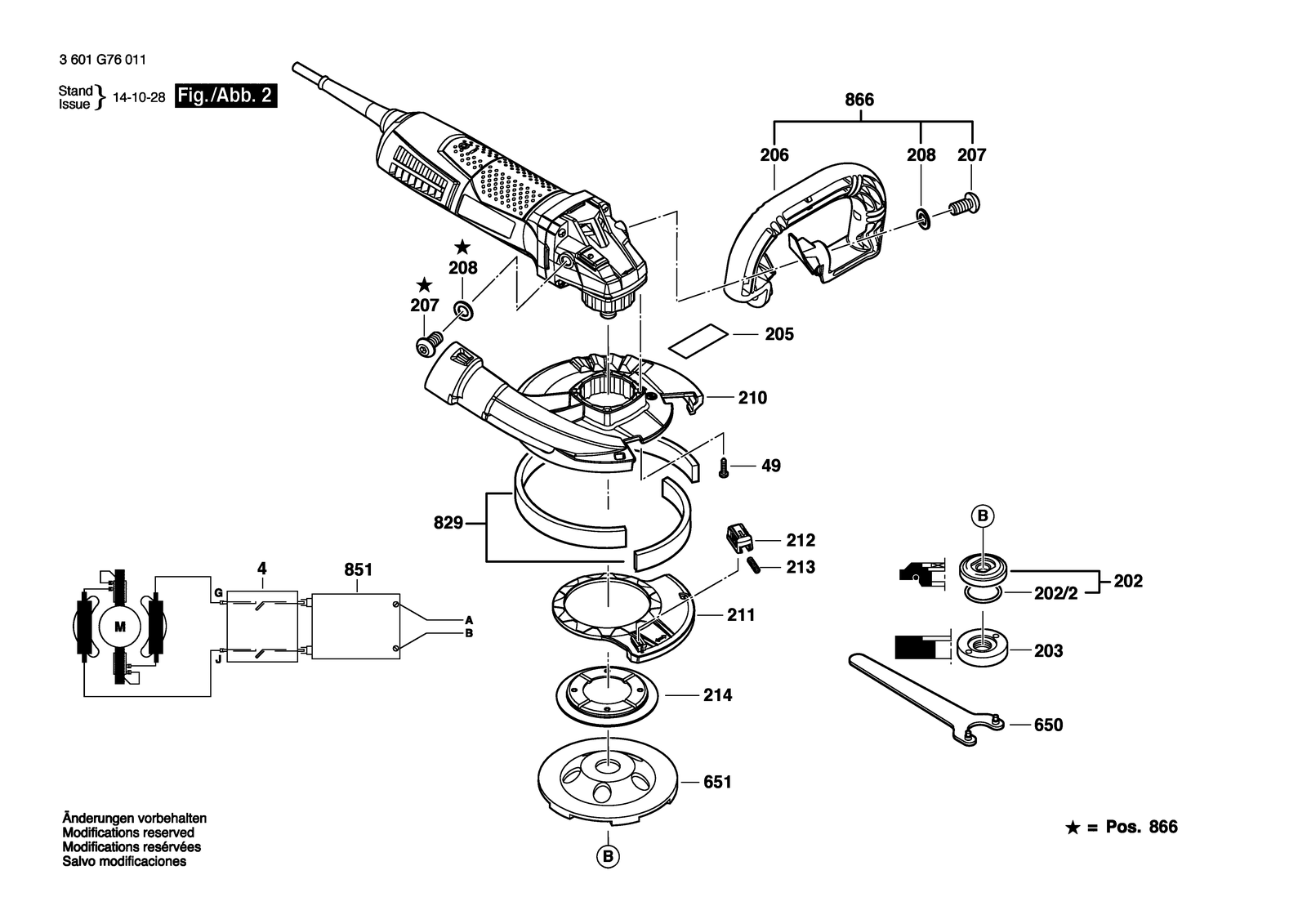

All parts of Bosch CSG15: 63 positions on 2 sheets
Bosch CSG15 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108283 | Motor Housing |
| 104 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 13 | 1610905025 | Groove ball bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 17 | 1604652021 | Spiral Spring |
| 18 | 1602026091 | Switch Handle |
| 19 | 1604611031 | Compression Spring |
| 2 | 1604220479 | Field 110-127V |
| 20 | 1602319026 | Adjusting Slide |
| 202 | 1605703140 | Clamping-Flange |
| 202/2 | 1600210055 | O-Ring 20,35X1,78 MM |
| 203 | 3603340503 | Round Nut 5/8" |
| 205 | 3601119236 | Reference Plate |
| 206 | 3602025029 | Handle |
| 207 | 1619P07611 | Hex Screw |
| 208 | 2916011017 | Plain Washer DIN 125-A10,5-ST |
| 210 | 3605510063 | Suction Hood |
| 211 | 3605500219 | Swivel Element |
| 212 | 3602305019 | Knob |
| 213 | 3604611042 | Compression Spring |
| 214 | 3600190040 | Metal Ring |
| 24 | 1605500274 | Cover |
| 25 | 1605500276 | Housing Cover |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1600591047 | Air-Deflector Ring |
| 30 | 1600591048 | Air Distributor |
| 31 | 1605500277 | Brush-Cover |
| 33 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 35 | 1600136013 | Shim Thick 0,1 MM |
| 35 | 1600136014 | Shim Thick 0,2 MM |
| 35 | 1600136015 | Shim Thick 0,3 MM |
| 35 | 1600136020 | Shim Thick 0,15 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 4 | 1607200256 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 48 | 1613435034 | Lens Head Screw 3X10 St |
| 49 | 3603435055 | Torx Oval-Head Screw |
| 5 | 1604460343 | Power supply cord |
| 50 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 53 | 1603435078 | Torx Oval-Head Screw |
| 55 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 6 | 1600703043 | Grommet |
| 650 | 3607950019 | Pin-Type Face-Wrench |
| 651 | 3608600014 | Diamond Cup Wheel |
| 7 | 1601302017 | Fastening Clamp |
| 80 | 1619P09390 | Cover Disc |
| 803 | 3607031858 | Armature With Fan 120V |
| 808 | 160111A5F6 | Nameplate |
| 810 | 1607000V61 | Carbon-Brush Set |
| 813 | 3607031751 | Groove ball bearing |
| 816 | 1607000V43 | Brush Holder |
| 818 | 1607000V42 | Pan head screw |
| 821 | 3607031752 | Gear Housing |
| 828 | 1607000D9E | Bearing Flange |
| 829 | 3607031875 | Strip brush |
| 835 | 1606610132 | Fan |
| 840 | 1607000V41 | Push-Button |
| 851 | 16072335JK | Speed governor |
| 866 | 3607031755 | Strap-Shaped Handle |
| 9 | 60829427SU | Manufacturer's nameplate CSG15 |
| 97 | 160111C0PA | Warning Plate |
