Bosch CSD 14

Bosch CSD 14 batt-oper screwdriver: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CSD 14: 18 positions on 1 sheet

Bosch CSD 14 parts list (1 sheet)

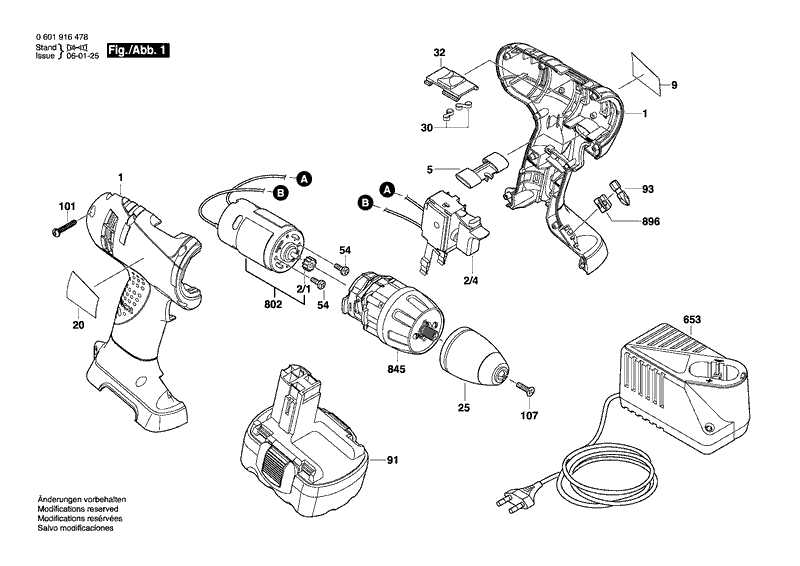

Bosch CSD 14 parts diagram, sheet 1
No.Part numberPart name
12605105086Housing Section Orange
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
2/12606316226Pinion
2/42607200481On-Off Switch
202601116771Manufacturer's nameplate
252608572201Keyless Chuck
302604690022Leaf Spring
322601099131Adjusting Slide Black
52601099130Adjusting Slide Black
542603414049Torx SH cap screw M4X8-4,8-Z
6532607224423Fast Charger AUS 240/7,2-14,4V, 1H
8022607022871DC motor 14,4V
8452606200945Planetary Gear Train
8962604690035Spring Element
92601116770Manufacturer's nameplate
912607335619Slide-In Accu Package 14,4V,2,0AH,NICD
932607000366Screwdriver Bit
