Bosch CSB 800-2 RE

Bosch CSB 800-2 RE percussion drill: exploded parts diagram, 1 sheet, 96 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CSB 800-2 RE: 96 positions on 1 sheet

Bosch CSB 800-2 RE parts list (1 sheet)

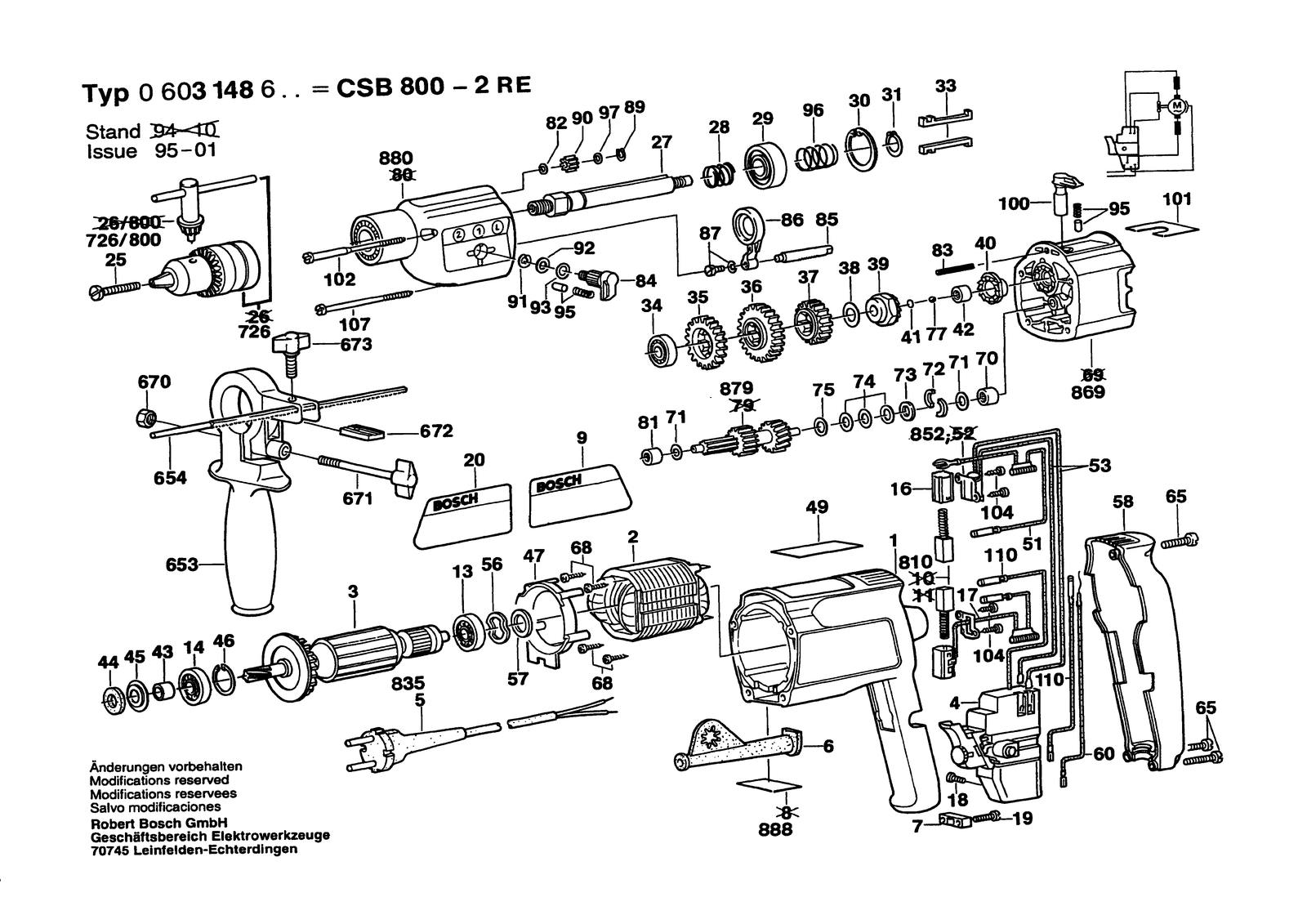

Bosch CSB 800-2 RE parts diagram, sheet 1
No.Part numberPart name
12605104281Motor Housing Green
1002602026017Rotary Knob
1012601110076Sticker Drill/impact Drill
1022603435012Tapping Screw 79 MM
1042603490017Torx Oval-Head Screw 3X10
1072603435019Headless Screw 74 MM
1102604448043Connecting Cable White L=193 MM
131900905018Ball Bearing 7X22X7
142600905021Groove ball bearing 9X24X7
162604330017Brush Holder
172604465062Suppressor Box
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
22604220436Field 220-240V
202601110631Sticker Shadow Side
252603421226Countersunk-Head Screw Lefthand Threads M6X27
272606135026Drilling Spindle 1/2"
282604616002Compression Spring
291900905163Groove ball bearing 17X35X10
32604010601Armature 230V
302916660014Spring retaining ring DIN 472 35X1,5 MM
312916650008Spring retaining ring DIN 471 17X1 MM
332602300027Flat Key
342600900006Groove ball bearing
352606317038Cylindrical Gear Z=43
362606317036Cylindrical Gear Z=48
372606317037Cylindrical Gear Z=36
382600101616Shim 0,5 MM
382600101617Shim 0,3 MM
392600190052Catch Disk
42607200152On-Off Switch
402600190051Catch Disk
412600000012Shim washer 0,2 MM
412600000014Shim washer 0,5 MM
422600917003Needle-Roller Bearing Ø8X8 MM
432600400008Receptacle
442600108077Felt Washer
452600500002Cupped Washer
462916660008Spring retaining ring DIN 472-24X1,2 MM
472601328032Cover Disc
492601110292Sticker
52604460124Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F
52604460125Power supply cord CH 2,65M 2 X 1,0MM H05VV-F
52604460280Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F
53607030489Power supply cord
512604465091Suppressor Box
532604448055Connecting Cable
562600150004Shim
572600101020Shim 0,5 MM
572600101022Shim 0,2 MM
572600101023Shim 0,3 MM
582605132045Housing Cover Black
62600707059Grommet Ø6,9 MM
62600707060Grommet Ø11,6-Ø12,5X84 MM
602604448010Earth Conductor White Ø0,35 MM
652603490023Torx Oval-Head Screw 4X20
6531619PB4323Auxiliary Handle
6541613001005Depth-Gauge SW 6X210 MM
6702915011007Hex Nut DIN 934-M6-8-A
6711613480007Wing Screw M6X(15)55
6722608040014Clamping Plate M6
6731613480008Wing Screw M6X20 MM
682603435086Tapping Screw
72601035001Cable Clip
702600914010Needle-Roller Bearing Ø6 MM
712600100607Shim 0,3 MM
722600116001Locking washer
7261608571069Chuck Ø1,5-13 Mm, 1/2"
726/8002607950007Chuck Wrench SG2
732600114001Supporting Disc
742600550008Disc Spring
752600100682Shim 0,5 MM
752600100683Shim 0,3 MM
752600100684Shim 0,2 MM
771903230010Ball DIN 5401-5,5MM-III-ST
8102604321907Carbon-Brush Set
822600101654Shim 0,3 MM
832917780105Slotted Spring Pin 4X30 MM DIN 7346
8351607000227Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F
842602026034Rotary Knob
852603070014Toothed rack
8522607233000Rot.-Speed Sensor 230V
862602033003Fork Lever
8692605700939Intermediate Flange
872914501011Screw and washer assembly DIN7985-M3X6-Z1-4.8
8792606309907Overload Clutch
8802605806988Gear Housing Green
888160111A3H3Nameplate
892916640005Spring retaining ring DIN 471-8X0,8 Fst
92601110610Sticker
902606317039Cylindrical Gear Z=15
912916080910Locking washer DIN 6799-7-FST
922600101612Shim 0,5 MM
931600210024O-Ring 12,0X1,0 MM
952600590006Ratchet Cap
972600150018Shim
