Bosch CSB 620-2 E combi 2-sp.impact drill-e: exploded parts diagram, 1 sheet, 99 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch CSB 620-2 E: 99 positions on 1 sheet

Bosch CSB 620-2 E parts list (1 sheet)

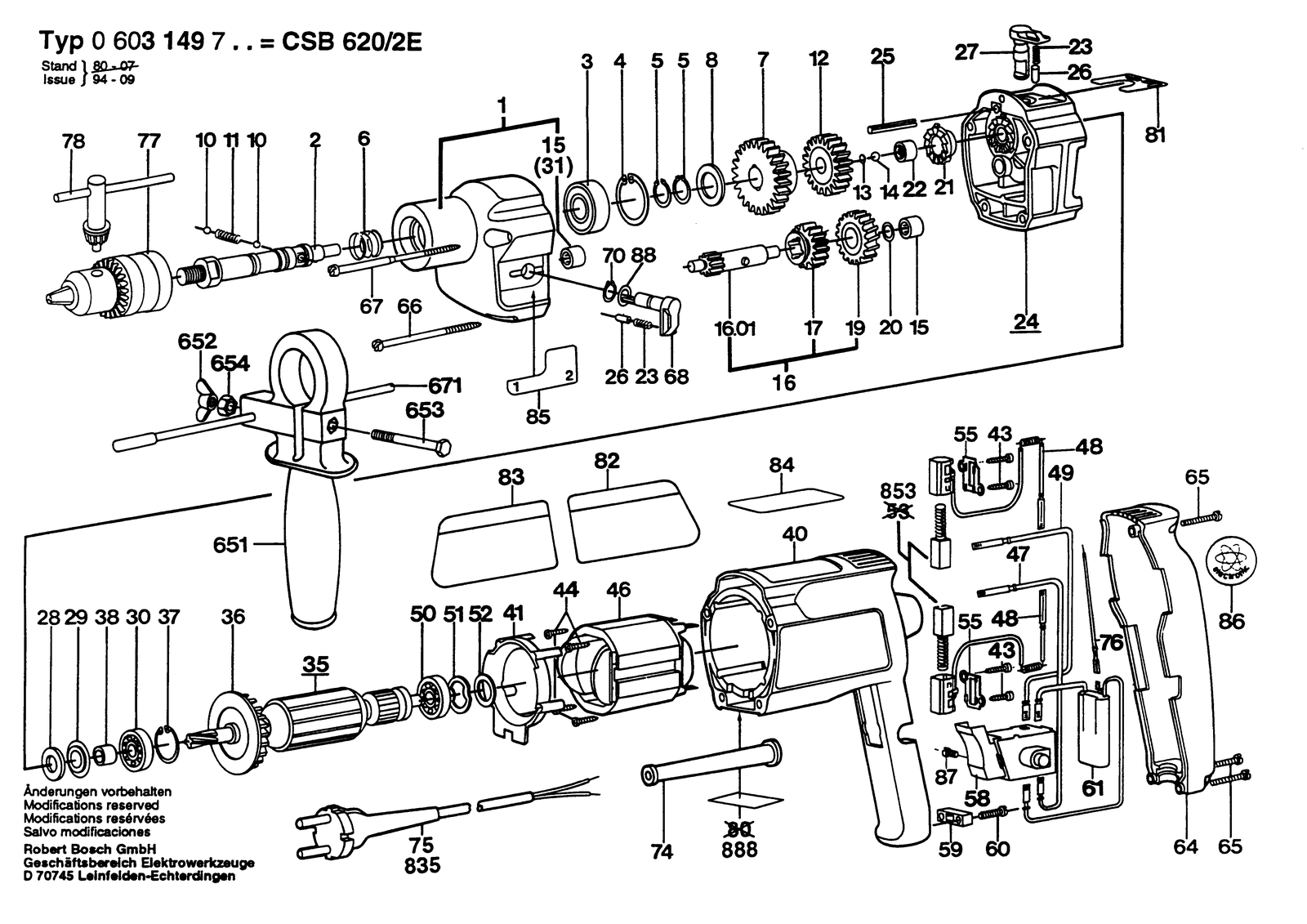

Bosch CSB 620-2 E parts diagram, sheet 1
No.Part numberPart name
12605806951Gear Housing
12605806959Gear Housing
101903230007Ball DIN 5401-4 Mm-Iii-St
112604610007Compression Spring
122606317025Cylindrical Gear Z=36
132600000012Shim washer 0,2 MM
132600000013Shim washer 0,3 MM
132600000014Shim washer 0,5 MM
132600000018Shim washer 0,1 MM
141903230010Ball DIN 5401-5,5MM-III-ST
152600914010Needle-Roller Bearing Ø6 MM
162606309004Toothed Shaft Z=10
162606309902Spindle With Gear Z=10/22/21
172606317026Cylindrical Gear Z=22
192606320006Cylindrical Gear Z=21
22606135001Drilling Spindle 1/2"-UNF-2
212606490031Locating Washer
222600917003Needle-Roller Bearing Ø8X8 MM
232600590006Ratchet Cap
242605700928Flanged Bearing
252917780105Slotted Spring Pin 4X30 MM DIN 7346
262600590006Ratchet Cap
272602026017Rotary Knob
282600108077Felt Washer
292600500002Cupped Washer
32600905014Groove ball bearing 15X32X9
302600905021Groove ball bearing 9X24X7
312600914017Needle bearing Ø6/12 MM
352604010671Armature 230-240V
362606610049Fan
372916660008Spring retaining ring DIN 472-24X1,2 MM
382600400008Receptacle
42916660013Retaining clip DIN 472-32X1,2 MM
402605104108Motor Housing Green
402605104146Motor Housing Blue
412601328032Cover Disc
432603490017Torx Oval-Head Screw 3X10
442603435086Tapping Screw
461604220254Field 220-240V
462604220491Field 220-230V
472604448005Cable White L=130 MM
482604337003Brush Holder
482604448100Connecting Cable White L=68 MM
482604449030Brush Holder
482604465062Suppressor Box
492604448004Connecting Cable White L=176 MM
52916650006Retaining clip DIN 471-15X1-FST
501900905018Ball Bearing 7X22X7
512600150004Shim
522600101020Shim 0,5 MM
522600101022Shim 0,2 MM
522600101023Shim 0,3 MM
552601015047Brush Plate
582607200173On-Off Switch
582607200211Switch
592601035001Cable Clip
62604617000Compression Spring
602910211019Tapping Screw DIN 7971-ST3,9X16-F
612607329096Suppression Filter
642605132039Housing Cover Green
642605132046Housing Cover Blue
652910211021Tapping Screw DIN 7971-ST3,9X22-F
6512602025094Auxiliary Handle
6522915191006Wing Nut M6 DIN 315-G-GTW-40
6532911011211Hex Screw DIN 931-M6X45-8.8
6532911011220Hex Screw DIN 931-M6X75-8.8
6542601098001Conical Spring Washer
662603435071Headless Screw 65 MM
672603435012Tapping Screw 79 MM
682602026018Rotary Knob
72606317014Cylindrical Gear Z=48
702916650001Spring retaining ring DIN 471-10X1MM-FST
742600707059Grommet Ø6,9 MM
742600707060Grommet Ø11,6-Ø12,5X84 MM
742600707061Grommet Ø8,8 MM
752604460053Elec. Cable W/Connection CH 2,65M 2 X 1,0MM H05 Vv-F
752604460061Power supply cord AUS 2,6M 2 X 0,75MM Pvc
753604460069Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
762604448003Cable
771608571055Key Chuck Ø1,5-13 Mm, 1/2"
771608571069Chuck Ø1,5-13 Mm, 1/2"
782607950007Chuck Wrench SG2
82600101515Shim 1,0 MM
812601110076Sticker Drill/impact Drill
822601110227Sticker Sunny Side
822601110628Sticker
822601110662Sticker Sunny Side
832601110226Sticker Sunny Side
832601110653Sticker
8351607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
842601110117Sticker
852601110072Sticker 1 - 2 Gear Shift
8532604321905Carbon-Brush Set
862601110041Reference Plate Yellow
872603410001Socket head cap screw M3X6,5-4.8
882600100575Shim 0,2 MM
882600100576Shim 0,3 MM
882600100577Shim 0,5 MM
888160111A3H3Nameplate
